makVrv::DtAttachableUpdater Class Reference

A DtAttachableUpdater updates a scene an object that can be positioned in the scene by (possibly) attaching it to one or more other scene objects. Note that this is not a DtSceneObjectUpdater; It can't be linked to other DtSceneObjectUpdaters.

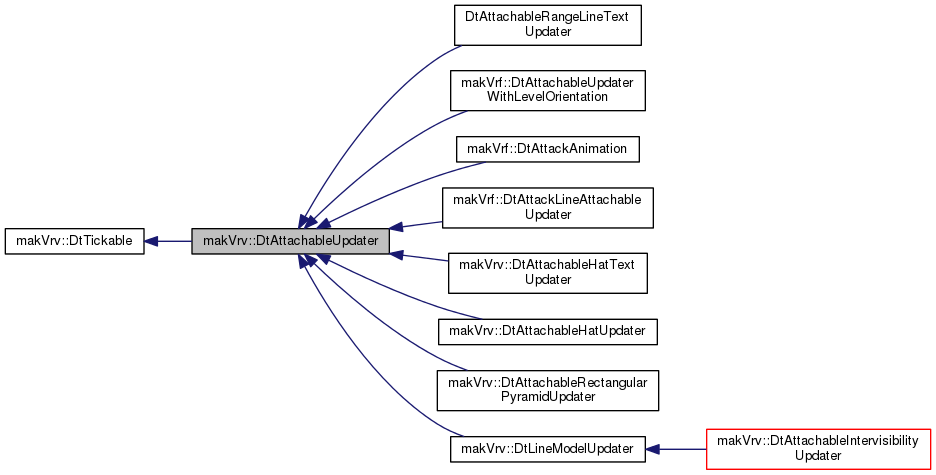

Inheritance diagram for makVrv::DtAttachableUpdater:

Classes
class	AttachedPoint
class	LinearAttachedPoint
class	ObjectAttachedPoint
class	VertexAttachedPoint

Public Types
enum	AttachedPointType {   AttachedPointTypeVertex, AttachedPointTypeObject, AttachedPointTypeProportional, AttachedPointTypeDeprecatedObject,   AttachedPointTypeInvalidObject }
enum	AttachedPointMode { AttachedPointModePositionAndOrientation, AttachedPointModePositionOnly, AttachedPointModeOrientationOnly }
Public Types inherited from makVrv::DtTickable
enum	TickableListState { TickableNotOnList, TickableOnMainList, TickableOnThreadSafeList }

Public Member Functions
	DtAttachableUpdater (DtDe &de, DtUniqueID id)
virtual	~DtAttachableUpdater ()
virtual bool	needsUpdate (DtTime tNow)
virtual void	addAttachedPoint (const DtVector &position, int targetVertexIndex)
virtual void	addAttachedPoint (DtUniqueID uniqueID, int targetVertexIndex)
virtual void	addAttachedPoint (DtUniqueID uniqueID, int vtx1, int vtx2, double proportion, int targetVertexIndex)
virtual const AttachedPoint &	attachedPoint (int targetVertexIndex) const
virtual void	setPositionOffset (const DtVector &offset)
virtual void	setWorldPositionOffset (const DtVector &offset)
virtual void	setPositionOffset (const DtVector &offset, int vtx)
virtual void	setOrientationOffset (const DtTaitBryan &offset)
virtual void	setWorldOrientationOffset (const DtTaitBryan &offset)
virtual void	setAttachedPointMode (unsigned int mode, int vtx)
virtual void	update (DtTime tNow)
virtual void	setSceneObject (DtSceneObject *sceneObject)
virtual void	doAttachment (DtTime tNow)
DtTime	lastUpdateTime () const
Public Member Functions inherited from makVrv::DtTickable
virtual bool	updateIfNeeded (DtTime tNow)
virtual	~DtTickable ()
virtual void	setIsThreadSafe (bool safe)
virtual bool	isThreadSafe () const
virtual void	setTickableListState (TickableListState safeList)
virtual TickableListState	tickableListState () const
virtual void	setUpdatePeriod (unsigned int period)
virtual unsigned int	updatePeriod () const
virtual bool	lodSystemEnabled () const

Protected Types
typedef std::vector < AttachedPoint * >	AttachedPointsVector

Protected Member Functions
virtual bool	pointLocationAndOrientation (AttachedPoint *point, double simTime, DtVector &location, DtTaitBryan &orientation)
virtual void	removeAttachedPoint (int vtx, DtVector *positionOffset=0)
Slots
virtual void	slot_sceneObjectToBeDeleted (const DtUniqueID &id)
virtual void	slot_attachedSceneObjectToBeDeleted (const DtUniqueID &)
virtual void	slot_attachedUpdaterToBeDeleted (const DtUniqueID &id)
Protected Member Functions inherited from makVrv::DtTickable
	DtTickable (DtTickableManagerInterface *manager)
	DtTickable ()
virtual void	slot_managerAboutToBeDeleted ()

Protected Attributes
DtDe &	myDe
DtUniqueID	myUniqueId
DtSceneObject *	mySceneObject
boost::signalslib::connection	mySceneObjectConnection
boost::signalslib::connection	mySceneObjectUpdaterConnection
DtTime	myLastUpdateTime
AttachedPointsVector	myAttachedPoints
DtVector	myPositionOffset
DtTaitBryan	myOrientationOffset
DtVector	myWorldPositionOffset
DtTaitBryan	myWorldOrientationOffset
DtUniqueID	mySceneObjectId
Protected Attributes inherited from makVrv::DtTickable
DtTickableManagerInterface *	myManager
DtSignalConnectionManager	myConnections
unsigned int	myFrameCounter
unsigned int	myFrameToUpdate
unsigned int	myUpdatePeriod
DtTime	myLastUpdateTime
bool	myIsThreadSafe
TickableListState	myTickableListState

Member Typedef Documentation

typedef std::vector<AttachedPoint*> makVrv::DtAttachableUpdater::AttachedPointsVector

protected

Member Enumeration Documentation

enum makVrv::DtAttachableUpdater::AttachedPointType

Types of attachments.

Enumerator
AttachedPointTypeVertex
AttachedPointTypeObject
AttachedPointTypeProportional
AttachedPointTypeDeprecatedObject
AttachedPointTypeInvalidObject

enum makVrv::DtAttachableUpdater::AttachedPointMode

Enumerator
AttachedPointModePositionAndOrientation
AttachedPointModePositionOnly
AttachedPointModeOrientationOnly

Constructor & Destructor Documentation

makVrv::DtAttachableUpdater::DtAttachableUpdater	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtAttachableUpdater::~DtAttachableUpdater ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrv::DtAttachableUpdater::needsUpdate ( DtTime  tNow )

virtual

Does this updater need to update?

Reimplemented from makVrv::DtTickable.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint ( const DtVector &  position, int  targetVertexIndex  )

virtual

Add a (vertex) attach point. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint ( DtUniqueID  uniqueID, int  targetVertexIndex  )

virtual

Add a (object) attach point. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint ( DtUniqueID  uniqueID, int  vtx1, int  vtx2, double  proportion, int  targetVertexIndex  )

virtual

Add a (linear) attach point. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual const AttachedPoint& makVrv::DtAttachableUpdater::attachedPoint ( int  targetVertexIndex ) const

virtual

Returns the attached point at the given vertex. This method returns a copy of the current state of the attached point. If an attached point with the given index could not be found, this method returns an AttachedPoint with type AttachedPointTypeInvalidObject.

virtual void makVrv::DtAttachableUpdater::setPositionOffset ( const DtVector &  offset )

virtual

positionally offset the attach points by this amount. This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setWorldPositionOffset ( const DtVector &  offset )

virtual

positionally offset the specific attach point by this amount in world (database) coordinates. Will be used in conjunction with the overall position offset

virtual void makVrv::DtAttachableUpdater::setPositionOffset ( const DtVector &  offset, int  vtx  )

virtual

positionally offset the specific attach point by this amount. This is in the coordinate system of the object attached to. Will be used in conjunction with the overall position offset

virtual void makVrv::DtAttachableUpdater::setOrientationOffset ( const DtTaitBryan &  offset )

virtual

rotationally offset the attach points by this amount. This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setWorldOrientationOffset ( const DtTaitBryan &  offset )

virtual

rotationally offset the attach points by this amount in world (database) coordinates

virtual void makVrv::DtAttachableUpdater::setAttachedPointMode ( unsigned int  mode, int  vtx  )

virtual

Set whether an attached point updates position, orientation, or both.

virtual void makVrv::DtAttachableUpdater::update ( DtTime  tNow )

virtual

Calls doAttachment()

Implements makVrv::DtTickable.

Reimplemented in makVrv::DtAttachableEntityFanUpdater, makVrv::DtLineModelUpdater, makVrv::DtAttachableIntervisibilityUpdater, and makVrf::DtVrfAttachableEntityFanUpdater.

virtual void makVrv::DtAttachableUpdater::setSceneObject ( DtSceneObject *  sceneObject )

virtual

Set the scene object to be updated.

Parameters

[in]

sceneObject

is the scene object to receive updates.

Reimplemented in makVrv::DtLineModelUpdater.

virtual void makVrv::DtAttachableUpdater::doAttachment ( DtTime  tNow )

virtual

Find the actual position and orientation based on the attach points and offsets.

DtTime makVrv::DtAttachableUpdater::lastUpdateTime ( ) const

inline

virtual void makVrv::DtAttachableUpdater::slot_sceneObjectToBeDeleted ( const DtUniqueID &  id )

protectedvirtual

Reimplemented in makVrf::DtAttackLineAttachableUpdater.

virtual void makVrv::DtAttachableUpdater::slot_attachedSceneObjectToBeDeleted ( const DtUniqueID &  )

protectedvirtual

virtual void makVrv::DtAttachableUpdater::slot_attachedUpdaterToBeDeleted ( const DtUniqueID &  id )

protectedvirtual

virtual bool makVrv::DtAttachableUpdater::pointLocationAndOrientation ( AttachedPoint *  point, double  simTime, DtVector &  location, DtTaitBryan &  orientation  )

protectedvirtual

virtual void makVrv::DtAttachableUpdater::removeAttachedPoint ( int  vtx, DtVector *  positionOffset = 0  )

protectedvirtual

Returns current position offset in supplied pointer.

Member Data Documentation

DtDe& makVrv::DtAttachableUpdater::myDe

protected

The display engine.

DtUniqueID makVrv::DtAttachableUpdater::myUniqueId

protected

This distributed object's unique identifier.

DtSceneObject* makVrv::DtAttachableUpdater::mySceneObject

protected

A pointer to the current scene object being updated.

boost::signalslib::connection makVrv::DtAttachableUpdater::mySceneObjectConnection

protected

boost::signalslib::connection makVrv::DtAttachableUpdater::mySceneObjectUpdaterConnection

protected

DtTime makVrv::DtAttachableUpdater::myLastUpdateTime

protected

The last time stamp when the update()

AttachedPointsVector makVrv::DtAttachableUpdater::myAttachedPoints

protected

DtVector makVrv::DtAttachableUpdater::myPositionOffset

protected

DtTaitBryan makVrv::DtAttachableUpdater::myOrientationOffset

protected

DtVector makVrv::DtAttachableUpdater::myWorldPositionOffset

protected

DtTaitBryan makVrv::DtAttachableUpdater::myWorldOrientationOffset

protected

DtUniqueID makVrv::DtAttachableUpdater::mySceneObjectId

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtAttachableUpdater.h
