makVrv::DtChannel Class Reference

The abstract Channel Class.

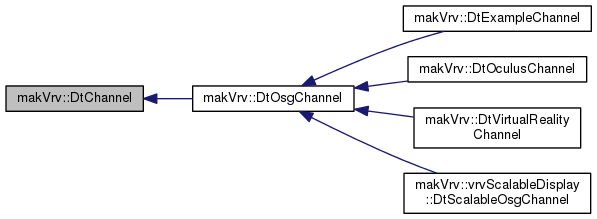

Inheritance diagram for makVrv::DtChannel:

Public Member Functions
virtual	~DtChannel ()
DtObserverObject *	findObserver () const
unsigned int	currentModelSet () const
virtual void	setClearColor (float r, float g, float b, float a)=0
virtual void	setViewport (int x, int y, int width, int height)=0
virtual void	getViewport (int &x, int &y, int &width, int &height) const =0
virtual void	setWindow (DtWindow *)=0
virtual void	setCameraPosition (double x, double y, double z)=0
virtual const DtWindow *	window () const =0
virtual void	setChannelEnabled (bool enabled, bool partial=false)=0
virtual bool	channelEnabled () const =0
virtual void	update ()=0
const DtChannelConfiguration &	configuration () const
virtual void	updateProjection ()=0
virtual void	setObserverName (const std::string &observerName)
virtual void	setSensorName (const std::string &sensorName)=0
virtual void	setProjectionResizePolicy (DtChannelConfiguration::ProjectionResizePolicy policy)
virtual DtChannelConfiguration::ProjectionResizePolicy	projectionResizePolicy () const
virtual bool	processMouseEvent (const DtMouseEvent &ev)=0
virtual bool	processKeyboardEvent (const DtKeyEvent &ev)=0
virtual void	projectToScreen (double dbX, double dbY, double dbZ, double &screenX, double &screenY, double &screenZ)=0
virtual void	projectToWorld (double screenX, double screenY, double &dbX, double &dbY, double &dbZ)=0
virtual DtIntersectorResult	findWorldIntersection (double screenX, double screenY, DtIntersector::IntersectProperties properties=DtIntersector::AllNodes, std::vector< DtElementID > *ignoreList=0)=0
virtual void	moveMouseToScreenLocation (float pixelX, float pixelY)=0
std::string &	observerName ()
virtual void	screenCapture ()=0
virtual void	updateCameraFrustumPlanes (std::vector< DtVector4< double > > &planes)=0
virtual void	updateAcquisitionBoxFrustumPlanes (const int &boxCenterX, const int &boxCenterY, const int &boxWidth, const int &boxHeight, std::vector< DtVector4< double > > &planes)=0

Protected Member Functions
	DtChannel (DtDe &de, DtChannelConfiguration &)
virtual void	connectToObserver ()=0
virtual void	observerAdded (const std::string &observerName)
virtual void	observerRemoved (const std::string &observerName)

Protected Attributes
DtDe &	myDe
DtChannelConfiguration &	myChannelConfiguration
DtSignalConnectionManager	myConnections
int	myModelSet
DtObserverObject *	myObserver
std::string	myObserverName
DtChannelConfiguration::ProjectionResizePolicy	myProjectionResizePolicy

Private Member Functions
	DtChannel ()
	DtChannel (const DtChannel &)
DtChannel &	operator= (const DtChannel &)

Constructor & Destructor Documentation

makVrv::DtChannel::DtChannel ( DtDe &  de, DtChannelConfiguration &    )

protected

The constructor for an abstract class is not public.

virtual makVrv::DtChannel::~DtChannel ( )

virtual

DTOR.

makVrv::DtChannel::DtChannel ( )

private

Default Constructor not implemented.

makVrv::DtChannel::DtChannel ( const DtChannel &  )

private

Copy Constructor not implemented - Copy not allowed.

Member Function Documentation

DtObserverObject* makVrv::DtChannel::findObserver

(

)

const

Attempt to get the observer for the channel.

unsigned int makVrv::DtChannel::currentModelSet

(

)

const

Get the current model set.

virtual void makVrv::DtChannel::setClearColor ( float  r, float  g, float  b, float  a  )

pure virtual

Set the clear color of the channel.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setViewport ( int  x, int  y, int  width, int  height  )

pure virtual

Set the viewport of the channel.

Implemented in makVrv::DtOsgChannel, and makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtChannel::getViewport ( int &  x, int &  y, int &  width, int &  height  ) const

pure virtual

Get the viewport.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setWindow ( DtWindow *  )

pure virtual

Set the window the channel is displayed on.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setCameraPosition ( double  x, double  y, double  z  )

pure virtual

Set the channel's camera position.

Implemented in makVrv::DtOsgChannel.

virtual const DtWindow* makVrv::DtChannel::window ( ) const

pure virtual

Get the window the channel is displayed on.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setChannelEnabled ( bool  enabled, bool  partial = false  )

pure virtual

Enable/Disable the channel. When a channel is disabled, it no longer renders and receives key/mouse events.

Implemented in makVrv::DtOsgChannel.

virtual bool makVrv::DtChannel::channelEnabled ( ) const

pure virtual

Enable/Disable the channel. When a channel is disabled, it no longer renders or receives key/mouse events.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::update ( )

pure virtual

Update a channel.

Implemented in makVrv::DtOsgChannel, and makVrv::DtOculusChannel.

const DtChannelConfiguration& makVrv::DtChannel::configuration

(

)

const

Get the configuration.

virtual void makVrv::DtChannel::updateProjection ( )

pure virtual

This method is called when ever the channel's projection matrix needs to be updated.

Implemented in makVrv::DtOsgChannel, makVrv::DtVirtualRealityChannel, makVrv::DtOculusChannel, and makVrv::vrvScalableDisplay::DtScalableOsgChannel.

virtual void makVrv::DtChannel::setObserverName ( const std::string &  observerName )

virtual

set the name of the observer to use, and attempt to connect

virtual void makVrv::DtChannel::setSensorName ( const std::string &  sensorName )

pure virtual

Set the name of the sensor to use.

The special name defined by DtChannelManager::UseObserverSensor causes the channel to use the sensor specified by its observer

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setProjectionResizePolicy ( DtChannelConfiguration::ProjectionResizePolicy  policy )

virtual

Set the policy used to determine if and how the projection matrix should be adjusted on window resizes. */.

Reimplemented in makVrv::DtOsgChannel.

virtual DtChannelConfiguration::ProjectionResizePolicy makVrv::DtChannel::projectionResizePolicy ( ) const

virtual

Get the policy used to determine if and how the projection matrix should be adjusted on window resizes. */.

virtual bool makVrv::DtChannel::processMouseEvent ( const DtMouseEvent &  ev )

pure virtual

attempt to handle a mouse event with the channel's overlay

Implemented in makVrv::DtOsgChannel.

virtual bool makVrv::DtChannel::processKeyboardEvent ( const DtKeyEvent &  ev )

pure virtual

attempt to handle a keyboard event with the channel's overlay

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::projectToScreen ( double  dbX, double  dbY, double  dbZ, double &  screenX, double &  screenY, double &  screenZ  )

pure virtual

project the given local (Or database) coordinates into screen coordinates

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::projectToWorld ( double  screenX, double  screenY, double &  dbX, double &  dbY, double &  dbZ  )

pure virtual

project the local database coordinates given screen coordinates

Implemented in makVrv::DtOsgChannel.

virtual DtIntersectorResult makVrv::DtChannel::findWorldIntersection ( double  screenX, double  screenY, DtIntersector::IntersectProperties  properties = DtIntersector::AllNodes, std::vector< DtElementID > *  ignoreList = 0  )

pure virtual

project the non-normalized screen coordinates, i.e. in pixels, and intersects the world

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::moveMouseToScreenLocation ( float  pixelX, float  pixelY  )

pure virtual

Places the mouse cursor at the specified x/y position on the screen.

Implemented in makVrv::DtOsgChannel.

std::string& makVrv::DtChannel::observerName

(

)

Retrieve the observer name for this channel.

virtual void makVrv::DtChannel::screenCapture ( )

pure virtual

Takes Screen capture of the current channel.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::updateCameraFrustumPlanes ( std::vector< DtVector4< double > > &  planes )

pure virtual

Set the Frustum planes for this channel, called from DtOsgChannel.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::updateAcquisitionBoxFrustumPlanes ( const int &  boxCenterX, const int &  boxCenterY, const int &  boxWidth, const int &  boxHeight, std::vector< DtVector4< double > > &  planes  )

pure virtual

Set the frustum planes for a subset of this channel, called from DtOsgChannel Scales the channels projection values based on the box's values that are passed in.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::connectToObserver ( )

protectedpure virtual

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::observerAdded ( const std::string &  observerName )

protectedvirtual

connected to the signal_observerAdded so the channel can connect to the correct observer when it is added

virtual void makVrv::DtChannel::observerRemoved ( const std::string &  observerName )

protectedvirtual

connected to the signal_observerRemoved so the channel can disconnect from the observer when it is removed.

Reimplemented in makVrv::DtOsgChannel.

DtChannel& makVrv::DtChannel::operator= ( const DtChannel &  )

private

Assignment Operator not implemented - Copy not allowed.

Member Data Documentation

DtDe& makVrv::DtChannel::myDe

protected

DtChannelConfiguration& makVrv::DtChannel::myChannelConfiguration

protected

DtSignalConnectionManager makVrv::DtChannel::myConnections

protected

int makVrv::DtChannel::myModelSet

protected

DtObserverObject* makVrv::DtChannel::myObserver

protected

std::string makVrv::DtChannel::myObserverName

protected

DtChannelConfiguration::ProjectionResizePolicy makVrv::DtChannel::myProjectionResizePolicy

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtChannel.h
