makVrv::DtEntityElement Class Reference

A single entity element. An entity element may be visualized using multiple visualizer sets one per model set.

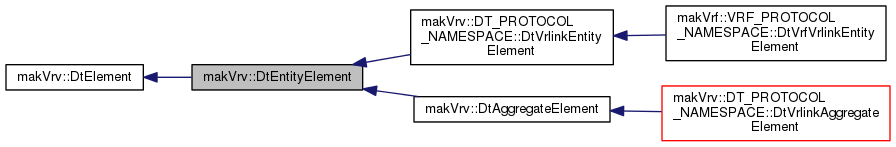

Inheritance diagram for makVrv::DtEntityElement:
Inheritance graph
[legend]

Classes

struct  DtEntityObjectStruct


Public Types

using ModelSetToEntityObjectMap = boost::unordered_map< int, DtEntityObjectStruct * >

- Public Types inherited from makVrv::DtElement
using ModelSetToSceneObjectIdMap = boost::unordered_map< DtObserverMode::ModelSets, DtUniqueID >


Public Member Functions

 DtEntityElement (DtBaseConnection &conn, DtStateListener &listener)

virtual ~DtEntityElement ()

 DtEntityElement ()=delete

 DtEntityElement (const DtEntityElement &)=delete

DtEntityElement & operator= (const DtEntityElement &)=delete

virtual void visualize (const DtSharedModelSetSettings::ModelSetVisualizedMap &sets) override

virtual void setModelSetEnabled (int modelSet, bool enabled) override

virtual void setVisible (bool visible)

virtual const
ModelSetToEntityObjectMap & 		entityObjectMap () const

template<typename VisualizerClass >
void findVisualizers (std::vector< VisualizerClass * > &visualizers)

template<typename VisualizerClass >
void findVisualizersByDynamicCast (std::vector< VisualizerClass * > &visualizers)

virtual DtEntityStateListener & entityStateListener ()

virtual const
DtElementEntry::ElementType 		elementType () const override

virtual void update2DEmbarkationVisibility ()

virtual void createVisualizersByModelSetAndType (int modelSet, int visualType)

virtual void destroyVisualizersByModelSetAndType (int modelSet, int visualType)

virtual DtEntityObjectStruct * findObjectStructForModelSet (int modelSet) const

virtual DtSceneObjectAgent * findSceneObjectForModelSet (int modelSet) const

virtual DtEntityVisualizerSet * findVisualizerSetForModelSet (int modelSet) const

virtual DtEntityKinematicState * findKinematicStateForModelSet (int modelSet) const

virtual void setSmoothingEnabled (bool enabled)

virtual void setSmoothingEnabled (bool enabled, int modelSet)

virtual void setGroundClampingEnabled (bool enabled)

virtual void setGroundClampingEnabled (bool enabled, int modelSet)

virtual void setPickable (bool pickable)

virtual void setPickable (bool pickable, int modelSet)

virtual std::vector< DtUniqueID > sceneObjectUniqueIds ()

virtual DtUniqueID sceneObjectIdForModelSet (int modelSet)

- Public Member Functions inherited from makVrv::DtElement
 DtElement (DtBaseConnection &conn, DtElementID elementId)

virtual ~DtElement ()

 DtElement ()=delete

 DtElement (const DtElement &)=delete

DtElement & operator= (const DtElement &)=delete

virtual bool visible () const

virtual void setElementId (const DtElementID)

DtElementID elementID () const

virtual const DtUnicode & elementDefinition () const

virtual void setElementDefinition (const DtUnicode &definition)

virtual std::string displayUnitCollectionName () const

virtual void setDisplayUnitCollectionName (const std::string &definition)

virtual void setDriverType (const std::string &driverType)

virtual void setElementSubtype (DtElementAttributes::ElementSubtypes subtype)

virtual void changeElementAttribute (const DtElementAttribute *attr)

virtual void updateElementDefinitionFromDefinitions ()

virtual void updateElementDefinitionFromDefinitions (std::vector< DtUnicode > &definitions)

virtual
ModelSetToSceneObjectIdMap & 		modelSetToSceneObjectIdMap ()

virtual void setSceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet, DtUniqueID id)

virtual void removeSceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet)

virtual DtUniqueID sceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet) const


Static Public Member Functions

static const
DtElementEntry::ElementType 		theElementType ()


Protected Member Functions

virtual void slot_visibilityChanged (bool vis)

virtual DtEntityKinematicState * createEntityKinState (DtSceneObjectAgent &sceneObject, int modelSet)

virtual void processElementParameters ()

- Protected Member Functions inherited from makVrv::DtElement
void slot_updateOverlayNameRaw (const char *text)

void slot_updateConnectionObjectID (const std::string &id)

void slot_updateConnectionObjectType (const std::string &type)

void slot_updateDisplayName (const std::string &text)

void slot_updateOverlayName (const std::string &pname)

void slot_updateDamageState (EntityStateListener::DamageState state)

virtual void getDefinitions (std::vector< DtUnicode > &definitions)

virtual void reportElementCreated ()

virtual void reportDisplayName ()

virtual void reportConnectionObjectID ()

virtual void reportConnectionObjectType ()

virtual void reportOverlayNameChanged ()

virtual void reportVisibility ()

virtual void reportDamageStateChanged ()

virtual void reportDriverType ()

virtual void reportElementSubtype ()

virtual void reportElementDefinitionName ()

virtual void reportDisplayUnitCollectionName ()

virtual bool distribute () const

virtual void setDistribute (const bool distribute)


Protected Attributes

DtEntityStateListener & myListener

ModelSetToEntityObjectMap myModelSetToEntityObjectMap

DtSignalConnectionManager myConnections

- Protected Attributes inherited from makVrv::DtElement
DtAgentManagerInterface & mySceneInterface

DtSharedSettingsManager & mySettingsManager

const
DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap & 		myVisualTypeVisualizerCreationMap

DtBaseConnection & myBaseConnection

DtElementID myElementId

DtUnicode myElementDefinitionName

const DtElementDefinitionNew * myElementDefinition

std::string myDisplayUnitCollectionName

std::string myConnectionObjectID

std::string myConnectionObjectType

std::string myDisplayName

std::string myElementOverlayName

std::string myDriverType

DtElementAttributes::ElementSubtypes myElementSubtype

EntityStateListener::DamageState myDamageState

bool myElementVisible

bool myElementReported

bool myDistribute

ModelSetToSceneObjectIdMap myModelSetToSceneObjectIdMap


Member Typedef Documentation

using makVrv::DtEntityElement::ModelSetToEntityObjectMap = boost::unordered_map<int, DtEntityObjectStruct*>

Constructor & Destructor Documentation

makVrv::DtEntityElement::DtEntityElement ( DtBaseConnection &  conn,
DtStateListener &  listener
)

CTOR.

virtual makVrv::DtEntityElement::~DtEntityElement ( )
virtual

DTOR.

makVrv::DtEntityElement::DtEntityElement ( )
delete

not allowed - default constructor

makVrv::DtEntityElement::DtEntityElement ( const DtEntityElement &  )
delete

not allowed - copy constructor

Member Function Documentation

DtEntityElement& makVrv::DtEntityElement::operator= ( const DtEntityElement &  )
delete

not allowed - equals operator

virtual void makVrv::DtEntityElement::visualize ( const DtSharedModelSetSettings::ModelSetVisualizedMap &  sets)
overridevirtual

Visualize the element.

Reimplemented from makVrv::DtElement.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkEntityElement, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateElement, makVrv::DtAggregateElement, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityElement.

virtual void makVrv::DtEntityElement::setModelSetEnabled ( int  modelSet,
bool  enabled
)
overridevirtual

Sets the particular model set up. Does nothing if it already exists. This method does a large portion of entity creation. It creates the sceneObject agent, the visualizer set, and kinematic state object for a model set. It sets information from the visualizer definition on the kin state, and then calls updateVisibilityState If the model set is disabled it will delete the pointers and the stuct in myModelSetToEntityObjectMap.

Implements makVrv::DtElement.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateElement, and makVrv::DtAggregateElement.

virtual void makVrv::DtEntityElement::setVisible ( bool  visible)
virtual

Set the entity element to be visible.

Reimplemented from makVrv::DtElement.

virtual const ModelSetToEntityObjectMap& makVrv::DtEntityElement::entityObjectMap ( ) const
virtual

Get the current model set map.

template<typename VisualizerClass >
void makVrv::DtEntityElement::findVisualizers ( std::vector< VisualizerClass * > &  visualizers)
inline

Find all visualizers Note this is for all model sets.

References myModelSetToEntityObjectMap.

template<typename VisualizerClass >
void makVrv::DtEntityElement::findVisualizersByDynamicCast ( std::vector< VisualizerClass * > &  visualizers)
inline

Find all visualizers in all model sets if they satisfy the dynamic_cast to the VizualizerClass.

References myModelSetToEntityObjectMap.

virtual DtEntityStateListener& makVrv::DtEntityElement::entityStateListener ( )
virtual

Get the listener for the entity this visualizer is visualizing.

virtual const DtElementEntry::ElementType makVrv::DtEntityElement::elementType ( ) const
overridevirtual

Returns the element type, in this case entity.

Implements makVrv::DtElement.

Reimplemented in makVrv::DtAggregateElement.

static const DtElementEntry::ElementType makVrv::DtEntityElement::theElementType ( )
static
virtual void makVrv::DtEntityElement::update2DEmbarkationVisibility ( )
virtual

Goes through model set map and updates visibility state for each visualizer.

virtual void makVrv::DtEntityElement::createVisualizersByModelSetAndType ( int  modelSet,
int  visualType
)
virtual

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement.

virtual void makVrv::DtEntityElement::destroyVisualizersByModelSetAndType ( int  modelSet,
int  visualType
)
virtual

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateElement.

virtual DtEntityObjectStruct* makVrv::DtEntityElement::findObjectStructForModelSet ( int  modelSet) const
virtual

Model set object accessors.

virtual DtSceneObjectAgent* makVrv::DtEntityElement::findSceneObjectForModelSet ( int  modelSet) const
virtual

Model set object accessors.

virtual DtEntityVisualizerSet* makVrv::DtEntityElement::findVisualizerSetForModelSet ( int  modelSet) const
virtual

Model set object accessors.

virtual DtEntityKinematicState* makVrv::DtEntityElement::findKinematicStateForModelSet ( int  modelSet) const
virtual

Model set object accessors.

virtual void makVrv::DtEntityElement::setSmoothingEnabled ( bool  enabled)
virtual

Smoothing.

This sets smoothing for all model sets

virtual void makVrv::DtEntityElement::setSmoothingEnabled ( bool  enabled,
int  modelSet
)
virtual

Set Smoothing for a specific model set.

virtual void makVrv::DtEntityElement::setGroundClampingEnabled ( bool  enabled)
virtual

Ground clampingThis sets ground clamping for all model sets.

virtual void makVrv::DtEntityElement::setGroundClampingEnabled ( bool  enabled,
int  modelSet
)
virtual

Set ground clamping for a specific model set.

virtual void makVrv::DtEntityElement::setPickable ( bool  pickable)
virtual

PickableSet pickable for all model sets.

virtual void makVrv::DtEntityElement::setPickable ( bool  pickable,
int  modelSet
)
virtual

Set pickable for a specific model set.

virtual std::vector<DtUniqueID> makVrv::DtEntityElement::sceneObjectUniqueIds ( )
virtual

Scene Object Unique IDs.

Get the IDs for all the scene objects in this element There is one scene object per model set

virtual DtUniqueID makVrv::DtEntityElement::sceneObjectIdForModelSet ( int  modelSet)
virtual

Get the ID of a scene object for a specific model set.

virtual void makVrv::DtEntityElement::slot_visibilityChanged ( bool  vis)
protectedvirtual

Called when the listener indicates the element has become visible or not.

virtual DtEntityKinematicState* makVrv::DtEntityElement::createEntityKinState ( DtSceneObjectAgent &  sceneObject,
int  modelSet
)
protectedvirtual

Create an entity kinematic state.

virtual void makVrv::DtEntityElement::processElementParameters ( )
protectedvirtual

Process any element parameters for this entity.

Member Data Documentation

DtEntityStateListener& makVrv::DtEntityElement::myListener
protected
ModelSetToEntityObjectMap makVrv::DtEntityElement::myModelSetToEntityObjectMap
protected

Referenced by findVisualizers(), and findVisualizersByDynamicCast().

DtSignalConnectionManager makVrv::DtEntityElement::myConnections
protected
The documentation for this class was generated from the following file:
