Base class for entity state visualizers (using the DtModelVisualizer schema)

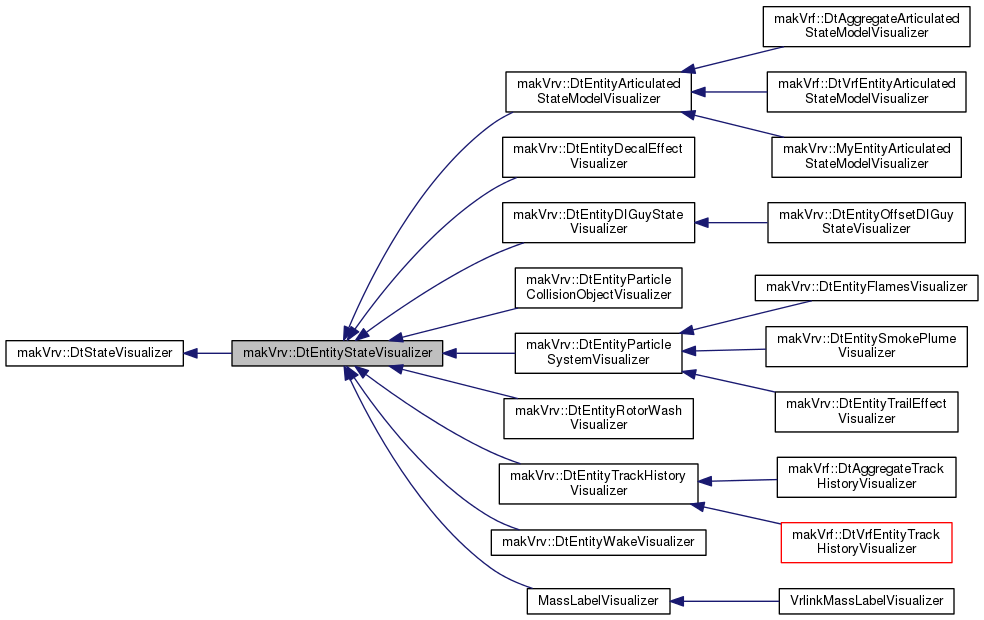

Inheritance diagram for makVrv::DtEntityStateVisualizer:

Public Member Functions
	DtEntityStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtEntityStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtEntityStateVisualizer ()

virtual void	setState (int stateNumber, int stateValue)

DtEntityStateListener &	entityStateListener ()

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual void	createModelAgents ()=0

virtual void	destroyModelAgents ()=0

virtual const TypeInfo &	typeInfo () const =0

virtual void	setParent (DtStateVisualizer *)

virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

virtual void	initialize ()

virtual void	slot_setSelected (bool b)

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

virtual DtUniqueID	sceneObjectID () const

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Attributes
DtEntityStateListener *	myEntityListener

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	setModelDefinitionForAgents ()=0

virtual void	connectToListenerSignals ()

virtual void	makeVisible ()

virtual bool	isVisible () const

virtual void	setInitialValuesFromVisualizerDefinition ()

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Constructor & Destructor Documentation

makVrv::DtEntityStateVisualizer::DtEntityStateVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

makVrv::DtEntityStateVisualizer::DtEntityStateVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::DtEntityStateVisualizer::~DtEntityStateVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtEntityStateVisualizer::setState	(	int	stateNumber,
		int	stateValue
	)

virtual

Override to set the attribute state of agents.

Reimplemented in makVrv::DtEntityArticulatedStateModelVisualizer.

DtEntityStateListener& makVrv::DtEntityStateVisualizer::entityStateListener ( )

inline

Member Data Documentation

DtEntityStateListener* makVrv::DtEntityStateVisualizer::myEntityListener

protected

Same as myListener, but casted for convenience.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtEntityStateVisualizer.h
