makVrv::DtEnvironmentalAreaVisualizer Class Reference
vrvCore

DtEnvironmentalAreaVisualizer display a area that contains at least three points.

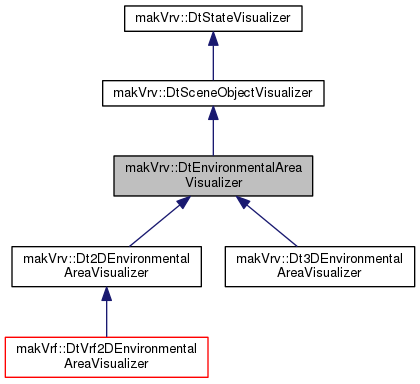

Inheritance diagram for makVrv::DtEnvironmentalAreaVisualizer:
Inheritance graph
[legend]

Public Member Functions

 DtEnvironmentalAreaVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtEnvironmentalAreaVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObejct, int modelSet)

virtual ~DtEnvironmentalAreaVisualizer ()

 DtEnvironmentalAreaVisualizer ()=delete

 DtEnvironmentalAreaVisualizer (const DtEnvironmentalAreaVisualizer &)=delete

DtEnvironmentalAreaVisualizer & operator= (const DtEnvironmentalAreaVisualizer &)=delete

virtual void initialize () override

virtual void slot_setSelected (bool) override

virtual void setStipplePattern (unsigned short)

virtual unsigned short stipplePattern () const

virtual void setFillStyle (vrvTacticalGraphicUtilities::FillStyle)

virtual
vrvTacticalGraphicUtilities::FillStyle 		fillStyle () const

virtual void setPenStyle (vrvTacticalGraphicUtilities::PenStyle)

virtual void setPixelLineWidth (int)

virtual void setUseDynamicOrigin (bool)

virtual void setPickable (bool)

virtual void setColor (float r, float g, float b, float a)

virtual void getColor (float &r, float &g, float &b, float &a) const

virtual void useDefaultColor ()

virtual void updateColors ()

virtual void setOutsideColor (float r, float g, float b, float a)

virtual void setSelectedOutsideColor (float r, float g, float b, float a)

virtual void setInsideColor (float r, float g, float b, float a)

virtual void setSelectedInsideColor (float r, float g, float b, float a)

- Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtSceneObjectVisualizer ()

virtual DtUniqueID sceneObjectID () const override

virtual DtSceneObjectAgent * sceneObjectAgent ()

virtual void setParent (DtStateVisualizer *p)

virtual void setSceneObjectAgent (DtSceneObjectAgent *)

virtual void setElementID (const DtElementID &elementID)

DtElementID elementID () const

- Public Member Functions inherited from makVrv::DtStateVisualizer
 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual ~DtStateVisualizer ()

virtual DtObserverMode::ModelSets modelSet ()

virtual const TypeInfo & typeInfo () const =0

virtual const DtStateVisualizer * parent () const

void setModelDefinition (const std::string &definition)

const std::string & modelDefinition () const

virtual void implementVisibility (bool visible)

void setName (const std::string &)

const std::string & name () const

virtual bool pickable () const

virtual void setSceneObjectID (DtUniqueID id)

int visualizerType () const

virtual void setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener & listener ()

const DtStateListener & listener () const

DtBaseConnection & simulation ()

void setDistribute (bool b)

bool distribute () const

virtual bool setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)


Protected Member Functions

virtual void setModelDefinitionForAgents () override

virtual void connectToListenerSignals () override

virtual void setInitialValuesFromVisualizerDefinition () override

virtual void setSolid (bool)

- Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent * createObjectAgent ()

virtual void createModelAgents ()

virtual void destroyModelAgents ()

- Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void makeVisible ()

virtual bool isVisible () const

template<typename T , typename C >
void connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)


Protected Attributes

DtTacticalGraphicStateListener & myAreaListener

DtPolygonModelAgent * myAreaModel

int myPixelLineWidth

float myColor [4]

float myDefaultColor [4]

float myOutsideColor [4]

float myInsideColor [4]

float mySelectedOutsideColor [4]

float mySelectedInsideColor [4]

float myFillAlpha

vrvTacticalGraphicUtilities::FillStyle myFillStyle

bool mySelectedInsideColorSet

bool mySelectedOutsideColorSet

bool myFillAlphaSet

std::vector< unsigned int > myFilledPattern

bool myUseDynamicOrigin

unsigned short myLineStipple

- Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID myElementID

bool myOwnsSceneObjectAgent

- Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection & mySimulation

DtStateListener & myListener

bool myDistributeFlag

DtUniqueID mySceneObjectID

std::string myName

std::string myModelDefinition

DtSignalConnectionManager myConnections

int myModelSet

int myVisualizerType

bool myPickable

bool myVisible

const DtVisualizerDefinition * myVisualizerDefinition

DtStateVisualizer * myParent

DtSceneObjectAgent * mySceneObjectAgent

bool myInitialInitializeDone

ShowHideContextVector myVisualizerShowHideContexts


Additional Inherited Members

- Public Types inherited from makVrv::DtStateVisualizer
enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}

- Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal
< void(DtStateVisualizer
*, DtStateVisualizer
*, DtStateVisualizer *)> 		signal_reparented

- Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector
< DtVisualizerShowHideContext::VisualizerShowHideContext > 		ShowHideContextVector


Constructor & Destructor Documentation

makVrv::DtEnvironmentalAreaVisualizer::DtEnvironmentalAreaVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
int  modelSet
)

Constructor.

makVrv::DtEnvironmentalAreaVisualizer::DtEnvironmentalAreaVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
DtSceneObjectAgent *  sceneObejct,
int  modelSet
)

Constructor.

virtual makVrv::DtEnvironmentalAreaVisualizer::~DtEnvironmentalAreaVisualizer ( )
virtual

Destructor.

makVrv::DtEnvironmentalAreaVisualizer::DtEnvironmentalAreaVisualizer ( )
delete

not allowed - default constructor

makVrv::DtEnvironmentalAreaVisualizer::DtEnvironmentalAreaVisualizer ( const DtEnvironmentalAreaVisualizer &  )
delete

not allowed - copy constructor

Member Function Documentation

DtEnvironmentalAreaVisualizer& makVrv::DtEnvironmentalAreaVisualizer::operator= ( const DtEnvironmentalAreaVisualizer &  )
delete

not allowed = equals operator

virtual void makVrv::DtEnvironmentalAreaVisualizer::initialize ( )
overridevirtual

Initialize the visualizer.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, and makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Colour controlSets the color for the area. This will apply to all segments of the area. If the default (all 0's), uses the default as defined in the visual definition.

Reimplemented in makVrf::DtVrf2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::getColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual

Colour controlSets the color for the area. This will apply to all segments of the area. If the default (all 0's), uses the default as defined in the visual definition.

virtual void makVrv::DtEnvironmentalAreaVisualizer::useDefaultColor ( )
virtual

Sets color to default color as defined in the visualizer definition. Called when color set is 0, 0, 0, 0.

virtual void makVrv::DtEnvironmentalAreaVisualizer::updateColors ( )
virtual

Updates the color on the model depending on whether it is selected or not.

Reimplemented in makVrv::Dt3DEnvironmentalAreaVisualizer, and makVrv::Dt2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setOutsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the outside color (rim) if available.

Reimplemented in makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setSelectedOutsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the selected outside color. This color is used if the object is selected.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setInsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets inside color (fill) if available.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setSelectedInsideColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Sets the selected inside color.

virtual void makVrv::DtEnvironmentalAreaVisualizer::slot_setSelected ( bool  )
overridevirtual

Sets whether or not the area is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtVrf2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setStipplePattern ( unsigned  short)
virtual

Sets the line style of the outline of the area.

virtual unsigned short makVrv::DtEnvironmentalAreaVisualizer::stipplePattern ( ) const
virtual
virtual void makVrv::DtEnvironmentalAreaVisualizer::setFillStyle ( vrvTacticalGraphicUtilities::FillStyle  )
virtual

Sets the fill style of the area. If fill is 0, will be considered an outlined area.

Reimplemented in makVrv::Dt2DEnvironmentalAreaVisualizer, and makVrf::DtVrf2DEnvironmentalAreaVisualizer.

virtual vrvTacticalGraphicUtilities::FillStyle makVrv::DtEnvironmentalAreaVisualizer::fillStyle ( ) const
virtual

Returns the currently set fill style.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setPenStyle ( vrvTacticalGraphicUtilities::PenStyle  )
virtual

Takes the pen style and translates it to a stipple pattern. See vrvTacticalGraphicUtilities for styles.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setPixelLineWidth ( int  )
virtual

Sets the width of the outside line. Default is 2. The pixel line width is the line in osg pixel space. This is different than physicalLineWidth which sets the width of the line in datasbe space. If value is 0 will use default line width.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setUseDynamicOrigin ( bool  )
virtual

Set whether or not to use dynamic origin.

When enabled, the model ignores the origin set in setOrigin and dynamically generates one instead This should be enabled when you want to set the vertices to database positions instead of offsets from the origin to avoid precision issues

virtual void makVrv::DtEnvironmentalAreaVisualizer::setPickable ( bool  )
virtual

Whether or not the area can be pickable.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setModelDefinitionForAgents ( )
overrideprotectedvirtual

Sets model definitions for agents & initializes the model.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrv::Dt3DEnvironmentalAreaVisualizer, and makVrv::Dt2DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::connectToListenerSignals ( )
overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setInitialValuesFromVisualizerDefinition ( )
overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEnvironmentalAreaVisualizer.

virtual void makVrv::DtEnvironmentalAreaVisualizer::setSolid ( bool  )
protectedvirtual

Sets whether or not to only scribe the outline (and not the line edges). Only valid if scribed is true. If set to true will scribe all point connections along the polygon. If false will only scribe the top and bottom of the polygon.

Member Data Documentation

DtTacticalGraphicStateListener& makVrv::DtEnvironmentalAreaVisualizer::myAreaListener
protected
DtPolygonModelAgent* makVrv::DtEnvironmentalAreaVisualizer::myAreaModel
protected
int makVrv::DtEnvironmentalAreaVisualizer::myPixelLineWidth
protected
float makVrv::DtEnvironmentalAreaVisualizer::myColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::myDefaultColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::myOutsideColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::myInsideColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::mySelectedOutsideColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::mySelectedInsideColor[4]
protected
float makVrv::DtEnvironmentalAreaVisualizer::myFillAlpha
protected
vrvTacticalGraphicUtilities::FillStyle makVrv::DtEnvironmentalAreaVisualizer::myFillStyle
protected
bool makVrv::DtEnvironmentalAreaVisualizer::mySelectedInsideColorSet
protected
bool makVrv::DtEnvironmentalAreaVisualizer::mySelectedOutsideColorSet
protected
bool makVrv::DtEnvironmentalAreaVisualizer::myFillAlphaSet
protected
std::vector<unsigned int> makVrv::DtEnvironmentalAreaVisualizer::myFilledPattern
protected
bool makVrv::DtEnvironmentalAreaVisualizer::myUseDynamicOrigin
protected
unsigned short makVrv::DtEnvironmentalAreaVisualizer::myLineStipple
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Thu Jun 1 17:58:13 EDT 2023 from SVN revision 255404
Copyright © 2005-2021 MAK Technologies. All Rights Reserved (www.mak.com)
