DtIndicatorVisualizer is used to visualize 2D indicators and associated Info boxes (usually called labels). It is an abstract class; deriving classes need to provide implementations for creating and destroying the actual indicator widgets.

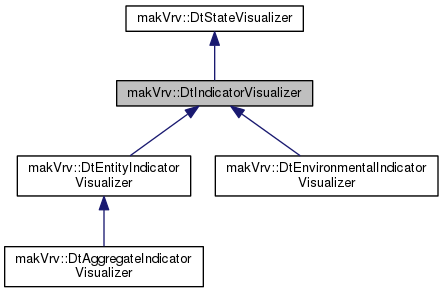

Inheritance diagram for makVrv::DtIndicatorVisualizer:

[legend]

Public Member Functions
	DtIndicatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtIndicatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtIndicatorVisualizer ()

virtual void	initialize () override

virtual void	implementVisibility (bool visible) override

virtual bool	indicatorVisible () const

virtual void	setWidgetEventsEnabled (bool enabled)

virtual void	slot_setSelected (bool) override

virtual void	createIndicator ()=0

virtual void	destroyIndicator ()=0

DtEntityInfoWidget *	infoWidget () const

virtual void	setInfoVisible (bool)

virtual void	setColor (float r, float g, float b, float a)

virtual void	slot_forceAdded (int)


virtual void	setInfoPinned (bool pinned)

virtual bool	infoPinned () const


virtual void	setIndicatorPinned (bool)

virtual bool	indicatorPinned () const


virtual void	setShowInfoPopupOnSelect (bool enabled)

virtual bool	showInfoPopupOnSelect () const


virtual void	slot_setForceType (DtForceType type)

virtual void	slot_setDisplayName (const std::string &name)

virtual void	slot_setObjectType (const std::string &type)

virtual void	slot_setIdentifierString (const std::string &identifier)

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual const TypeInfo &	typeInfo () const =0

virtual void	setParent (DtStateVisualizer *)

virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

virtual DtUniqueID	sceneObjectID () const

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Public Attributes
boost::signalslib::signal < void(bool)>	signal_infoVisibleChanged

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Member Functions
virtual void	updateIndicator ()

virtual void	createModelAgents ()

virtual void	destroyModelAgents ()

virtual void	connectToListenerSignals () override

virtual void	setInitialValuesFromVisualizerDefinition () override

virtual void	slot_mouseInChanged (bool isMouseInIndicator)

virtual void	setModelDefinitionForAgents () override

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()

virtual bool	isVisible () const

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtEntityInfoWidget *	myInfoWidget

DtInfoWidgetUpdaterAgent *	myWidgetUpdater

bool	myIndicatorVisible

bool	myVisibilityOverridden

bool	myWidgetEventsEnabled

bool	myIndicatorPinned

bool	myShowInfoOnSelect

bool	myInfoPinned

bool	myInfoVisible

double	myR

double	myG

double	myB

double	myA

DtForceType	myForceType

std::string	myDisplayName

std::string	myObjectType

std::string	myIndentifierString

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtIndicatorVisualizer::DtIndicatorVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

makVrv::DtIndicatorVisualizer::DtIndicatorVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::DtIndicatorVisualizer::~DtIndicatorVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtIndicatorVisualizer::initialize ( )

overridevirtual

called soon after construction to initialize the signals/state from the listener

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityIndicatorVisualizer, and makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::implementVisibility ( bool visible )

overridevirtual

Set whether the indicator is visible or not.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

virtual bool makVrv::DtIndicatorVisualizer::indicatorVisible ( ) const

virtual

Get whether the indicator is visible.

virtual void makVrv::DtIndicatorVisualizer::setWidgetEventsEnabled ( bool enabled )

virtual

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setInfoPinned ( bool pinned )

virtual

Set/Get whether the info widget is pinned.

virtual bool makVrv::DtIndicatorVisualizer::infoPinned ( ) const

virtual

Set/Get whether the info widget is pinned.

virtual void makVrv::DtIndicatorVisualizer::setIndicatorPinned ( bool )

virtual

Set/Get whether the indicator widget is pinned.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual bool makVrv::DtIndicatorVisualizer::indicatorPinned ( ) const

virtual

Set/Get whether the indicator widget is pinned.

virtual void makVrv::DtIndicatorVisualizer::slot_setSelected ( bool )

overridevirtual

Sets whether or not the indicator is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setShowInfoPopupOnSelect ( bool enabled )

virtual

Set/Get whether the info popup is shown on select.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

virtual bool makVrv::DtIndicatorVisualizer::showInfoPopupOnSelect ( ) const

virtual

Set/Get whether the info popup is shown on select.

virtual void makVrv::DtIndicatorVisualizer::createIndicator ( )

pure virtual

Override to create and destroy indicators.

Implemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::destroyIndicator ( )

pure virtual

destroy the indicator agent

Implemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

DtEntityInfoWidget* makVrv::DtIndicatorVisualizer::infoWidget ( ) const

virtual void makVrv::DtIndicatorVisualizer::setInfoVisible ( bool )

virtual

This call will also call createModelAgents() or destroyModelAgents()

virtual void makVrv::DtIndicatorVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Sets the color of the info box.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtEntityIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::slot_setForceType ( DtForceType type )

virtual

Derived classes connect these to entity/aggregate/environmental signals The information is passed to the updater.

virtual void makVrv::DtIndicatorVisualizer::slot_setDisplayName ( const std::string & name )

virtual

Derived classes connect these to entity/aggregate/environmental signals The information is passed to the updater.

virtual void makVrv::DtIndicatorVisualizer::slot_setObjectType ( const std::string & type )

virtual

Derived classes connect these to entity/aggregate/environmental signals The information is passed to the updater.

virtual void makVrv::DtIndicatorVisualizer::slot_setIdentifierString ( const std::string & identifier )

virtual

Derived classes connect these to entity/aggregate/environmental signals The information is passed to the updater.

virtual void makVrv::DtIndicatorVisualizer::slot_forceAdded ( int )

virtual

Called when a force is added, if the force is what this objects force is update the color.

virtual void makVrv::DtIndicatorVisualizer::updateIndicator ( )

protectedvirtual

virtual void makVrv::DtIndicatorVisualizer::createModelAgents ( )

protectedvirtual

Creates the DtEntityInfoWidget, please override to create the correct DtInfoWidgetUpdaterAgent.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DtEntityIndicatorVisualizer, and makVrv::DtAggregateIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::destroyModelAgents ( )

protectedvirtual

Destroy the distributed agents This function cannot be called from DtIndicatorVisualizer's destructor.

Implements makVrv::DtStateVisualizer.

virtual void makVrv::DtIndicatorVisualizer::connectToListenerSignals ( )

overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityIndicatorVisualizer, and makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::slot_mouseInChanged ( bool isMouseInIndicator )

protectedvirtual

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

virtual void makVrv::DtIndicatorVisualizer::setModelDefinitionForAgents ( )

overrideprotectedvirtual

Sets up various values such as force type, this is called after initialize and createModelAgents so values and models should be valid.

Implements makVrv::DtStateVisualizer.

Member Data Documentation

boost::signalslib::signal<void (bool)> makVrv::DtIndicatorVisualizer::signal_infoVisibleChanged

Signaled when info visibility has changed.

DtEntityInfoWidget* makVrv::DtIndicatorVisualizer::myInfoWidget

protected

DtInfoWidgetUpdaterAgent* makVrv::DtIndicatorVisualizer::myWidgetUpdater

protected

bool makVrv::DtIndicatorVisualizer::myIndicatorVisible

protected

bool makVrv::DtIndicatorVisualizer::myVisibilityOverridden

protected

bool makVrv::DtIndicatorVisualizer::myWidgetEventsEnabled

protected

bool makVrv::DtIndicatorVisualizer::myIndicatorPinned

protected

bool makVrv::DtIndicatorVisualizer::myShowInfoOnSelect

protected

bool makVrv::DtIndicatorVisualizer::myInfoPinned

protected

bool makVrv::DtIndicatorVisualizer::myInfoVisible

protected

double makVrv::DtIndicatorVisualizer::myR

protected

double makVrv::DtIndicatorVisualizer::myG

protected

double makVrv::DtIndicatorVisualizer::myB

protected

double makVrv::DtIndicatorVisualizer::myA

protected

DtForceType makVrv::DtIndicatorVisualizer::myForceType

protected

std::string makVrv::DtIndicatorVisualizer::myDisplayName

protected

std::string makVrv::DtIndicatorVisualizer::myObjectType

protected

std::string makVrv::DtIndicatorVisualizer::myIndentifierString

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtIndicatorVisualizer.h

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
