makVrv::DtIntervisibilityVertexVisualizer Class Reference

The DtIntervisibilityVertexVisualizer will show at most two points – the start and end point of the intervisibility line. This can also be configure to only show a start or end point.

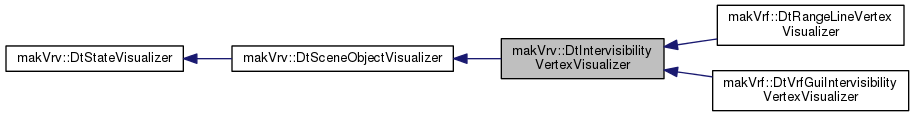

Inheritance diagram for makVrv::DtIntervisibilityVertexVisualizer:

Classes
struct	VertexInformation

Public Member Functions
	DtIntervisibilityVertexVisualizer (DtBaseConnection &conn, DtStateListener &listener, int modelSet)
	DtIntervisibilityVertexVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)
virtual	~DtIntervisibilityVertexVisualizer ()
DtIntervisibilityStateListener &	intervisibilityStateListener ()
virtual void	setColor (float r, float g, float b, float a)
virtual void	setStartPoint (const DtVector &vec)
virtual void	setEndPoint (const DtVector &vec)
virtual void	setStartAttachPoint (DtElementID elementId)
virtual void	setStartPointOffset (const DtVector &vec)
virtual void	setEndAttachPoint (DtElementID elementId)
virtual void	setEndPointOffset (const DtVector &vec)
virtual void	setSelected (int index, bool isSelected)
virtual void	slot_setSelected (bool) override
virtual void	setFixedDistanceMode (bool isFixedDistMode)
virtual int	indexOfVertex (DtUniqueID id) const
virtual const DtStateVisualizer::TypeInfo &	typeInfo () const
Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)
virtual	~DtSceneObjectVisualizer ()
virtual DtUniqueID	sceneObjectID () const override
virtual DtSceneObjectAgent *	sceneObjectAgent ()
virtual void	setParent (DtStateVisualizer *p)
virtual void	setModelDefinitionForAgents ()
virtual void	setSceneObjectAgent (DtSceneObjectAgent *)
virtual void	setElementID (const DtElementID &elementID)
DtElementID	elementID () const
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)
virtual	~DtStateVisualizer ()
virtual DtObserverMode::ModelSets	modelSet ()
virtual const DtStateVisualizer *	parent () const
void	setModelDefinition (const std::string &definition)
const std::string &	modelDefinition () const
virtual void	implementVisibility (bool visible)
virtual void	initialize ()
void	setName (const std::string &)
const std::string &	name () const
virtual void	setPickable (bool)
virtual bool	pickable () const
virtual void	setSceneObjectID (DtUniqueID id)
int	visualizerType () const
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
DtStateListener &	listener ()
const DtStateListener &	listener () const
DtBaseConnection &	simulation ()
void	setDistribute (bool b)
bool	distribute () const
virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()

Protected Member Functions
virtual void	createStartPoint ()
virtual void	createEndPoint ()
virtual void	createModelAgents ()
virtual void	destroyModelAgents ()
virtual DtUniqueID	elementIdToSceneId (DtElementID elementId) const
virtual DtEnvironmentalVisualizerSet *	createVertexVisualizer (VertexInformation &vertexInfo)
virtual void	createRangeInfoWidget (VertexInformation &vertexInfo)
virtual void	setInitialValuesFromVisualizerDefinition () override
virtual void	setColor (DtEnvironmentalVisualizerSet &, float, float, float, float)
virtual void	setIndicatorsEnabled (DtEnvironmentalVisualizerSet &, bool)
virtual void	setShowInfoPopupOnSelect (DtEnvironmentalVisualizerSet &, bool)
virtual void	setWidgetEventsEnabled (DtEnvironmentalVisualizerSet &, bool)
virtual void	setHatLineVisible (DtEnvironmentalVisualizerSet &, bool)
virtual void	updateHatLine (DtEnvironmentalVisualizerSet &visSet)
virtual void	setIndicatorModelDefinitions (DtEnvironmentalVisualizerSet &v, const std::string &normalTheme, const std::string &activeTheme, const std::string &selectedTheme, const std::string &multiSelectedTheme)
virtual void	setEditing (bool isEditing)
virtual void	setRangeInfoLabelBackgroundColor (float r, float g, float b, float a)
virtual void	setRangeInfoLabelsEnabled (bool enabled)
virtual void	setShowAltChangeField (bool show)
virtual void	setShowLocationField (bool show)
virtual void	setShowHeadingField (bool show)
virtual void	setShowRangeField (bool show)
void	setTacticalGraphicsIndicatorsEnabled (bool isEnabled)
void	setHatLinesEnabled (bool isEnabled)
void	setHatLinesOnSelectionOnly (bool isSelectedOnly)
virtual void	setupFixedDistanceForEndVertex ()
virtual void	setupUpdaterForEndVertex ()
virtual void	updateRangeInfoOverlayGroup ()
virtual void	updateRangeInfoVisibility ()
virtual void	updateRangeInfoFields ()
virtual void	updateRangeInfoText ()
virtual DtVector	endPoint () const
virtual DtVector	startPoint () const
DtUnicode	formatLocationString (const DtCoordinateSystem &coordSys, const std::vector< std::string > &locs)
Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent *	createObjectAgent ()
Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	connectToListenerSignals ()
virtual void	makeVisible ()
virtual bool	isVisible () const
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtIntervisibilityStateListener *	myIntervisibilityListener
DtUnicode	myVertexVisualizerDefinition
VertexInformation	myStartPoint
VertexInformation	myEndPoint
bool	myIndicatorsEnabled
bool	myWidgetEventsEnabled
bool	myShowInfoOnSelect
bool	myShowRangeInformation
bool	myHatLinesOnSelectionOnly
bool	myHatLinesEnabled
bool	myFixedDistanceMode
bool	myEditingFlag
bool	myShowStart
bool	myShowEnd
float	myRangeInfoBackgroundColorR
float	myRangeInfoBackgroundColorG
float	myRangeInfoBackgroundColorB
float	myRangeInfoBackgroundColorA
bool	myShowAltChangeField
bool	myShowLocationField
bool	myShowHeadingField
bool	myShowRangeField
DtIntervisibilityVertexTicker *	myTicker
Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID	myElementID
bool	myOwnsSceneObjectAgent
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	mySceneObjectID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
int	myModelSet
int	myVisualizerType
bool	myPickable
bool	myVisible
const DtVisualizerDefinition *	myVisualizerDefinition
DtStateVisualizer *	myParent
DtSceneObjectAgent *	mySceneObjectAgent
bool	myInitialInitializeDone
ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer *, DtStateVisualizer *, DtStateVisualizer *)>	signal_reparented
Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtIntervisibilityVertexVisualizer::DtIntervisibilityVertexVisualizer	(	DtBaseConnection &	conn,
		DtStateListener &	listener,
		int	modelSet
	)

Constructor.

makVrv::DtIntervisibilityVertexVisualizer::DtIntervisibilityVertexVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::DtIntervisibilityVertexVisualizer::~DtIntervisibilityVertexVisualizer ( )

virtual

DTOR.

Member Function Documentation

DtIntervisibilityStateListener& makVrv::DtIntervisibilityVertexVisualizer::intervisibilityStateListener ( )

inline

virtual void makVrv::DtIntervisibilityVertexVisualizer::setColor ( float  r, float  g, float  b, float  a  )

virtual

Sets color of start/end vertices.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setStartPoint ( const DtVector &  vec )

virtual

Sets the start for of the first vertex. Will delete any updaters if they exist for the start point.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setEndPoint ( const DtVector &  vec )

virtual

Sets the end point. Will delete any updaters if they exist for the end point.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setStartAttachPoint ( DtElementID  elementId )

virtual

Will set the start attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setStartPointOffset ( const DtVector &  vec )

virtual

Sets the offset from the attached start point.

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setEndAttachPoint ( DtElementID  elementId )

virtual

Will set the end attach point. Converts to scene id for current model set.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setEndPointOffset ( const DtVector &  vec )

virtual

Sets the offset from the attached end point.

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setSelected ( int  index, bool  isSelected  )

virtual

Sets start point selected if index is 0 or end point if 1.

virtual void makVrv::DtIntervisibilityVertexVisualizer::slot_setSelected ( bool  )

overridevirtual

Sets start and end point selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setFixedDistanceMode ( bool  isFixedDistMode )

virtual

Sets whether or not the end point is fixed distance from start mode.

virtual int makVrv::DtIntervisibilityVertexVisualizer::indexOfVertex ( DtUniqueID  id ) const

virtual

Returns 0 if id is start point, 1 if end and -1 if neither.

virtual const DtStateVisualizer::TypeInfo& makVrv::DtIntervisibilityVertexVisualizer::typeInfo ( ) const

virtual

The instance's type info.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::DtIntervisibilityVertexVisualizer::theTypeInfo ( )

static

This class's type info.

virtual void makVrv::DtIntervisibilityVertexVisualizer::createStartPoint ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::createEndPoint ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::createModelAgents ( )

protectedvirtual

Creates the model agent. If already created, makes it visible.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::destroyModelAgents ( )

protectedvirtual

Model agent is only destroyed in destructor. Here, it will be hidden (if it has been created)

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual DtUniqueID makVrv::DtIntervisibilityVertexVisualizer::elementIdToSceneId ( DtElementID  elementId ) const

protectedvirtual

virtual DtEnvironmentalVisualizerSet* makVrv::DtIntervisibilityVertexVisualizer::createVertexVisualizer ( VertexInformation &  vertexInfo )

protectedvirtual

Creates a new visualizer.

Reimplemented in makVrf::DtVrfGuiIntervisibilityVertexVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::createRangeInfoWidget ( VertexInformation &  vertexInfo )

protectedvirtual

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setColor ( DtEnvironmentalVisualizerSet &  , float  , float  , float  , float    )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setIndicatorsEnabled ( DtEnvironmentalVisualizerSet &  , bool    )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setShowInfoPopupOnSelect ( DtEnvironmentalVisualizerSet &  , bool    )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setWidgetEventsEnabled ( DtEnvironmentalVisualizerSet &  , bool    )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setHatLineVisible ( DtEnvironmentalVisualizerSet &  , bool    )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::updateHatLine ( DtEnvironmentalVisualizerSet &  visSet )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setIndicatorModelDefinitions ( DtEnvironmentalVisualizerSet &  v, const std::string &  normalTheme, const std::string &  activeTheme, const std::string &  selectedTheme, const std::string &  multiSelectedTheme  )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setEditing ( bool  isEditing )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setRangeInfoLabelBackgroundColor ( float  r, float  g, float  b, float  a  )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setRangeInfoLabelsEnabled ( bool  enabled )

protectedvirtual

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setShowAltChangeField ( bool  show )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setShowLocationField ( bool  show )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setShowHeadingField ( bool  show )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setShowRangeField ( bool  show )

protectedvirtual

void makVrv::DtIntervisibilityVertexVisualizer::setTacticalGraphicsIndicatorsEnabled ( bool  isEnabled )

protected

Sets tactical graphic indicators enabled.

void makVrv::DtIntervisibilityVertexVisualizer::setHatLinesEnabled ( bool  isEnabled )

protected

Sets height above terrain lines enabled.

void makVrv::DtIntervisibilityVertexVisualizer::setHatLinesOnSelectionOnly ( bool  isSelectedOnly )

protected

Set to show height above terrain lines only when the object is selected.

virtual void makVrv::DtIntervisibilityVertexVisualizer::setupFixedDistanceForEndVertex ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::setupUpdaterForEndVertex ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::updateRangeInfoOverlayGroup ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::updateRangeInfoVisibility ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::updateRangeInfoFields ( )

protectedvirtual

virtual void makVrv::DtIntervisibilityVertexVisualizer::updateRangeInfoText ( )

protectedvirtual

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual DtVector makVrv::DtIntervisibilityVertexVisualizer::endPoint ( ) const

protectedvirtual

Returns end point, looking up object if attached to get position. Returns in local coordinates.

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

virtual DtVector makVrv::DtIntervisibilityVertexVisualizer::startPoint ( ) const

protectedvirtual

Returns start point, looking up object if attached to get position. Returns in local coordinates.

Reimplemented in makVrf::DtRangeLineVertexVisualizer.

DtUnicode makVrv::DtIntervisibilityVertexVisualizer::formatLocationString ( const DtCoordinateSystem &  coordSys, const std::vector< std::string > &  locs  )

protected

Member Data Documentation

DtIntervisibilityStateListener* makVrv::DtIntervisibilityVertexVisualizer::myIntervisibilityListener

protected

DtUnicode makVrv::DtIntervisibilityVertexVisualizer::myVertexVisualizerDefinition

protected

VertexInformation makVrv::DtIntervisibilityVertexVisualizer::myStartPoint

protected

VertexInformation makVrv::DtIntervisibilityVertexVisualizer::myEndPoint

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myIndicatorsEnabled

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myWidgetEventsEnabled

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowInfoOnSelect

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowRangeInformation

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myHatLinesOnSelectionOnly

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myHatLinesEnabled

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myFixedDistanceMode

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myEditingFlag

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowStart

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowEnd

protected

float makVrv::DtIntervisibilityVertexVisualizer::myRangeInfoBackgroundColorR

protected

float makVrv::DtIntervisibilityVertexVisualizer::myRangeInfoBackgroundColorG

protected

float makVrv::DtIntervisibilityVertexVisualizer::myRangeInfoBackgroundColorB

protected

float makVrv::DtIntervisibilityVertexVisualizer::myRangeInfoBackgroundColorA

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowAltChangeField

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowLocationField

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowHeadingField

protected

bool makVrv::DtIntervisibilityVertexVisualizer::myShowRangeField

protected

DtIntervisibilityVertexTicker* makVrv::DtIntervisibilityVertexVisualizer::myTicker

protected

A tick-able object to update this object on a regular basis.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtIntervisibilityVertexVisualizer.h
