This class is a virtual class that all segmented line models must implement.

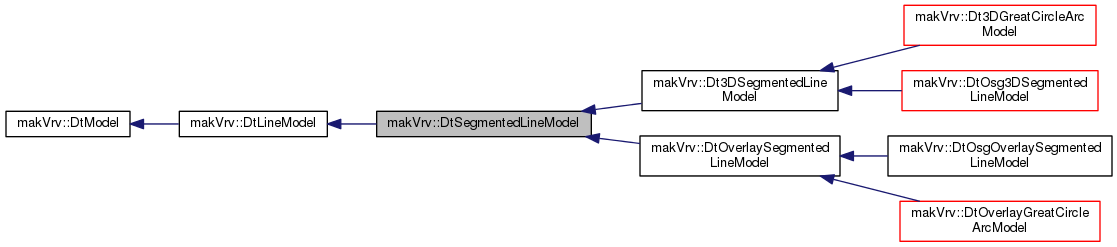

Inheritance diagram for makVrv::DtSegmentedLineModel:

Public Member Functions
	DtSegmentedLineModel (DtDe &de, DtUniqueID id)

virtual	~DtSegmentedLineModel ()

virtual void	setStyleSegments (const std::vector< double > &segmentPercentages)=0

virtual void	setSegmentColor (unsigned int segmentIndex, float r, float g, float b, float a)=0

virtual void	setSegmentLightningStyle (unsigned int segmentIndex, bool enableLightningStyle)=0

virtual void	setSegmentStartArrow (unsigned int segmentIndex, bool enableArrow)=0

virtual void	setSegmentEndArrow (unsigned int segmentIndex, bool enableArrow)=0

virtual void	setSegmentStipplePattern (unsigned int segmentIndex, unsigned int stipplePattern, int repeatFactor=1)=0

virtual void	setSegmentWidth (unsigned int segmentIndex, double width)=0

virtual void	setSegmentStartColor (unsigned int segmentIndex, float r, float g, float b, float a)=0

virtual void	setSegmentEndColor (unsigned int segmentIndex, float r, float g, float b, float a)=0

virtual void	setArrowSize (double)=0

virtual void	setArrowStyle (int)=0

Public Member Functions inherited from makVrv::DtLineModel
	DtLineModel (DtDe &de, DtUniqueID id)

virtual	~DtLineModel ()

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setWidth (float width)=0

virtual void	setStipplePattern (unsigned int pattern, int repeatFactor=1)=0

virtual const std::vector < DtVector > &	points () const =0

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)

virtual	~DtModel ()

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)

virtual void	setModelDefinition (const std::string &str)

virtual const std::string &	modelDefinitionName ()

virtual void	saveModelToFile (const std::string &filename)

virtual const std::string &	className () const

unsigned int	transformSize () const

virtual void	setPosition (int vtx, const DtVector &position)

virtual const DtVector &	position (int vtx=0) const

virtual void	removePosition (int vtx)

virtual void	setPositionOffset (const DtVector &positionOffset)

virtual const DtVector &	positionOffset () const

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)

virtual const DtTaitBryan &	orientation (int vtx=0) const

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)

virtual const DtTaitBryan &	orientationOffset () const

virtual void	enableColorBlending (bool b)

virtual void	setBlendColor (float r, float g, float b, float a)

virtual void	getBlendColor (float &r, float &g, float &b, float &a)

virtual bool	colorBlendingEnabled () const

virtual void	enableLighting (bool l)

virtual int	modelSet () const

const DtVector &	boundingBoxExtents () const

void	getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector &	boundingBoxCenter () const

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

void	setContributesToBound (bool trueOrFalse)

bool	contributesToBound () const

DtDe &	de ()

virtual void	setModelInstance (DtModelInstance *modelInstance)

virtual void	promoteBackgroundModelInstance (DtModelDefinition &defintion)

virtual void	setVisible (bool isVisible)

virtual bool	visible () const

DtUniqueID	parentSceneObjectID () const

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, int modelSet, int visualizerType)

virtual void	setElementId (DtUniqueID id)

virtual void	removedFromSceneObject ()

virtual void	setIsSupportModel (bool isSupport)=0

virtual void	setSolid (bool isSolid)

virtual bool	isProp ()

virtual void	updateMinLastFrameDistance (float distance)

virtual void	resetLastFrameDistance ()

virtual float	minLastFrameDistance () const

virtual DtModelInstance *	modelInstance ()

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const

virtual bool	supportsMultithreadedLoad ()

virtual void	backgroundLoad ()

virtual void	foregroundLoad ()

virtual bool	isActivelyBackgroundLoading ()

virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed

boost::signalslib::signal < void(DtModel *)>	signal_modelChanged

boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceCreated

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, int modelSet, int visualizerType)=0

virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)

virtual void	removeFromScene ()=0

virtual void	initializeModelInstance ()

void	slot_modelInstanceChanged (DtModelInstance *instance)

virtual void	waitAndClearLoadHandle ()

virtual void	removedFromLoadQueue ()

virtual void	setDoneBackgroundLoading ()

virtual void	setActivelyBackgroundLoading ()

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId

bool	myColorBlendingEnabled

DtModelInstance *	myBackgroundModelInstance

float	myMinLastFrameDistance

TransformList	myTransforms

DtModelInstance *	myModelInstance

int	myModelSet

int	myVisualizerType

bool	myContributesToBound

DtUniqueID	myParentSceneObjectID

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::DtSegmentedLineModel::DtSegmentedLineModel	(	DtDe &	de,
		DtUniqueID	id
	)

Constructor.

virtual makVrv::DtSegmentedLineModel::~DtSegmentedLineModel ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtSegmentedLineModel::setStyleSegments ( const std::vector< double > & segmentPercentages )

pure virtual

Set the style segments to percentages of the total line length The values in segmentPercentages must add up to 1.0.

Implemented in makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsg3DGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentColor	(	unsigned int	segmentIndex,
		float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of a particular segment.

Implemented in makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsg3DGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentLightningStyle	(	unsigned int	segmentIndex,
		bool	enableLightningStyle
	)

pure virtual

Turn on or off lightning bolt style for a particular segment. Lightning style is not currently supported for overlay forms of segmented lines or great circle arc forms.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsg3DGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentStartArrow	(	unsigned int	segmentIndex,
		bool	enableArrow
	)

pure virtual

Turn on or off the arrow at a segment's start point.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsg3DGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentEndArrow	(	unsigned int	segmentIndex,
		bool	enableArrow
	)

pure virtual

Turn on or off the arrow at a segment's end point. Start and end point are equivalent to simply turning on an arrow at the end point of the specified segment.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsg3DGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentStipplePattern	(	unsigned int	segmentIndex,
		unsigned int	stipplePattern,
		int	repeatFactor = `1`
	)

pure virtual

Set the line stipple pattern for a segment, according to the OpenGL line stippling specification. Repeat factor is not supported for overlay forms of segmented lines.

Implemented in makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentWidth	(	unsigned int	segmentIndex,
		double	width
	)

pure virtual

Set the width of a line segment.

Implemented in makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentStartColor	(	unsigned int	segmentIndex,
		float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of the firt vertex in a segment. This can be used for color blending between vertices.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsg3DGreatCircleArcModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setSegmentEndColor	(	unsigned int	segmentIndex,
		float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of the end vertex in a segment. This can be used for color blending between vertices.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsg3DGreatCircleArcModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtSegmentedLineModel::setArrowSize ( double )

pure virtual

Sets the size of the arrow (in pixels)

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsg3DSegmentedLineModel, and makVrf::DtVrfOsg3DSegmentedLineModel.

virtual void makVrv::DtSegmentedLineModel::setArrowStyle ( int )

pure virtual

Sets the style of the arrow. Applies to all segments.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsg3DGreatCircleArcModel, and makVrv::DtOsg3DSegmentedLineModel.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtSegmentedLineModel.h
