DerivedDialogWidget Class Reference

The main widget for the dialog-page. This class does not contain any application logic, but instead delegates the logic to another object (a logic-object) through signals emitted via the interface of this class. The interface allows the widget or logic to be independently re-factored without affecting the other. This widget extends the existing makVrv::DtLoaderSettingsWidget by adding a new checkbox which (when checked/unchecked) enables/disables the Flip DDS checkbox already existing in the base class.

Examples

• exampleExtendDialogByDerivation

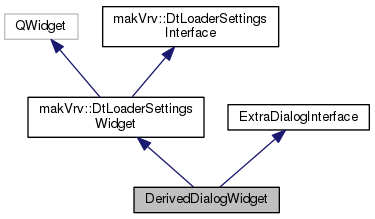

Inheritance diagram for DerivedDialogWidget:

Public Member Functions
	DerivedDialogWidget (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual	~DerivedDialogWidget ()
virtual void	setFlipDdsEnabled (bool enabled)
Public Member Functions inherited from makVrv::DtLoaderSettingsWidget
	DtLoaderSettingsWidget (QWidget *parent, Qt::WindowFlags f=Qt::Widget)
virtual	~DtLoaderSettingsWidget ()
virtual void	setDdsFlip (bool state)
Public Member Functions inherited from makVrv::DtLoaderSettingsInterface
virtual	~DtLoaderSettingsInterface ()

Protected Slots
virtual void	on_enableFlagChanged (int state)
Protected Slots inherited from makVrv::DtLoaderSettingsWidget
void	on_ddsFlipCheckChanged (int state)

Protected Attributes
QCheckBox *	myEnableFlagCheckbox
Protected Attributes inherited from makVrv::DtLoaderSettingsWidget
QCheckBox *	myDdsFlipCheckbox
QVBoxLayout *	myMainLayout

Additional Inherited Members
Public Attributes inherited from makVrv::DtLoaderSettingsInterface
boost::signalslib::signal < void(bool)>	signal_ddsFlipSet
Public Attributes inherited from ExtraDialogInterface
makVrv::vrvSignalsLib::signal < void(bool)>	signal_enableFlagSet
Protected Member Functions inherited from makVrv::DtLoaderSettingsWidget
void	setupGui ()

Constructor & Destructor Documentation

DerivedDialogWidget::DerivedDialogWidget	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget
	)

CTOR.

virtual DerivedDialogWidget::~DerivedDialogWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void DerivedDialogWidget::setFlipDdsEnabled ( bool  enabled )

virtual

Enables/disables the Flip DDS checkbox in the base class.

Implements ExtraDialogInterface.

virtual void DerivedDialogWidget::on_enableFlagChanged ( int  state )

protectedvirtualslot

Converts a Qt signal into a boost-signal. This slot is connected to the Qt signal of the new QCheckBox. When called, this slot emits a boost signal_enableFlagSet signal, passing along the current checkbox state.

Member Data Documentation

QCheckBox* DerivedDialogWidget::myEnableFlagCheckbox

protected

The new checkbox that extends the base class widget.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/examples/exampleExtendDialogByDerivation/DerivedDialogWidget.h
