DtIteratorBase< T > Class Template Reference

template<class T>
class DtIteratorBase< T >

Description: DtIteratorBase is the base class for iterators used to iterate over a DtList.

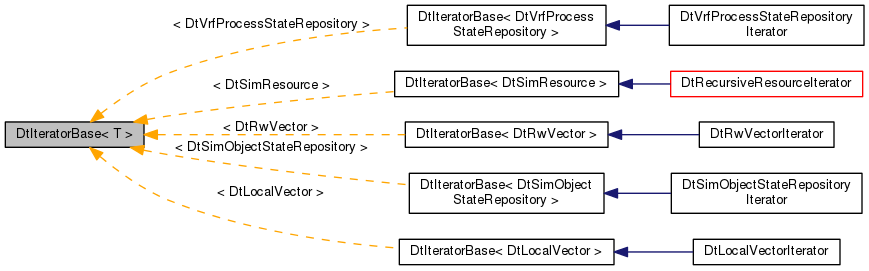

Inheritance diagram for DtIteratorBase< T >:

Public Member Functions
	DtIteratorBase (const DtList &list)
	DtIteratorBase (const DtIteratorBase &orig)
virtual	~DtIteratorBase ()
virtual unsigned int	size () const
virtual bool	empty () const
virtual const DtList &	list () const
virtual bool	reset (bool reverse=false)
virtual bool	reset (DtIteratorLocation location, DtIteratorDirection direction=DtIteratorForward)
virtual void	reverse ()
virtual void	setDirection (DtIteratorDirection direction)
virtual DtIteratorDirection	direction ()
virtual int	cursorIndex () const
virtual void	setCursorIndex (int i)
virtual T *	internalFirst (bool move=true)
T *	operator-> ()
T *	operator* ()
virtual T *	internalCurrent () const
virtual DtListItem *	cursor () const
virtual T *	itemToObject (DtListItem *item, bool move)
virtual T *	internalNext (bool move=true)
virtual T *	internalLast (bool move=true)
virtual T *	internalWrapNext (bool move=true)
virtual T *	internalPrev (bool move=true)
virtual T *	internalWrapPrev (bool move=true)
virtual T *	current ()
virtual T *	first (bool move=true)
virtual T *	next (bool move=true)
virtual T *	prev (bool move=true)
virtual T *	last (bool move=true)
virtual T *	wrapNext (bool move=true)
virtual T *	wrapPrev (bool move=true)
T *	operator++ ()
T *	operator-- ()

Protected Attributes
const DtList &	myList
DtListItem *	myCursor
DtIteratorDirection	myDirection

Private Member Functions
	DtIteratorBase ()
const DtIteratorBase &	operator= (const DtIteratorBase &orig)

Constructor & Destructor Documentation

template<class T>

DtIteratorBase< T >::DtIteratorBase ( )

private

template<class T>

DtIteratorBase< T >::DtIteratorBase ( const DtList &  list )

inline

Constructor. Supply the DtList to be iterated over.

template<class T>

DtIteratorBase< T >::DtIteratorBase ( const DtIteratorBase< T > &  orig )

inline

Copy constructor.

template<class T>

virtual DtIteratorBase< T >::~DtIteratorBase ( )

inlinevirtual

Member Function Documentation

template<class T>

const DtIteratorBase& DtIteratorBase< T >::operator= ( const DtIteratorBase< T > &  orig )

private

Assignment Operator.

template<class T>

virtual unsigned int DtIteratorBase< T >::size ( ) const

inlinevirtual

Returns

The size of the container being iterated over.

template<class T>

virtual bool DtIteratorBase< T >::empty ( ) const

inlinevirtual

Returns

A boolean specifying whether or not the container being iterated over is empty or not.

template<class T>

virtual const DtList& DtIteratorBase< T >::list ( ) const

inlinevirtual

template<class T>

virtual bool DtIteratorBase< T >::reset ( bool  reverse = false )

inlinevirtual

Sets the cursor and the direction of this iterator over the list. If reverse is false, DtIteratorBeginning and DtIteratorForward are used, otherwise, DtIteratorEnd and DtIteratorReverse are used. Returns true unless the list is empty.

Referenced by DtVrfProcessStateRepositoryIterator::first(), DtSimObjectStateRepositoryIterator::first(), DtIteratorBase< DtLocalVector >::internalFirst(), DtIteratorBase< DtLocalVector >::internalLast(), DtVrfProcessStateRepositoryIterator::last(), DtSimObjectStateRepositoryIterator::last(), DtIteratorBase< DtLocalVector >::reset(), and DtRecursiveResourceIterator::reset().

template<class T>

virtual bool DtIteratorBase< T >::reset ( DtIteratorLocation  location, DtIteratorDirection  direction = DtIteratorForward  )

inlinevirtual

Sets the cursor and the direction of this iterator over the list.

template<class T>

virtual void DtIteratorBase< T >::reverse ( )

inlinevirtual

Reverses the direction if this iterator. The cursor is not moved.

Referenced by DtIteratorBase< DtLocalVector >::reset().

template<class T>

virtual void DtIteratorBase< T >::setDirection ( DtIteratorDirection  direction )

inlinevirtual

Sets the direction of this iterator. The cursor is not moved.

template<class T>

virtual DtIteratorDirection DtIteratorBase< T >::direction ( )

inlinevirtual

Returns the current direction of the iterator.

Referenced by DtIteratorBase< DtLocalVector >::reset(), and DtIteratorBase< DtLocalVector >::setDirection().

template<class T>

virtual int DtIteratorBase< T >::cursorIndex ( ) const

inlinevirtual

Returns current cursor index in list.

template<class T>

virtual void DtIteratorBase< T >::setCursorIndex ( int  i )

inlinevirtual

template<class T>

virtual T* DtIteratorBase< T >::internalFirst ( bool  move = true )

inlinevirtual

Returns the first vertex in the list if going DtIteratorForward, and the last vertex if going DtIteratorReverse. If move is true, first() resets this iterator to DtIteratorBeginning and DtIteratorForward if going DtIteratorForward DtIteratorEnd and DtIteratorReverse if going DtIteratorReverse.

Referenced by DtIteratorBase< DtLocalVector >::first().

template<class T>

T* DtIteratorBase< T >::operator-> ( )

inline

template<class T>

T* DtIteratorBase< T >::operator* ( )

inline

template<class T>

virtual T* DtIteratorBase< T >::internalCurrent ( ) const

inlinevirtual

Returns the current vertex. The cursor is not moved.

Referenced by DtIteratorBase< DtLocalVector >::current().

template<class T>

virtual DtListItem* DtIteratorBase< T >::cursor ( ) const

inlinevirtual

Returns the current cursor. Use with caution.

template<class T>

virtual T* DtIteratorBase< T >::itemToObject ( DtListItem *  item, bool  move  )

inlinevirtual

Referenced by DtIteratorBase< DtLocalVector >::internalNext(), DtIteratorBase< DtLocalVector >::internalPrev(), DtIteratorBase< DtLocalVector >::internalWrapNext(), and DtIteratorBase< DtLocalVector >::internalWrapPrev().

template<class T>

virtual T* DtIteratorBase< T >::internalNext ( bool  move = true )

inlinevirtual

Referenced by DtIteratorBase< DtLocalVector >::next().

template<class T>

virtual T* DtIteratorBase< T >::internalLast ( bool  move = true )

inlinevirtual

Returns the last vertex in the list if going DtIteratorForward, and the first vertex if going DtIteratorReverse. If move is true, last() resets this iterator to DtIteratorEnd and DtIteratorReverse if going DtIteratorForward DtIteratorBeginning and DtIteratorForward if going DtIteratorReverse.

Referenced by DtIteratorBase< DtLocalVector >::last().

template<class T>

virtual T* DtIteratorBase< T >::internalWrapNext ( bool  move = true )

inlinevirtual

If the cursor is 0, returns 0 (move is ignored in this case). Otherwise, returns the vertex at the next position in the list in the current direction and if move is true, moves the cursor there.

Referenced by DtIteratorBase< DtLocalVector >::wrapNext().

template<class T>

virtual T* DtIteratorBase< T >::internalPrev ( bool  move = true )

inlinevirtual

If the cursor is 0, returns 0 (move is ignored in this case). Otherwise, returns the vertex at the previous position in the list in the current direction and if move is true, moves the cursor there.

Referenced by DtIteratorBase< DtLocalVector >::prev().

template<class T>

virtual T* DtIteratorBase< T >::internalWrapPrev ( bool  move = true )

inlinevirtual

Referenced by DtIteratorBase< DtLocalVector >::wrapPrev().

template<class T>

virtual T* DtIteratorBase< T >::current ( )

inlinevirtual

Referenced by DtRwIntelCollectionArea::modifierForForce(), DtRecursiveResourceIterator::next(), DtIteratorBase< DtLocalVector >::operator*(), DtIteratorBase< DtLocalVector >::operator->(), and DtRwTranslatableStringObject::translate().

template<class T>

virtual T* DtIteratorBase< T >::first ( bool  move = true )

inlinevirtual

Reimplemented in DtSimObjectStateRepositoryIterator, DtRecursiveResourceIterator, and DtVrfProcessStateRepositoryIterator.

Referenced by DtTerrainInterfaceConfig::ListT< DtTerrainInterfaceConfig >::configure(), DtIteratorBase< DtLocalVector >::DtIteratorBase(), DtVrfProcessStateRepositoryIterator::first(), DtRecursiveResourceIterator::first(), DtSimObjectStateRepositoryIterator::first(), and DtRwFactoryItemList< T >::prePutSelf().

template<class T>

virtual T* DtIteratorBase< T >::next ( bool  move = true )

inlinevirtual

Referenced by DtTerrainInterfaceConfig::ListT< DtTerrainInterfaceConfig >::configure(), DtIteratorBase< DtLocalVector >::operator++(), and DtRwFactoryItemList< T >::prePutSelf().

template<class T>

virtual T* DtIteratorBase< T >::prev ( bool  move = true )

inlinevirtual

Referenced by DtIteratorBase< DtLocalVector >::operator--().

template<class T>

virtual T* DtIteratorBase< T >::last ( bool  move = true )

inlinevirtual

Reimplemented in DtSimObjectStateRepositoryIterator, and DtVrfProcessStateRepositoryIterator.

Referenced by DtVrfProcessStateRepositoryIterator::last(), and DtSimObjectStateRepositoryIterator::last().

template<class T>

virtual T* DtIteratorBase< T >::wrapNext ( bool  move = true )

inlinevirtual

template<class T>

virtual T* DtIteratorBase< T >::wrapPrev ( bool  move = true )

inlinevirtual

template<class T>

T* DtIteratorBase< T >::operator++ ( )

inline

template<class T>

T* DtIteratorBase< T >::operator-- ( )

inline

Member Data Documentation

template<class T>

const DtList& DtIteratorBase< T >::myList

protected

Referenced by DtIteratorBase< DtLocalVector >::cursorIndex(), DtIteratorBase< DtLocalVector >::empty(), DtIteratorBase< DtLocalVector >::internalFirst(), DtIteratorBase< DtLocalVector >::internalLast(), DtIteratorBase< DtLocalVector >::internalWrapNext(), DtIteratorBase< DtLocalVector >::internalWrapPrev(), DtIteratorBase< DtLocalVector >::list(), DtIteratorBase< DtLocalVector >::reset(), DtIteratorBase< DtLocalVector >::setCursorIndex(), and DtIteratorBase< DtLocalVector >::size().

template<class T>

DtListItem* DtIteratorBase< T >::myCursor

protected

Referenced by DtIteratorBase< DtLocalVector >::cursor(), DtIteratorBase< DtLocalVector >::cursorIndex(), DtIteratorBase< DtLocalVector >::internalCurrent(), DtIteratorBase< DtLocalVector >::internalNext(), DtIteratorBase< DtLocalVector >::internalPrev(), DtIteratorBase< DtLocalVector >::internalWrapNext(), DtIteratorBase< DtLocalVector >::internalWrapPrev(), DtIteratorBase< DtLocalVector >::itemToObject(), DtIteratorBase< DtLocalVector >::reset(), and DtIteratorBase< DtLocalVector >::setCursorIndex().

template<class T>

DtIteratorDirection DtIteratorBase< T >::myDirection

protected

Referenced by DtIteratorBase< DtLocalVector >::direction(), DtIteratorBase< DtLocalVector >::internalFirst(), DtIteratorBase< DtLocalVector >::internalLast(), DtIteratorBase< DtLocalVector >::internalNext(), DtIteratorBase< DtLocalVector >::internalPrev(), DtIteratorBase< DtLocalVector >::internalWrapNext(), DtIteratorBase< DtLocalVector >::internalWrapPrev(), DtIteratorBase< DtLocalVector >::reset(), DtIteratorBase< DtLocalVector >::reverse(), and DtIteratorBase< DtLocalVector >::setDirection().

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfutil/iteratorBase.h
