DtJoyDeviceControllerDescriptorInterface Class Reference

DtGroundJoyDeviceControllerDescriptor.

class DtJoyDeviceControllerDescriptor:

Instances of DtJoyDeviceControllerDescriptor allow definition of joystick available controls and the ports they are mapped to, as well as a possible range of values

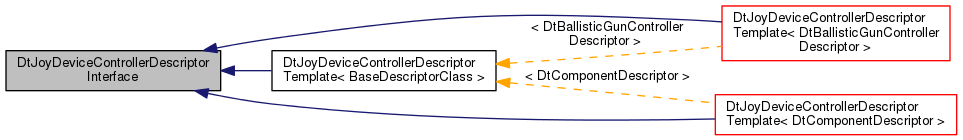

Inheritance diagram for DtJoyDeviceControllerDescriptorInterface:

Public Member Functions
	DtJoyDeviceControllerDescriptorInterface ()
virtual	~DtJoyDeviceControllerDescriptorInterface ()
virtual void	setJoystickControls (const DtRwJoystickControls &)=0
virtual const DtRwJoystickControls &	joystickControls () const =0
virtual bool	hasFunctionGroup (const DtString &) const =0

Constructor & Destructor Documentation

DtJoyDeviceControllerDescriptorInterface::DtJoyDeviceControllerDescriptorInterface ( )

inline

CTOR.

virtual DtJoyDeviceControllerDescriptorInterface::~DtJoyDeviceControllerDescriptorInterface ( )

inlinevirtual

DTOR.

Member Function Documentation

virtual void DtJoyDeviceControllerDescriptorInterface::setJoystickControls ( const DtRwJoystickControls &  )

pure virtual

Set a joystick control list.

Implemented in DtJoyDeviceControllerDescriptorTemplate< BaseDescriptorClass >, DtJoyDeviceControllerDescriptorTemplate< DtBallisticGunControllerDescriptor >, and DtJoyDeviceControllerDescriptorTemplate< DtComponentDescriptor >.

virtual const DtRwJoystickControls& DtJoyDeviceControllerDescriptorInterface::joystickControls ( ) const

pure virtual

Implemented in DtJoyDeviceControllerDescriptorTemplate< BaseDescriptorClass >, DtJoyDeviceControllerDescriptorTemplate< DtBallisticGunControllerDescriptor >, and DtJoyDeviceControllerDescriptorTemplate< DtComponentDescriptor >.

virtual bool DtJoyDeviceControllerDescriptorInterface::hasFunctionGroup ( const DtString &  ) const

pure virtual

Returns true if contains the particular function group.

Implemented in DtJoyDeviceControllerDescriptorTemplate< BaseDescriptorClass >, DtJoyDeviceControllerDescriptorTemplate< DtBallisticGunControllerDescriptor >, and DtJoyDeviceControllerDescriptorTemplate< DtComponentDescriptor >.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfobjparam/joyDeviceControllerDescriptor.h
