The base class for all signature modifier descriptions. Signature Modifiers define a modification to the sensor signature value of an object based on some condition. Subclasses of this class will define the condition. These classes are the description of the modifier only. The evaluation of the modifier is handled by a sibling set of classes derived from DtSignatureModifierEvaluator.

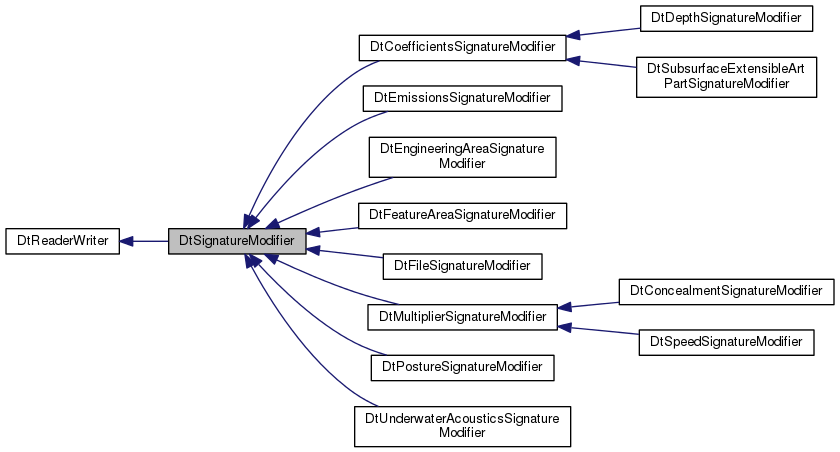

Inheritance diagram for DtSignatureModifier:

[legend]

Public Member Functions
	DtSignatureModifier ()

	DtSignatureModifier (const DtString &name, DtReaderWriterRegistry *const parentRegistry=NULL)

	DtSignatureModifier (const DtSymbolString &name, DtReaderWriterRegistry *const parentRegistry=NULL)

	DtSignatureModifier (const DtSignatureModifier &orig, DtReaderWriterRegistry *const parentRegistry=NULL)

DtSignatureModifier &	operator= (const DtSignatureModifier &orig)

virtual DtSignatureModifier *	clone (DtReaderWriterRegistry *const parentRegistry=NULL) const =0

virtual	~DtSignatureModifier ()

virtual DtString	type () const

virtual bool	operator== (const DtSignatureModifier &) const

bool	operator!= (const DtSignatureModifier &rhs) const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs) const

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static void	setFactory (DtSignatureModifierFactory *factory)

static DtSignatureModifier *	createSignatureModifier (const DtString &type)

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Static Protected Attributes
static DtSignatureModifierFactory *	theFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Constructor & Destructor Documentation

DtSignatureModifier::DtSignatureModifier ( )

default constructor

DtSignatureModifier::DtSignatureModifier	(	const DtString &	name,
		DtReaderWriterRegistry *const	parentRegistry = `NULL`
	)

real constructor

DtSignatureModifier::DtSignatureModifier	(	const DtSymbolString &	name,
		DtReaderWriterRegistry *const	parentRegistry = `NULL`
	)

DtSignatureModifier::DtSignatureModifier	(	const DtSignatureModifier &	orig,
		DtReaderWriterRegistry *const	parentRegistry = `NULL`
	)

copy constructor

virtual DtSignatureModifier::~DtSignatureModifier ( )

virtual

Member Function Documentation

DtSignatureModifier& DtSignatureModifier::operator= ( const DtSignatureModifier & orig )

virtual DtSignatureModifier* DtSignatureModifier::clone ( DtReaderWriterRegistry *const parentRegistry = NULL ) const

pure virtual

Returns a copy of this class.

Implemented in DtFileSignatureModifier, DtCoefficientsSignatureModifier, DtMultiplierSignatureModifier, DtUnderwaterAcousticsSignatureModifier, DtEmissionsSignatureModifier, DtSubsurfaceExtensibleArtPartSignatureModifier, DtEngineeringAreaSignatureModifier, DtDepthSignatureModifier, DtFeatureAreaSignatureModifier, DtConcealmentSignatureModifier, DtPostureSignatureModifier, and DtSpeedSignatureModifier.

virtual DtString DtSignatureModifier::type ( ) const

virtual

Returns: The string type identifier for this type. VR-Forces default types are defined in signatureModifierTypes.h. The default implementation returns the RW name of the class.

static void DtSignatureModifier::setFactory ( DtSignatureModifierFactory * factory )

static

Sets the static factory member.

static DtSignatureModifier* DtSignatureModifier::createSignatureModifier ( const DtString & type )

static

Uses the static factory assigned in setFactory to create the requested signature modifier type.

virtual bool DtSignatureModifier::operator== ( const DtSignatureModifier & ) const

virtual

Comparrison operator. Override to compare specific subclasses.

Reimplemented in DtFileSignatureModifier.

bool DtSignatureModifier::operator!= ( const DtSignatureModifier & rhs ) const

inline

Member Data Documentation

DtSignatureModifierFactory* DtSignatureModifier::theFactory

staticprotected

Static pointer to the factory for signature modifiers.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfutil/signatureModifier.h
