DtSimCommand is an abstract base class from which commands can derive. It manages the read/write capability; derived classes need only use and register read/writable data types for derived information.

Related Examples

Add Simulation Command Example

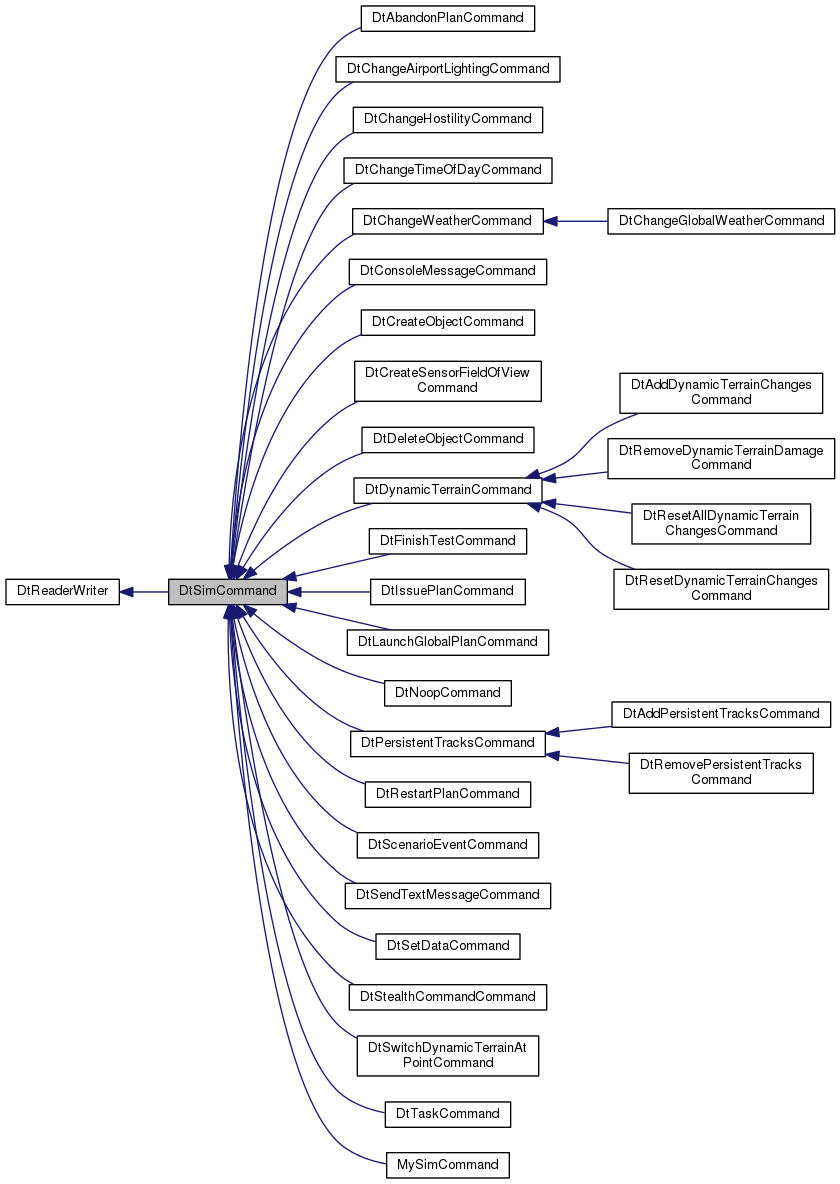

Inheritance diagram for DtSimCommand:

[legend]

Public Types
typedef DtSimCommandMessageType	FactoryKeyType

Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Public Member Functions
virtual	~DtSimCommand ()

virtual bool	init ()

virtual const DtSimCommandMessageType &	type () const =0

virtual DtSimCommand *	clone (const DtString &name, DtReaderWriterRegistry *parentRegistry=0) const =0

virtual DtSimCommand *	clone () const

virtual DtString	stringRep () const =0

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual char *	netRep ()

virtual int	netRepSize () const

virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)

virtual bool	setToNet ()

virtual void	setLocalDelivery (bool)

virtual bool	localDelivery () const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs) const

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtSimCommand *	createSimCommand (DtlObjPtr mtlStream)

static DtSimCommand *	createSimCommand (const DtSimCommandMessageType &simCommandType)

static DtSimCommand *	createFromFactory (const DtSimCommandMessageType &simCommandType)

static void	addSimCommandCreatorFcn (const DtSimCommandMessageType &simCommandName, DtSimCommandCreatorFcn fcn)

static void	setFactory (DtSimCommandFactory *factory)

static DtSimCommandFactory *	factory ()

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Member Functions
	DtSimCommand ()

	DtSimCommand (const DtString &writeName, DtReaderWriterRegistry *parentRegistry=0)

	DtSimCommand (const DtString &writeName, const DtSimCommand &orig, DtReaderWriterRegistry *parentRegistry=0)

const DtSimCommand &	operator= (const DtSimCommand &orig)

virtual char *	createNetworkBuffer ()

virtual bool	isTypeRegistered (const DtSimCommandMessageType &commandType)

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
char *	myNetRep

bool	myLocalDelivery

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Static Protected Attributes
static DtSimCommandFactory *	myFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Member Typedef Documentation

typedef DtSimCommandMessageType DtSimCommand::FactoryKeyType

Common definition of the type used for factory lookups, for use with DtRwFactoryItemList.

Constructor & Destructor Documentation

DtSimCommand::DtSimCommand ( )

protected

Constructors are protected because no one should instantiate the base class, just derived versions.

default constructor

DtSimCommand::DtSimCommand	(	const DtString &	writeName,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

protected

constructor If you have a command 'put' itself, the write name will preface the command.

DtSimCommand::DtSimCommand	(	const DtString &	writeName,
		const DtSimCommand &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

protected

copy constructor

virtual DtSimCommand::~DtSimCommand ( )

virtual

destructor

Member Function Documentation

const DtSimCommand& DtSimCommand::operator= ( const DtSimCommand & orig )

protected

assignment operator; same as copy constructor

virtual bool DtSimCommand::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

virtual const DtSimCommandMessageType& DtSimCommand::type ( ) const

pure virtual

Returns: An integer the kind of simulation command. Derived classes must implement this member function to return a unique string representing the type of simCommand. The set of standard simCommand types supplied with VR-Forces is in radioMsgsTypes.h.

Implemented in DtRemoveDynamicTerrainDamageCommand, DtResetAllDynamicTerrainChangesCommand, DtRemovePersistentTracksCommand, DtResetDynamicTerrainChangesCommand, DtAddPersistentTracksCommand, DtAddDynamicTerrainChangesCommand, DtSwitchDynamicTerrainAtPointCommand, DtCreateObjectCommand, DtScenarioEventCommand, DtStealthCommandCommand, DtAbandonPlanCommand, DtChangeWeatherCommand, DtRestartPlanCommand, DtCreateSensorFieldOfViewCommand, DtFinishTestCommand, DtIssuePlanCommand, DtConsoleMessageCommand, DtChangeGlobalWeatherCommand, DtSetDataCommand, DtTaskCommand, DtChangeHostilityCommand, DtDeleteObjectCommand, DtLaunchGlobalPlanCommand, MySimCommand, DtChangeTimeOfDayCommand, DtChangeAirportLightingCommand, DtSendTextMessageCommand, and DtNoopCommand.

virtual DtSimCommand* DtSimCommand::clone	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)		const

pure virtual

Make a copy of this sim command. Returns a newly allocated instance of a DtSimCommand. Override this member function to return a pointer to a newly allocated instance of the derived class.

Implemented in DtRemoveDynamicTerrainDamageCommand, DtResetAllDynamicTerrainChangesCommand, DtRemovePersistentTracksCommand, DtResetDynamicTerrainChangesCommand, DtAddPersistentTracksCommand, DtAddDynamicTerrainChangesCommand, DtSwitchDynamicTerrainAtPointCommand, DtCreateObjectCommand, DtScenarioEventCommand, DtStealthCommandCommand, DtAbandonPlanCommand, DtChangeWeatherCommand, DtRestartPlanCommand, DtCreateSensorFieldOfViewCommand, DtFinishTestCommand, DtIssuePlanCommand, DtConsoleMessageCommand, DtChangeGlobalWeatherCommand, DtSetDataCommand, DtTaskCommand, DtChangeHostilityCommand, DtDeleteObjectCommand, DtLaunchGlobalPlanCommand, MySimCommand, DtChangeTimeOfDayCommand, DtSendTextMessageCommand, DtNoopCommand, and DtChangeAirportLightingCommand.

virtual DtSimCommand* DtSimCommand::clone ( ) const

virtual

Version of clone that preserves the existing name, and assigns a null parent registry.

virtual DtString DtSimCommand::stringRep ( ) const

pure virtual

Returns a human-readable string representation of the command. This string representation is used to display information about the command in the plan editor and viewer. The type and parameters for the command are typically encoded in the string. The format of the string is up to you.

Implemented in DtChangeWeatherCommand, DtRemovePersistentTracksCommand, DtCreateObjectCommand, DtAddPersistentTracksCommand, DtSwitchDynamicTerrainAtPointCommand, DtChangeTimeOfDayCommand, DtDynamicTerrainCommand, DtScenarioEventCommand, DtIssuePlanCommand, DtChangeAirportLightingCommand, DtAbandonPlanCommand, DtChangeHostilityCommand, DtRestartPlanCommand, DtConsoleMessageCommand, DtFinishTestCommand, DtDeleteObjectCommand, DtSetDataCommand, DtTaskCommand, DtSendTextMessageCommand, DtLaunchGlobalPlanCommand, MySimCommand, DtStealthCommandCommand, DtNoopCommand, DtCreateSensorFieldOfViewCommand, and DtPersistentTracksCommand.

virtual void DtSimCommand::putData	(	std::string &	fp,
		int	indentLevel = `0`
	)

virtual

putData writes our type, which is provided by the virtual type accessor of the deriving class.

Reimplemented from DtReaderWriter.

Reimplemented in DtSetDataCommand, and DtTaskCommand.

virtual DtlObjPtr DtSimCommand::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

virtual

getData is just used to get us past the type in the data stream, since it's not actually stored.

Reimplemented from DtReaderWriter.

Reimplemented in DtSetDataCommand, and DtTaskCommand.

virtual char* DtSimCommand::netRep ( )

virtual

virtual int DtSimCommand::netRepSize ( ) const

virtual

Returns the size in bytes of the network representation of the class. This is the size in bytes of the DtNetSimSimCommand structure. Derived classes should take into acount the size returned by this class when overriding (they should call down to this class and add the result to their additional size).

Reimplemented in DtCreateObjectCommand, DtAddPersistentTracksCommand, DtSwitchDynamicTerrainAtPointCommand, DtDynamicTerrainCommand, DtChangeAirportLightingCommand, DtScenarioEventCommand, DtChangeHostilityCommand, DtConsoleMessageCommand, DtFinishTestCommand, DtDeleteObjectCommand, DtIssuePlanCommand, DtSetDataCommand, DtTaskCommand, DtAbandonPlanCommand, DtRestartPlanCommand, DtSendTextMessageCommand, DtStealthCommandCommand, DtLaunchGlobalPlanCommand, MySimCommand, DtChangeWeatherCommand, DtCreateSensorFieldOfViewCommand, DtChangeTimeOfDayCommand, DtNoopCommand, and DtPersistentTracksCommand.

virtual bool DtSimCommand::setFromNet	(	const char *	contentBuffer,
		unsigned	contentSize
	)

virtual

Sets mySubsimCommand member from the incoming contentBuffer (cast to type DtNetSimSimCommand). Derived classes should call down to this function first, and then extract their own data starting at the location contentBuffer + DtSimCommand::netRepSize().

Reimplemented in DtCreateObjectCommand, DtAddPersistentTracksCommand, DtSwitchDynamicTerrainAtPointCommand, DtDynamicTerrainCommand, DtChangeAirportLightingCommand, DtChangeHostilityCommand, DtConsoleMessageCommand, DtFinishTestCommand, DtScenarioEventCommand, DtDeleteObjectCommand, DtSetDataCommand, DtTaskCommand, DtIssuePlanCommand, DtSendTextMessageCommand, DtAbandonPlanCommand, DtRestartPlanCommand, DtLaunchGlobalPlanCommand, MySimCommand, DtStealthCommandCommand, DtChangeWeatherCommand, DtCreateSensorFieldOfViewCommand, DtNoopCommand, DtChangeTimeOfDayCommand, and DtPersistentTracksCommand.

virtual bool DtSimCommand::setToNet ( )

virtual

Calls netRep() to create the network buffer. Casts the resulting myNetRep to type DtNetSimSimCommand*, and then sets the mySubsimCommand member in the DtNetSimSimCommand from mySubsimCommand. Derived classes should call down to the base class version of setToNet() at the start of the function (before doing any processing on the network representation) They can then start to fill in their network data, starting at the location myNetRep + DtSimCommand::netRepSize().

Reimplemented in DtCreateObjectCommand, DtAddPersistentTracksCommand, DtSwitchDynamicTerrainAtPointCommand, DtDynamicTerrainCommand, DtChangeAirportLightingCommand, DtChangeHostilityCommand, DtConsoleMessageCommand, DtFinishTestCommand, DtScenarioEventCommand, DtDeleteObjectCommand, DtSetDataCommand, DtTaskCommand, DtSendTextMessageCommand, DtIssuePlanCommand, DtAbandonPlanCommand, DtLaunchGlobalPlanCommand, MySimCommand, DtRestartPlanCommand, DtStealthCommandCommand, DtChangeWeatherCommand, DtCreateSensorFieldOfViewCommand, DtNoopCommand, DtChangeTimeOfDayCommand, and DtPersistentTracksCommand.

virtual void DtSimCommand::setLocalDelivery ( bool )

virtual

If you know this command can be delivered and processed locally, then set this flag to true and it will not be sent over the network. Default is false.

virtual bool DtSimCommand::localDelivery ( ) const

virtual

static DtSimCommand* DtSimCommand::createSimCommand ( DtlObjPtr mtlStream )

static

Static functions.

Creates a new simCommand, given a pointer to a MAK Technologies LISP (MTL) stream. It first parses the stream to extract the type of simCommand to create. Then it calls the simCommand factory's create() member function with the given simCommand type. This returns a new instance of the particular simCommand type. The simCommand's getData() member function is then called to retrieve the simCommand parameters from the stream. The pointer to the new simCommand is returned.

static DtSimCommand* DtSimCommand::createSimCommand ( const DtSimCommandMessageType & simCommandType )

static

static DtSimCommand* DtSimCommand::createFromFactory ( const DtSimCommandMessageType & simCommandType )

inlinestatic

Common definition of the factory method, for use with DtRwFactoryItemList.

static void DtSimCommand::addSimCommandCreatorFcn	(	const DtSimCommandMessageType &	simCommandName,
		DtSimCommandCreatorFcn	fcn
	)

static

Adds a simCommand creator member function to the simCommand factory.

static void DtSimCommand::setFactory ( DtSimCommandFactory * factory )

static

static DtSimCommandFactory* DtSimCommand::factory ( )

static

virtual char* DtSimCommand::createNetworkBuffer ( )

protectedvirtual

virtual bool DtSimCommand::isTypeRegistered ( const DtSimCommandMessageType & commandType )

protectedvirtual

Member Data Documentation

char* DtSimCommand::myNetRep

protected

DtSimCommandFactory* DtSimCommand::myFactory

staticprotected

bool DtSimCommand::myLocalDelivery

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfplan/simCommand.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
