Class DtTerrainInterfaceConfig is a readable-writable class holding terrain interface configuration options. This class lives in vrfutil so that it is not necessary to depend on terrain interface to use this config object.

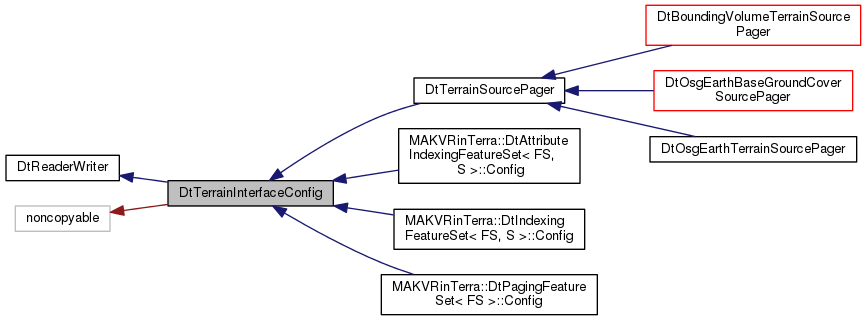

Inheritance diagram for DtTerrainInterfaceConfig:

[legend]

Classes
class	Configator

class	ListT

class	TerrainParam

Public Member Functions
	DtTerrainInterfaceConfig (const std::string &matchPattern="")

DtTerrainInterfaceConfig &	operator= (const DtTerrainInterfaceConfig &)

virtual bool	loadFromFile (const std::string &file, std::ostream &log)

virtual bool	loadFromFile (const std::string &file)

virtual bool	loadFromSourceSpecificFile (const std::string &file, const std::string &ext="mtl")

virtual void	configure (DtTerrainInterfaceConfig &config, const std::string &matchText, bool ignoreUnspecified=true) const

virtual void	configure (DtTerrainInterfaceConfig &config, bool ignoreUnspecified=true) const

virtual void	configurePaths (std::string &path) const

virtual void	print (std::ostream &, bool printUnspecified=true) const

DtString	prettyPrint () const

void	setName (const DtString &)

std::string	modelDefinitionPath () const

std::string	simCachePath () const

std::string	featureConfigFile () const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs) const

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static void	setModelDefinitionDefault (const std::string &)

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Public Attributes
TInt	maxNetworkThreads

TInt	maxUnusedFeatures

TInt	areaPageTableLoadingThreads

TInt	featuresHighestLoadLOD

TInt	featuresLowestLoadLOD

TInt	featuresPerTileTarget

TInt	featuresMaxIndexLOD

TInt	minFeaturesToIndexTile

TReal	featuresIndexRatio

TBool	deduplicateFeatures

TBool	cacheLastFeatureTile

TBool	loadTerraPageImagery

TBool	loadTerraPageLocalMaterials

TInt	pathFinderMaxSize

TInt	pathFinderPageTableDepth

TReal	pathFinderLoadTimeout

TReal	pathFinderVertexTolerance

TInt	pathFinderMinVertexSearch

TReal	pathFinderDotProductDistanceThreshold

TReal	pathFinderMinSearchRadius

TInt	pathFinderMaxDisjointNetworks

TInt	triangleThreshold

TInt	cacheOnlyMaxLod

TBool	loadImagery

TInt	blockingIntersectPageInPriority

TInt	intersectPageInPriority

TInt	pageOutPriority

TInt	defaultPreloadPriority

TVector	spatialSubdivisionDimensions

TBool	useS57ForTerrainGeneration

TBool	oceanLayerPresent

TReal	seaLevel

TReal	seaFloor

TBool	useSoundingPoints

TBool	pageFeatures

TReal	featuresMinUnloadTime

TInt	terrainMinUnloadIntersectDiff

TInt	minElevationIndexLOD

TInt	maxElevationIndexLOD

TReal	elevationTriangleOutputMergeTolerance

TReal	elevationIntersectTriangleMergeTolerance

TReal	maxChordLengthBeforeSplit

TInt	maxElevationChordSplitTestLOD

TInt	lowFidelityIntersectionLOD

TString	pluginsDirectory

TInt	featureIntersectionMode

TBool	activePagerTbbMode

TInt	nbTerrainThread

TInt	minElevationTileLoadingLod

TBool	proceduralSimVegetationEnabled

Protected Attributes
TString	myModelDefinitionPath

TString	mySimCachePath

TString	myFeatureConfigFile

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Private Types
typedef TerrainParam< DtRwBoolean >	TBool

typedef TerrainParam< DtRwInt >	TInt

typedef TerrainParam< DtRwReal >	TReal

typedef TerrainParam< DtRwString >	TString

typedef TerrainParam< DtRwVector >	TVector

typedef ListT < DtTerrainInterfaceConfig >	TList

Private Attributes
TList	subconfigurations

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Member Typedef Documentation

typedef TerrainParam<DtRwBoolean> DtTerrainInterfaceConfig::TBool

private

typedef TerrainParam<DtRwInt> DtTerrainInterfaceConfig::TInt

private

typedef TerrainParam<DtRwReal> DtTerrainInterfaceConfig::TReal

private

typedef TerrainParam<DtRwString> DtTerrainInterfaceConfig::TString

private

typedef TerrainParam<DtRwVector> DtTerrainInterfaceConfig::TVector

private

typedef ListT<DtTerrainInterfaceConfig> DtTerrainInterfaceConfig::TList

private

Constructor & Destructor Documentation

DtTerrainInterfaceConfig::DtTerrainInterfaceConfig ( const std::string & matchPattern = "" )

explicit

Regexp pattern to match which the label string of whatever is being configured must match. Exactly what the string is (data source name, query type, etc.) is up to the user of this class and may be different in different situations. Values which are not present will be set to defaults and set as unspecified.

Member Function Documentation

DtTerrainInterfaceConfig& DtTerrainInterfaceConfig::operator= ( const DtTerrainInterfaceConfig & )

virtual bool DtTerrainInterfaceConfig::loadFromFile	(	const std::string &	file,
		std::ostream &	log
	)

virtual

Load the values from the given file.

virtual bool DtTerrainInterfaceConfig::loadFromFile ( const std::string & file )

virtual

virtual bool DtTerrainInterfaceConfig::loadFromSourceSpecificFile	(	const std::string &	file,
		const std::string &	ext = `"mtl"`
	)

virtual

Load the values from the given file with the new extension if it exists. The file given with have its extension replaced by ext and this is The file that will be parsed.

Returns: True if source specific file loaded successfully.

virtual void DtTerrainInterfaceConfig::configure	(	DtTerrainInterfaceConfig &	config,
		const std::string &	matchText,
		bool	ignoreUnspecified = `true`
	)		const

virtual

Configure config using option matchText to match subconfigurations. If matchText is supplied and this object has a matchPattern value then the function will only proceed if the matchText matches the pattern, otherwise nothing is done as this configuration doesn't apply. The specified values in this object will then be assigned to the values in config, and then the subconfigurations of this object will be iterated over Exactly what you are matching against is up to the user. The purpose of matchPattern is just so that you can use this class in whatever context it is needed and be able to use whatever string is appropriate in that context to discriminate configurations. It is a string which describes whatever thing you are configuring and want to make a named subconfiguration for. All matching configurations are applied, it is probably not a good idea to make many subconfigurations which match the same string but that is up to the user. and the same process applied to each.

Parameters

config	Object to be configured.
matchText	Text to match against matchPattern.

virtual void DtTerrainInterfaceConfig::configure	(	DtTerrainInterfaceConfig &	config,
		bool	ignoreUnspecified = `true`
	)		const

virtual

virtual void DtTerrainInterfaceConfig::configurePaths ( std::string & path ) const

virtual

Replace thee , , string in the supplied parameter path.

virtual void DtTerrainInterfaceConfig::print	(	std::ostream &	,
		bool	printUnspecified = `true`
	)		const

virtual

Print object to stream.

DtString DtTerrainInterfaceConfig::prettyPrint ( ) const

virtual

Routine to return a human readable form of the reader/writer variable. Not all reader/writer classes implement this feature. Default is to return an empty string.

Reimplemented from DtReaderWriter.

void DtTerrainInterfaceConfig::setName ( const DtString & )

virtual

Set the name of the object. Uses the myName variable. Only set if you understand that this could have effects on other parts of the system that are unknown (especially if this item has already been added to a registry).

Under normal usage, this name is set as a process of creating an item from a factory or as part of a constructor. Only use this method if an item is created from a factory, and the name is not known until after created from that factory, before adding to the registry of another item

Reimplemented from DtReaderWriter.

static void DtTerrainInterfaceConfig::setModelDefinitionDefault ( const std::string & )

static

std::string DtTerrainInterfaceConfig::modelDefinitionPath ( ) const

std::string DtTerrainInterfaceConfig::simCachePath ( ) const

std::string DtTerrainInterfaceConfig::featureConfigFile ( ) const

Member Data Documentation

TList DtTerrainInterfaceConfig::subconfigurations

private

Parameter Name: subconfigurations Parameter Description: A list of DtTerrainInterfaceConfig objects which can be used to make more specific configurations. See configure() Default: <empty>

TInt DtTerrainInterfaceConfig::maxNetworkThreads

Parameter Name: max-feature-network-threads
Parameter Description: The max number of background threads that will be used
to read streaming feature data. Parameter Default Value: 4.

TInt DtTerrainInterfaceConfig::maxUnusedFeatures

Parameter Name: max-unused-features
Parameter Description: Max number of unused features to store in memory.
Once this threshold has been reached, unused features will be paged out
until the number is below this threshold. Parameter Default Value: 500000.

TInt DtTerrainInterfaceConfig::areaPageTableLoadingThreads

Parameter Name: area-page-table-threads Parameter Description: Max number of simultaneous threads that will be
used for executing feature loading tasks for area features. Parameter Default Value: 4.

TInt DtTerrainInterfaceConfig::featuresHighestLoadLOD

Parameter Name: features-highest-load-LOD Parameter Description: The smallest tile (highest LOD) for loading features.
Higher values will create smaller tiles. Parameter Default Value: 15.

TInt DtTerrainInterfaceConfig::featuresLowestLoadLOD

Parameter Name: features-lowest-load-LOD Parameter Description: The largest tile (smallest LOD) for loading features.
Higher values will create smaller tiles. Parameter Default Value: 9.

TInt DtTerrainInterfaceConfig::featuresPerTileTarget

Parameter Name: features-per-tile-target Parameter Description: Target number of features per tile.
Parameter Default Value: 100.

TInt DtTerrainInterfaceConfig::featuresMaxIndexLOD

Parameter Name: features-max-index-LOD Parameter Description: Smallest tile LOD level to index features.
Parameter Default: 20.

TInt DtTerrainInterfaceConfig::minFeaturesToIndexTile

Parameter Name: min-features-to-index-tile Parameter Description: Minumum number of features in a tile for
the tile to be considered for subindexing. Parameter Default: 5.

TReal DtTerrainInterfaceConfig::featuresIndexRatio

Parameter Name: features-index-ratio Parameter Description: If the ratio of the number of features in a parent
tile to the number in a subtile is greater than this value then the tile
will be subindexed. Parameter Default: 2.0.

TBool DtTerrainInterfaceConfig::deduplicateFeatures

Parameter Name: deduplicate-features Parameter Description: Remove duplicate features. Parameter Default: True.

TBool DtTerrainInterfaceConfig::cacheLastFeatureTile

Parameter Name: cache-last-feature-tile Parameter Description: Cache last used feature tile Parameter Default: True.

TBool DtTerrainInterfaceConfig::loadTerraPageImagery

Parameter Name: load-terra-page-imagery Parameter Description: Whether or not to have the back-end load imagery when loading terra page databases This will use less memory but will disable soil types Parameter Default: True.

TBool DtTerrainInterfaceConfig::loadTerraPageLocalMaterials

Parameter Name: load-terra-page-local-materials Parameter Description: Whether or not to have the back-end load local materials when loading terra page databases This will use less memory and may disable some soil types, but not all Parameter Default: False.

TInt DtTerrainInterfaceConfig::pathFinderMaxSize

Parameter Name: pathfinder-max-features Parameter Description: The max size of a DtAStarGraph. Once a path
finder has exceeded this number of loaded features, it will be deleted,
to be recreated the next time a path plan is requested. Parameter Default Value: 50000.

TInt DtTerrainInterfaceConfig::pathFinderPageTableDepth

Parameter Name: pathfinder-page-table-depth Parameter Description: The depth of the Quad-Tree used for tracking
loaded features for each pathfinder road graph. Parameter Default Value: 14.

TReal DtTerrainInterfaceConfig::pathFinderLoadTimeout

Parameter Name: pathfinder-load-timeout Parameter Description: The amount of time (in seconds) that the path finder
will wait on loading a tile of features before giving up on that tile. Parameter Default Value: 20 Parameter Units: seconds.

TReal DtTerrainInterfaceConfig::pathFinderVertexTolerance

Parameter Name: pathfinder-vertex-tolerance Parameter Description: The distance tolerance (in meters) within which
feature vertices are considered to be the same vertex. Used when features
are added to the DtAStarGraph's graph. Parameter Default Value: 1.0 Parameter Units: meters.

TInt DtTerrainInterfaceConfig::pathFinderMinVertexSearch

Parameter Name: pathfinder-min-vertex-search Parameter Description: The minimum number of vertices the graph search will
use to before giving up. Parameter Default Value: 20.

TReal DtTerrainInterfaceConfig::pathFinderDotProductDistanceThreshold

Parameter Name: pathfinder-dot-product-distance-threshold Parameter Description: Heuristic which measures progress towards the destination. Making this larger will cause the path planner to search out farther into the graph to try and find a better path. Parameter Default Value: 700.

TReal DtTerrainInterfaceConfig::pathFinderMinSearchRadius

Parameter Name: pathfinder-min-search-radius Parameter Description: Minumum distance path finder will search away from straight line path from source to destination before giving up. Parameter Default Value: 1000.

TInt DtTerrainInterfaceConfig::pathFinderMaxDisjointNetworks

Parameter Name: pathfinder-max-disjoint-networks Parameter Description: Maximum number of additional road networks, disjoint with the network containing the closest road to the start, that will be searched when the first network does not reach the destination. A value of 0 will mean that only the closest network is searched.
Notes:

If the road feature data has a lot of disconnected roads, i.e. in the same area of the terrain, searching for additional networks can cause the planner to thrash around the area without making much progress.
In the current implementation, each time the path planner restarts (from a point as close to the destination as it can find on the road network) and looks for another network, it makes a recursive call. Giving this setting a value of 500 or so could result in a crash.
In the current implementation (5.0), entity-level movement tasks that plan on roads treat the entire returned set of points as a road, and do not distinguish a segment between road networks as off-road. Thus use of disjoint networks produces incorrect movement behavior.

Parameter Default Value: 0

TInt DtTerrainInterfaceConfig::triangleThreshold

Parameter Name: num-triangles-threshold
Parameter Description: Maximum number of triangles. Once the number of
triangles exceeds this number, data will be paged out until we are
below this threshold.
Parameter Default Value: 10000000.

TInt DtTerrainInterfaceConfig::cacheOnlyMaxLod

Parameter Name: cache-only-max-lod
Parameter Description: Max level of detail to use when in cache-only mode.
Parameter Default Value: 13.

TBool DtTerrainInterfaceConfig::loadImagery

Parameter Name: load-imagery
Parameter Description: Whether the terrain system will load imagery it doesn't need.
This is generally a debugging feature, sometimes drivers will get confused if imagery
isn't present, even if it's not being used for anything.
Parameter Default Value: False.

TInt DtTerrainInterfaceConfig::blockingIntersectPageInPriority

Parameter Name: blocking-intersect-page-in-priority Parameter Description: Priority for paging in data for blocking
intersect requests.
Parameter Default Value: 10.

TInt DtTerrainInterfaceConfig::intersectPageInPriority

Parameter Name: intersect-page-in-priority Parameter Description: Priority for paging in data for non-blocking
intersect requests.
Parameter Default Value: 20.

TInt DtTerrainInterfaceConfig::pageOutPriority

Parameter Name: page-out-priority
Parameter Description: Priority for paging out data.
Parameter Default Value: 30.

TInt DtTerrainInterfaceConfig::defaultPreloadPriority

Parameter Name: default-preload-priority
Parameter Description: Default priority for preload geometry. This
priority will be used if one is not provided by the preload controller.
Parameter Default Value: 40.

TVector DtTerrainInterfaceConfig::spatialSubdivisionDimensions

Parameter Name: spatial-subdivision-dimensions
Parameter Description: Parameters for Spatial Subdivision used by
DtBoundingVolumeTerrainSourceTracker to determine which paged-out
nodes should be paged in. Parameter Default Value: 10 10 10.

TBool DtTerrainInterfaceConfig::useS57ForTerrainGeneration

Parameter Name: use-S57-for-terrain-generation
Parameter Description: Flag for S57 to terrain and soil types.
Parameter Default Value: True.

TBool DtTerrainInterfaceConfig::oceanLayerPresent

Parameter Name: ocean-layer-present
Enable/disable ocean layer-present
Default: True.

TReal DtTerrainInterfaceConfig::seaLevel

Parameter Name: sea-level
Sea level in meters
Default:

TReal DtTerrainInterfaceConfig::seaFloor

Parameter Name: sea-floor
Sea floor in meters.
Default:

TBool DtTerrainInterfaceConfig::useSoundingPoints

Parameter Name: use-sounding-points
Default: True.

TBool DtTerrainInterfaceConfig::pageFeatures

Parameter Name: page-features
Default: True.

TReal DtTerrainInterfaceConfig::featuresMinUnloadTime

Parameter Name: features-min-unload-time
Default: 15.

TInt DtTerrainInterfaceConfig::terrainMinUnloadIntersectDiff

Parameter Name: terrain-min-unload-intersect-diff Default: 50.

TInt DtTerrainInterfaceConfig::minElevationIndexLOD

Parameter Name: min-elevation-index-lod Parameter Description: Minimum LOD to check for elevation intersections in. This setting prevents the terrain system from using elevation in lower LODs when doing intersection computations. Default: 3.

TInt DtTerrainInterfaceConfig::maxElevationIndexLOD

Parameter Name: max-elevation-index-lod Parameter Description: Maximum LOD to check for elevation intersections in. This setting prevents the terrain system from using elevation in higher LODs when doing intersection computations. Default: 19.

TReal DtTerrainInterfaceConfig::elevationTriangleOutputMergeTolerance

Parameter Name: elevation-triangle-output-merge-tolerance Parameter Description: Error tolerance between gui correlated surface and triangles output in DtTerrainInterface::trianglesInArea. Setting this to greater than 0 allows the terrain to output fewer triangles when they are sufficiently coplanar to the true triangles. Default: 0.

TReal DtTerrainInterfaceConfig::elevationIntersectTriangleMergeTolerance

Parameter Name: elevation-intersect-triangle-merge-tolerance Parameter Description: Error tolerance between gui correlated surface and triangles output when doing terrain intersections. Setting this to greater than 0 allows the terrain to use fewer triangles when they are sufficiently coplanar to the true triangles. Default: 0.

TReal DtTerrainInterfaceConfig::maxChordLengthBeforeSplit

Parameter Name: max-chord-length-before-split Parameter Description: Maximum length of chords before they can be split. When doing intersections over very large areas there may be errors introduced due to coordinate system conversions. Chords over this length will be split into subchords and then have their intersection results added back together. Setting it lower will cause the system to break large chord into smaller ones which will improve accuracy at the cost of performance. Default: 10000.

TInt DtTerrainInterfaceConfig::maxElevationChordSplitTestLOD

Parameter Name: max-elevation-chord-split-test-lod Parameter Description: When doing intersections over very large areas there may be errors introduced due to coordinate system conversions. The elevation system will split them recursively, and at each level it will attempt to reject the chord by comparing it to the max altitude off the elevation it covers before splitting it. This setting controls the max LOD that will be used to to find the max elevation. Changing increasing this setting will affect performance. It is not possible to tell whether increasing or decreasing will yield better performance, it must be tested. Default: 4.

TInt DtTerrainInterfaceConfig::lowFidelityIntersectionLOD

Parameter Name: low-fidelity-intersection-lod Parameter Description: LOD to use when doing low fidelity terrain intersections. Default: 8.

TString DtTerrainInterfaceConfig::pluginsDirectory

Parameter Name: plugins-directory
Default: ../(plugins|plugins64)/(release|debug)

TInt DtTerrainInterfaceConfig::featureIntersectionMode

Parameter Name: feature-intersection-mode
Parameter Description: Configure Feature intersection mode default behavior.
Values: DoNotUseFeaturesToIntersect = 0 IntersectOnlyIfSurfaceUnspecified = 1 IntersectAlways = 2 Parameter Default Value: 0.

TBool DtTerrainInterfaceConfig::activePagerTbbMode

Parameter Name: active-pager-tbb-mode
Parameter Description: Configure the active pager multi - thread default behavior. Using TBB for the active pager can make performance gain on database with multiple layers(like many procedural trees layer) If enable then the intersection will run in parallel for these layers Note this can slow down other databases.It also depend on the number of core the PC running vrfSim run Default: False.

TInt DtTerrainInterfaceConfig::nbTerrainThread

Parameter Name: nbTerrainThread
Parameter Description: Number of terrain thread to start.
Values: Parameter Default Value: 1.

TInt DtTerrainInterfaceConfig::minElevationTileLoadingLod

Parameter Name: minElevationTileLoadingLod
Parameter Description: Minimum LOD to load elevation tiles. This setting prevents the terrain system from using elevation in lower LODs when loading elevation tiles(this prevent tiles with constraints to take a long time to be created since for ex.craters are created at LOD19) Parameter Default Value: 13.

TBool DtTerrainInterfaceConfig::proceduralSimVegetationEnabled

Parameter Name: procedural_sim_vegetation_enabled Configure if we want the procedural sim trees to be enabled / disabled in the sim. This parameter overwrite the value found in biome.vegetation.config.xml <Vegetation name = "Vegetation" vrfsim:enabled = "true"> If you set the above value to true and this one to false the procedural trees(and other possible vegetation will not be in the sim) Default: Enable procedural sim vegetation = True.

TString DtTerrainInterfaceConfig::myModelDefinitionPath

protected

Parameter Name: model-definition-path. Will append /ModelDefinitions so keep this at the root
Default: "$(SHARED_DATA_DIR)/ModelData/Configuration/Definitions".

TString DtTerrainInterfaceConfig::mySimCachePath

protected

Parameter Name: sim-cache-path
Default: /cache/vrfsim.

TString DtTerrainInterfaceConfig::myFeatureConfigFile

protected

Parameter Name: features-config-file
Default: /settings/featureconfig.txt.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfutil/terrainInterfaceConfig.h

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Private Types

Private Attributes

Additional Inherited Members

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
