A nav interface is a software component of an object that maintains the object's presence in the navigation areas in the terrain. As VRF objects move, change shape, or change status (e.g. become destroyed), the nav interfaces update their position or status in the nav mesh. I.e., state changes in VRF must be pushed into the navigation areas by these interfaces. This update happens in the nav interface tick functions.
For example, one important function of a nav interface for moving objects is to update the position of the object (as provided by the object state repository) in the nav area. The object can then be seen by Gameware dynamic obstacle avoidance functions (so other objects can avoid this one). Another example is that objects that are dynamic obstacles are converted to static obstacles in the nav mesh when they are stationary for a period of time.
Subclasses of this class define specific interfaces, and include DtActiveBotNavInterface, DtCoverPointNavInterface, DtDynamicObstacleNavInterface, DtNavEdgeNavInterface, DtStaticObstacleNavInterface, and DtTagVolumeNavInterface.
The type of nav interface used for a particular type of object is defined in the .ope file for the object, in the local-objects and remote-objects sections, in the nav-interface parameter.

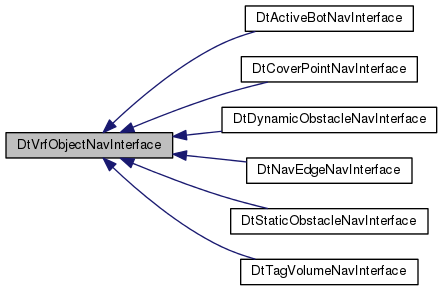

Inheritance diagram for DtVrfObjectNavInterface:

[legend]

Public Member Functions
virtual bool	ableToNavigate () const

virtual void	postObjectInit ()

virtual void	tick ()

virtual void	firstTick ()

virtual	~DtVrfObjectNavInterface ()=0

virtual void	addNavAreaChangedCallback (DtNoArgumentCallbackList::DtCallbackFunctionType callback, void *usr) const

virtual void	removeNavAreaChangedCallback (DtNoArgumentCallbackList::DtCallbackFunctionType callback, void *usr) const

virtual void	invokeNavAreaChangedCallbacks ()

virtual void	changingNavArea (DtNavArea *newNavArea)

virtual void	setWaitingForLoad (bool isLoading)

virtual bool	isWaitingForLoad () const

Protected Member Functions
	DtVrfObjectNavInterface (DtLocalObject *vrfObject)

	DtVrfObjectNavInterface (DtSimObjectReference vrfObject)

virtual bool	init ()

virtual bool	isCollidableWhenDestroyed () const

Protected Attributes
DtLocalObject *	myVrfObject

DtSimObjectReference	mySimObjectReference

DtSimulationServices *	mySimulationServices

DtNavArea *	myCurrentNavArea

bool	myFirstTick

bool	myIsWaitingForNavLoad

DtNoArgumentCallbackList	myChangedNavAreaCallbackList

Private Member Functions
	DtVrfObjectNavInterface ()

	DtVrfObjectNavInterface (const DtVrfObjectNavInterface &orig)

DtVrfObjectNavInterface &	operator= (const DtVrfObjectNavInterface &orig)

Constructor & Destructor Documentation

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( )

private

Not Implemented.

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( const DtVrfObjectNavInterface & orig )

private

Not Implemented.

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( DtLocalObject * vrfObject )

protected

Use the create() method instead of calling the constructor.

DtVrfObjectNavInterface::DtVrfObjectNavInterface ( DtSimObjectReference vrfObject )

protected

virtual DtVrfObjectNavInterface::~DtVrfObjectNavInterface ( )

pure virtual

Member Function Documentation

DtVrfObjectNavInterface& DtVrfObjectNavInterface::operator= ( const DtVrfObjectNavInterface & orig )

private

Not Implemented.

virtual bool DtVrfObjectNavInterface::ableToNavigate ( ) const

virtual

Generic call. Basic nav interfaces are not able to navigate.

Reimplemented in DtActiveBotNavInterface.

virtual bool DtVrfObjectNavInterface::init ( )

protectedvirtual

Virtual init, called from the create() method.

Reimplemented in DtActiveBotNavInterface, DtTagVolumeNavInterface, DtDynamicObstacleNavInterface, DtNavEdgeNavInterface, DtCoverPointNavInterface, and DtStaticObstacleNavInterface.

virtual void DtVrfObjectNavInterface::postObjectInit ( )

inlinevirtual

Perform additional initialization after the object has been initialized. Default behavior is to do nothing, must be implemented in subclass.

Reimplemented in DtNavEdgeNavInterface, DtActiveBotNavInterface, DtCoverPointNavInterface, DtTagVolumeNavInterface, DtDynamicObstacleNavInterface, and DtStaticObstacleNavInterface.

virtual void DtVrfObjectNavInterface::tick ( )

virtual

Reimplemented in DtDynamicObstacleNavInterface, DtActiveBotNavInterface, DtNavEdgeNavInterface, DtTagVolumeNavInterface, DtCoverPointNavInterface, and DtStaticObstacleNavInterface.

virtual void DtVrfObjectNavInterface::firstTick ( )

virtual

Reimplemented in DtActiveBotNavInterface, and DtTagVolumeNavInterface.

virtual void DtVrfObjectNavInterface::addNavAreaChangedCallback	(	DtNoArgumentCallbackList::DtCallbackFunctionType	callback,
		void *	usr
	)		const

virtual

virtual void DtVrfObjectNavInterface::removeNavAreaChangedCallback	(	DtNoArgumentCallbackList::DtCallbackFunctionType	callback,
		void *	usr
	)		const

virtual

virtual void DtVrfObjectNavInterface::invokeNavAreaChangedCallbacks ( )

virtual

virtual void DtVrfObjectNavInterface::changingNavArea ( DtNavArea * newNavArea )

virtual

Called when about to change to a new navArea.

Reimplemented in DtActiveBotNavInterface, DtTagVolumeNavInterface, DtNavEdgeNavInterface, DtCoverPointNavInterface, and DtDynamicObstacleNavInterface.

virtual void DtVrfObjectNavInterface::setWaitingForLoad ( bool isLoading )

virtual

Indicates that there is nav data for this entity's location, but its still being loaded.

virtual bool DtVrfObjectNavInterface::isWaitingForLoad ( ) const

virtual

virtual bool DtVrfObjectNavInterface::isCollidableWhenDestroyed ( ) const

protectedvirtual

Returns: The value of the "collidable-when-destroyed" property from the navigation parameters in the object's parameter entry. This value defaults to true if not specified.

Member Data Documentation

DtLocalObject* DtVrfObjectNavInterface::myVrfObject

protected

DtSimObjectReference DtVrfObjectNavInterface::mySimObjectReference

protected

DtSimulationServices* DtVrfObjectNavInterface::mySimulationServices

protected

DtNavArea* DtVrfObjectNavInterface::myCurrentNavArea

protected

bool DtVrfObjectNavInterface::myFirstTick

protected

bool DtVrfObjectNavInterface::myIsWaitingForNavLoad

protected

DtNoArgumentCallbackList DtVrfObjectNavInterface::myChangedNavAreaCallbackList

mutableprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfobjcore/vrfObjectNavInterface.h
