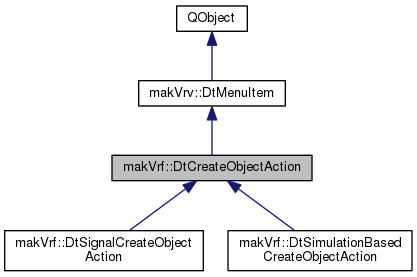

Inheritance diagram for makVrf::DtCreateObjectAction:

Signals
void	createObject (const DtEntityMapperKey &, int force, const std::string &)

Public Member Functions
	DtCreateObjectAction (makVrv::DtDe &de, const std::string &path, const QString &title, const DtEntityMapperKey &o, const std::string &keywords="", const std::string &menuIcon="", const std::string &toolTip="")

virtual	~DtCreateObjectAction ()

virtual DtEntityMapperKey	objectType () const

virtual int	forceType () const

virtual const std::string &	keywords () const

virtual const std::string &	menuIcon () const

virtual const std::string &	toolTip () const

virtual void	setSignalOnCreate (DtCreationSignalType creationSignal)

virtual DtCreationSignalType	signalOnCreate () const

virtual void	on_triggered ()

virtual void	on_aboutToShow ()

virtual QAction *	createAction (makVrv::DtDe &, QWidget *parent)

virtual int	forceFromKey (const DtEntityMapperKey &key) const

Public Member Functions inherited from makVrv::DtMenuItem
	DtMenuItem (const std::string &menuItemIdName)

virtual	~DtMenuItem ()

virtual const std::string &	menuItemIdName () const

Protected Member Functions
virtual void	setIconFromTick (makVrv::DtDe de, QAction act)

virtual void	slot_defaultIconListChanged ()

Protected Attributes
makVrv::DtDe &	myDe

makVrv::DtSignalConnectionManager	myConnections

DtEntityMapperKey	myObjectType

QString	myTitle

DtCreationSignalType	mySignalOnCreate

std::string	myKeywords

std::string	myToolTip

std::string	myMenuIcon

QAction *	myAction

Protected Attributes inherited from makVrv::DtMenuItem
std::string	myMenuIdName

Private Member Functions
	DtCreateObjectAction (const DtCreateObjectAction &orig)

DtCreateObjectAction &	operator= (const DtCreateObjectAction &orig)

Additional Inherited Members
Protected Slots inherited from makVrv::DtMenuItem
virtual void	on_checkStateChanged (bool)

Constructor & Destructor Documentation

makVrf::DtCreateObjectAction::DtCreateObjectAction	(	makVrv::DtDe &	de,
		const std::string &	path,
		const QString &	title,
		const DtEntityMapperKey &	o,
		const std::string &	keywords = `""`,
		const std::string &	menuIcon = `""`,
		const std::string &	toolTip = `""`
	)

Constructor.

virtual makVrf::DtCreateObjectAction::~DtCreateObjectAction ( )

virtual

Destructor.

makVrf::DtCreateObjectAction::DtCreateObjectAction ( const DtCreateObjectAction & orig )

private

Not implemented.

Member Function Documentation

virtual DtEntityMapperKey makVrf::DtCreateObjectAction::objectType ( ) const

virtual

virtual int makVrf::DtCreateObjectAction::forceType ( ) const

virtual

virtual const std::string& makVrf::DtCreateObjectAction::keywords ( ) const

virtual

virtual const std::string& makVrf::DtCreateObjectAction::menuIcon ( ) const

virtual

virtual const std::string& makVrf::DtCreateObjectAction::toolTip ( ) const

virtual

virtual void makVrf::DtCreateObjectAction::setSignalOnCreate ( DtCreationSignalType creationSignal )

virtual

Set to true to have this action specify that it should signal on create rather than create the object on the network. Default is false.

virtual DtCreationSignalType makVrf::DtCreateObjectAction::signalOnCreate ( ) const

virtual

virtual void makVrf::DtCreateObjectAction::on_triggered ( )

virtual

Reimplemented from makVrv::DtMenuItem.

Reimplemented in makVrf::DtSimulationBasedCreateObjectAction, and makVrf::DtSignalCreateObjectAction.

virtual void makVrf::DtCreateObjectAction::on_aboutToShow ( )

virtual

Hide object if the force cannot be created due to FOW.

Reimplemented from makVrv::DtMenuItem.

virtual QAction* makVrf::DtCreateObjectAction::createAction	(	makVrv::DtDe &	,
		QWidget *	parent
	)

virtual

Build a menu item (via an action).

Implements makVrv::DtMenuItem.

Reimplemented in makVrf::DtSimulationBasedCreateObjectAction.

virtual int makVrf::DtCreateObjectAction::forceFromKey ( const DtEntityMapperKey & key ) const

virtual

virtual void makVrf::DtCreateObjectAction::setIconFromTick	(	makVrv::DtDe *	de,
		QAction *	act
	)

protectedvirtual

Only should be called in response to a De tick. Set up when an action is created before the de is initialized.

virtual void makVrf::DtCreateObjectAction::slot_defaultIconListChanged ( )

protectedvirtual

void makVrf::DtCreateObjectAction::createObject	(	const DtEntityMapperKey &	,
		int	force,
		const std::string &
	)

signal

DtCreateObjectAction& makVrf::DtCreateObjectAction::operator= ( const DtCreateObjectAction & orig )

private

Not implemented.

Member Data Documentation

makVrv::DtDe& makVrf::DtCreateObjectAction::myDe

protected

makVrv::DtSignalConnectionManager makVrf::DtCreateObjectAction::myConnections

protected

DtEntityMapperKey makVrf::DtCreateObjectAction::myObjectType

protected

QString makVrf::DtCreateObjectAction::myTitle

protected

DtCreationSignalType makVrf::DtCreateObjectAction::mySignalOnCreate

protected

std::string makVrf::DtCreateObjectAction::myKeywords

protected

std::string makVrf::DtCreateObjectAction::myToolTip

protected

std::string makVrf::DtCreateObjectAction::myMenuIcon

protected

QAction* makVrf::DtCreateObjectAction::myAction

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfGuiCoreQt/createObjectAction.h
