Class for a widget that displays remote graphics attribute groups.

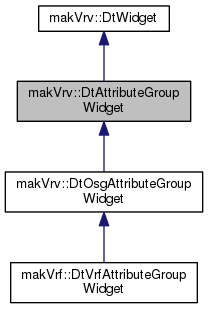

Inheritance diagram for makVrv::DtAttributeGroupWidget:

Public Types
enum	DtOriginPlacementPolicy { DtOriginPlacementPolicy::TopRight, DtOriginPlacementPolicy::TopLeft, DtOriginPlacementPolicy::BottomLeft, DtOriginPlacementPolicy::BottomRight, DtOriginPlacementPolicy::Center, DtOriginPlacementPolicy::TopCenter, DtOriginPlacementPolicy::MiddleLeft }

Public Types inherited from makVrv::DtWidget
typedef std::vector < DtDynamicSizeConfiguration >	DtDynamicSizeConfigurationCollection

Public Member Functions
	DtAttributeGroupWidget (DtDe &de, DtUniqueID id)

virtual	~DtAttributeGroupWidget ()

virtual void	setOriginPlacementPolicy (DtOriginPlacementPolicy originPolicy)=0

virtual void	setBackgroundEnabled (bool enabled)=0

virtual void	setBackgroundColor (float r, float g, float b, float a=1.0f)=0

virtual void	setOutlineColor (float r, float g, float b, float a=1.0f)=0

virtual void	setOutlineWidth (float width)=0

virtual void	setOutlineEnabled (bool enabled)=0

virtual void	setTypeText (unsigned int index, const DtUnicode &attributeName)=0

virtual void	setTypeNumeric (unsigned int index, const DtUnicode &attributeName)=0

virtual void	setTypeValueBar (unsigned int index, const DtUnicode &attributeName)=0

virtual void	setTypeGraph (unsigned int index, const DtUnicode &attributeName, int maxValues)=0

virtual void	setTypeImage (unsigned int index, const DtUnicode &attributeName)=0

virtual void	setTypeValueText (unsigned int index, const DtUnicode &attributeName)=0

virtual void	setTypeNull (unsigned int index)=0

virtual void	setValueImage (unsigned int index, const std::string &imageFilepath)=0

virtual void	setValueGraphPoint (unsigned int index, unsigned int n, float x, float y)=0

virtual void	setValueBarValue (unsigned int index, float val)=0

virtual void	setValueNumeric (unsigned int index, float val)=0

virtual void	setValueTextValue (unsigned int index, const DtUnicode &val)=0

virtual void	setAttributeVisible (unsigned int index, bool visible)=0

virtual void	setHorizontalCenter (bool center)=0

virtual void	setVerticalCenter (bool center)=0

virtual void	setFontSize (float points)=0

virtual void	setFontFile (const std::string &)=0

virtual void	setShadowText (bool enabled)=0

virtual void	setBackgroundOrderGroup (unsigned int groupId)=0

Public Member Functions inherited from makVrv::DtWidget
	DtWidget (DtDe &de, DtUniqueID id)

virtual	~DtWidget ()

	DtWidget (const DtWidget &other)=delete

DtWidget &	operator= (const DtWidget &other)=delete

	DtWidget (const DtWidget &&other)=delete

DtWidget &	operator= (const DtWidget &&other)=delete

virtual void	setOverlay (unsigned int overlay)=0

virtual unsigned int	overlay () const =0

virtual void	setOrderGroup (unsigned int group)=0

virtual void	setRotation (float)=0

virtual unsigned int	orderGroup () const =0

virtual void	setParentId (DtUniqueID id)

virtual void	setPosition (float x, float y, float z, float w=0)=0

virtual void	setBackgroundImage (const std::string &filename)=0

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setOriginOffset (int xOffset, int yOffset)=0

virtual void	setSize (float w, float h)=0

virtual void	setAltitudeSpecificSizes (const DtWidget::DtDynamicSizeConfigurationCollection &configs)

virtual void	clearAltitudeSpecificSizes ()

virtual void	setIsForcedSizeByAltitudeEnabled (bool enabled)

virtual void	setAltitudeForForcedSize (double minimumAltitudeForUse)

virtual void	setLodOutAltitude (double lodOutAltitude)=0

virtual void	setIsLodOutAltitudeEnabled (bool isLodOutAltitudeEnabled)=0

virtual void	setPadding (float paddingX, float paddingY)=0

virtual void	setModelDefinition (const std::string &str)=0

virtual void	setEventsEnabled (bool enabled)=0

virtual void	setVisible (bool visible)=0

virtual DtUniqueID	id () const

virtual DtUniqueID	parentId () const

Additional Inherited Members
Protected Member Functions inherited from makVrv::DtWidget
virtual void	updateEventSignals ()=0

Protected Attributes inherited from makVrv::DtWidget
DtDe &	myDe

DtUniqueID	myId

DtUniqueID	myParentId

DtSignalConnectionManager	mySignalConnectionManager

Member Enumeration Documentation

enum makVrv::DtAttributeGroupWidget::DtOriginPlacementPolicy

strong

Policy that determines where the origin of the widget is.

Enumerator
TopRight
TopLeft
BottomLeft
BottomRight
Center
TopCenter
MiddleLeft

Constructor & Destructor Documentation

makVrv::DtAttributeGroupWidget::DtAttributeGroupWidget	(	DtDe &	de,
		DtUniqueID	id
	)

A widget label ctor.

virtual makVrv::DtAttributeGroupWidget::~DtAttributeGroupWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtAttributeGroupWidget::setOriginPlacementPolicy ( DtOriginPlacementPolicy originPolicy )

pure virtual

Sets the policy for how the glyph is located with respect to its position.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setBackgroundEnabled ( bool enabled )

pure virtual

Enable or disable the background.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setBackgroundColor	(	float	r,
		float	g,
		float	b,
		float	a = `1.0f`
	)

pure virtual

Set the background color.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setOutlineColor	(	float	r,
		float	g,
		float	b,
		float	a = `1.0f`
	)

pure virtual

Set the color of the outline.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setOutlineWidth ( float width )

pure virtual

Set the line width of the outline.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setOutlineEnabled ( bool enabled )

pure virtual

Enable or disable the outline.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeText	(	unsigned int	index,
		const DtUnicode &	attributeName
	)

pure virtual

Set the index'th attribute to be a text-only attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeNumeric	(	unsigned int	index,
		const DtUnicode &	attributeName
	)

pure virtual

Set the index'th attribute to be a numeric attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeValueBar	(	unsigned int	index,
		const DtUnicode &	attributeName
	)

pure virtual

Set the index'th attribute to be a value bar attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeGraph	(	unsigned int	index,
		const DtUnicode &	attributeName,
		int	maxValues
	)

pure virtual

Set the index'th attribute to be a line graph attribute maxValues is the maximum number of values to store in the graph; when this maximum is reached, the graph will throw out the oldest values as new values are added. Values of maxValue < 0 indicate no limit.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeImage	(	unsigned int	index,
		const DtUnicode &	attributeName
	)

pure virtual

Set the index'th attribute to be an image attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeValueText	(	unsigned int	index,
		const DtUnicode &	attributeName
	)

pure virtual

Set the index'th attribute to be a value text attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setTypeNull ( unsigned int index )

pure virtual

Set the index'th attribute to be a null attribute (not displayed)

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setValueImage	(	unsigned int	index,
		const std::string &	imageFilepath
	)

pure virtual

Set the value of the index'th attribute to the image filename.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setValueGraphPoint	(	unsigned int	index,
		unsigned int	n,
		float	x,
		float	y
	)

pure virtual

Set the line graph's nth x,y values for the index'th attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setValueBarValue	(	unsigned int	index,
		float	val
	)

pure virtual

Set the value bar value for the index'th attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setValueNumeric	(	unsigned int	index,
		float	val
	)

pure virtual

Set the numeric value for the index'th attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setValueTextValue	(	unsigned int	index,
		const DtUnicode &	val
	)

pure virtual

Set the text value for the index'th attribute.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setAttributeVisible	(	unsigned int	index,
		bool	visible
	)

pure virtual

Set an attribute visible or hidden.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setHorizontalCenter ( bool center )

pure virtual

Set whether or not to center the attribute group horizontally around its origin.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setVerticalCenter ( bool center )

pure virtual

Set whether or not to center the attribute group vertically around its origin.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setFontSize ( float points )

pure virtual

Set the font size for text based attributes.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setFontFile ( const std::string & )

pure virtual

Set the font size file.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setShadowText ( bool enabled )

pure virtual

Set whether text shadows should be displayed.

Implemented in makVrv::DtOsgAttributeGroupWidget.

virtual void makVrv::DtAttributeGroupWidget::setBackgroundOrderGroup ( unsigned int groupId )

pure virtual

Set the overlay group used for shadows and the background.

Implemented in makVrv::DtOsgAttributeGroupWidget.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtAttributeGroupWidget.h
