makVrv::DtAudioSettingsWidget Class Reference

This widget provides the contents for the DtAudioSettingsPage.

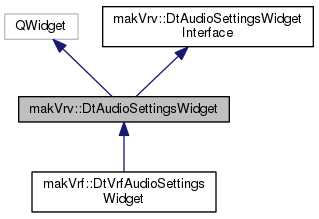

Inheritance diagram for makVrv::DtAudioSettingsWidget:

Public Slots
virtual void	slot_AudioEnabledChanged (int val)
virtual void	slot_VolumeChanged (int val)
virtual void	slot_audioPlaybackDeviceChanged (int val)
virtual void	slot_audioCaptureDeviceChanged (int val)
virtual void	slot_SpeedOfSoundChanged (const QString &text)
virtual void	slot_MaxVoicesChanged (int val)
virtual void	slot_MaxmimumOutputDecibelCapability (int val)
virtual void	slot_EnvironmentalEnabledChanged (int val)
virtual void	slot_playbackDeviceChanged (int val)
virtual void	slot_captureDeviceChanged (int val)

Public Member Functions
	DtAudioSettingsWidget (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual	~DtAudioSettingsWidget ()
virtual void	setAudioEnabled (bool enabled)
virtual void	setVolume (int vol)
virtual void	setSpeedOfSound (double speed)
virtual void	setMaxVoices (int voices)
virtual void	setMaximumOutputDecibelCapability (double decibels)
virtual void	setEnvironmentalEnabled (bool enabled)
virtual void	setEnvironmentalAvailable (bool enabled)
virtual void	setAudioPlaybackDevice (const std::string &val)
virtual void	setAudioCaptureDevice (const std::string &val)
virtual void	setShowAudioCaptureSettings (bool val)
virtual void	setPlaybackDeviceList (const std::vector< std::string > &devices)
virtual void	setCaptureDeviceList (const std::vector< std::string > &devices)
Public Member Functions inherited from makVrv::DtAudioSettingsWidgetInterface
	DtAudioSettingsWidgetInterface ()
virtual	~DtAudioSettingsWidgetInterface ()

Protected Attributes
Ui::DtAudioSettingsWidgetUI	myUiImpl
bool	myEnvProcessingAvailable
bool	myShowCaptureDeviceSettings

Additional Inherited Members
Public Attributes inherited from makVrv::DtAudioSettingsWidgetInterface
boost::signalslib::signal < void(bool)>	signal_AudioEnabledChanged
boost::signalslib::signal < void(int)>	signal_VolumeChanged
boost::signalslib::signal < void(std::string)>	signal_AudioPlaybackDeviceChanged
boost::signalslib::signal < void(std::string)>	signal_AudioCaptureDeviceChanged
boost::signalslib::signal < void(double)>	signal_SpeedOfSoundChanged
boost::signalslib::signal < void(int)>	signal_MaxVoicesChanged
boost::signalslib::signal < void(double)>	signal_MaxmimumOutputDecibelCapability
boost::signalslib::signal < void(bool)>	signal_EnvironmentalProcessingEnabledChanged

Constructor & Destructor Documentation

makVrv::DtAudioSettingsWidget::DtAudioSettingsWidget	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget
	)

CTOR.

virtual makVrv::DtAudioSettingsWidget::~DtAudioSettingsWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtAudioSettingsWidget::setAudioEnabled ( bool  enabled )

virtual

Sets audio to be enabled/disabled in the widget.

Parameters

[in]

enabled

is the new state of audio.

Implements makVrv::DtAudioSettingsWidgetInterface.

Reimplemented in makVrf::DtVrfAudioSettingsWidget.

virtual void makVrv::DtAudioSettingsWidget::setVolume ( int  vol )

virtual

Sets the audio volume level in the widget.

Parameters

[in]

vol

is the new volume level.

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setSpeedOfSound ( double  speed )

virtual

Sets the speed of sound. Default is the speed of sound in air at STP.

Parameters

[in]

vol

is the new speed of sound

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setMaxVoices ( int  voices )

virtual

Set the max numbers.

Parameters

[in]

vol

is the new number of simultaneous sounds

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setMaximumOutputDecibelCapability ( double  decibels )

virtual

Set the sound system output capability.

Parameters

[in]

vol

is the new sound level capable of being produced by the attached speakers

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setEnvironmentalEnabled ( bool  enabled )

virtual

Sets environmental processing to be enabled/disabled in the widget.

Parameters

[in]

enabled

is the new state of environmental processing.

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setEnvironmentalAvailable ( bool  enabled )

virtual

Sets whether or not environmental processing is available or not in the widget.

Parameters

[in]

enabled

is the new state of environmental processing.

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setAudioPlaybackDevice ( const std::string &  val )

virtual

Set the device that audio should be played back on.

Parameters

[in]

deviceName

is the name of the device that should be used for audio playback

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setAudioCaptureDevice ( const std::string &  val )

virtual

Set the device that audio should be captured from.

Parameters

[in]

deviceName

is the name of the device that should be used for audio capture

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setShowAudioCaptureSettings ( bool  val )

virtual

Set whether or not the capture device selection dialog is present in the audio settings dialog.

Parameters

[in]

val

is the new enabled state: true for on, false for off.

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setPlaybackDeviceList ( const std::vector< std::string > &  devices )

virtual

Sets the list of available playback devices.

Parameters

[in]

the

list of device names to use in the widget

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::setCaptureDeviceList ( const std::vector< std::string > &  devices )

virtual

Sets the list of available capture devices.

Parameters

[in]

the

list of device names to use in the widget

Implements makVrv::DtAudioSettingsWidgetInterface.

virtual void makVrv::DtAudioSettingsWidget::slot_AudioEnabledChanged ( int  val )

virtualslot

Called when user enables/disables audio.

virtual void makVrv::DtAudioSettingsWidget::slot_VolumeChanged ( int  val )

virtualslot

Called when user changes the volume.

virtual void makVrv::DtAudioSettingsWidget::slot_audioPlaybackDeviceChanged ( int  val )

virtualslot

Called when the user changes the playback device.

virtual void makVrv::DtAudioSettingsWidget::slot_audioCaptureDeviceChanged ( int  val )

virtualslot

Called when the user changes the capture device.

virtual void makVrv::DtAudioSettingsWidget::slot_SpeedOfSoundChanged ( const QString &  text )

virtualslot

Called when user changes the speed of sound.

virtual void makVrv::DtAudioSettingsWidget::slot_MaxVoicesChanged ( int  val )

virtualslot

Called when user changes the number of voices.

virtual void makVrv::DtAudioSettingsWidget::slot_MaxmimumOutputDecibelCapability ( int  val )

virtualslot

Called when user changes the output capability of the audio system.

virtual void makVrv::DtAudioSettingsWidget::slot_EnvironmentalEnabledChanged ( int  val )

virtualslot

Called when user enables/disables environmental processing.

virtual void makVrv::DtAudioSettingsWidget::slot_playbackDeviceChanged ( int  val )

virtualslot

Called when the user changes the playback device.

virtual void makVrv::DtAudioSettingsWidget::slot_captureDeviceChanged ( int  val )

virtualslot

Called when the user changes the capture device.

Member Data Documentation

Ui::DtAudioSettingsWidgetUI makVrv::DtAudioSettingsWidget::myUiImpl

protected

bool makVrv::DtAudioSettingsWidget::myEnvProcessingAvailable

protected

bool makVrv::DtAudioSettingsWidget::myShowCaptureDeviceSettings

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvAudioQt/DtAudioSettingsWidget.h
