makVrv::DtBaseConnection Class Reference

The DtBaseConnection is an abstract class.

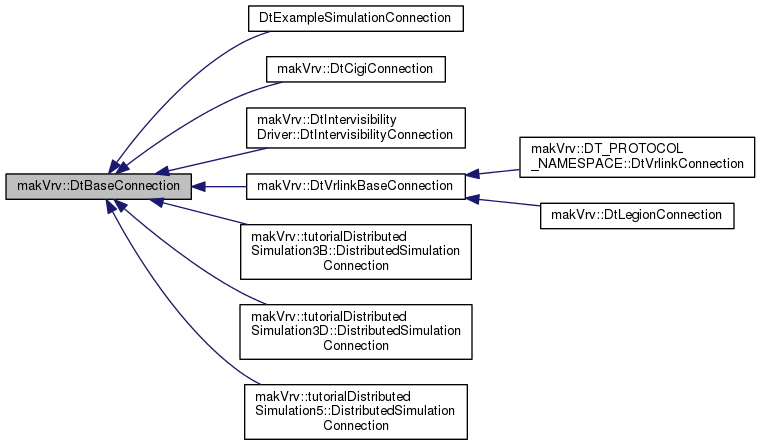

Inheritance diagram for makVrv::DtBaseConnection:

Public Member Functions
	DtBaseConnection (DtSharedSettingsManager &settingsManager, DtAgentManagerInterface &aSceneInterface, const DtCoordinateSystem &coordSystem)
	DtBaseConnection (DtSharedSettingsManager &settingsManager, DtAgentManagerInterface &aSceneInterface)
virtual	~DtBaseConnection ()
virtual void	clearInstances ()
virtual void	coordinateSystemChanged (const std::string &coordinateName, const std::string &coordinateOrigin)
const DtCoordinateSystem &	coordinateSystem () const
DtSharedSettingsManager &	settingsManager ()
virtual DtAgentManagerInterface &	sceneInterface ()
const DtSharedSettingsManager &	settingsManager () const
DtVisualizerCreationSettings &	visualizerCreationSettings ()
void	reportElementCreated (DtElementID id, DtElementID parentId, unsigned int type)
void	reportElementAttribute (DtElementID id, DtElementAttribute *attribute)
void	reportElementDestroyed (DtElementID id)
const DtElementChanges &	currentElementChanges () const
DtElementChanges *	takeElementChanges ()
DtTemporaryAgentManager &	temporaryEffects ()
DtBlinkingObjectManager &	blinkManager ()
DtRandomNumberGenerator &	randomNumberGenerator ()
virtual const std::string &	tag ()
const DtUnicode &	emptyString () const
virtual DtVirtualBaseClass *	findInstance (const std::string &instanceName)
bool	destroyingInstances () const
virtual void	registerInstance (const std::string &instanceName, DtVirtualBaseClass *instance)

Public Attributes
vrvSignalsLib::signal< void()>	signal_coordinateSystemChanged

Protected Types
using	InstanceMap = std::unordered_map< std::string, DtVirtualBaseClass * >

Protected Attributes
DtSharedSettingsManager &	mySettingsManagerCache
DtRandomNumberGenerator	myRandomNumberGenerator
DtAgentManagerInterface &	mySceneInterface
DtElementChanges *	myWorkingElementChanges
DtTemporaryAgentManager *	myTemporaryEffects
DtBlinkingObjectManager *	myBlinkManager
DtUnicode	myEmptyString
InstanceMap	myInstances
bool	myDestroyingInstanceFlag
DtCoordinateSystem *	myCoordinateSystem
DtVisualizerCreationSettings *	myVisualizerCreationSettings

Member Typedef Documentation

using makVrv::DtBaseConnection::InstanceMap = std::unordered_map<std::string,DtVirtualBaseClass*>

protected

Constructor & Destructor Documentation

makVrv::DtBaseConnection::DtBaseConnection	(	DtSharedSettingsManager &	settingsManager,
		DtAgentManagerInterface &	aSceneInterface,
		const DtCoordinateSystem &	coordSystem
	)

CTOR.

makVrv::DtBaseConnection::DtBaseConnection	(	DtSharedSettingsManager &	settingsManager,
		DtAgentManagerInterface &	aSceneInterface
	)

CTOR without a coordsystem. Create a new one.

virtual makVrv::DtBaseConnection::~DtBaseConnection ( )

virtual

DTOR MUST call clearInstances first.

Member Function Documentation

virtual void makVrv::DtBaseConnection::clearInstances ( )

virtual

Clear and delete all instances rooted in the connection MUST be called before the connection is destroyed.

virtual void makVrv::DtBaseConnection::coordinateSystemChanged ( const std::string &  coordinateName, const std::string &  coordinateOrigin  )

virtual

process a coordintate system change by passing the new coordinate system to the DtCoordinateSystem object

const DtCoordinateSystem& makVrv::DtBaseConnection::coordinateSystem

(

)

const

get the coordinate system object for this connection

DtSharedSettingsManager& makVrv::DtBaseConnection::settingsManager

(

)

Get the settings manager.

virtual DtAgentManagerInterface& makVrv::DtBaseConnection::sceneInterface ( )

virtual

Get the scene manager interface for creating drivers.

const DtSharedSettingsManager& makVrv::DtBaseConnection::settingsManager

(

)

const

Get the settings manager.

DtVisualizerCreationSettings& makVrv::DtBaseConnection::visualizerCreationSettings

(

)

Get myVisualTypeVisualizerSettings.

void makVrv::DtBaseConnection::reportElementCreated	(	DtElementID	id,
		DtElementID	parentId,
		unsigned int	type
	)

Report an element created.

void makVrv::DtBaseConnection::reportElementAttribute	(	DtElementID	id,
		DtElementAttribute *	attribute
	)

void makVrv::DtBaseConnection::reportElementDestroyed

(

DtElementID

id

)

Report an element destroyed.

const DtElementChanges& makVrv::DtBaseConnection::currentElementChanges

(

)

const

Look at the current element changes.

DtElementChanges* makVrv::DtBaseConnection::takeElementChanges

(

)

Take the current changes and internally start a new set of changes.

DtTemporaryAgentManager& makVrv::DtBaseConnection::temporaryEffects

(

)

Get the temporary effects manager.

DtBlinkingObjectManager& makVrv::DtBaseConnection::blinkManager

(

)

Get the blinking manager.

DtRandomNumberGenerator& makVrv::DtBaseConnection::randomNumberGenerator

(

)

Get the simulation's random number generator.

virtual const std::string& makVrv::DtBaseConnection::tag ( )

inlinevirtual

Get the tag identifying which type of connection this is.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkConnection.

const DtUnicode& makVrv::DtBaseConnection::emptyString

(

)

const

Allocated empty string.

virtual DtVirtualBaseClass* makVrv::DtBaseConnection::findInstance ( const std::string &  instanceName )

virtual

Find an instance with the given name. If no instance is found than a null pointer is returned.

Warning

This function will always return 0 when the simulation is in the process of destroying all instances, this allows some what save access to findInstance in object destructors.

Reimplemented in makVrv::DtIntervisibilityDriver::DtIntervisibilityConnection.

Referenced by makVrv::DT_PROTOCOL_NAMESPACE::DtSensorFieldOfViewSimDataProcessor::findInstance(), makVrv::DT_PROTOCOL_NAMESPACE::DtInteractionListener< InteractionClass >::instance(), and makVrv::DtKinematicStateCreatorTemplate< KinematicState >::instance().

bool makVrv::DtBaseConnection::destroyingInstances ( ) const

inline

Check to see if the simulation is destroying instances. This function is used in the destructor of objects which access instances via reference which may throw an exception.

TestClass::~TestClass()
{
   if(!mySimulation.destroyingInstances())
   {
       //Safe to get instance now.
       Singleton& anInstance = Singleton::instance(mySimulation);
       ...
   }

virtual void makVrv::DtBaseConnection::registerInstance ( const std::string &  instanceName, DtVirtualBaseClass *  instance  )

virtual

Register an object as an instance of instanceName, and transfer memory ownership of the instance to the DtVrlinkBaseConnection.

Reimplemented in makVrv::DtIntervisibilityDriver::DtIntervisibilityConnection.

Referenced by makVrv::DT_PROTOCOL_NAMESPACE::DtInteractionListener< InteractionClass >::instance(), makVrv::DtKinematicStateCreatorTemplate< KinematicState >::instance(), and makVrv::DT_PROTOCOL_NAMESPACE::DtSensorFieldOfViewSimDataProcessor::registerInstance().

Member Data Documentation

vrvSignalsLib::signal<void()> makVrv::DtBaseConnection::signal_coordinateSystemChanged

Emitted when the coordinate system changed.

DtSharedSettingsManager& makVrv::DtBaseConnection::mySettingsManagerCache

protected

Hold on to the shared simulation manager.

DtRandomNumberGenerator makVrv::DtBaseConnection::myRandomNumberGenerator

protected

The random number generator for the local simulation.

DtAgentManagerInterface& makVrv::DtBaseConnection::mySceneInterface

protected

Thread specific Variables. This variables are used by the second thread. They should not be used in any functions in the main thread while the secondary thread is running.

DtElementChanges* makVrv::DtBaseConnection::myWorkingElementChanges

protected

Internal working element changes.

DtTemporaryAgentManager* makVrv::DtBaseConnection::myTemporaryEffects

protected

Manager for temporary global effects.

DtBlinkingObjectManager* makVrv::DtBaseConnection::myBlinkManager

protected

Manager for blinking objects.

DtUnicode makVrv::DtBaseConnection::myEmptyString

protected

InstanceMap makVrv::DtBaseConnection::myInstances

protected

Stores a pointer to simulation specific instances.

bool makVrv::DtBaseConnection::myDestroyingInstanceFlag

protected

Flag to store if the connection is destroying the instances in it's DTOR.

DtCoordinateSystem* makVrv::DtBaseConnection::myCoordinateSystem

protected

The local coordinate system the simulation will use.

DtVisualizerCreationSettings* makVrv::DtBaseConnection::myVisualizerCreationSettings

protected

Creation settings for visualizers. Element managers use these settings to determine which visualizers should be created. Requires initialization by the DtVisualizerCreationSettingsManager.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtBaseConnection.h
