The abstract Channel Class.

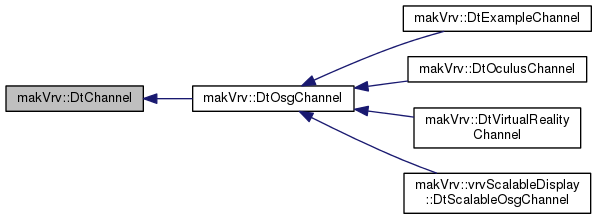

Inheritance diagram for makVrv::DtChannel:

Public Member Functions
virtual	~DtChannel ()

DtObserverObject *	findObserver () const

DtModelSetId	currentModelSet () const

virtual void	setClearColor (float r, float g, float b, float a)=0

virtual void	setViewport (int x, int y, int width, int height)=0

virtual void	getViewport (int &x, int &y, int &width, int &height) const =0

virtual void	setWindow (DtWindow *)=0

virtual void	setCameraPosition (double x, double y, double z)=0

virtual const DtWindow *	window () const =0

virtual void	setChannelEnabled (bool enabled, bool partial=false)=0

virtual bool	channelEnabled () const =0

virtual void	update ()=0

const DtChannelConfiguration &	configuration () const

virtual void	updateProjection ()=0

virtual void	setObserverName (const std::string &observerName)

virtual void	setSensorName (const std::string &sensorName)=0

virtual void	setProjectionResizePolicy (DtChannelConfiguration::ProjectionResizePolicy policy)

virtual DtChannelConfiguration::ProjectionResizePolicy	projectionResizePolicy () const

virtual bool	processMouseEvent (const DtMouseEvent &ev)=0

virtual bool	processKeyboardEvent (const DtKeyEvent &ev)=0

virtual void	projectToScreen (double dbX, double dbY, double dbZ, double &screenX, double &screenY, double &screenZ) const =0

virtual void	projectToWorld (double screenX, double screenY, double &dbX, double &dbY, double &dbZ) const =0

virtual DtIntersectorResult	findWorldIntersection (double screenX, double screenY, DtIntersector::IntersectProperties properties=DtIntersector::AllNodes, std::vector< DtElementID > *ignoreList=0)=0

virtual void	moveMouseToScreenLocation (float pixelX, float pixelY)=0

std::string &	observerName ()

virtual void	screenCapture ()=0

virtual void	updateCameraFrustumPlanes (std::vector< DtVector4< double > > &planes)=0

virtual void	updateAcquisitionBoxFrustumPlanes (const int &boxCenterX, const int &boxCenterY, const int &boxWidth, const int &boxHeight, std::vector< DtVector4< double > > &planes)=0

virtual std::vector< DtElementID >	entitiesInFrustum ()=0

Protected Member Functions
	DtChannel (DtDe &de, DtChannelConfiguration &)

virtual void	connectToObserver ()=0

virtual void	observerAdded (const std::string &observerName)

virtual void	observerRemoved (const std::string &observerName)

Protected Attributes
DtDe &	myDe

DtChannelConfiguration &	myChannelConfiguration

DtSignalConnectionManager	myConnections

DtModelSetId	myModelSet

DtObserverObject *	myObserver

std::string	myObserverName

DtChannelConfiguration::ProjectionResizePolicy	myProjectionResizePolicy

Private Member Functions
	DtChannel ()

	DtChannel (const DtChannel &)

DtChannel &	operator= (const DtChannel &)

Constructor & Destructor Documentation

makVrv::DtChannel::DtChannel	(	DtDe &	de,
		DtChannelConfiguration &
	)

protected

The constructor for an abstract class is not public.

virtual makVrv::DtChannel::~DtChannel ( )

virtual

DTOR.

makVrv::DtChannel::DtChannel ( )

private

Default Constructor not implemented.

makVrv::DtChannel::DtChannel ( const DtChannel & )

private

Copy Constructor not implemented - Copy not allowed.

Member Function Documentation

DtObserverObject* makVrv::DtChannel::findObserver ( ) const

Attempt to get the observer for the channel.

DtModelSetId makVrv::DtChannel::currentModelSet ( ) const

Get the current model set.

virtual void makVrv::DtChannel::setClearColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the clear color of the channel.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setViewport	(	int	x,
		int	y,
		int	width,
		int	height
	)

pure virtual

Set the viewport of the channel.

Implemented in makVrv::DtOsgChannel, and makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtChannel::getViewport	(	int &	x,
		int &	y,
		int &	width,
		int &	height
	)		const

pure virtual

Get the viewport.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setWindow ( DtWindow * )

pure virtual

Set the window the channel is displayed on.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setCameraPosition	(	double	x,
		double	y,
		double	z
	)

pure virtual

Set the channel's camera position.

Implemented in makVrv::DtOsgChannel.

virtual const DtWindow* makVrv::DtChannel::window ( ) const

pure virtual

Get the window the channel is displayed on.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setChannelEnabled	(	bool	enabled,
		bool	partial = `false`
	)

pure virtual

Enable/Disable the channel. When a channel is disabled, it no longer renders and receives key/mouse events.

Implemented in makVrv::DtOsgChannel.

virtual bool makVrv::DtChannel::channelEnabled ( ) const

pure virtual

Enable/Disable the channel. When a channel is disabled, it no longer renders or receives key/mouse events.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::update ( )

pure virtual

Update a channel.

Implemented in makVrv::DtOsgChannel, and makVrv::DtOculusChannel.

const DtChannelConfiguration& makVrv::DtChannel::configuration ( ) const

Get the configuration.

virtual void makVrv::DtChannel::updateProjection ( )

pure virtual

This method is called when ever the channel's projection matrix needs to be updated.

Implemented in makVrv::DtOsgChannel, makVrv::DtVirtualRealityChannel, makVrv::DtOculusChannel, and makVrv::vrvScalableDisplay::DtScalableOsgChannel.

virtual void makVrv::DtChannel::setObserverName ( const std::string & observerName )

virtual

set the name of the observer to use, and attempt to connect

virtual void makVrv::DtChannel::setSensorName ( const std::string & sensorName )

pure virtual

Set the name of the sensor to use.

The special name defined by DtChannelManager::UseObserverSensor causes the channel to use the sensor specified by its observer

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::setProjectionResizePolicy ( DtChannelConfiguration::ProjectionResizePolicy policy )

virtual

Set the policy used to determine if and how the projection matrix should be adjusted on window resizes. */.

Reimplemented in makVrv::DtOsgChannel.

virtual DtChannelConfiguration::ProjectionResizePolicy makVrv::DtChannel::projectionResizePolicy ( ) const

virtual

Get the policy used to determine if and how the projection matrix should be adjusted on window resizes. */.

virtual bool makVrv::DtChannel::processMouseEvent ( const DtMouseEvent & ev )

pure virtual

attempt to handle a mouse event with the channel's overlay

Implemented in makVrv::DtOsgChannel.

virtual bool makVrv::DtChannel::processKeyboardEvent ( const DtKeyEvent & ev )

pure virtual

attempt to handle a keyboard event with the channel's overlay

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::projectToScreen	(	double	dbX,
		double	dbY,
		double	dbZ,
		double &	screenX,
		double &	screenY,
		double &	screenZ
	)		const

pure virtual

project the given local (Or database) coordinates into screen coordinates

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::projectToWorld	(	double	screenX,
		double	screenY,
		double &	dbX,
		double &	dbY,
		double &	dbZ
	)		const

pure virtual

project the local database coordinates given screen coordinates

Implemented in makVrv::DtOsgChannel.

virtual DtIntersectorResult makVrv::DtChannel::findWorldIntersection	(	double	screenX,
		double	screenY,
		DtIntersector::IntersectProperties	properties = `DtIntersector::AllNodes`,
		std::vector< DtElementID > *	ignoreList = `0`
	)

pure virtual

Perform world intersection using non-normalized screen coordinates, in pixels.

Parameters

screenX	The X-component of the channel screen pixel coordinates.
screenY	The Y-component of the channel screen pixel coordinates.
properties	The properties which dictate which kind of nodes can be intersected, default is all node types.
ignoreList	A list of element IDs which are associated with scene visuals that are not to be included in the intersection result even if those scene visuals were intersected.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::moveMouseToScreenLocation	(	float	pixelX,
		float	pixelY
	)

pure virtual

Places the mouse cursor at the specified x/y position on the screen.

Implemented in makVrv::DtOsgChannel.

std::string& makVrv::DtChannel::observerName ( )

Retrieve the observer name for this channel.

virtual void makVrv::DtChannel::screenCapture ( )

pure virtual

Takes Screen capture of the current channel.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::updateCameraFrustumPlanes ( std::vector< DtVector4< double > > & planes )

pure virtual

Set the Frustum planes for this channel, called from DtOsgChannel.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::updateAcquisitionBoxFrustumPlanes	(	const int &	boxCenterX,
		const int &	boxCenterY,
		const int &	boxWidth,
		const int &	boxHeight,
		std::vector< DtVector4< double > > &	planes
	)

pure virtual

Set the frustum planes for a subset of this channel, called from DtOsgChannel Scales the channels projection values based on the box's values that are passed in.

Implemented in makVrv::DtOsgChannel.

virtual std::vector<DtElementID> makVrv::DtChannel::entitiesInFrustum ( )

pure virtual

Get a list of the entities within the frustum NOTE: This includes entities occluded by buildings, hills, etc. NOTE: You can use myDe.dataBank().elementData().attributeManager(). getElementDisplayName(entityId, name) to get the display names NOTE: You can use myDe.dataBank().elementData().findSceneObjectFromElementId(elementId); to get the DtSceneObject.

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::connectToObserver ( )

protectedpure virtual

Implemented in makVrv::DtOsgChannel.

virtual void makVrv::DtChannel::observerAdded ( const std::string & observerName )

protectedvirtual

connected to the signal_observerAdded so the channel can connect to the correct observer when it is added

virtual void makVrv::DtChannel::observerRemoved ( const std::string & observerName )

protectedvirtual

connected to the signal_observerRemoved so the channel can disconnect from the observer when it is removed.

Reimplemented in makVrv::DtOsgChannel.

DtChannel& makVrv::DtChannel::operator= ( const DtChannel & )

private

Assignment Operator not implemented - Copy not allowed.

Member Data Documentation

DtDe& makVrv::DtChannel::myDe

protected

DtChannelConfiguration& makVrv::DtChannel::myChannelConfiguration

protected

DtSignalConnectionManager makVrv::DtChannel::myConnections

protected

DtModelSetId makVrv::DtChannel::myModelSet

protected

DtObserverObject* makVrv::DtChannel::myObserver

protected

std::string makVrv::DtChannel::myObserverName

protected

DtChannelConfiguration::ProjectionResizePolicy makVrv::DtChannel::myProjectionResizePolicy

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtChannel.h
