makVrv::DtIntervisibilitySettingsManager Class Reference

This manager will manage settings for intervisibility objects.

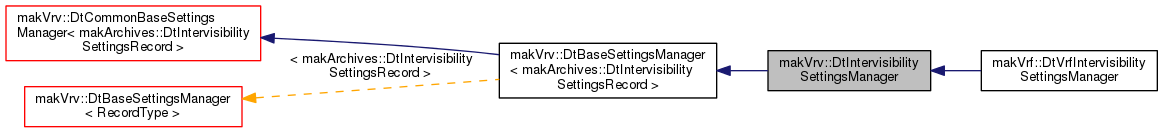

Inheritance diagram for makVrv::DtIntervisibilitySettingsManager:

Public Member Functions
virtual	~DtIntervisibilitySettingsManager ()
Setters/getters for settings
void	setIntervisibilityEnabled (bool enabled)
bool	intervisibilityEnabled () const
void	setLeftClickMakesObjectsPermanent (bool enabled)
bool	leftClickMakesObjectsPermanent () const
void	setOriginIntervisibilityElevation (double height)
double	originIntervisibilityElevation () const
void	setEndPointIntervisibilityElevation (double height)
double	endPointIntervisibilityElevation () const
void	setFanModeSamplingRate (double radAngle)
double	fanModeSamplingRate () const
void	setEntityFanUpdateRate (double interval)
double	entityFanUpdateRate () const
void	setHatLinesEnabled (bool hatEnabled)
bool	hatLinesEnabled () const
void	setHatLinesOnSelectionOnly (bool selOnly)
bool	hatLinesOnSelectionOnly () const
void	setVisibleColor (float r, float g, float b, float a)
void	visibleColor (float &r, float &g, float &b, float &a) const
void	setBlockedColor (float r, float g, float b, float a)
void	blockedColor (float &r, float &g, float &b, float &a) const
void	setCircleColor (float r, float g, float b, float a)
void	circleColor (float &r, float &g, float &b, float &a) const
Archiving methods
virtual void	setFromRecord (const makArchives::DtIntervisibilitySettingsRecord &rec)
virtual void	getRecord (makArchives::DtIntervisibilitySettingsRecord &rec) const
Methods for checking if object (object type) is attachable.
virtual bool	isAttachableObjectType (DtElementEntry::ObjectType t) const
virtual bool	isAttachableObjectType (DtUniqueID elementId) const
Public Member Functions inherited from makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
	DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
virtual	~DtBaseSettingsManager ()
virtual void	initializeBackup ()
virtual bool	getOverriddenFactoryRecord (makArchives::DtIntervisibilitySettingsRecord &record) const
Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
	DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
virtual	~DtCommonBaseSettingsManager ()
virtual void	autoSaveIfNecessary ()
virtual void	setAutoSave (bool doit)
virtual bool	autoSave () const
virtual void	setUseDefaultSettingsRecord (bool useit)
virtual bool	useDefaultSettingsRecord () const
virtual DtDeSettings *	settings ()
virtual const DtDeSettings *	settings () const
virtual DtSettingsBackup *	settingsBackup ()
virtual const DtSettingsBackup *	settingsBackup () const
virtual void	loadDefaults ()
virtual void	saveDefaultSettings ()
virtual void	loadDefaultSettings (bool loadOnlyFactorySettings)
virtual void	importSettings (const std::string &filePath)
virtual void	exportSettings (const std::string &filePath) const
virtual void	getSplitRecord (std::vector< makArchives::DtIntervisibilitySettingsRecord > &rec, std::vector< std::string > &fileNames)
virtual void	addRecords (makArchives::DtIntervisibilitySettingsRecord &rec, makArchives::DtIntervisibilitySettingsRecord &combinedRec)
Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
virtual	~DtVirtualBaseClass ()

Static Public Member Functions
static DtIntervisibilitySettingsManager &	instance (DtDe &de)

Public Attributes
Boost signals for changed settings
boost::signalslib::signal < void(bool)>	signal_intervisibilityEnabledSet
boost::signalslib::signal < void(bool)>	signal_leftClickMakesObjectsPermanentSet
boost::signalslib::signal < void(double)>	signal_originIntervisibilityElevationSet
boost::signalslib::signal < void(double)>	signal_endPointIntervisibilityElevationSet
boost::signalslib::signal < void(double)>	signal_fanModeSamplingRateSet
boost::signalslib::signal < void(double)>	signal_entityFanUpdateRateSet
boost::signalslib::signal < void(bool)>	signal_hatLinesEnabledSet
boost::signalslib::signal < void(bool)>	signal_hatLinesOnSelectionOnlySet
boost::signalslib::signal < void(float r, float g, float b, float a)>	signal_visibleColorSet
boost::signalslib::signal < void(float r, float g, float b, float a)>	signal_blockedColorSet
boost::signalslib::signal < void(float r, float g, float b, float a)>	signal_circleColorSet

Protected Member Functions
	DtIntervisibilitySettingsManager (DtDe &de)
virtual bool	applyFactoryOverrides (makArchives::DtIntervisibilitySettingsRecord &rec) const

Protected Attributes
bool	myIntervisibilityEnabled
bool	myLeftClickMakesObjectsPermanent
bool	myHatLinesEnabled
bool	myHatLinesOnSelectionOnly
double	myOriginIntervisibilityElevation
double	myEndPointIntervisibilityElevation
double	myFanModeSamplingRate
double	myEntityFanUpdateRate
float	myVisibleColor [4]
float	myBlockedColor [4]
float	myCircleColor [4]
Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
DtSignalConnectionManager	myConnections
std::string	myName
std::string	myExtension
std::string	myDisplayName
bool	myUseDefaultSettingsRecordFlag
bool	myAutoSaveFlag
DtSettingsBackup *	mySettingsBackup
DtDe &	myDe

Friends
template<typename ManagerClass >
ManagerClass &	defaultManagerInstanceFunction (DtDe &, bool)
template<typename ManagerClass >
void	defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)

Additional Inherited Members
Protected Types inherited from makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
typedef DtRecordSettingsBackup < DtBaseSettingsManager < makArchives::DtIntervisibilitySettingsRecord > , makArchives::DtIntervisibilitySettingsRecord >	RecordBackupType

Constructor & Destructor Documentation

virtual makVrv::DtIntervisibilitySettingsManager::~DtIntervisibilitySettingsManager ( )

virtual

DTOR.

makVrv::DtIntervisibilitySettingsManager::DtIntervisibilitySettingsManager ( DtDe &  de )

protected

Protected CTOR ( use instance(..) ).

Member Function Documentation

static DtIntervisibilitySettingsManager& makVrv::DtIntervisibilitySettingsManager::instance ( DtDe &  de )

static

Get an instance of the settings manager.

void makVrv::DtIntervisibilitySettingsManager::setIntervisibilityEnabled

(

bool

enabled

)

Sets whether intervisibility objects are globally seen/hidden.

bool makVrv::DtIntervisibilitySettingsManager::intervisibilityEnabled

(

)

const

Gets whether intervisibility objects are globally seen/hidden.

void makVrv::DtIntervisibilitySettingsManager::setLeftClickMakesObjectsPermanent

(

bool

enabled

)

Sets whether left-clicking places object or starts a new one.

bool makVrv::DtIntervisibilitySettingsManager::leftClickMakesObjectsPermanent

(

)

const

Gets whether left-clicking places object or starts a new one.

void makVrv::DtIntervisibilitySettingsManager::setOriginIntervisibilityElevation

(

double

height

)

Sets the distance above the origin to place the intervisibility line (in meters).

double makVrv::DtIntervisibilitySettingsManager::originIntervisibilityElevation

(

)

const

Gets the distance above the origin the intervisibility line is placed (in meters).

void makVrv::DtIntervisibilitySettingsManager::setEndPointIntervisibilityElevation

(

double

height

)

Sets the distance above the end point to place the intervisibility line (in meters).

double makVrv::DtIntervisibilitySettingsManager::endPointIntervisibilityElevation

(

)

const

Gets the distance above the end point the intervisibility line is placed (in meters).

void makVrv::DtIntervisibilitySettingsManager::setFanModeSamplingRate

(

double

radAngle

)

Sets the angle between fan mode samples (in radians).

double makVrv::DtIntervisibilitySettingsManager::fanModeSamplingRate

(

)

const

Gets the angle between fan mode samples (in radians).

void makVrv::DtIntervisibilitySettingsManager::setEntityFanUpdateRate

(

double

interval

)

Sets the time between entity fan mode updates (in seconds). Zero (0) default means check as fast as possible.

double makVrv::DtIntervisibilitySettingsManager::entityFanUpdateRate

(

)

const

Gets the time between entity fan mode updates (in seconds). Zero (0) default means check as fast as possible.

void makVrv::DtIntervisibilitySettingsManager::setHatLinesEnabled

(

bool

hatEnabled

)

Sets whether height above terrain lines are enabled.

bool makVrv::DtIntervisibilitySettingsManager::hatLinesEnabled

(

)

const

Gets whether height above terrain lines are enabled.

void makVrv::DtIntervisibilitySettingsManager::setHatLinesOnSelectionOnly

(

bool

selOnly

)

Sets whether HAT lines are shown only when the object is selected.

bool makVrv::DtIntervisibilitySettingsManager::hatLinesOnSelectionOnly

(

)

const

Gets whether HAT lines are shown only when the object is selected.

void makVrv::DtIntervisibilitySettingsManager::setVisibleColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the visible portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::visibleColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

Gets the color of the visible portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::setBlockedColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the blocked portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::blockedColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

Gets the color of the blocked portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::setCircleColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

Sets the color of the circle outline of a fan, grid line or entity intervisibility.

void makVrv::DtIntervisibilitySettingsManager::circleColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

Gets the color of the circle outline of a fan, grid line or entity intervisibility.

virtual void makVrv::DtIntervisibilitySettingsManager::setFromRecord ( const makArchives::DtIntervisibilitySettingsRecord &  rec )

virtual

Use the settings from the given settings record.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

virtual void makVrv::DtIntervisibilitySettingsManager::getRecord ( makArchives::DtIntervisibilitySettingsRecord &  rec ) const

virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

virtual bool makVrv::DtIntervisibilitySettingsManager::isAttachableObjectType ( DtElementEntry::ObjectType  t ) const

virtual

Checks whether the given object type is one that can be attached to.

virtual bool makVrv::DtIntervisibilitySettingsManager::isAttachableObjectType ( DtUniqueID  elementId ) const

virtual

Checks whether the entity with the given element id can be attached to.

Reimplemented in makVrf::DtVrfIntervisibilitySettingsManager.

virtual bool makVrv::DtIntervisibilitySettingsManager::applyFactoryOverrides ( makArchives::DtIntervisibilitySettingsRecord &  rec ) const

protectedvirtual

Get overrides to the factory record, if any. If there are overrides, this function returns true. This is an internal utility function used by VR-Vantage engineers to update factory defaults. As a result, this function returns false in releases but can be overriden by toolkit users if desired; however, generally toolkit users can and should use DtDeInitializer::addDefaultSettingsRecord(...) instead.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

Friends And Related Function Documentation

template<typename ManagerClass >

ManagerClass& defaultManagerInstanceFunction ( DtDe &  de, bool  allowedInSlave  )

friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

class Manager
{
public:
   static Manager& instance(DtDe& de);
   void loadDefaults();
protected:
   template <typename ManagerClass>
   friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
   template <typename ManagerClass>
   friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
   Manager(DtDe&);
   DtSignalConnectionManager myConnections;
};

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

Manager& Manager::instance(DtDe& de)
{
   return defaultManagerInstanceFunction<Manager>(de);
}

template<typename ManagerClass >

void defaultManagerRegisterInstanceFunction ( DtDe &  de, ManagerClass *  mgr  )

friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

static void Manager::registerInstance(DtDe& de, Manager* mgr)
{
   defaultManagerRegisterInstanceFunction(de,mgr);
}
...else where call.
// Assuming class NewManager : public Manager
Manager::registerInstance(de,new NewManager(de));

Member Data Documentation

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_intervisibilityEnabledSet

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_leftClickMakesObjectsPermanentSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_originIntervisibilityElevationSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_endPointIntervisibilityElevationSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_fanModeSamplingRateSet

boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_entityFanUpdateRateSet

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_hatLinesEnabledSet

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_hatLinesOnSelectionOnlySet

boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_visibleColorSet

boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_blockedColorSet

boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_circleColorSet

bool makVrv::DtIntervisibilitySettingsManager::myIntervisibilityEnabled

protected

bool makVrv::DtIntervisibilitySettingsManager::myLeftClickMakesObjectsPermanent

protected

bool makVrv::DtIntervisibilitySettingsManager::myHatLinesEnabled

protected

bool makVrv::DtIntervisibilitySettingsManager::myHatLinesOnSelectionOnly

protected

double makVrv::DtIntervisibilitySettingsManager::myOriginIntervisibilityElevation

protected

double makVrv::DtIntervisibilitySettingsManager::myEndPointIntervisibilityElevation

protected

double makVrv::DtIntervisibilitySettingsManager::myFanModeSamplingRate

protected

double makVrv::DtIntervisibilitySettingsManager::myEntityFanUpdateRate

protected

float makVrv::DtIntervisibilitySettingsManager::myVisibleColor[4]

protected

float makVrv::DtIntervisibilitySettingsManager::myBlockedColor[4]

protected

float makVrv::DtIntervisibilitySettingsManager::myCircleColor[4]

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtIntervisibilitySettingsManager.h
