Base class for Kinematic State Objects e.g. DtEntityKinematicState Controls kinematic state of a scene object. Kinematic state objects use updaters to modify input values and apply them to scene objects. There is now one kinematic state object per element. An element that has a kinematic state object will add scene objects to a kinematic state ( via addSceneObject ) on a per model set basis; one scene object per model set. Each scene object is then added to the updater chain to receive spatial info updates ( addSceneObjectToUpdaters ). There is one updater chain that updates all the scene objects of an element. For example, all entity kinematic states will have a DtDeadReckonUpdater and perhaps a ground clamping updater (if specified in the Kinematic State visualizer definition for the 3D model set, processed in processKinematicStateDefinition). These updaters are "chained", the kinematic state sends spatial info to the DtDeadReckonUpdater which calculates and modifies the values, these are then passed to the DtGroundClampingUpdater, which will modify the spatial info again and finally send them to the scene object.

As there is one kinematic state object per element, and therefore one updater chain per element, when ground clamping or buoyancy are turned off/on they will be applied to ALL scene objects for all model sets of that element. This means that 2D icons positions/orientations can be clamped.

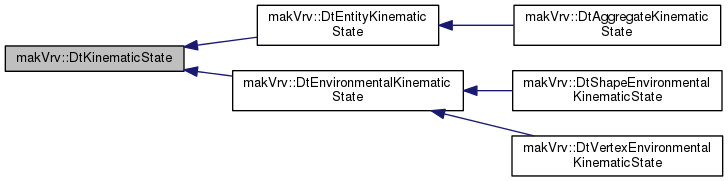

Inheritance diagram for makVrv::DtKinematicState:

[legend]

Public Member Functions
	DtKinematicState (DtStateListener &listener, DtAgentManagerInterface &sceneInterface, DtSharedSettingsManager &settingsManager)

virtual	~DtKinematicState ()

	DtKinematicState ()=delete

	DtKinematicState (const DtKinematicState &)=delete

DtKinematicState &	operator= (const DtKinematicState &)=delete

virtual void	initialize ()

virtual void	processKinematicStateDefinition (const DtVisualizerDefinition *visDef)


virtual void	createUpdaters ()=0

virtual void	destroyUpdaters ()=0


virtual void	addSceneObject (DtModelSetId modelSet, DtSceneObjectAgent *sceneObjectAgent)

virtual void	removeSceneObject (DtModelSetId modelSet, DtSceneObjectAgent *sceneObjectAgent)

virtual DtSceneObjectAgent *	findSceneObjectForModelSet (DtModelSetId modelSet)


virtual bool	distribute () const

virtual void	setDistribute (const bool distribute)

Protected Types
using	SceneObjectMap = std::unordered_map< DtModelSetId, DtSceneObjectAgent * >

Protected Member Functions
virtual void	connectToListenerSignals ()

virtual void	connectToSettingsSignals ()=0


virtual void	addSceneObjectToUpdaters (DtModelSetId modelSet, DtSceneObjectAgent *sceneObjectAgent)=0

virtual void	removeSceneObjectFromUpdaters (DtModelSetId modelSet, DtSceneObjectAgent *sceneObjectAgent)=0

Protected Attributes
SceneObjectMap	mySceneObjectMap

DtStateListener &	myStateListener

DtAgentManagerInterface &	mySceneInterface

DtSharedSettingsManager &	mySettingsManager

DtSignalConnectionManager	myConnections

DtUniqueID	myEmbarkedParentSceneObjectID

bool	myEmbarkedFlag

bool	myInitialized

bool	myDistributeFlag

virtual void	setParentElement (DtElement *parent)

virtual void	updateParentElementSceneObject (DtElement *parent)

virtual void	setEmbarked (const DtUniqueID &id)

virtual void	startEmbarked ()=0

virtual void	endEmbarked ()=0

Member Typedef Documentation

using makVrv::DtKinematicState::SceneObjectMap = std::unordered_map<DtModelSetId, DtSceneObjectAgent*>

protected

Model set to scene object map.

Constructor & Destructor Documentation

makVrv::DtKinematicState::DtKinematicState	(	DtStateListener &	listener,
		DtAgentManagerInterface &	sceneInterface,
		DtSharedSettingsManager &	settingsManager
	)

CTOR.

virtual makVrv::DtKinematicState::~DtKinematicState ( )

virtual

DTOR.

makVrv::DtKinematicState::DtKinematicState ( )

delete

not allowed - default constructor

makVrv::DtKinematicState::DtKinematicState ( const DtKinematicState & )

delete

not allowed - copy constructor

Member Function Documentation

DtKinematicState& makVrv::DtKinematicState::operator= ( const DtKinematicState & )

delete

not allowed - equals operator

virtual void makVrv::DtKinematicState::initialize ( )

virtual

Initialize the Kinematic State Object Call processKinematicStateDefinition before initialize.

Reimplemented in makVrv::DtEntityKinematicState, makVrv::DtEnvironmentalKinematicState, makVrv::DtShapeEnvironmentalKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::createUpdaters ( )

pure virtual

Not implemented.

Implemented in makVrv::DtEnvironmentalKinematicState, and makVrv::DtEntityKinematicState.

virtual void makVrv::DtKinematicState::destroyUpdaters ( )

pure virtual

Not implemented.

Implemented in makVrv::DtEnvironmentalKinematicState, makVrv::DtEntityKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::addSceneObject	(	DtModelSetId	modelSet,
		DtSceneObjectAgent *	sceneObjectAgent
	)

virtual

Scene object methods.

virtual void makVrv::DtKinematicState::removeSceneObject	(	DtModelSetId	modelSet,
		DtSceneObjectAgent *	sceneObjectAgent
	)

virtual

Scene object methods.

virtual DtSceneObjectAgent* makVrv::DtKinematicState::findSceneObjectForModelSet ( DtModelSetId modelSet )

virtual

Attempt to find the scene object for a give model set, can return nullptr.

virtual bool makVrv::DtKinematicState::distribute ( ) const

virtual

Get / Set the distribute flag, used when updater agents are created. When set to true these agents will be sent to remote displays.

virtual void makVrv::DtKinematicState::setDistribute ( const bool distribute )

virtual

Get / Set the distribute flag, used when updater agents are created. When set to true these agents will be sent to remote displays.

virtual void makVrv::DtKinematicState::processKinematicStateDefinition ( const DtVisualizerDefinition * visDef )

virtual

Processor the vis def for the kin state, as we no longer have a kin state visualizer The definition for DtModelSetId::Models3D (0) is currently used for the whole element kinematic object In the future, whole element parameters will be added and these will be used instead Call this BEFORE initialize.

Reimplemented in makVrv::DtEntityKinematicState.

virtual void makVrv::DtKinematicState::setParentElement ( DtElement * parent )

virtual

Embarkation / ParentingAttempts to find a valid scene object id from the parent element calls setEmbarked if one is found. Uses the 3D Models ( ModelSet3dModels ) scene object if it is available, if not it will then try the Icons2D scene object and finally the ModelsColorized scene object.

virtual void makVrv::DtKinematicState::updateParentElementSceneObject ( DtElement * parent )

virtual

If a model set is getting destroyed, attempt to find a new valid scene object.

virtual void makVrv::DtKinematicState::setEmbarked ( const DtUniqueID & id )

protectedvirtual

Embarks this object on the specified parent scene object Sets myEmbarkedParentSceneObjectID and myEmbarkedFlag calls startEmbarked()

virtual void makVrv::DtKinematicState::startEmbarked ( )

protectedpure virtual

Pure virtual - implemented by derived classes startEmbarked requires an embarkation updater Tells the embarkation updater to embark the entity on myEmbarkedParentSceneObjectID.

Implemented in makVrv::DtEntityKinematicState, makVrv::DtShapeEnvironmentalKinematicState, makVrv::DtEnvironmentalKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::endEmbarked ( )

protectedpure virtual

Embarkation / ParentingAttempts to find a valid scene object id from the parent element calls setEmbarked if one is found. Uses the 3D Models ( ModelSet3dModels ) scene object if it is available, if not it will then try the Icons2D scene object and finally the ModelsColorized scene object.

Implemented in makVrv::DtEntityKinematicState, makVrv::DtShapeEnvironmentalKinematicState, makVrv::DtEnvironmentalKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::connectToListenerSignals ( )

protectedvirtual

No-op.

Reimplemented in makVrv::DtEntityKinematicState, makVrv::DtEnvironmentalKinematicState, makVrv::DtShapeEnvironmentalKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::connectToSettingsSignals ( )

protectedpure virtual

Not implemented - derived kin states do.

Implemented in makVrv::DtEntityKinematicState, and makVrv::DtEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::addSceneObjectToUpdaters	(	DtModelSetId	modelSet,
		DtSceneObjectAgent *	sceneObjectAgent
	)

protectedpure virtual

Not implemented.

Implemented in makVrv::DtEntityKinematicState, makVrv::DtEnvironmentalKinematicState, makVrv::DtShapeEnvironmentalKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

virtual void makVrv::DtKinematicState::removeSceneObjectFromUpdaters	(	DtModelSetId	modelSet,
		DtSceneObjectAgent *	sceneObjectAgent
	)

protectedpure virtual

Not implemented.

Implemented in makVrv::DtEntityKinematicState, makVrv::DtEnvironmentalKinematicState, makVrv::DtShapeEnvironmentalKinematicState, and makVrv::DtVertexEnvironmentalKinematicState.

Member Data Documentation

SceneObjectMap makVrv::DtKinematicState::mySceneObjectMap

protected

DtStateListener& makVrv::DtKinematicState::myStateListener

protected

DtAgentManagerInterface& makVrv::DtKinematicState::mySceneInterface

protected

DtSharedSettingsManager& makVrv::DtKinematicState::mySettingsManager

protected

DtSignalConnectionManager makVrv::DtKinematicState::myConnections

protected

DtUniqueID makVrv::DtKinematicState::myEmbarkedParentSceneObjectID

protected

There is now one updater chain, the embarkation updater uses the 3D Models ( ModelSet3dModels ) scene object to update from if it is available, if not it will then try the Icons2D scene object and finally the ModelsColorized scene object.

bool makVrv::DtKinematicState::myEmbarkedFlag

protected

bool makVrv::DtKinematicState::myInitialized

protected

Has initialized been called before. Used so that signals are only connected once.

bool makVrv::DtKinematicState::myDistributeFlag

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtKinematicState.h
