makVrv::DtModelScaleWidget Class Reference

DtModelScaleWidget is a toolbar widget that combines a button to enable and disable model scaling, and a drop-down button to bring up a slider for the model scale factor.

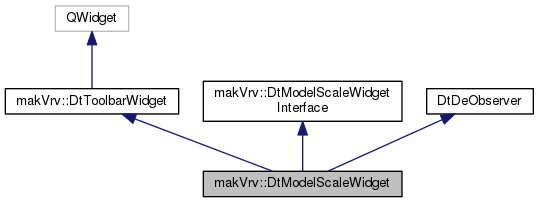

Inheritance diagram for makVrv::DtModelScaleWidget:

Public Member Functions
	DtModelScaleWidget (DtDe &de, QWidget *parent=0, Qt::WindowFlags f=0)
virtual	~DtModelScaleWidget ()
virtual void	setEnabled (bool b)
virtual void	setValue (bool b)
virtual void	setModelScaleFactor (int factor)
virtual void	setMaxModelScaleFactor (int maxModelScaleFactor)
void	setupGui ()
virtual void	setWidgetsVisible (bool visible)
Public Member Functions inherited from makVrv::DtToolbarWidget
	DtToolbarWidget (DtDe &de, QWidget *p=0, Qt::WindowFlags f=0)
virtual	~DtToolbarWidget ()
void	setToolButtonChecked (bool checked)
bool	isToolButtonChecked () const
void	setToolButtonStyle (Qt::ToolButtonStyle style)
Qt::ToolButtonStyle	toolButtonStyle () const
Public Member Functions inherited from makVrv::DtModelScaleWidgetInterface
virtual	~DtModelScaleWidgetInterface ()

Protected Slots
virtual void	on_modelScaleSliderChanged (int)
virtual void	on_toolButtonClicked (bool checked)
Protected Slots inherited from makVrv::DtToolbarWidget
virtual void	on_toolButtonStyleChanged (Qt::ToolButtonStyle val)
virtual void	on_toolButtonClicked (bool checked)=0
virtual void	on_aboutToShow ()

Protected Member Functions
virtual void	slot_activate (DtDe *subject)
virtual void	slot_deactivate (DtDe *)
Protected Member Functions inherited from makVrv::DtToolbarWidget
virtual void	configureToolButton (const QString &text, const QString &tooltip, const QString &iconFilename, bool checkable=false, bool hasMenu=false, QToolButton::ToolButtonPopupMode menuMode=QToolButton::DelayedPopup, const QString &checkedIconFilePath=QString(""))
virtual void	configureThemedToolButton (const QString &text, const QString &tooltip, const QString &iconFilename, bool checkable=false, bool hasMenu=false, QToolButton::ToolButtonPopupMode menuMode=QToolButton::DelayedPopup, const QString &checkedIconFileName=QString(""))

Protected Attributes
DtModelScaleWidgetLogic *	myLogic
DtPopupToolbarButton *	mySliderEnableButton
DtModelScaleSliderWidget *	mySliderWidget
DtPopupToolbar *	mySliderToolBar
bool	mySliderWidgetShown
Protected Attributes inherited from makVrv::DtToolbarWidget
DtDe &	myDe
QToolButton *	myToolButton
QHBoxLayout *	myWidgetLayout

Private Member Functions
	DtModelScaleWidget ()
	DtModelScaleWidget (const DtModelScaleWidget &)
DtModelScaleWidget &	operator= (const DtModelScaleWidget &)

Constructor & Destructor Documentation

makVrv::DtModelScaleWidget::DtModelScaleWidget	(	DtDe &	de,
		QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

virtual makVrv::DtModelScaleWidget::~DtModelScaleWidget ( )

virtual

Virtual Destructor.

makVrv::DtModelScaleWidget::DtModelScaleWidget ( )

private

Default CTOR.

Note

Not implemented ( force use of initializer ).

makVrv::DtModelScaleWidget::DtModelScaleWidget ( const DtModelScaleWidget &  )

private

Copy CTOR.

Note

Not implemented ( prevents copies ).

Member Function Documentation

DtModelScaleWidget& makVrv::DtModelScaleWidget::operator= ( const DtModelScaleWidget &  )

private

Copy operator.

Note

Not implemented ( prevents copies ).

virtual void makVrv::DtModelScaleWidget::setEnabled ( bool  b )

virtual

Enable or disable the model scaling button. If the scale slider is up, this will also bring that down.

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setValue ( bool  b )

virtual

Set the value of the model caling button (on/off)

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setModelScaleFactor ( int  factor )

virtual

Set the current model scale factor to be used by the scale factor slider.

Implements makVrv::DtModelScaleWidgetInterface.

virtual void makVrv::DtModelScaleWidget::setMaxModelScaleFactor ( int  maxModelScaleFactor )

virtual

Sets the model scale slider's maximum value.

Implements makVrv::DtModelScaleWidgetInterface.

void makVrv::DtModelScaleWidget::setupGui

(

)

Sets up the user interface. Called from constructor.

virtual void makVrv::DtModelScaleWidget::setWidgetsVisible ( bool  visible )

virtual

Called whenever the ToolButtonStyle has changed.

Parameters

visible

Whether or not any custom widgets are visible This function updates the visibility of mySliderEnableButton

Reimplemented from makVrv::DtToolbarWidget.

virtual void makVrv::DtModelScaleWidget::slot_activate ( DtDe *  subject )

protectedvirtual

For Display Engine subject observer.

virtual void makVrv::DtModelScaleWidget::slot_deactivate ( DtDe *  )

inlineprotectedvirtual

For Display Engine subject observer.

virtual void makVrv::DtModelScaleWidget::on_modelScaleSliderChanged ( int  )

protectedvirtualslot

connected to the internal model scale slider toggle button

virtual void makVrv::DtModelScaleWidget::on_toolButtonClicked ( bool  checked )

protectedvirtualslot

Slot when this widget's toolbutton has been clicked.

Parameters

checked

Whether or not the QToolButton is checked or not

Member Data Documentation

DtModelScaleWidgetLogic* makVrv::DtModelScaleWidget::myLogic

protected

DtPopupToolbarButton* makVrv::DtModelScaleWidget::mySliderEnableButton

protected

DtModelScaleSliderWidget* makVrv::DtModelScaleWidget::mySliderWidget

protected

DtPopupToolbar* makVrv::DtModelScaleWidget::mySliderToolBar

protected

bool makVrv::DtModelScaleWidget::mySliderWidgetShown

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCoreQt/DtModelScaleWidget.h
