makVrv::DtOsgRibbon Class Reference

Base class for OSG ribbon implementations.

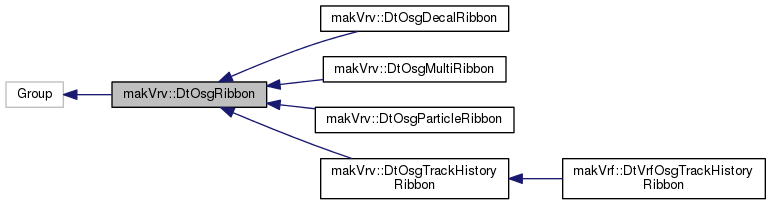

Inheritance diagram for makVrv::DtOsgRibbon:

Public Member Functions
	DtOsgRibbon (DtDe &de, float segmentSpacing=1.0, const osg::Vec4 &color=osg::Vec4d(0.5, 0.5, 0.5, 1.0), float maxLength=2000, float timeout=3600.0)
virtual	~DtOsgRibbon ()
virtual void	traverse (osg::NodeVisitor &nv)
virtual osg::Node *	node ()
virtual void	setColor (const osg::Vec4 &color)
virtual const osg::Vec4 &	color () const
virtual void	setDroppedPoints (const osg::Vec3d &pointA, const osg::Vec3d &pointB)
virtual void	setDroppedPointsPositionOffset (const osg::Vec3d &posOffset)
virtual void	update (double dt, double simTime)
virtual void	update ()
virtual void	setMaxSegments (long segments)
virtual long	maxSegments () const
virtual void	setSegmentSpacing (float spacing)
virtual void	setSegmentTimeout (float duration)
virtual float	segmentSpacing () const
virtual void	setStippled (bool stippled)
virtual bool	isStippled () const
virtual void	setLightingEnabled (bool enable)
virtual bool	lightingEnabled ()
virtual void	setHeightLinesEnabled (bool enabled)
virtual void	setHeightLinesColor (float r, float g, float b, float a)
virtual void	setHeightLinesSpacing (float spacing)
virtual void	setHeightLinesModelSetId (DtModelSetId modelSetId)

Protected Member Functions
virtual void	addParticle (osg::Vec3d const &left, osg::Vec3d const &right, double simTime)=0
virtual float	currentSegmentLength ()=0
virtual void	setCurrentSegmentLength (float len)
virtual void	cleanupOldSegments (double simTime)=0
virtual void	extendCurrentSegment (osg::Vec3d const &left, osg::Vec3d const &right, double simTime)=0
virtual osg::Drawable *	getDrawable ()=0
virtual osg::Geode *	createGeode ()
virtual void	setDrawable ()

Protected Attributes
osg::ref_ptr < osg::MatrixTransform >	myPositionNode
osg::ref_ptr< osg::Geode >	myGeode
osg::Matrixd	myWorldTransformInv
osg::Matrixd	myLastLocalToWork
int	myLastUpdatedFrame
double	myLastUpdateTime
double	myRibbonLengthSquared
long	myMaxSegments
int	myActiveSegmentCount
float	mySegmentSpacingSquared
float	mySegmentSpacing
float	mySegmentTimeout
osg::Vec3d	myLocalPointA
osg::Vec3d	myLocalPointB
osg::Vec3d	myLocalPosOffset
osg::Vec4	myColor
bool	myFirstUpdate
bool	myStippled
DtDe &	myDe
bool	myLightingEnabled
bool	myShaderSet
bool	myHeightLinesEnabled
float	myHeightLinesColor [4]
float	myHeightLinesSpacing
DtModelSetId	myHeightLinesModelSetId

Private Member Functions
	DtOsgRibbon ()=delete
	DtOsgRibbon (const DtOsgRibbon &)=delete
DtOsgRibbon &	operator= (const DtOsgRibbon &)=delete

Constructor & Destructor Documentation

makVrv::DtOsgRibbon::DtOsgRibbon	(	DtDe &	de,
		float	segmentSpacing = 1.0,
		const osg::Vec4 &	color = osg::Vec4d(0.5, 0.5, 0.5, 1.0),
		float	maxLength = 2000,
		float	timeout = 3600.0
	)

CTOR.

Parameters

segmentSpacing	the distance between samples points (in meters).
color	the color of the ribbon.
maxLength	the max length of the ribbon (in samples).

virtual makVrv::DtOsgRibbon::~DtOsgRibbon ( )

virtual

DTOR.

makVrv::DtOsgRibbon::DtOsgRibbon ( )

privatedelete

unimplemented private default constructor

makVrv::DtOsgRibbon::DtOsgRibbon ( const DtOsgRibbon &  )

privatedelete

Copy Constructor not implemented – Copy not allowed.

Member Function Documentation

DtOsgRibbon& makVrv::DtOsgRibbon::operator= ( const DtOsgRibbon &  )

privatedelete

Assignment Operator not implemented – Copy not allowed.

virtual void makVrv::DtOsgRibbon::traverse ( osg::NodeVisitor &  nv )

virtual

Interrupt CullVisitors by updating the ribbon.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual osg::Node* makVrv::DtOsgRibbon::node ( )

virtual

Get the osg geometry node associated with the ribbon.

Reimplemented in makVrv::DtOsgMultiRibbon.

virtual void makVrv::DtOsgRibbon::setColor ( const osg::Vec4 &  color )

virtual

Set the ribbon's color.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual const osg::Vec4& makVrv::DtOsgRibbon::color ( ) const

inlinevirtual

Get the ribbon's color.

virtual void makVrv::DtOsgRibbon::setDroppedPoints ( const osg::Vec3d &  pointA, const osg::Vec3d &  pointB  )

virtual

Set the points to drop in local coordinates.

virtual void makVrv::DtOsgRibbon::setDroppedPointsPositionOffset ( const osg::Vec3d &  posOffset )

virtual

Provide an offset to the dropped points so the entity can shift around the points specified in the model definition ex. 5 ton truck can offset so front wheels leave tracks.

Reimplemented in makVrv::DtOsgMultiRibbon.

virtual void makVrv::DtOsgRibbon::update ( double  dt, double  simTime  )

virtual

Update the ribbon with the current position.

Reimplemented in makVrv::DtOsgMultiRibbon, and makVrv::DtOsgParticleRibbon.

virtual void makVrv::DtOsgRibbon::update ( )

virtual

Optional time independent update method.

nop for now

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual void makVrv::DtOsgRibbon::setMaxSegments ( long  segments )

virtual

Sets the maximum number of segments allowed in the ribbon.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual long makVrv::DtOsgRibbon::maxSegments ( ) const

inlinevirtual

Gets the maximum number of segments allowed in the ribbon.

virtual void makVrv::DtOsgRibbon::setSegmentSpacing ( float  spacing )

virtual

Sets the maximum length of ribbon segments.

virtual void makVrv::DtOsgRibbon::setSegmentTimeout ( float  duration )

virtual

Sets the timeout of a ribbon segment.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual float makVrv::DtOsgRibbon::segmentSpacing ( ) const

inlinevirtual

Gets the maximum length of the ribbon segments.

virtual void makVrv::DtOsgRibbon::setStippled ( bool  stippled )

virtual

Parameters

[in]

stippled

is a flag to use a stipple pattern instead of alpha blending. When true, the ribbon is considered opaque and the stipple pattern allows see through. When false, the ribbon is considered transparent and alpha blending allows see through.

virtual bool makVrv::DtOsgRibbon::isStippled ( ) const

inlinevirtual

Get the stipple setting for this ribbon.

Return values

true	if stippled.
false	otherwise.

See Also

setStippled(bool)

virtual void makVrv::DtOsgRibbon::setLightingEnabled ( bool  enable )

virtual

set to true the lighting enabled flag to turn lighting on for the ribbon

virtual bool makVrv::DtOsgRibbon::lightingEnabled ( )

virtual

get the lighting enabled flag

virtual void makVrv::DtOsgRibbon::setHeightLinesEnabled ( bool  enabled )

virtual

Enables or disables height lines along the ribbon path.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual void makVrv::DtOsgRibbon::setHeightLinesColor ( float  r, float  g, float  b, float  a  )

virtual

Sets the color for height lines.

virtual void makVrv::DtOsgRibbon::setHeightLinesSpacing ( float  spacing )

virtual

Sets the desired spacing for height lines.

virtual void makVrv::DtOsgRibbon::setHeightLinesModelSetId ( DtModelSetId  modelSetId )

virtual

Sets the model set that the height lines should be used with.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual void makVrv::DtOsgRibbon::addParticle ( osg::Vec3d const &  left, osg::Vec3d const &  right, double  simTime  )

protectedpure virtual

Add a particle to the ribbon.

Implemented in makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual float makVrv::DtOsgRibbon::currentSegmentLength ( )

protectedpure virtual

Find the squared length of the current ribbon segment.

Implemented in makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::setCurrentSegmentLength ( float  len )

protectedvirtual

Set the length of the current ribbon segment no-op.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual void makVrv::DtOsgRibbon::cleanupOldSegments ( double  simTime )

protectedpure virtual

Check to see if any segments have reached their timeout if so remove them from the list to be rendered. currently only implemented for track histories.

Implemented in makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::extendCurrentSegment ( osg::Vec3d const &  left, osg::Vec3d const &  right, double  simTime  )

protectedpure virtual

Extend the current segment to left and right points.

Implemented in makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual osg::Drawable* makVrv::DtOsgRibbon::getDrawable ( )

protectedpure virtual

Get the drawable responsible for drawing the ribbon.

Implemented in makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual osg::Geode* makVrv::DtOsgRibbon::createGeode ( )

protectedvirtual

Create function for creating the geode for drawing this ribbon.

Reimplemented in makVrv::DtOsgParticleRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::setDrawable ( )

protectedvirtual

Removes any existing drawables and add the drawable returned from getDrawable.

Member Data Documentation

osg::ref_ptr<osg::MatrixTransform> makVrv::DtOsgRibbon::myPositionNode

protected

osg::ref_ptr<osg::Geode> makVrv::DtOsgRibbon::myGeode

protected

osg::Matrixd makVrv::DtOsgRibbon::myWorldTransformInv

protected

osg::Matrixd makVrv::DtOsgRibbon::myLastLocalToWork

protected

int makVrv::DtOsgRibbon::myLastUpdatedFrame

protected

double makVrv::DtOsgRibbon::myLastUpdateTime

protected

double makVrv::DtOsgRibbon::myRibbonLengthSquared

protected

long makVrv::DtOsgRibbon::myMaxSegments

protected

int makVrv::DtOsgRibbon::myActiveSegmentCount

protected

float makVrv::DtOsgRibbon::mySegmentSpacingSquared

protected

float makVrv::DtOsgRibbon::mySegmentSpacing

protected

float makVrv::DtOsgRibbon::mySegmentTimeout

protected

osg::Vec3d makVrv::DtOsgRibbon::myLocalPointA

protected

osg::Vec3d makVrv::DtOsgRibbon::myLocalPointB

protected

osg::Vec3d makVrv::DtOsgRibbon::myLocalPosOffset

protected

osg::Vec4 makVrv::DtOsgRibbon::myColor

protected

bool makVrv::DtOsgRibbon::myFirstUpdate

protected

bool makVrv::DtOsgRibbon::myStippled

protected

DtDe& makVrv::DtOsgRibbon::myDe

protected

bool makVrv::DtOsgRibbon::myLightingEnabled

protected

bool makVrv::DtOsgRibbon::myShaderSet

protected

bool makVrv::DtOsgRibbon::myHeightLinesEnabled

protected

float makVrv::DtOsgRibbon::myHeightLinesColor[4]

protected

float makVrv::DtOsgRibbon::myHeightLinesSpacing

protected

DtModelSetId makVrv::DtOsgRibbon::myHeightLinesModelSetId

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvOsg/DtOsgRibbon.h
