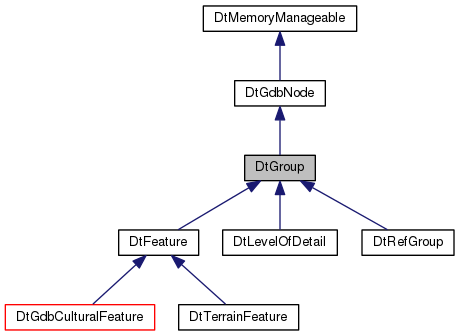

Inheritance diagram for DtGroup:

Public Types
typedef std::vector< DtGdbNode * >	DtGroupChildren

typedef const std::vector < DtGdbNode * >	DtConstGroupChildren

typedef std::vector< DtGdbNode * > ::iterator	DtGroupChildrenIter

typedef std::vector< DtGdbNode * > ::const_iterator	DtGroupChildrenConstIter

Public Types inherited from DtGdbNode
enum	DtGdbNodeType { NULL_NODE = -1, GRIDPOST_LIST = 0, VERTEX_LIST, GROUP, POLYGON_IMMEDIATE, POLYGON_INDIRECT, LEVEL_OF_DETAIL, GRID, DYNAMIC_COORDINATE_SYSTEM, STATIC_COORDINATE_SYSTEM, TERRAIN_FEATURE, CULTURAL_FEATURE, BUILDING, TREE, TRIANGLE_INDIRECT, FILE_NODE, REF_GROUP, EXTENT_TRIANGLE_INDIRECT, LAST_NODE_TYPE }

enum	DtIntersectRecordType { IRT_NO_DATA = 0, IRT_IPOINT = 0x01, IRT_INORMAL = 0x02, IRT_IPOLYGON = 0x04, IRT_ALL_DATA_TERRAIN = 0x07, IRT_VECTOR_DATA_INPOINT = 0x10, IRT_VECTOR_DATA_ALONG_CHORD = 0x20, IRT_ALL_DATA_INPOINT = 0x17, IRT_ALL_DATA_ALONG_CHORD = 0x27 }

typedef std::set< DtGdbNode * >	DtFoundInstancesContainer

typedef DtFoundInstancesContainer::iterator	DtFoundInstancesIter

typedef DtFoundInstancesContainer::const_iterator	DtFoundInstancesConstIter

typedef std::set< const DtGdbNode * >	DtFoundInstancesConstContainer

typedef DtFoundInstancesConstContainer::iterator	DtConstFoundInstancesIter

typedef DtFoundInstancesConstContainer::const_iterator	DtConstFoundInstancesConstIter

Public Member Functions
	DtGroup ()

virtual	~DtGroup ()

	DtGroup (const DtGroup &orig)

DtGroup &	operator= (const DtGroup &orig)

virtual DtGdbNodeType	type () const

DtExtent	extent () const

virtual DtGroupChildren &	children ()

virtual DtConstGroupChildren &	children () const

virtual void	countPolyColors (DtColorCountRecord &cr, const DtExtent &e) const

virtual void	expandExtent (DtExtent &extent) const

virtual void	recomputeExtent ()

virtual bool	intersect (const DtChord &chord, DtPoint &intersectionPoint, double &t) const

virtual bool	intersect (const DtChord &chord, DtChordIntersectionRecord &record, DtIntersectRecordType irtFlag) const

virtual bool	intersect (const DtSphere &sphere, DtSphereIntersectionRecord &record, DtIntersectRecordType irtFlag) const

virtual bool	allIntersectsAlongChord (const DtChord &chord, DtChordIntersectRecordList &intList, DtIntersectRecordType irtFlag) const

virtual int	intersectBundle (const DtChordBundle &chordBundle, DtList &recordList, DtIntersectRecordType irtFlag) const

virtual int	allIntersectsAlongChordBundle (const DtChordBundle &chordBundle, DtList &intListList, DtIntersectRecordType irtFlag) const

virtual void	addChild (DtGdbNode *newNode)

virtual void	addChildIfNonNull (DtGdbNode *newNode)

virtual void	addChildToStart (DtGdbNode *newNode)

virtual bool	applyTransform (const DtHomogeneousTransformMatrix &matrix, bool createNewVertices)

virtual void	reduceChildren (int &numReductions)

virtual DtGdbNode *	reduce (int &numReductions)

virtual bool	sanityCheck () const

virtual void	dump (int indentLevel) const

virtual DtTerrainFileVersionNumber	minSaveVersion () const

virtual void	allInstancesOf (const DtGdbNodeType searchType, DtFoundInstancesContainer &foundInstances, bool recurseIntoCoordSysNodes=false)

virtual void	allInstancesOf (const DtGdbNodeType searchType, DtFoundInstancesConstContainer &foundInstances, bool recurseIntoCoordSysNodes=false) const

virtual void	allInstancesOf (const DtGdbNodeType searchType, DtFoundInstancesContainer &foundInstances, bool recurseIntoCoordSysNodes, DtGdbNodeEvaluationFunctor &functor)

virtual void	allInstancesOf (const DtGdbNodeType searchType, DtFoundInstancesConstContainer &foundInstances, bool recurseIntoCoordSysNodes, DtGdbNodeEvaluationFunctor &functor) const

virtual void	purgeAllInstancesOf (const DtGdbNodeType searchType)

virtual DtGdbNode *	purgeAll ()

virtual void	polygonToTriangle (DtMemoryManager *memMgr, unsigned int &numIndConverted, unsigned int &numIndTotal)

virtual unsigned int	loadAllExternalFiles () const

virtual unsigned int	unloadAllExternalFiles () const

virtual DtGroup *	balanced (unsigned int branching, unsigned int bushiness)

virtual DtGroup *	balancedAndPurged (unsigned int branching, unsigned int bushiness)

virtual DtGdbNode *	parent (DtGdbNode *child)

virtual DtGdbNode *	removeChild (DtGdbNode *child)

virtual void	computeExtent ()

virtual int	sizeInBytes () const

Public Member Functions inherited from DtGdbNode
virtual	~DtGdbNode ()

DtGdbNode &	operator= (const DtGdbNode &orig)

virtual DtGdbNode *	persistentReduce ()

Public Member Functions inherited from DtMemoryManageable
	DtMemoryManageable ()

virtual	~DtMemoryManageable ()

	DtMemoryManageable (const DtMemoryManageable &orig)

DtMemoryManageable &	operator= (const DtMemoryManageable &orig)

virtual void	setIsRemoved (bool onOff)

virtual bool	isMemoryManaged () const

bool	isRemoved () const

Protected Member Functions
virtual void	purge (DtGdbNode *node)

virtual void	dumpComponents (int indentLevel) const

virtual void	reduceChildrenAux (DtGroupChildren &nodesToBeReduced, std::list< DtGdbNode * > &nodesAlreadyReduced, int &numReductions)

Protected Member Functions inherited from DtGdbNode
	DtGdbNode ()

	DtGdbNode (const DtGdbNode &orig)

Protected Member Functions inherited from DtMemoryManageable
virtual void	setIsMemoryManaged ()

Protected Attributes
DtExtent	myExtent

DtGroupChildren	myNodes

Protected Attributes inherited from DtGdbNode
DtGdbNode *	myOwner

Protected Attributes inherited from DtMemoryManageable
bool	myIsMemoryManaged

bool	myIsRemoved

Member Typedef Documentation

typedef std::vector<DtGdbNode*> DtGroup::DtGroupChildren

typedef const std::vector<DtGdbNode*> DtGroup::DtConstGroupChildren

typedef std::vector<DtGdbNode*>::iterator DtGroup::DtGroupChildrenIter

typedef std::vector<DtGdbNode*>::const_iterator DtGroup::DtGroupChildrenConstIter

Constructor & Destructor Documentation

DtGroup::DtGroup ( )

virtual DtGroup::~DtGroup ( )

virtual

DtGroup::DtGroup ( const DtGroup & orig )

Member Function Documentation

DtGroup& DtGroup::operator= ( const DtGroup & orig )

DtGdbNode::DtGdbNodeType DtGroup::type ( void ) const

inlinevirtual

Implements DtGdbNode.

Reimplemented in DtBuilding, DtGdbCulturalFeature, DtLevelOfDetail, DtRefGroup, and DtTerrainFeature.

References DtGdbNode::GROUP.

DtExtent DtGroup::extent ( ) const

inline

References myExtent.

DtGroup::DtGroupChildren & DtGroup::children ( )

inlinevirtual

References myNodes.

DtGroup::DtConstGroupChildren & DtGroup::children ( ) const

inlinevirtual

References myNodes.

virtual void DtGroup::countPolyColors	(	DtColorCountRecord &	cr,
		const DtExtent &	e
	)		const

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::expandExtent ( DtExtent & extent ) const

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtTree.

virtual void DtGroup::recomputeExtent ( )

virtual

Reimplemented from DtGdbNode.

virtual bool DtGroup::intersect	(	const DtChord &	chord,
		DtPoint &	intersectionPoint,
		double &	t
	)		const

virtual

Reimplemented from DtGdbNode.

virtual bool DtGroup::intersect	(	const DtChord &	chord,
		DtChordIntersectionRecord &	record,
		DtIntersectRecordType	irtFlag
	)		const

virtual

Reimplemented from DtGdbNode.

virtual bool DtGroup::intersect	(	const DtSphere &	sphere,
		DtSphereIntersectionRecord &	record,
		DtIntersectRecordType	irtFlag
	)		const

virtual

Reimplemented from DtGdbNode.

virtual bool DtGroup::allIntersectsAlongChord	(	const DtChord &	chord,
		DtChordIntersectRecordList &	intList,
		DtIntersectRecordType	irtFlag
	)		const

virtual

Reimplemented from DtGdbNode.

virtual int DtGroup::intersectBundle	(	const DtChordBundle &	chordBundle,
		DtList &	recordList,
		DtIntersectRecordType	irtFlag
	)		const

virtual

Reimplemented from DtGdbNode.

virtual int DtGroup::allIntersectsAlongChordBundle	(	const DtChordBundle &	chordBundle,
		DtList &	intListList,
		DtIntersectRecordType	irtFlag
	)		const

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::addChild ( DtGdbNode * newNode )

virtual

virtual void DtGroup::addChildIfNonNull ( DtGdbNode * newNode )

virtual

virtual void DtGroup::addChildToStart ( DtGdbNode * newNode )

virtual

virtual bool DtGroup::applyTransform	(	const DtHomogeneousTransformMatrix &	matrix,
		bool	createNewVertices
	)

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtTree.

virtual void DtGroup::reduceChildren ( int & numReductions )

virtual

Reimplemented in DtRefGroup.

virtual DtGdbNode* DtGroup::reduce ( int & numReductions )

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtRefGroup.

virtual bool DtGroup::sanityCheck ( ) const

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::dump ( int indentLevel ) const

virtual

Implements DtGdbNode.

Reimplemented in DtBuilding, DtTree, DtGdbCulturalFeature, DtLevelOfDetail, DtTerrainFeature, and DtFeature.

virtual DtTerrainFileVersionNumber DtGroup::minSaveVersion ( ) const

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtRefGroup.

virtual void DtGroup::allInstancesOf	(	const DtGdbNodeType	searchType,
		DtFoundInstancesContainer &	foundInstances,
		bool	recurseIntoCoordSysNodes = `false`
	)

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::allInstancesOf	(	const DtGdbNodeType	searchType,
		DtFoundInstancesConstContainer &	foundInstances,
		bool	recurseIntoCoordSysNodes = `false`
	)		const

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::allInstancesOf	(	const DtGdbNodeType	searchType,
		DtFoundInstancesContainer &	foundInstances,
		bool	recurseIntoCoordSysNodes,
		DtGdbNodeEvaluationFunctor &	functor
	)

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::allInstancesOf	(	const DtGdbNodeType	searchType,
		DtFoundInstancesConstContainer &	foundInstances,
		bool	recurseIntoCoordSysNodes,
		DtGdbNodeEvaluationFunctor &	functor
	)		const

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::purgeAllInstancesOf ( const DtGdbNodeType searchType )

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtRefGroup.

virtual DtGdbNode* DtGroup::purgeAll ( )

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtRefGroup.

virtual void DtGroup::polygonToTriangle	(	DtMemoryManager *	memMgr,
		unsigned int &	numIndConverted,
		unsigned int &	numIndTotal
	)

virtual

Reimplemented from DtGdbNode.

Reimplemented in DtRefGroup.

virtual unsigned int DtGroup::loadAllExternalFiles ( ) const

virtual

Reimplemented from DtGdbNode.

virtual unsigned int DtGroup::unloadAllExternalFiles ( ) const

virtual

Reimplemented from DtGdbNode.

virtual DtGroup* DtGroup::balanced	(	unsigned int	branching,
		unsigned int	bushiness
	)

virtual

Reimplemented in DtRefGroup.

virtual DtGroup* DtGroup::balancedAndPurged	(	unsigned int	branching,
		unsigned int	bushiness
	)

virtual

Reimplemented in DtRefGroup.

virtual DtGdbNode* DtGroup::parent ( DtGdbNode * child )

virtual

Reimplemented from DtGdbNode.

virtual DtGdbNode* DtGroup::removeChild ( DtGdbNode * child )

virtual

Reimplemented from DtGdbNode.

virtual void DtGroup::computeExtent ( )

virtual

virtual int DtGroup::sizeInBytes ( ) const

virtual

Implements DtGdbNode.

Reimplemented in DtRefGroup, DtLevelOfDetail, and DtFeature.

virtual void DtGroup::purge ( DtGdbNode * node )

protectedvirtual

virtual void DtGroup::dumpComponents ( int indentLevel ) const

protectedvirtual

virtual void DtGroup::reduceChildrenAux	(	DtGroupChildren &	nodesToBeReduced,
		std::list< DtGdbNode * > &	nodesAlreadyReduced,
		int &	numReductions
	)

protectedvirtual

Member Data Documentation

DtExtent DtGroup::myExtent

protected

Referenced by extent().

DtGroupChildren DtGroup::myNodes

protected

Referenced by children().

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/gdb/group.h
