DtScriptedTask Class Referenceabstract

The DtScriptedTaskTask will encapsulate the variables defined by a scripted task in the variable bindings object. The variable bindings will contain the variable name, the type of object and the variables value. This class will also contain the script id of the script that should be run with these values.

Related Examples

Minimal set of items a scripted task (or set) must implement to be considered a scripted task/set

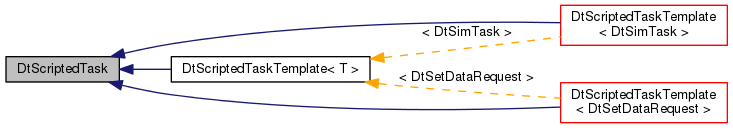

Inheritance diagram for DtScriptedTask:
Inheritance graph
[legend]

Classes

struct  identity

class  ScriptedTaskFormatter


Public Member Functions

 DtScriptedTask ()

virtual ~DtScriptedTask ()

virtual bool init ()=0

virtual const DtString & scriptId () const =0

virtual void setScriptId (const DtString &)=0

virtual DtRwVariableBindings & variables ()=0

virtual const
DtRwVariableBindings & 		variables () const =0

virtual DtRwVariableBindings & variableDataTypes ()=0

virtual const
DtRwVariableBindings & 		variableDataTypes () const =0

virtual DtString allVariablesStringRep (const DtString &scriptName="") const =0

virtual void setValue (const DtString &variableName, bool, const char *type=DtScriptedTaskCheckBoxVariable)

virtual void setValue (const DtString &variableName, int, const char *type=DtScriptedTaskIntegerVariable)

virtual void setValue (const DtString &variableName, double, const char *type=DtScriptedTaskDoubleVariable)

virtual void setValue (const DtString &variableName, const std::string &, const char *type=DtScriptedTaskStringVariable)

virtual void setValue (const DtString &variableName, const DtString &, const char *type=DtScriptedTaskStringVariable)

virtual void setValue (const DtString &variableName, const char *, const char *type=DtScriptedTaskStringVariable)

virtual void setValue (const DtString &variableName, const DtUUID &, const char *type=DtScriptedTaskSimulationObjectVariable)

virtual void setValue (const DtString &variableName, const DtVector &, const char *type=DtScriptedTaskLocationVariable)

virtual void setValue (const DtString &variableName, const DtEntityType &, const char *type=DtScriptedTaskEntityTypeVariable)

virtual void setValue (const DtString &variableName, const DtTaitBryan &, const char *type=DtScriptedTaskOrientationVariable)

virtual void setValue (const DtString &variableName, const DtRwOffsetVectorList &)

virtual void setValue (const DtString &variableName, const DtRwVectorList &)

virtual void setValue (const DtString &variableName, const std::vector< DtUUID > &)

virtual void setValue (const DtString &variableName, const std::vector< DtVector > &)

virtual void setValue (const DtString &variableName, const std::map< DtString, int > &)

virtual void setValue (const DtString &variableName, const std::map< DtString, double > &)

virtual void setValue (const DtString &variableName, const std::map< DtString, DtString > &)

virtual void setLocation (const DtString &variableName, const DtVector &)

virtual void setLocationWithoutAltitude (const DtString &variableName, const DtVector &)

virtual void setOffset (const DtString &variableName, const DtRwOffsetVector &)

virtual void setTime (const DtString &variableName, double)

virtual void setDateTime (const DtString &variableName, double)

virtual void setRange (const DtString &variableName, double)

virtual void setAltitude (const DtString &variableName, double)

virtual void setHeading (const DtString &variableName, double)

virtual void setPitch (const DtString &variableName, double)

virtual void setValue (const DtString &variableName, const DtReaderWriter &, const char *scriptedTaskType)

template<typename RWValue , typename AssignType >
void setValue (const DtString &variableName, AssignType value, const char *type)

template<typename T >
boost::optional< T > getValue (const DtString &variableName) const

virtual const DtReaderWriter * getValueRW (const DtString &name) const

virtual DtReaderWriter * getValueRW (const DtString &name)

virtual int netRepSize () const =0

virtual bool setFromNet (const char *contentBuffer, unsigned contentSize)=0

virtual char * setToNet (char *)=0


Static Public Member Functions

static void setScriptedTaskFormatter (ScriptedTaskFormatter *)

static ScriptedTaskFormatter * scriptedTaskFormatter ()


Static Protected Attributes

static ScriptedTaskFormatter * theScriptedTaskFormatter


Private Member Functions

template<typename RWValue , typename AssignType >
void setValue (const DtString &variableName, AssignType value, const char *type, identity< RWValue >, identity< AssignType >)

void setValue (const DtString &variableName, std::map< DtString, DtString > value, const char *type, identity< DtRwStringAttributeList >, identity< std::map< DtString, DtString > >)


Constructor & Destructor Documentation

DtScriptedTask::DtScriptedTask ( )
inline
virtual DtScriptedTask::~DtScriptedTask ( )
inlinevirtual

Member Function Documentation

virtual bool DtScriptedTask::init ( )
pure virtual

Initializer.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual const DtString& DtScriptedTask::scriptId ( ) const
pure virtual

Script id.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual void DtScriptedTask::setScriptId ( const DtString &  )
pure virtual

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual DtRwVariableBindings& DtScriptedTask::variables ( )
pure virtual

Access to variables.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual const DtRwVariableBindings& DtScriptedTask::variables ( ) const
pure virtual

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual DtRwVariableBindings& DtScriptedTask::variableDataTypes ( )
pure virtual

Access to the data types that represent the variables. This is the internal scripted task data type separate from the rw type.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual const DtRwVariableBindings& DtScriptedTask::variableDataTypes ( ) const
pure virtual

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual int DtScriptedTask::netRepSize ( ) const
pure virtual

Network transfer.

Returns the size of the full network representation (control object name included) padded to an 8-byte boundary.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual bool DtScriptedTask::setFromNet ( const char *  contentBuffer,
unsigned  contentSize
)
pure virtual

Fills in the task from the network buffer.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual char* DtScriptedTask::setToNet ( char *  )
pure virtual

Network transfer.

Returns the size of the full network representation (control object name included) padded to an 8-byte boundary.

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

static void DtScriptedTask::setScriptedTaskFormatter ( ScriptedTaskFormatter *  )
static
static ScriptedTaskFormatter* DtScriptedTask::scriptedTaskFormatter ( )
static
virtual DtString DtScriptedTask::allVariablesStringRep ( const DtString &  scriptName = "") const
pure virtual

Implemented in DtScriptedTaskTemplate< T >, DtScriptedTaskTemplate< DtSimTask >, and DtScriptedTaskTemplate< DtSetDataRequest >.

virtual void DtScriptedTask::setValue ( const DtString &  variableName,
bool  ,
const char *  type = DtScriptedTaskCheckBoxVariable
)
virtual

{@ Convenience methods that will allow for the adding and retrieving values that are valid for this scripted task

virtual void DtScriptedTask::setValue ( const DtString &  variableName,
int  ,
const char *  type = DtScriptedTaskIntegerVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
double  ,
const char *  type = DtScriptedTaskDoubleVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const std::string &  ,
const char *  type = DtScriptedTaskStringVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtString &  ,
const char *  type = DtScriptedTaskStringVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const char *  ,
const char *  type = DtScriptedTaskStringVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtUUID &  ,
const char *  type = DtScriptedTaskSimulationObjectVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtVector &  ,
const char *  type = DtScriptedTaskLocationVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtEntityType &  ,
const char *  type = DtScriptedTaskEntityTypeVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtTaitBryan &  ,
const char *  type = DtScriptedTaskOrientationVariable
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtRwOffsetVectorList &
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtRwVectorList &
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const std::vector< DtUUID > &
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const std::vector< DtVector > &
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const std::map< DtString, int > &
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const std::map< DtString, double > &
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const std::map< DtString, DtString > &
)
virtual
virtual void DtScriptedTask::setLocation ( const DtString &  variableName,
const DtVector &
)
virtual

Since there are multiple types that take a vector, overload with different types that will be set.

virtual void DtScriptedTask::setLocationWithoutAltitude ( const DtString &  variableName,
const DtVector &
)
virtual
virtual void DtScriptedTask::setOffset ( const DtString &  variableName,
const DtRwOffsetVector &
)
virtual
virtual void DtScriptedTask::setTime ( const DtString &  variableName,
double
)
virtual
virtual void DtScriptedTask::setDateTime ( const DtString &  variableName,
double
)
virtual
virtual void DtScriptedTask::setRange ( const DtString &  variableName,
double
)
virtual
virtual void DtScriptedTask::setAltitude ( const DtString &  variableName,
double
)
virtual
virtual void DtScriptedTask::setHeading ( const DtString &  variableName,
double
)
virtual
virtual void DtScriptedTask::setPitch ( const DtString &  variableName,
double
)
virtual
virtual void DtScriptedTask::setValue ( const DtString &  variableName,
const DtReaderWriter &  ,
const char *  scriptedTaskType
)
virtual

The reader/writer value will be cloned and added to the variables with the given variable name and the scripted task variable type (see vrfScriptedTaskConstants.h)

template<typename RWValue , typename AssignType >
void DtScriptedTask::setValue ( const DtString &  variableName,
AssignType  value,
const char *  type
)
inline

General template assignment that will create a new instance of a reader/writer and assign a value to it.

template<typename RWValue , typename AssignType >
void DtScriptedTask::setValue ( const DtString &  variableName,
AssignType  value,
const char *  type,
identity< RWValue >  ,
identity< AssignType >
)
inlineprivate

Linux does not allow specialization of member functions within the same class, so to overcome this setValue calls a private version of the function with arguments set to the template types in order to specialize the function. See: https://stackoverflow.com/questions/3052579/explicit-specialization-in-non-namespace-scope.

void DtScriptedTask::setValue ( const DtString &  variableName,
std::map< DtString, DtString >  value,
const char *  type,
identity< DtRwStringAttributeList >  ,
identity< std::map< DtString, DtString > >
)
inlineprivate

References DtRwStringAttributeList::setFromMap().

template<typename T >
boost::optional<T> DtScriptedTask::getValue ( const DtString &  variableName) const
inline
virtual const DtReaderWriter* DtScriptedTask::getValueRW ( const DtString &  name) const
virtual

Returns the base reader/writer value.

virtual DtReaderWriter* DtScriptedTask::getValueRW ( const DtString &  name)
virtual

Member Data Documentation

ScriptedTaskFormatter* DtScriptedTask::theScriptedTaskFormatter
staticprotected
The documentation for this class was generated from the following file:
