DtSimMessage Class Reference

File: simMsg.h.

Class: DtSimMessage class DtSimMessage:

DtSimMessage is used to send a message to an entity or to the front-end back-end for control (pause, etc.). Most will derive off this base class to provide additional information.

Examples

• addSetSim
• interfaceContentGui
• interfaceContentSim
• remoteControl
• subtask

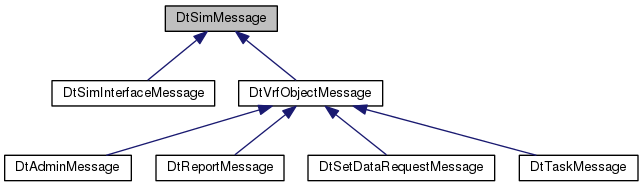

Inheritance diagram for DtSimMessage:

Public Member Functions
	DtSimMessage ()
	DtSimMessage (const DtSimMessage &orig)
const DtSimMessage &	operator= (const DtSimMessage &orig)
virtual	~DtSimMessage ()
virtual int	messageType () const =0
virtual DtSimMessage *	clone () const =0
virtual void	printDataToString (DtString &str)
virtual std::string	debugText () const

Constructor & Destructor Documentation

DtSimMessage::DtSimMessage

(

)

default constructor

DtSimMessage::DtSimMessage

(

const DtSimMessage &

orig

)

copy constructor

virtual DtSimMessage::~DtSimMessage ( )

virtual

destructor

Member Function Documentation

const DtSimMessage& DtSimMessage::operator=

(

const DtSimMessage &

orig

)

assignment operator

virtual int DtSimMessage::messageType ( ) const

pure virtual

A pure virtual function that derived classes define to return the appropriate message type category (DtInterfaceMessageType or DtRadioMessageType).

Implemented in DtVrfObjectMessage, and DtSimInterfaceMessage.

virtual DtSimMessage* DtSimMessage::clone ( ) const

pure virtual

Implemented in DtTaskMessage, DtSetDataRequestMessage, DtReportMessage, DtSimInterfaceMessage, and DtAdminMessage.

virtual void DtSimMessage::printDataToString ( DtString &  str )

virtual

print the message

Reimplemented in DtTaskMessage, DtVrfObjectMessage, DtSetDataRequestMessage, DtReportMessage, DtSimInterfaceMessage, and DtAdminMessage.

virtual std::string DtSimMessage::debugText ( ) const

virtual

Leak detector output.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfmsgs/simMessage.h
