A widget class for encapsulating radio commands for tasks or sets.

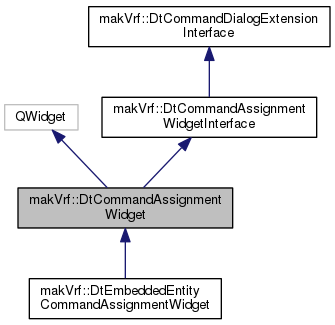

Inheritance diagram for makVrf::DtCommandAssignmentWidget:

Public Slots
virtual void	onCancel ()

virtual void	onPickOK ()

Signals
void	unlockPlan ()

Public Member Functions
	DtCommandAssignmentWidget (makVrv::DtDe &de, DtCommandDialogExtensionInterface , QWidget parent=0, Qt::WindowFlags flags=Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint, int partOfPlan=false)

virtual	~DtCommandAssignmentWidget ()

virtual void	run (const std::vector< makVrv::DtSimEntry * > &)

virtual void	setupUi (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *stmt=NULL)

virtual void	connectSignals (const std::vector< makVrv::DtSimEntry * > &)

virtual void	selectionChanged (const DtUUID &selection)

virtual bool	insertMapFocusHandler (DtMapFocusHandlerInterface *, int index=-1)

void	setPartOfPlan (int b)

virtual void	setBroadcastTitle (const QString &)

virtual DtCommandDialogExtensionInterface *	extension ()

virtual QWidget *	takeOKCancelButtonCanvas (QWidget *newParent) override

virtual void	giveOKCancelButtonCanvas (QWidget *) override

virtual bool	alwaysPopOut () const

virtual bool	okEnabled () const

virtual void	setReadOnlyMode (bool b) override

Public Member Functions inherited from makVrf::DtCommandAssignmentWidgetInterface
	DtCommandAssignmentWidgetInterface ()

virtual	~DtCommandAssignmentWidgetInterface ()

void	setParentMenu (DtVrfTaskSetMenu *p)

void	setParentContainer (DtCommandAssignmentWidgetInterface *p)

DtCommandAssignmentWidgetInterface *	parentContainer ()

void	setAllowExtensionChange (bool b)

bool	allowExtensionChange () const

virtual const std::vector < makVrv::DtSimEntry * > &	connectedTo () const =0

Public Member Functions inherited from makVrf::DtCommandDialogExtensionInterface
virtual	~DtCommandDialogExtensionInterface ()

virtual bool	initiallyBroadcast () const

virtual bool	allowBroadcasting () const

virtual bool	hasUserEntry () const

virtual QString	entitySelectionGroupBoxTitle () const

virtual void	filterAboutToBeAdded (DtVrfSelectionFilter *)

virtual void	parentShown (QWidget *)

virtual void	onCancel ()=0

virtual makVrv::DtUnicode	broadcastTitle () const

Public Attributes
DtCommandDialogExtensionInterface *	myExtension

QSplitter *	mySplitter

QWidget *	myOriginalExtensionParent

QCheckBox *	myBroadcast

QWidget *	myEntitySelectionGroupBox

QLabel *	myEntitySelectionGroupBoxLabel

QFrame *	myEntitySelectionGroupBoxLine

DtVrfFilteredListView *	myEntitySelectionWidget

QVBoxLayout *	myMasterLayout

QVBoxLayout *	myWidgetLayout

QFrame *	mySeparator

QWidget *	myOKCancelButtonCanvas

QHBoxLayout *	myButtonLayout

QSpacerItem *	myButtonSpacer

QPushButton *	myOKButton

QToolButton *	myLockButton

QPushButton *	myCancelButton

Public Attributes inherited from makVrf::DtCommandAssignmentWidgetInterface
boost::signals2::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching

boost::signals2::signal< void(DtCommandAssignmentWidgetInterface *)>	signal_dialogDestroyed

Public Attributes inherited from makVrf::DtCommandDialogExtensionInterface
boost::signals2::signal< void()>	signal_cancelled

boost::signals2::signal< void(bool)>	signal_enableCommandModeSelection

boost::signals2::signal< void(bool)>	signal_validStateChanged

boost::signals2::signal< void(bool)>	signal_disableCancel

boost::signals2::signal< void(std::vector < DtUUID > names, const DtSetDataRequest &)>	signal_sendSetRequest

boost::signals2::signal< void(std::vector < DtUUID > names, const DtSimTask &)>	signal_sendTaskRequest

boost::signals2::signal< void(const DtSimCommandObjectWrapper &)>	signal_sendCommandRequest

boost::signals2::signal< void(const std::vector< DtUUID > &, const DtSimTask &, DtVrfTaskSetMenu *)>	signal_commandActivated

boost::signals2::signal< void(const DtSimCommandObjectWrapper &)>	signal_simCommandActivated

boost::signals2::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching

Protected Slots
virtual void	onBroadcastChanged ()

const std::vector < makVrv::DtSimEntry * > &	connectedTo () const

Protected Member Functions
QWidget *	widget ()

virtual void	setAllowBroadcast (bool)

virtual bool	broadcasting () const

virtual void	setBroadcasting (bool)

virtual void	enableEntitySelectionWidget (bool)

virtual std::vector< std::string >	commandDialogFiltersFor (const std::vector< makVrv::DtSimEntry * > &data, const DtSimStatement *stmt, int &initialSelection) const

virtual void	addFilter (const DtVrfSelectionFilter *filter)

virtual void	setSelectedName (const DtUUID &)

virtual DtUUID	selectedName () const

virtual void	selectFilter (int)

virtual void	selectFirstNonEmptyFilter ()

virtual void	setApplyVisible (bool)

virtual void	setOKEnabled (bool)

virtual void	setCancelEnabled (bool)

virtual void	setCancelButtonText (const QString &) override

virtual bool	extensionValid () const

virtual void	initializeFromAction (DtVrfTaskSetAction *)

virtual void	commandActivated (const DtSimTask &, const std::vector< DtUUID > &, bool immediate)

virtual void	commandActivated (const DtSimCommandObjectWrapper &, bool immediate)

virtual QWidget *	sizeToParent () const

virtual void	closeEvent (QCloseEvent *)

virtual void	changeEvent (QEvent *event)

virtual void	slot_objectAboutToBeRemoved (makVrv::DtSimObjectEntry &)

virtual void	attachExtension (const std::vector< makVrv::DtSimEntry * > &data, DtCommandDialogExtensionInterface , const DtSimStatement stmt=NULL)

virtual void	detachExtension ()

virtual void	setPickMode (bool)

virtual bool	editStatement (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *)

virtual std::vector < DtObjectListViewItem::DtVrfObjectState >	selectedObjects () const

virtual void	setAllowObjectSelection (bool b)

virtual bool	canSelectObjects () const

virtual bool	wantsSelectionOfObjectInCommandMode (const std::vector< makVrv::DtSimEntry * > &) const

virtual bool	valid () const

virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &)

virtual void	unknownObjectSelected (const DtUUID &)

virtual void	noObjectsSelected ()

virtual void	onOK ()

virtual void	hideButtons (bool)

virtual void	showEvent (QShowEvent *)

Protected Attributes
makVrv::DtDe &	myDe

DtCommandAssignmentWidgetLogic *	myLogic

int	myPartOfPlan

std::vector< makVrv::DtSimEntry * >	myConnectedTo

DtSimTask *	myImmediateTask

std::vector< DtUUID >	myImmediateNames

DtSimCommandObjectWrapper *	myCommandObjectWrapper

DtCommandDialogExtensionInterface *	myInitialExtension

QString	myBroadcastTitle

makVrv::DtSignalConnectionManager	myConnections

DtMapFocusHandler	myFilteredListViewManager

bool	myReadOnlyMode = false

bool	myOKEnabled = false

Protected Attributes inherited from makVrf::DtCommandAssignmentWidgetInterface
DtVrfTaskSetMenu *	myTaskSetMenu

DtCommandAssignmentWidgetInterface *	myParentContainer

bool	myAllowExtensionChange

Constructor & Destructor Documentation

makVrf::DtCommandAssignmentWidget::DtCommandAssignmentWidget	(	makVrv::DtDe &	de,
		DtCommandDialogExtensionInterface *	,
		QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint`,
		int	partOfPlan = `false`
	)

CTOR.

virtual makVrf::DtCommandAssignmentWidget::~DtCommandAssignmentWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrf::DtCommandAssignmentWidget::run ( const std::vector< makVrv::DtSimEntry * > & )

virtual

Override to run the dialog. Supplies data of entities that are selected for this dialog.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setupUi	(	const std::vector< makVrv::DtSimEntry * > &	,
		const DtSimStatement *	stmt = `NULL`
	)

virtual

Sets up the UI.

Implements makVrf::DtCommandAssignmentWidgetInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::connectSignals ( const std::vector< makVrv::DtSimEntry * > & )

virtual

Call to remove dialog if an entity is destroyed that is part of the supplied list.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::selectionChanged ( const DtUUID & selection )

virtual

Called when myEntitySelectionWidget selection has changed. Checks if there is an extension dialog associated with this widget and if so calls down to it's selectionChanged. This allows the command widget to share selection changes with its extension when needed.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::insertMapFocusHandler	(	DtMapFocusHandlerInterface *	,
		int	index = `-1`
	)

virtual

If a dialog has manages map focus handlers, inserts this map focus handler into the chain. Will call the initial extension to do the work. Will return true if inserted into focus chain.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

void makVrf::DtCommandAssignmentWidget::setPartOfPlan ( int b )

inlinevirtual

0 - Not part of plan dialog 1 - Part of plan dialog 2 - Part of command widget

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setBroadcastTitle ( const QString & )

virtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidget::extension ( )

virtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual QWidget* makVrf::DtCommandAssignmentWidget::takeOKCancelButtonCanvas ( QWidget * newParent )

overridevirtual

This will return the OK/Cancel cavas that the current OK/Cancel buttons are on. You can use this to reparent to another widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::giveOKCancelButtonCanvas ( QWidget * )

overridevirtual

Gives the canvas back to this widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::alwaysPopOut ( ) const

virtual

Check extension, if it exists, to see if it wants to pop out.

Reimplemented from makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::okEnabled ( ) const

virtual

Whether or not the OK button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setReadOnlyMode ( bool b )

overridevirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

void makVrf::DtCommandAssignmentWidget::unlockPlan ( )

signal

QWidget* makVrf::DtCommandAssignmentWidget::widget ( )

inlineprotectedvirtual

Returns the widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setAllowBroadcast ( bool )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual bool makVrf::DtCommandAssignmentWidget::broadcasting ( ) const

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setBroadcasting ( bool )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::enableEntitySelectionWidget ( bool )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual std::vector<std::string> makVrf::DtCommandAssignmentWidget::commandDialogFiltersFor	(	const std::vector< makVrv::DtSimEntry * > &	data,
		const DtSimStatement *	stmt,
		int &	initialSelection
	)		const

protectedvirtual

If part of a command dialog the filters to use for the command dialog selection.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::addFilter ( const DtVrfSelectionFilter * filter )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setSelectedName ( const DtUUID & )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual DtUUID makVrf::DtCommandAssignmentWidget::selectedName ( ) const

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::selectFilter ( int )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::selectFirstNonEmptyFilter ( )

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setApplyVisible ( bool )

protectedvirtual

No-op. No apply button for this widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setOKEnabled ( bool )

protectedvirtual

Sets whether or not the OK button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setCancelEnabled ( bool )

protectedvirtual

Sets whether or not the Cancel button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setCancelButtonText ( const QString & )

overrideprotectedvirtual

Sets the Cancel button text.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::extensionValid ( ) const

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::initializeFromAction ( DtVrfTaskSetAction * )

protectedvirtual

Called to initialize from the given action.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::commandActivated	(	const DtSimTask &	,
		const std::vector< DtUUID > &	,
		bool	immediate
	)

protectedvirtual

If immediate is true, puts command assignment widget into pick mode before finishing command activated code. Pick mode will create ok and cancel buttons. The ok and cancel buttons of this class will be NULL unless in pick mode.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::commandActivated	(	const DtSimCommandObjectWrapper &	,
		bool	immediate
	)

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual QWidget* makVrf::DtCommandAssignmentWidget::sizeToParent ( ) const

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::closeEvent ( QCloseEvent * )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::changeEvent ( QEvent * event )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::slot_objectAboutToBeRemoved ( makVrv::DtSimObjectEntry & )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::attachExtension	(	const std::vector< makVrv::DtSimEntry * > &	data,
		DtCommandDialogExtensionInterface *	,
		const DtSimStatement *	stmt = `NULL`
	)

protectedvirtual

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::detachExtension ( )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::setPickMode ( bool )

protectedvirtual

virtual bool makVrf::DtCommandAssignmentWidget::editStatement	(	const std::vector< makVrv::DtSimEntry * > &	,
		const DtSimStatement *
	)

protectedvirtual

Edits the current statement. Return true if the statement can be edited.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual std::vector<DtObjectListViewItem::DtVrfObjectState> makVrf::DtCommandAssignmentWidget::selectedObjects ( ) const

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setAllowObjectSelection ( bool b )

protectedvirtual

If false will hide broadcast and object selection.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual bool makVrf::DtCommandAssignmentWidget::canSelectObjects ( ) const

protectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual bool makVrf::DtCommandAssignmentWidget::wantsSelectionOfObjectInCommandMode ( const std::vector< makVrv::DtSimEntry * > & ) const

protectedvirtual

Override to return false if, when this task is used as part of a simulation command, it does not want to allow to choose an object to apply the command to. Calls down to logic with method of same name.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::valid ( ) const

protectedvirtual

Override to return whether or not extension is valid.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > & )

protectedvirtual

Sets up the extension for the given entries.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::unknownObjectSelected ( const DtUUID & )

protectedvirtual

Sets up from an empty set.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::noObjectsSelected ( )

protectedvirtual

Called when no objects are selected.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::onOK ( )

protectedvirtual

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::hideButtons ( bool )

inlineprotectedvirtual

If OK and Cancel buttons are present, hide them (or not)

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::showEvent ( QShowEvent * )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::onCancel ( )

virtualslot

Emits cancel signal and closes dialog.

virtual void makVrf::DtCommandAssignmentWidget::onPickOK ( )

virtualslot

Only used in pick mode.

virtual void makVrf::DtCommandAssignmentWidget::onBroadcastChanged ( )

protectedvirtualslot

Calls down to logic to let it know the broadcast value has changed.

const std::vector<makVrv::DtSimEntry*>& makVrf::DtCommandAssignmentWidget::connectedTo ( ) const

inlineprotectedslot

Member Data Documentation

makVrv::DtDe& makVrf::DtCommandAssignmentWidget::myDe

protected

DtCommandAssignmentWidgetLogic* makVrf::DtCommandAssignmentWidget::myLogic

protected

int makVrf::DtCommandAssignmentWidget::myPartOfPlan

protected

std::vector<makVrv::DtSimEntry*> makVrf::DtCommandAssignmentWidget::myConnectedTo

protected

DtSimTask* makVrf::DtCommandAssignmentWidget::myImmediateTask

protected

std::vector<DtUUID> makVrf::DtCommandAssignmentWidget::myImmediateNames

protected

DtSimCommandObjectWrapper* makVrf::DtCommandAssignmentWidget::myCommandObjectWrapper

protected

DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidget::myInitialExtension

protected

QString makVrf::DtCommandAssignmentWidget::myBroadcastTitle

protected

makVrv::DtSignalConnectionManager makVrf::DtCommandAssignmentWidget::myConnections

protected

DtMapFocusHandler makVrf::DtCommandAssignmentWidget::myFilteredListViewManager

protected

bool makVrf::DtCommandAssignmentWidget::myReadOnlyMode = false

protected

bool makVrf::DtCommandAssignmentWidget::myOKEnabled = false

protected

DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidget::myExtension

QSplitter* makVrf::DtCommandAssignmentWidget::mySplitter

QWidget* makVrf::DtCommandAssignmentWidget::myOriginalExtensionParent

QCheckBox* makVrf::DtCommandAssignmentWidget::myBroadcast

QWidget* makVrf::DtCommandAssignmentWidget::myEntitySelectionGroupBox

QLabel* makVrf::DtCommandAssignmentWidget::myEntitySelectionGroupBoxLabel

QFrame* makVrf::DtCommandAssignmentWidget::myEntitySelectionGroupBoxLine

DtVrfFilteredListView* makVrf::DtCommandAssignmentWidget::myEntitySelectionWidget

QVBoxLayout* makVrf::DtCommandAssignmentWidget::myMasterLayout

QVBoxLayout* makVrf::DtCommandAssignmentWidget::myWidgetLayout

QFrame* makVrf::DtCommandAssignmentWidget::mySeparator

QWidget* makVrf::DtCommandAssignmentWidget::myOKCancelButtonCanvas

QHBoxLayout* makVrf::DtCommandAssignmentWidget::myButtonLayout

QSpacerItem* makVrf::DtCommandAssignmentWidget::myButtonSpacer

QPushButton* makVrf::DtCommandAssignmentWidget::myOKButton

QToolButton* makVrf::DtCommandAssignmentWidget::myLockButton

QPushButton* makVrf::DtCommandAssignmentWidget::myCancelButton

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfGuiTaskSetQt/commandAssignmentWidget.h

Public Slots

Signals

Public Member Functions

Public Attributes

Protected Slots

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
