makVrf::DtSimLocalEntityNetInterface Class Reference

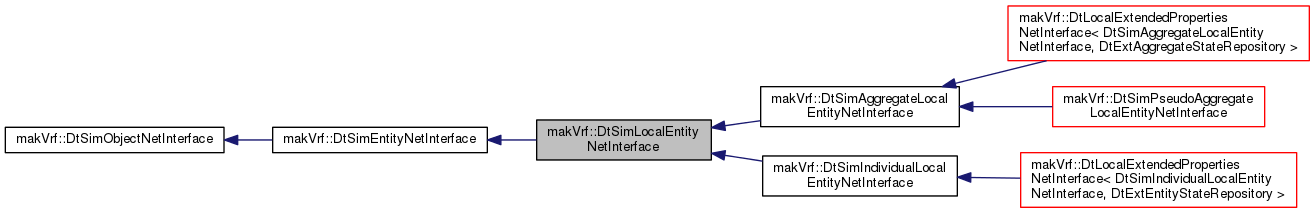

Inheritance diagram for makVrf::DtSimLocalEntityNetInterface:

Public Member Functions
	DtSimLocalEntityNetInterface (DtStateData *vrfObject, DtVrlinkNetworkInterface *objMgr, bool publishObject=true)
virtual	~DtSimLocalEntityNetInterface ()
virtual void	onTick ()
virtual bool	publishObject () const
virtual bool	init (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
virtual bool	publisherUserSupplied () const
virtual void	updatePublisher ()=0
virtual bool	createPublisher (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())=0
virtual void	destroyPublisher ()=0
virtual DtObjectPublisher *	publisher ()=0
virtual void	updateNet ()
virtual void	setupNetworkRepository ()=0
virtual void	updateUuid ()=0
virtual bool	isLocal () const
virtual bool	isAggregate () const =0
Public Member Functions inherited from makVrf::DtSimEntityNetInterface
	DtSimEntityNetInterface (DtStateData *simObject, DtVrlinkNetworkInterface *objMgr, bool publishObject=true)
virtual	~DtSimEntityNetInterface ()
virtual DtBaseEntityStateRepository *	baseEntityNetworkState () const
virtual bool	isEnvironmental () const
Public Member Functions inherited from makVrf::DtSimObjectNetInterface
DtVrfCallbackQueue::CallbackInterface::Ptr	parallelContainer ()
	DtSimObjectNetInterface (DtStateData *simObject, DtVrlinkNetworkInterface *, bool publishObject=true)
virtual	~DtSimObjectNetInterface ()
virtual void	tick ()
virtual bool	isUnit () const =0
virtual bool	isEntity () const =0
virtual bool	wantsToCreatePublisher () const =0
virtual DtString	type () const =0
virtual int	maxNameLength () const
virtual void	toBeRemoved ()
virtual RTI::ObjectClassHandle	objectClassHandle () const =0
virtual void	sendFinalPduOnDestruction (bool)
bool	isValid () const
virtual void	parallelTick ()
virtual void	forceUpdate ()

Static Public Member Functions
static bool	isVrfGlobalId (const DtGlobalObjectDesignator &identifier)
static DtSimLocalEntityNetInterface *	isLocalEntityNetInterface (const DtSimObjectNetInterface *objNetInterface)
static void	setVrfDataTimeThreshold (DtTime time)
static void	setHeartbeatVariance (double variance)
static double	heartbeatVariance ()
Static Public Member Functions inherited from makVrf::DtSimEntityNetInterface
static DtSimEntityNetInterface *	isEntityNetInterface (const DtSimObjectNetInterface *objNetInterface)
Static Public Member Functions inherited from makVrf::DtSimObjectNetInterface
static void	setNonVrfUUIDResolver (DtNonVrfUUIDResolver *)
static DtNonVrfUUIDResolver *	nonVrfUUIDResolver ()
static void	addSimObjectNetInterfaceCreatorFcn (const DtString &type, DtSimObjectNetIfaceCreatorFcn fcn)
static void	setFactory (DtSimObjectNetInterfaceFactory *factory)
static DtSimObjectNetInterfaceFactory *	factory ()
static DtSimObjectNetInterface *	createNetInterface (const DtString &type, DtStateData *simObject, DtVrlinkNetworkInterface *, bool publishObject=true)
static int	maxNameLengthForInterfaceType (const DtString &interfaceTypeString)
static void	setNonVrfObjectsUUIDScheme (const DtString &)
static DtString	nonVrfObjectsUUIDScheme ()

Protected Member Functions
virtual const makVrf::DtEntityStateComponent *	entityStateComponent ()
virtual const makVrf::DtEntityLocationStateComponent *	entityLocationStateComponent ()
virtual const makVrf::DtVrfStateComponent *	vrfStateComponent ()
virtual const makVrf::DtVrfGeometryStateComponent *	vrfGeometryStateComponent ()
virtual const makVrf::DtArticulatedPartStateComponent *	articulatedPartStateComponent ()
virtual const makVrf::DtStatePropertiesStateComponent *	statePropertiesStateComponent ()
virtual const makVrf::DtHumanStateComponent *	humanStateComponent ()
virtual const makVrf::DtRangeItemsStateComponent *	rangeItemsStateComponent ()
virtual const makVrf::DtAisDataStateComponent *	aisDataStateComponent ()
virtual const makVrf::DtAircraftLightingStateComponent *	aircraftLightingStateComponent ()
virtual const makVrf::DtGroundVehicleLightingStateComponent *	groundVehicleLightingStateComponent ()
Protected Member Functions inherited from makVrf::DtSimObjectNetInterface
virtual void	stateDataDestroyed ()
bool	runFullyThreaded () const
const DtStateData *	vrfObject () const
DtStateData *	nextFrameVrfObject ()
virtual const DtStateRepository *	networkState () const

Protected Attributes
bool	myPublisherUserSupplied
bool	myPublishObject
const makVrf::DtArticulatedPartStateComponent *	myArticulatedPartStateComponent
const makVrf::DtStatePropertiesStateComponent *	myStatePropertiesStateComponent
const makVrf::DtEntityStateComponent *	myEntityStateComponent
const makVrf::DtEntityLocationStateComponent *	myEntityLocationStateComponent
const makVrf::DtVrfGeometryStateComponent *	myVrfGeometryStateComponent
const makVrf::DtVrfStateComponent *	myVrfStateComponent
const makVrf::DtHumanStateComponent *	myHumanStateComponent
const makVrf::DtRangeItemsStateComponent *	myRangeItemsStateComponent
const makVrf::DtAisDataStateComponent *	myAisDataStateComponent
const makVrf::DtAircraftLightingStateComponent *	myAircraftLightingStateComponent
const makVrf::DtGroundVehicleLightingStateComponent *	myGroundVehicleLightingStateComponent
Protected Attributes inherited from makVrf::DtSimEntityNetInterface
DtDeadReckonTypes	myDeadReckoningAlgorithm
Protected Attributes inherited from makVrf::DtSimObjectNetInterface
DtStateData *	mySimObject
DtVrlinkNetworkInterface *	myObjectManager
DtStateRepository *	myNetworkState
bool	myNeedsNetworkSetup
DtNetInterfaceParallelLock	myLock
boost::signals2::connection	mySimObjectRemovalConnection
tbb::mutex	myDeleteGuardMutex
DtVrfCallbackQueue::CallbackInterface::Ptr	myParallelContainer

Static Protected Attributes
static double	theHeartbeatVariance
Static Protected Attributes inherited from makVrf::DtSimObjectNetInterface
static DtSimObjectNetInterfaceFactory *	theFactory
static DtNonVrfUUIDResolver *	theNonVrfUUIDResolver

Private Member Functions
	DtSimLocalEntityNetInterface ()
	DtSimLocalEntityNetInterface (const DtSimLocalEntityNetInterface &orig)
const DtSimLocalEntityNetInterface &	operator= (const DtSimLocalEntityNetInterface &orig)

Additional Inherited Members
Public Attributes inherited from makVrf::DtSimObjectNetInterface
boost::signals2::signal< void()>	signal_networkInterfaceDeleted
Static Public Attributes inherited from makVrf::DtSimObjectNetInterface
static tbb::spin_rw_mutex	thePublisherCreationMutex
static tbb::spin_rw_mutex	thePublisherTickMutex

Constructor & Destructor Documentation

makVrf::DtSimLocalEntityNetInterface::DtSimLocalEntityNetInterface ( )

private

default constructor

makVrf::DtSimLocalEntityNetInterface::DtSimLocalEntityNetInterface ( const DtSimLocalEntityNetInterface &  orig )

private

makVrf::DtSimLocalEntityNetInterface::DtSimLocalEntityNetInterface	(	DtStateData *	vrfObject,
		DtVrlinkNetworkInterface *	objMgr,
		bool	publishObject = true
	)

read/writable constructor

virtual makVrf::DtSimLocalEntityNetInterface::~DtSimLocalEntityNetInterface ( )

virtual

destructor; calls destroyPublisher().

Member Function Documentation

const DtSimLocalEntityNetInterface& makVrf::DtSimLocalEntityNetInterface::operator= ( const DtSimLocalEntityNetInterface &  orig )

private

assignment operator; see note on copy constructor above.

virtual void makVrf::DtSimLocalEntityNetInterface::onTick ( )

virtual

Checks if VR-Forces-specific data has changed. If it has, sets the object changed flag.

Implements makVrf::DtSimObjectNetInterface.

Reimplemented in makVrf::DtLocalExtendedPropertiesNetInterface< DtSimIndividualLocalEntityNetInterface, DtExtEntityStateRepository >, makVrf::DtLocalExtendedPropertiesNetInterface< DtSimPseudoAggregateLocalEntityNetInterface, DtExtAggregateStateRepository >, and makVrf::DtLocalExtendedPropertiesNetInterface< DtSimAggregateLocalEntityNetInterface, DtExtAggregateStateRepository >.

virtual bool makVrf::DtSimLocalEntityNetInterface::publishObject ( ) const

inlinevirtual

Reimplemented from makVrf::DtSimObjectNetInterface.

virtual bool makVrf::DtSimLocalEntityNetInterface::init ( const DtEntityIdentifier &  id = DtEntityIdentifier::nullId() )

virtual

Derived classes that need to perform virtual construction my override this function as desired.

Reimplemented from makVrf::DtSimObjectNetInterface.

virtual bool makVrf::DtSimLocalEntityNetInterface::publisherUserSupplied ( ) const

virtual

A true return indicates that the publisher currently used by the interface was supplied by the user rather than created by init().

virtual void makVrf::DtSimLocalEntityNetInterface::updatePublisher ( )

pure virtual

This will copy from the local state repository to the specific type of publisher created in deriving classes.

Implemented in makVrf::DtLocalExtendedPropertiesNetInterface< DtSimIndividualLocalEntityNetInterface, DtExtEntityStateRepository >, makVrf::DtLocalExtendedPropertiesNetInterface< DtSimPseudoAggregateLocalEntityNetInterface, DtExtAggregateStateRepository >, makVrf::DtLocalExtendedPropertiesNetInterface< DtSimAggregateLocalEntityNetInterface, DtExtAggregateStateRepository >, makVrf::DtSimAggregateLocalEntityNetInterface, makVrf::DtSimIndividualLocalEntityNetInterface, makVrf::DtSimPseudoAggregateLocalEntityNetInterface, and DtIndividualLocalEntityNetInterfaceWithTemperature.

virtual bool makVrf::DtSimLocalEntityNetInterface::createPublisher ( const DtEntityIdentifier &  id = DtEntityIdentifier::nullId() )

pure virtual

Called by init() to create a VR-Link publisher, deriving classes create the type of publisher needed for that entity type.

Implemented in makVrf::DtSimIndividualLocalEntityNetInterface, and makVrf::DtSimAggregateLocalEntityNetInterface.

virtual void makVrf::DtSimLocalEntityNetInterface::destroyPublisher ( )

pure virtual

Called by the destructor (and also by setPublisher() in some cases), deletes a publisher.

Implemented in makVrf::DtSimIndividualLocalEntityNetInterface, and makVrf::DtSimAggregateLocalEntityNetInterface.

virtual DtObjectPublisher* makVrf::DtSimLocalEntityNetInterface::publisher ( )

pure virtual

Returns the publisher used by this net interface.

Implemented in makVrf::DtSimIndividualLocalEntityNetInterface, and makVrf::DtSimAggregateLocalEntityNetInterface.

virtual void makVrf::DtSimLocalEntityNetInterface::updateNet ( )

virtual

Cause any necessary data to be send to the network. Called by onTick. Base class implementation causes a VrfData message to be sent if necessary.

Reimplemented in makVrf::DtSimIndividualLocalEntityNetInterface, and makVrf::DtSimAggregateLocalEntityNetInterface.

virtual void makVrf::DtSimLocalEntityNetInterface::setupNetworkRepository ( )

pure virtual

Initializes parts of the network repository created by the publisher This needs to be done after the local state repository has been initialized. Details depend upon which type of publisher (and therefore network state repository) is actually created.

Implemented in makVrf::DtSimIndividualLocalEntityNetInterface, and makVrf::DtSimAggregateLocalEntityNetInterface.

virtual void makVrf::DtSimLocalEntityNetInterface::updateUuid ( )

pure virtual

Updates the UUID to be published to the network.

Implemented in makVrf::DtLocalExtendedPropertiesNetInterface< DtSimIndividualLocalEntityNetInterface, DtExtEntityStateRepository >, makVrf::DtLocalExtendedPropertiesNetInterface< DtSimPseudoAggregateLocalEntityNetInterface, DtExtAggregateStateRepository >, makVrf::DtLocalExtendedPropertiesNetInterface< DtSimAggregateLocalEntityNetInterface, DtExtAggregateStateRepository >, makVrf::DtSimIndividualLocalEntityNetInterface, and makVrf::DtSimAggregateLocalEntityNetInterface.

static bool makVrf::DtSimLocalEntityNetInterface::isVrfGlobalId ( const DtGlobalObjectDesignator &  identifier )

static

Returns true if given global object Id is a VR-Forces encoded global Id and false if it is not. Calls down to DtVrfObjectIdGenerator to make the check.

virtual bool makVrf::DtSimLocalEntityNetInterface::isLocal ( ) const

inlinevirtual

This network interface is for local entities.

Implements makVrf::DtSimObjectNetInterface.

virtual bool makVrf::DtSimLocalEntityNetInterface::isAggregate ( ) const

pure virtual

Implemented in makVrf::DtSimAggregateLocalEntityNetInterface, and makVrf::DtSimIndividualLocalEntityNetInterface.

static DtSimLocalEntityNetInterface* makVrf::DtSimLocalEntityNetInterface::isLocalEntityNetInterface ( const DtSimObjectNetInterface *  objNetInterface )

static

This function will return the objNetInterface passed in, cast to a DtSimLocalEntityNetInterface*, provided the objNetInterface is indeed an local entity network interface.

static void makVrf::DtSimLocalEntityNetInterface::setVrfDataTimeThreshold ( DtTime  time )

static

Sets the time to update the vrf data message. The message will be sent on this time (default is five seconds) or if the data as seen by remote is different that the current time. If time is set to be -1, it will only be sent if the data is different.

static void makVrf::DtSimLocalEntityNetInterface::setHeartbeatVariance ( double  variance )

static

Variance to use for setting heartbeat thresholds. The actual threshold used will be heartbeat +/- a random value up to the variance. The default value is 2.5s.

static double makVrf::DtSimLocalEntityNetInterface::heartbeatVariance ( )

static

virtual const makVrf::DtEntityStateComponent* makVrf::DtSimLocalEntityNetInterface::entityStateComponent ( )

protectedvirtual

virtual const makVrf::DtEntityLocationStateComponent* makVrf::DtSimLocalEntityNetInterface::entityLocationStateComponent ( )

protectedvirtual

virtual const makVrf::DtVrfStateComponent* makVrf::DtSimLocalEntityNetInterface::vrfStateComponent ( )

protectedvirtual

virtual const makVrf::DtVrfGeometryStateComponent* makVrf::DtSimLocalEntityNetInterface::vrfGeometryStateComponent ( )

protectedvirtual

virtual const makVrf::DtArticulatedPartStateComponent* makVrf::DtSimLocalEntityNetInterface::articulatedPartStateComponent ( )

protectedvirtual

virtual const makVrf::DtStatePropertiesStateComponent* makVrf::DtSimLocalEntityNetInterface::statePropertiesStateComponent ( )

protectedvirtual

virtual const makVrf::DtHumanStateComponent* makVrf::DtSimLocalEntityNetInterface::humanStateComponent ( )

protectedvirtual

virtual const makVrf::DtRangeItemsStateComponent* makVrf::DtSimLocalEntityNetInterface::rangeItemsStateComponent ( )

protectedvirtual

virtual const makVrf::DtAisDataStateComponent* makVrf::DtSimLocalEntityNetInterface::aisDataStateComponent ( )

protectedvirtual

virtual const makVrf::DtAircraftLightingStateComponent* makVrf::DtSimLocalEntityNetInterface::aircraftLightingStateComponent ( )

protectedvirtual

virtual const makVrf::DtGroundVehicleLightingStateComponent* makVrf::DtSimLocalEntityNetInterface::groundVehicleLightingStateComponent ( )

protectedvirtual

Member Data Documentation

bool makVrf::DtSimLocalEntityNetInterface::myPublisherUserSupplied

protected

bool makVrf::DtSimLocalEntityNetInterface::myPublishObject

protected

double makVrf::DtSimLocalEntityNetInterface::theHeartbeatVariance

staticprotected

const makVrf::DtArticulatedPartStateComponent* makVrf::DtSimLocalEntityNetInterface::myArticulatedPartStateComponent

protected

const makVrf::DtStatePropertiesStateComponent* makVrf::DtSimLocalEntityNetInterface::myStatePropertiesStateComponent

protected

const makVrf::DtEntityStateComponent* makVrf::DtSimLocalEntityNetInterface::myEntityStateComponent

protected

const makVrf::DtEntityLocationStateComponent* makVrf::DtSimLocalEntityNetInterface::myEntityLocationStateComponent

protected

const makVrf::DtVrfGeometryStateComponent* makVrf::DtSimLocalEntityNetInterface::myVrfGeometryStateComponent

protected

const makVrf::DtVrfStateComponent* makVrf::DtSimLocalEntityNetInterface::myVrfStateComponent

protected

const makVrf::DtHumanStateComponent* makVrf::DtSimLocalEntityNetInterface::myHumanStateComponent

protected

const makVrf::DtRangeItemsStateComponent* makVrf::DtSimLocalEntityNetInterface::myRangeItemsStateComponent

protected

const makVrf::DtAisDataStateComponent* makVrf::DtSimLocalEntityNetInterface::myAisDataStateComponent

protected

const makVrf::DtAircraftLightingStateComponent* makVrf::DtSimLocalEntityNetInterface::myAircraftLightingStateComponent

protected

const makVrf::DtGroundVehicleLightingStateComponent* makVrf::DtSimLocalEntityNetInterface::myGroundVehicleLightingStateComponent

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrlinkNetworkInterface/simLocalEntityNetInterface.h
