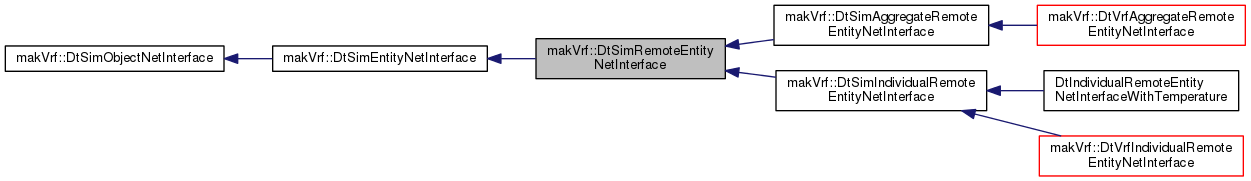

Inheritance diagram for makVrf::DtSimRemoteEntityNetInterface:

Public Member Functions
	DtSimRemoteEntityNetInterface (DtStateData simObject, DtVrlinkNetworkInterface objMgr, bool publishObject=true)

virtual	~DtSimRemoteEntityNetInterface ()

virtual bool	init ()

virtual void	onTick ()

virtual void	updateFromReflectedObject ()=0

virtual void	setupFromNetworkRepository ()

virtual void	setReflectedObject (DtReflectedObject *reflectedObject)

virtual void	clearReflectedObject ()

virtual void	toBeRemoved ()

virtual bool	isValidReflectedObject (DtReflectedObject *) const

virtual const DtReflectedObject *	reflectedObject () const

virtual DtReflectedObject *	reflectedObject ()

virtual bool	isLocal () const

virtual void	setUpdateReceived (bool updateReceived)

virtual bool	updateReceived () const

virtual void	updateUUIDIfNeeded ()

virtual bool	wantsToCreatePublisher () const

virtual RTI::ObjectClassHandle	objectClassHandle () const

Public Member Functions inherited from makVrf::DtSimEntityNetInterface
	DtSimEntityNetInterface (DtStateData simObject, DtVrlinkNetworkInterface objMgr, bool publishObject=true)

virtual	~DtSimEntityNetInterface ()

virtual DtBaseEntityStateRepository *	baseEntityNetworkState () const

virtual bool	isEnvironmental () const

Public Member Functions inherited from makVrf::DtSimObjectNetInterface
DtVrfCallbackQueue::CallbackInterface::Ptr	parallelContainer ()

	DtSimObjectNetInterface (DtStateData simObject, DtVrlinkNetworkInterface , bool publishObject=true)

virtual	~DtSimObjectNetInterface ()

virtual bool	init (const DtEntityIdentifier &id=DtEntityIdentifier())

virtual void	tick ()

virtual bool	isUnit () const =0

virtual bool	isEntity () const =0

virtual DtString	type () const =0

virtual int	maxNameLength () const

virtual bool	publishObject () const

virtual void	sendFinalPduOnDestruction (bool)

bool	isValid () const

virtual void	parallelTick ()

virtual void	forceUpdate ()

Static Public Member Functions
static const DtSimRemoteEntityNetInterface *	isRemoteEntityNetInterface (const DtSimObjectNetInterface *objNetInterface)

static DtSimRemoteEntityNetInterface *	isRemoteEntityNetInterface (DtSimObjectNetInterface *objNetInterface)

static void	reflectedObjectUpdateCallbackFunction (DtReflectedObject obj, void userData)

Static Public Member Functions inherited from makVrf::DtSimEntityNetInterface
static DtSimEntityNetInterface *	isEntityNetInterface (const DtSimObjectNetInterface *objNetInterface)

Static Public Member Functions inherited from makVrf::DtSimObjectNetInterface
static void	setNonVrfUUIDResolver (DtNonVrfUUIDResolver *)

static DtNonVrfUUIDResolver *	nonVrfUUIDResolver ()

static void	addSimObjectNetInterfaceCreatorFcn (const DtString &type, DtSimObjectNetIfaceCreatorFcn fcn)

static void	setFactory (DtSimObjectNetInterfaceFactory *factory)

static DtSimObjectNetInterfaceFactory *	factory ()

static DtSimObjectNetInterface *	createNetInterface (const DtString &type, DtStateData simObject, DtVrlinkNetworkInterface , bool publishObject=true)

static int	maxNameLengthForInterfaceType (const DtString &interfaceTypeString)

static void	setNonVrfObjectsUUIDScheme (const DtString &)

static DtString	nonVrfObjectsUUIDScheme ()

Protected Member Functions
virtual void	initializeRemoteStateComponents ()

Protected Member Functions inherited from makVrf::DtSimObjectNetInterface
virtual void	stateDataDestroyed ()

bool	runFullyThreaded () const

const DtStateData *	vrfObject () const

DtStateData *	nextFrameVrfObject ()

virtual const DtStateRepository *	networkState () const

Protected Attributes
DtReflectedObject *	myReflectedObject

bool	myUpdateReceived

Protected Attributes inherited from makVrf::DtSimEntityNetInterface
DtDeadReckonTypes	myDeadReckoningAlgorithm

Protected Attributes inherited from makVrf::DtSimObjectNetInterface
DtStateData *	mySimObject

DtVrlinkNetworkInterface *	myObjectManager

DtStateRepository *	myNetworkState

bool	myNeedsNetworkSetup

DtNetInterfaceParallelLock	myLock

boost::signals2::connection	mySimObjectRemovalConnection

tbb::mutex	myDeleteGuardMutex

DtVrfCallbackQueue::CallbackInterface::Ptr	myParallelContainer

Private Member Functions
	DtSimRemoteEntityNetInterface ()

	DtSimRemoteEntityNetInterface (const DtSimRemoteEntityNetInterface &orig)

const DtSimRemoteEntityNetInterface &	operator= (const DtSimRemoteEntityNetInterface &orig)

Additional Inherited Members
Public Attributes inherited from makVrf::DtSimObjectNetInterface
boost::signals2::signal< void()>	signal_networkInterfaceDeleted

Static Public Attributes inherited from makVrf::DtSimObjectNetInterface
static tbb::spin_rw_mutex	thePublisherCreationMutex

static tbb::spin_rw_mutex	thePublisherTickMutex

Static Protected Attributes inherited from makVrf::DtSimObjectNetInterface
static DtSimObjectNetInterfaceFactory *	theFactory

static DtNonVrfUUIDResolver *	theNonVrfUUIDResolver

Constructor & Destructor Documentation

makVrf::DtSimRemoteEntityNetInterface::DtSimRemoteEntityNetInterface ( )

private

default constructor

makVrf::DtSimRemoteEntityNetInterface::DtSimRemoteEntityNetInterface ( const DtSimRemoteEntityNetInterface & orig )

private

makVrf::DtSimRemoteEntityNetInterface::DtSimRemoteEntityNetInterface	(	DtStateData *	simObject,
		DtVrlinkNetworkInterface *	objMgr,
		bool	publishObject = `true`
	)

read/writable constructor

virtual makVrf::DtSimRemoteEntityNetInterface::~DtSimRemoteEntityNetInterface ( )

virtual

destructor; calls destroyPublisher()

Member Function Documentation

const DtSimRemoteEntityNetInterface& makVrf::DtSimRemoteEntityNetInterface::operator= ( const DtSimRemoteEntityNetInterface & orig )

private

assignment operator; see note on copy constructor above

virtual bool makVrf::DtSimRemoteEntityNetInterface::init ( )

virtual

override of base class init(). Registers for post update callbacks on reflected object.

virtual void makVrf::DtSimRemoteEntityNetInterface::onTick ( )

virtual

override of base class onTick(), calls updateFromReflectedObject()

Implements makVrf::DtSimObjectNetInterface.

virtual void makVrf::DtSimRemoteEntityNetInterface::updateFromReflectedObject ( )

pure virtual

this will copy from whatever type of reflected object and associated network state repository the deriving class uses to the local state repository

Implemented in makVrf::DtRemoteExtendedPropertiesNetInterface< DtVrfIndividualRemoteEntityNetInterface, DtExtEntityStateRepository >, makVrf::DtRemoteExtendedPropertiesNetInterface< DtVrfAggregateRemoteEntityNetInterface, DtExtAggregateStateRepository >, makVrf::DtSimAggregateRemoteEntityNetInterface, makVrf::DtSimIndividualRemoteEntityNetInterface, makVrf::DtVrfIndividualRemoteEntityNetInterface, and DtIndividualRemoteEntityNetInterfaceWithTemperature.

virtual void makVrf::DtSimRemoteEntityNetInterface::setupFromNetworkRepository ( )

virtual

initializes parts of the local repository from the network state rep. This needs to be done after the call to setReflectedObject()

virtual void makVrf::DtSimRemoteEntityNetInterface::setReflectedObject ( DtReflectedObject * reflectedObject )

virtual

For local entities, a publisher can be created or supplied via a set<>Publisher call. For remote entities a reflected object is used instead, and must always be supplied (there is no create equivalent to the local entity network interface). This function also sets the network state repository pointer (myBaseNetworkState) to the repository created by this reflected object.

virtual void makVrf::DtSimRemoteEntityNetInterface::clearReflectedObject ( )

virtual

virtual void makVrf::DtSimRemoteEntityNetInterface::toBeRemoved ( )

virtual

Called when this object is removed.

Reimplemented from makVrf::DtSimObjectNetInterface.

virtual bool makVrf::DtSimRemoteEntityNetInterface::isValidReflectedObject ( DtReflectedObject * ) const

virtual

This method will return false if the reflected object type is not of DtReflectedEntity. Make sure to check the return value of this method as this is an invalid initialization if that occurs.

Reimplemented in makVrf::DtSimAggregateRemoteEntityNetInterface.

virtual const DtReflectedObject* makVrf::DtSimRemoteEntityNetInterface::reflectedObject ( ) const

virtual

Returns: The pointer to the VR-Link reflected object being used to represent this remote entity

virtual DtReflectedObject* makVrf::DtSimRemoteEntityNetInterface::reflectedObject ( )

virtual

virtual bool makVrf::DtSimRemoteEntityNetInterface::isLocal ( ) const

inlinevirtual

This network interface is for local entities.

Implements makVrf::DtSimObjectNetInterface.

virtual void makVrf::DtSimRemoteEntityNetInterface::setUpdateReceived ( bool updateReceived )

virtual

Setting update received to true will cause updateFromRemoteObject() to be called on the next tick.

virtual bool makVrf::DtSimRemoteEntityNetInterface::updateReceived ( ) const

virtual

Check to see if an update has been received from the network.

static const DtSimRemoteEntityNetInterface* makVrf::DtSimRemoteEntityNetInterface::isRemoteEntityNetInterface ( const DtSimObjectNetInterface * objNetInterface )

static

This function will return the objNetInterface passed in, cast to a DtSimRemoteEntityNetInterface*, provided the objNetInterface is indeed an remote entity network interface.

static DtSimRemoteEntityNetInterface* makVrf::DtSimRemoteEntityNetInterface::isRemoteEntityNetInterface ( DtSimObjectNetInterface * objNetInterface )

static

static void makVrf::DtSimRemoteEntityNetInterface::reflectedObjectUpdateCallbackFunction	(	DtReflectedObject *	obj,
		void *	userData
	)

static

virtual void makVrf::DtSimRemoteEntityNetInterface::updateUUIDIfNeeded ( )

virtual

Upon setting of reflected object see if UUID needs to be updated.

Reimplemented in makVrf::DtSimIndividualRemoteEntityNetInterface, and makVrf::DtSimAggregateRemoteEntityNetInterface.

virtual bool makVrf::DtSimRemoteEntityNetInterface::wantsToCreatePublisher ( ) const

inlinevirtual

Returns true if this interface wants to create a publisher. This cannot be done in parallel.

Implements makVrf::DtSimObjectNetInterface.

virtual RTI::ObjectClassHandle makVrf::DtSimRemoteEntityNetInterface::objectClassHandle ( ) const

virtual

Returns the HLA object class handle of the reflected object.

Implements makVrf::DtSimObjectNetInterface.

virtual void makVrf::DtSimRemoteEntityNetInterface::initializeRemoteStateComponents ( )

protectedvirtual

Reimplemented in makVrf::DtSimAggregateRemoteEntityNetInterface, and makVrf::DtSimIndividualRemoteEntityNetInterface.

Member Data Documentation

DtReflectedObject* makVrf::DtSimRemoteEntityNetInterface::myReflectedObject

protected

Pointer to the VR-Link Reflected Object (may be a DtReflectedEntity, DtReflectedExtAggregate, etc. ).

bool makVrf::DtSimRemoteEntityNetInterface::myUpdateReceived

protected

Set to true by post-update callback; set to false after update has been processed.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrlinkNetworkInterface/simRemoteEntityNetInterface.h
