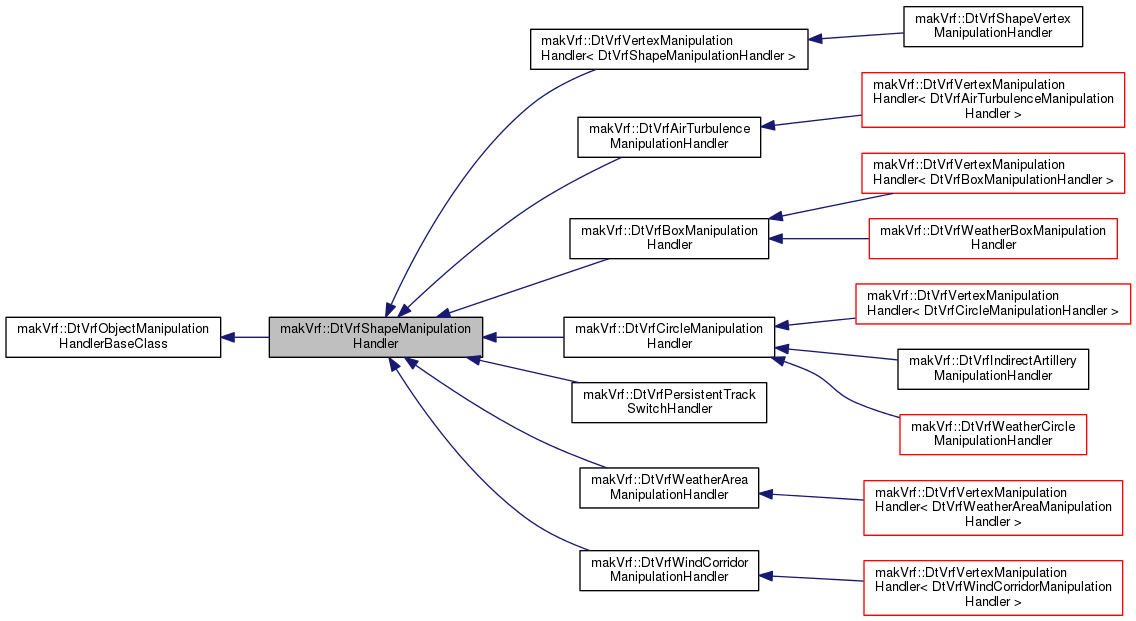

Inheritance diagram for makVrf::DtVrfShapeManipulationHandler:

Public Member Functions
	DtVrfShapeManipulationHandler (makVrv::DtDe &)

virtual	~DtVrfShapeManipulationHandler ()

virtual void	setPoints (const std::vector< DtVector > &pts)

virtual void	setPoints (const std::vector< DtGeodeticCoord > &pts)

const std::vector< DtVector > &	points () const

virtual bool	canEmbark () const

virtual bool	createVrfObject (DtVrfObjectFacadeInterface *)

virtual void	addControlPoint (const DtVector &location, int index=-1)

virtual void	removeControlPoint (int index)

virtual HandlerType	type () const

virtual void	setLocation (int index, const DtVector &location, bool resetOrigin=true)

virtual bool	isDoubleClickSupportedForCurrentObject () const override

virtual void	setAltitudeAboveSeaLevel (int, double)

virtual double	altitudeAboveSeaLevel (int) const

virtual void	initializeInterfaceForEdit (DtVrfObjectFacadeInterface *iFace, makVrv::DtUniqueID sceneObjectId, const makVrv::DtVrlinkSimulatedBaseState &editState, const DtVector &principalLocation, const DtTaitBryan &principalOrientation)

virtual void	setAltitudeAboveTerrain (int, double)

virtual double	altitudeAboveTerrain (int) const

virtual bool	canChangeDimensions () const

virtual double	maximumLength () const

virtual bool	shapeAtMinimum () const

virtual bool	canRemovePoint () const

virtual bool	shapeAtMinimum (DtEnvironmentStateView *)

virtual bool	canDeleteAPoint (DtEnvironmentStateView *)

virtual bool	shapeAtMaximum () const

virtual bool	shapeAtMaximum (DtEnvironmentStateView *)

virtual void	getMinMaxVertices (const DtEntityType &creatingType, int &minVert, int &maxVert) const

virtual int	numVertices () const

virtual void	setEditingPoint (int)

virtual int	editingPoint () const

virtual DtGeodeticCoord	geodeticPosition (int) const

virtual DtVector	geocentricPosition (int) const

virtual DtVector	localLocation (int index) const

virtual std::vector < DtGeodeticCoord >	geodeticPositions () const

virtual std::vector< DtVector >	geocentricPositions () const

virtual void	removePoint (int)

virtual void	setShapeVerticesDisabled (bool)

virtual bool	shapeVerticesDisabled () const

virtual double	altitudeForAltitudeType (int) const

virtual bool	freehand () const

virtual bool	canChangeArrowStyle () const

virtual bool	canChangeArrowSize () const

virtual bool	canFill () const

virtual bool	canChangePenStyle () const

virtual bool	canChangeShapeOnly () const

virtual void	setPointSamplingRate (int)

virtual int	pointSamplingRate () const

virtual void	setLineWidth (int)

virtual int	lineWidth () const

virtual void	setPenStyle (int)

virtual int	penStyle () const

virtual void	setFillStyle (int)

virtual int	fillStyle () const

virtual bool	fixedWidthSizing () const

virtual void	setForce (int)

virtual void	setColor (int)

virtual int	color () const

virtual void	setExtendedLabels (const std::map< int, DtString > &)

virtual void	setLabel (const std::string &)

virtual std::string	label () const

virtual void	setFormattingData (const std::string &)

virtual std::string	formattingData () const

virtual void	setCorridorSize (double)

virtual double	corridorSize () const

virtual int	arrowStyle () const

virtual int	arrowHeadPlacement () const

virtual int	arrowSize () const

virtual bool	isArea () const

virtual bool	isRoute () const

virtual bool	automaticallyChangeCeiling () const

virtual double	orientation () const

virtual void	setOrientation (double)

virtual double	initialArrowSize (bool fixedWidthSizing, double initialSize) const

virtual void	setAllowHeadingChanges (bool)

virtual void	setLength (double)

virtual void	cancel ()

virtual DtVector	centerOfMass () const

virtual void	updateOffsetsBasedOnMousePosition (const DtVector &centerOfMass, const DtGeodeticCoord &, bool useImagePoints=false)

virtual void	editSelectedObjects (const makVrv::DtUniqueID &principalID, makVrv::DtChannel &initiatingChannel, double waitTimeAfterComplete=0., const makVrv::DtSelectionManager::IdSet &editing=makVrv::DtSelectionManager::IdSet())

virtual bool	isObjectValidForCreation ()


virtual void	setFloor (double)

virtual double	floor () const

virtual void	setCeiling (double)

virtual double	ceiling () const

Public Member Functions inherited from makVrf::DtVrfObjectManipulationHandlerBaseClass
	DtVrfObjectManipulationHandlerBaseClass (makVrv::DtDe &)

virtual	~DtVrfObjectManipulationHandlerBaseClass ()

virtual bool	createObject (const DtEntityType &entType, int force, DtCreationSignalType creationSignal=DtNoCreationSignal, const std::string &keywords="")

virtual bool	createObject (const DtString &key, const DtString &associatedData, DtCreationSignalType creationSignal=DtNoCreationSignal, const std::string &keywords="")

virtual bool	canSetActivationTime () const

virtual bool	canShowForces () const

int	force () const

virtual void	monitorObjectRemoval (bool)

virtual void	setEventProcessingEnabled (bool value)

virtual void	clearEventProcessor ()

virtual bool	embarkationAllowed () const

virtual void	setEmbarkationAllowed (bool)

virtual void	setCanEmbark (bool)

virtual void	setDoNotClamp (bool)

bool	doNotClamp () const

virtual bool	needsEmbarkOnCheck () const

virtual void	setIgnoreNextLeftButtonRelease (bool b)

virtual void	setEditStartedByDoubleClick (bool)

virtual void	setCreationEndedWithDoubleClick (bool creationEndedWithDoubleClick)

virtual bool	isCreationEndedWithDoubleClick () const

virtual makVrv::DtIntersector::IntersectProperties	intersectorPickMask () const

virtual makVrv::DtSimEntry *	principalSimEntry () const

virtual DtUUID	uuid () const

virtual void	setInterfaceContentMessage (const std::string &name, const DtSimInterfaceContent &)

virtual void	removeInterfaceContentMessage (const std::string &)

const ContentMessages &	contentMessages () const

virtual std::list < DtSimInterfaceContent * >	contentMessagesToList () const

virtual void	sendContentMessages ()

virtual VrfObjectEditFacadeList	objectFacades () const

virtual void	setAllowCreationOnMouseClick (bool flag)

virtual bool	allowCreationOnMouseClick () const

virtual void	setEventProcessor (DtVrfObjectManipulationEventProcessor *)

virtual DtVector	clampToGround (const DtVector &, int clampFlag=-1) const

virtual DtGeodeticCoord	clampToGround (const DtGeodeticCoord &, int clampFlag=-1) const

virtual void	setAttachObjectToMouse (bool)

virtual bool	attachObjectToMouse () const

virtual void	setHeading (double value)

virtual double	heading () const

virtual void	setPitch (double value)

virtual double	pitch () const

virtual void	setLocation (const DtVector &loc)

virtual void	setLocation (const DtVector &loc, double altAboveGround)

virtual void	stop ()

virtual void	deferredStop ()

virtual int	objectCount () const

virtual bool	createVrfObject ()

virtual bool	modifyVrfObjects ()

virtual DtVrfObjectFacadeInterface *	createAndAddLocalRepresentation (DtVrlinkSimulatedBaseStateView *editStateView=0)

virtual DtVrfObjectFacadeInterface *	createAndAddLocalRepresentation (DtVrlinkSimulatedBaseStateView editStateView, makVrv::DtUniqueID sceneObjectId, DtVrlinkSimulatedBaseStateView principalStateView)

virtual void	setOverlay (const std::string &name)

virtual std::string	overlay () const

virtual std::string	defaultOverlayForCreatingObject () const

virtual std::string	getNextCreatingName (bool includeCurrent=false)

virtual void	setAltitudeAboveGL (double alt, bool setInProcessor=true)

virtual void	setAltitudeAboveGLForAll (double alt, bool setInProcessor=true)

virtual void	setAltitudeAboveSL (double alt, bool setInProcessor=true)

virtual void	setAltitudeAboveSLForAll (double alt, bool setInProcessor=true)

virtual bool	hasObjectFacade (makVrv::DtUniqueID) const

virtual void	setAltitudeClampType (DtAltitudeClampType type)

DtAltitudeClampType	altitudeClampType () const

virtual void	setCreating (bool b)

bool	creating () const

virtual makVrv::DtUniqueID	simulatedObjectedId () const

virtual DtVrfObjectFacadeInterface *	principalObjectImage () const

virtual makVrv::DtUniqueID	principalObjectID () const

virtual std::set < makVrv::DtUniqueID >	elementIDs () const

virtual void	setUserData (const std::string &userData)

virtual const std::string &	userData () const

virtual const std::map< int, DtString > &	extendedLabels () const

virtual void	setExtendedDataMap (const std::map< std::string, std::string > &extendedData)

virtual void	setExtendedDataMap (const std::map< DtString, DtString > &extendedData)

virtual const std::map < std::string, std::string > &	extendedDataMap () const

virtual void	setExtendedData (const std::string &key, const std::string &value)

virtual void	removeExtendedData (const std::string &key)

virtual std::string	extendedData (const std::string &key) const

virtual void	slot_onComplete ()

virtual void	slot_onAltitudeIsDragging (bool)

virtual void	hideObject (const makVrv::DtUniqueID &id, bool hide)

virtual void	setPublishObject (bool)

virtual bool	publishObject () const

virtual void	setObjectName (const std::string &name)

virtual void	setUUIDForCreation (const DtUUID &)

virtual const DtUUID &	uuidForCreation () const

virtual bool	isUniqueName () const

virtual double	groundHeight (const DtVector &localPosition, DtVector *localGround=0, const std::vector< makVrv::DtUniqueID > &ignore=std::vector< makVrv::DtUniqueID >()) const

virtual void	setAltitudeAllowed (bool)

bool	altitudeAllowed () const

bool	pitchAllowed () const

virtual const std::string &	objectName () const

virtual bool	anchorMouseToOrigin () const

virtual bool	anchorPositionIsMouse () const

virtual void	setAnchorPosition (const DtGeodeticCoord &)

virtual DtVector	localLocation ()

virtual DtVector	convertGeocentricToGround (const DtVector &geoc, double &altitude) const

virtual void	setShowPropertiesDialogBeforeCreate (bool)

virtual bool	showPropertiesDialogBeforeCreate () const

virtual bool	keywordsContain (const std::string &) const

virtual std::string	keyword (const std::string &) const

virtual std::string	value (const std::string &) const

virtual void	addKeyword (const std::string &)

virtual void	removeKeyword (const std::string &)

virtual bool	keywordValue (const std::string &, double &value) const

const std::vector< std::string > &	keywords () const

virtual bool	waitingToStop () const

virtual void	setEditingType (DtEditingType)

DtEditingType	editingType () const

virtual void	setEmbarkationInformation (makVrv::DtUniqueID, bool)

virtual makVrv::DtUniqueID	embarkedOn () const

virtual std::vector < makVrv::DtElementID >	ignoreList () const

virtual void	setOverrideIdsToIgnore (const std::vector< makVrv::DtUniqueID > &overrideIgnore)

virtual const std::vector < makVrv::DtElementID > &	unifiedIgnoreList () const

virtual void	setFacadesVisible (bool)

virtual bool	noStyle () const

virtual void	slot_onHeadingChanged (double heading)

virtual void	slot_onPitchChanged (double heading)

virtual void	setHeadingOffset (double d)

virtual void	setPitchOffset (double d)

virtual void	disconnectPlacement ()

virtual void	setGroundClampOnPlacement (bool)

virtual bool	groundClampOnPlacement () const

virtual void	notifyOnFinalFacade (DtVrfObjectManipulationHandlerBaseClass *)

virtual void	removeNotifyOnFinalFacade (DtVrfObjectManipulationHandlerBaseClass *)

virtual void	connectPlacement ()

virtual DtVector	sumOfAllLocations () const

virtual void	setSignalOnMultiSelectionComplete (bool)

virtual void	setKeywords (const std::string &)

virtual void	setSelectionCount (int)

virtual void	parseKeywords (const std::string &)

virtual bool	warpMouseToOrigin () const

virtual void	setWarpMouseToOrigin (bool)

Public Attributes
boost::signals2::signal< void(const DtVector &, int)>	signal_pointLocationChanged

boost::signals2::signal< void()>	signal_pointSamplingRateChanged

boost::signals2::signal< void(double)>	signal_floorChanged

boost::signals2::signal< void(double)>	signal_ceilingChanged

boost::signals2::signal< void(const std::vector< DtVector > &)>	signal_locationsChanged

boost::signals2::signal< void()>	signal_refreshLocation

Public Attributes inherited from makVrf::DtVrfObjectManipulationHandlerBaseClass
boost::signals2::signal< void()>	signal_preObjectCreation

boost::signals2::signal< void(bool)>	signal_embarkationAllowedChanged

boost::signals2::signal< void(bool, bool)>	signal_showPropertiesDialog

boost::signals2::signal< void(bool)>	signal_attachObjectToMouse

boost::signals2::signal< void(DtVrfObjectFacadeInterface , DtVrlinkSimulatedBaseStateView editStateView)>	signal_preVisualization

boost::signals2::signal< void(DtVrfObjectFacadeInterface *, bool)>	signal_objectFacadeCreated

boost::signals2::signal< void(const DtEntityType &, int)>	signal_started

boost::signals2::signal< void(DtVrfObjectManipulationHandlerBaseClass *)>	signal_multiSelectonCreationComplete

boost::signals2::signal< void(bool)>	signal_altitudeAllowedChanged

boost::signals2::signal< void(const ObjectManipulationData &)>	signal_createObject

boost::signals2::signal< void(const DtString &, const DtString &)>	signal_createTerrainProp

boost::signals2::signal< void(DtVrfObjectManipulationHandlerBaseClass *)>	signal_stopped

boost::signals2::signal< void(DtVrfObjectManipulationHandlerBaseClass *)>	signal_eventProcessorRemoved

boost::signals2::signal< void(DtVrfObjectManipulationHandlerBaseClass *)>	signal_complete

boost::signals2::signal< void(const DtVector &)>	signal_locationChanged

boost::signals2::signal< void(double)>	signal_headingChanged

boost::signals2::signal< void(double)>	signal_pitchChanged

boost::signals2::signal< void(double)>	signal_altitudeChanged

boost::signals2::signal< void(const DtVector &)>	signal_placement

boost::signals2::signal< void(DtVrfObjectManipulationHandlerBaseClass *)>	signal_restoreSelectionState

boost::signals2::signal< void(const makVrv::DtUniqueID &)>	signal_principalStateViewUpdated

boost::signals2::signal< void(DtVrfObjectFacadeInterface *)>	signal_objectFacadeAboutToBeRemoved

boost::signals2::signal< void(int)>	signal_forceChanged

Protected Member Functions
virtual DtEnvironmentalFacadeCollection *	createFacadeInterface ()

virtual void	postCreateInitialize (DtVrfObjectFacadeInterface *)

virtual bool	clampAtClosestPolygonOnPlacement () const

virtual double	defaultAltitudeOffsetFor (DtVrfObjectFacadeInterface *i) const

virtual void	calculateAnchorBasedOnMousePosition (makVrv::DtChannel &channel)

virtual void	slot_onEditComplete (makVrv::DtUniqueID id, const DtVector &location, double altAboveGround)

virtual void	initializeEventProcessor ()

virtual DtVector	geometricCenter (DtVrfObjectFacadeInterface *, const std::vector< DtVector > &v) const

virtual void	slot_onPlace (makVrv::DtUniqueID, const DtVector &location, double altAboveGround)

virtual void	slot_onComplete (bool stopCreating)

virtual void	setFloorAltitude (DtEnvironmentalFacadeCollection *env, const DtVector &location, double altAboveGround)

virtual double	defaultCeilingHeight () const

virtual void	slot_onCancel (bool escPressed)

virtual void	slot_onCancelOrComplete (bool escPressed)

virtual void	slot_onLocationChanged (const DtVector &location, double altAboveGround)

virtual void	slot_onAltitudeChanged (const DtVector &location, double altitude)

virtual DtVrfObjectFacadeInterface *	createLocalRepresentation (DtVrlinkSimulatedBaseStateView *editStateView=0)

virtual DtVector	addControlPoint (int index=-1)

virtual DtVrfObjectFacadeInterface *	createLocalRepresentation (DtVrlinkSimulatedBaseStateView editStateView, makVrv::DtUniqueID sceneObjectId, DtVrlinkSimulatedBaseStateView principalStateView)

virtual void	moveSelectedPoint (const DtVector &location, double altAboveGround)

virtual bool	isArea (const DtEntityType &type) const

virtual bool	isRoute (const DtEntityType &type) const

virtual bool	isObstacle (const DtEntityType &type) const

virtual bool	isPhaseline (const DtEntityType &type) const

virtual DtEnvironmentalCreationData	environmentalCreationData (const std::string &name, const DtEntityType &, int force) const

virtual void	updateLocationOffset (const DtVector &local, DtEnvironmentalFacadeCollection *env, int pos)

virtual bool	modifyVrfObject (DtVrfObjectFacadeInterface *objectImage)

virtual DtVector	setAltitudeToOrigin (const DtVector &) const

virtual DtVector	rotatedPoint (const DtVector &origin, double x, double heading, DtEnvironmentalFacadeCollection *efc) const

virtual DtVector	rotatePoint (const DtVector &origin, double x, double heading, DtEnvironmentalFacadeCollection *efc) const

virtual bool	alwaysRecalculateGeometry () const

virtual DtVector	rotatePointInternal (const DtVector &origin, double x, double heading, DtEnvironmentalFacadeCollection *efc) const

virtual void	updateOffsetsBasedOnMousePosition ()

virtual void	setupImagePointsUsingImageOffset (DtEnvironmentalFacadeCollection *, const std::vector< DtVector > &)

Protected Member Functions inherited from makVrf::DtVrfObjectManipulationHandlerBaseClass
virtual void	clearConnections ()

virtual void	slot_simObjectEntryToBeRemoved (const makVrv::DtSimObjectEntry &)

virtual bool	typeIsValidForEditingByHandler (const makVrv::DtElementEntry::ElementType &, const DtEntityType &) const

virtual std::string	stripNumbers (const std::string &base) const

virtual void	warpMouseToLocation (makVrv::DtChannel *channel, const DtVector &location) const

virtual void	initializeEdit ()

virtual void	slot_onPrincipalStateViewUpdated (DtVrlinkSimulatedBaseStateView *principalStateView, const makVrv::DtUniqueID &principalSceneObjectId)

virtual void	slot_onStateViewUpdated (DtVrlinkSimulatedBaseStateView editStateView, makVrv::DtUniqueID sceneObjectId, DtVrlinkSimulatedBaseStateView principalStateView)

virtual void	initializeLocationChangeConnections ()

virtual bool	centerOn (const makVrv::DtUniqueID &id, DtVector centerPos=0, const DtVector centerHere=0, bool centerOnOnlyIfMousePositionIsOffWindow=true) const

virtual void	setObjectImageAsAnchor (DtVrfObjectFacadeInterface *objectImage, const DtVector &geocLocation, bool resetOrigin=false)

virtual void	setHeading (DtVrfObjectFacadeInterface *objectImage, double heading)

virtual void	setPitch (DtVrfObjectFacadeInterface *objectImage, double heading)

virtual std::string	defaultOverlayFor () const

virtual std::string	defaultOverlayFor (const DtModelSetEntry *e) const

virtual bool	continueWithHandlerCancelOnLastObjectRemoval ()

virtual bool	isOkToStopEditing ()

virtual void	handlerDisabled ()

virtual void	setObjectImageRelativeToPrincipal (DtVrfObjectFacadeInterface *objectImage, const DtVector &thisGeocLocation, const DtTaitBryan &thisGeocOrientation, const DtVector &prGeocLocation, const DtTaitBryan &prGeocOrientation)

virtual void	setObjectImageRelativeTo (DtVrfObjectFacadeInterface *objectImage, const DtVector &thisGeocLocation, const DtVector &prGeocLocation, bool relativeOnly=false)

virtual void	setObjectImageRelativeToAltitudeOnly (DtVrfObjectFacadeInterface *objectImage, const DtVector &thisGeocLocation, const DtVector &prGeocLocation)

virtual void	calculateAnchor (const DtVector &localAnchor)

virtual void	initializeAltitudeAboveTerrainForEdit (double curAlt, const DtVector &curPos, DtVrfObjectFacadeInterface *iFace)

virtual bool	clampOnPlacement () const

virtual bool	setupIgnoreLists ()

virtual void	removeObjectBecauseOfDeletion (DtVrfObjectFacadeInterface *)

virtual void	slot_elementsCreated (const std::vector< makVrv::DtElementID > &)

Protected Attributes
int	myMaxVertices

int	myMinVertices

DtGeodeticCoord	myLastPosition

bool	myRecentered

DtVector	myRecenteredPos

int	myPointSamplingRate

bool	myShapeVerticesDisabled

DtVector	myLastMouseLocation

double	myLastAltAboveGround

Protected Attributes inherited from makVrf::DtVrfObjectManipulationHandlerBaseClass
bool	myCreating

bool	myAttachObjectToMouse

int	myForce

makVrv::DtDe &	myDe

bool	mySignalManipulation

bool	myAllowCreationOnClick

std::string	myObjectName

std::string	myOverlay

DtVrfObjectManipulationEventProcessor *	myEventProcessor

bool	myOwnsEventProcessor

bool	myAltitudeIsDragging

bool	myAltitudeAllowed

bool	myClearedProcessor

makVrv::DtChannel *	myHiddenChannel

std::string	myUserData

std::map< std::string, std::string >	myExtendedData

std::map< int, DtString >	myExtendedLabels

std::string	myKey

std::string	myKeyData

DtCreationSignalType	mySignalCreation

bool	mySignalOnMultiSelectionComplete

makVrv::DtSelectionManager::IdSet	myEditingObjects

boost::signals2::connection	myObjectRemovalConnection

VrfObjectEditFacadeList	myObjectImages

DtReferenceEllipsoid *	myReferenceForConversion

DtAltitudeClampType	myAltitudeClampType

bool	myOverlayChanged

bool	myIgnoreFirstMouseClick

bool	myShowPropertiesDialogBeforeCreate

DtGeodeticCoord	myAnchorPosition

DtTimedSection *	myDeferredStopTimer

double	myTotalTimeElapsed

double	myDeferStopFor

bool	myGroundClampOnPlacement

bool	myPublishObject

std::vector< std::string >	myKeywords

int	myCursorCount

bool	myFacadesVisible

DtVrlinkSimulatedBaseStateView *	myPrincipalStateView

ContentMessages	myContentMessages

DtEditingType	myEditingType

int	mySelectionCount

bool	myMultiSelection

DtUUID	myUUIDForCreation

StateViewConnections	myStateViewConnections

bool	myShowingPropertiesDialog

makVrv::DtSignalConnectionManager	myConnections

makVrv::DtSignalConnectionManager	myCreateConnections

makVrv::DtUniqueID	myEmbarkOnId

bool	myEmbarkInSlotIfAvailable

bool	myOverlayHasBeenSet

bool	myWarpMouseToOrigin

bool	myCheckedEmbark

bool	myCanEmbark

bool	myDoNotClamp

std::vector< makVrv::DtElementID >	myUnifiedIgnoreList

std::set< makVrv::DtUniqueID >	myDIGuyIdsIgnored

std::vector< makVrv::DtUniqueID >	myModelIds

std::vector< makVrv::DtElementID >	myOverrideIdsToIgnore

std::vector < DtVrfObjectManipulationHandlerBaseClass * >	myNotifyOnFinalFacade

bool	myCreationEndedWithDoubleClick

Additional Inherited Members
Public Types inherited from makVrf::DtVrfObjectManipulationHandlerBaseClass
typedef std::vector < DtVrfObjectFacadeInterface * >	VrfObjectEditFacadeList

typedef std::map< std::string, DtSimInterfaceContent * >	ContentMessages

Protected Types inherited from makVrf::DtVrfObjectManipulationHandlerBaseClass
typedef std::map < DtVrlinkSimulatedBaseStateView , makVrv::DtSignalConnectionManager >	StateViewConnections

Constructor & Destructor Documentation

makVrf::DtVrfShapeManipulationHandler::DtVrfShapeManipulationHandler ( makVrv::DtDe & )

virtual makVrf::DtVrfShapeManipulationHandler::~DtVrfShapeManipulationHandler ( )

virtual

Member Function Documentation

virtual void makVrf::DtVrfShapeManipulationHandler::setPoints ( const std::vector< DtVector > & pts )

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setPoints ( const std::vector< DtGeodeticCoord > & pts )

virtual

const std::vector<DtVector>& makVrf::DtVrfShapeManipulationHandler::points ( ) const

virtual bool makVrf::DtVrfShapeManipulationHandler::canEmbark ( ) const

virtual

Returns true as to whether or not this item can even be allowed to embark in general. This is different than the embarkationAllowed() flag in that this will control whether or not the entity is even given the chance to embark vs. whether or not the entity can embark on the entity that it is currently over.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfPersistentTrackSwitchHandler.

virtual bool makVrf::DtVrfShapeManipulationHandler::createVrfObject ( DtVrfObjectFacadeInterface * )

virtual

Creates the scene object with the current handler settings for location, orientation, name, type, etc...A call to createObject must be made before using this function.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfWeatherCircleManipulationHandler, makVrf::DtVrfWeatherAreaManipulationHandler, makVrf::DtVrfPersistentTrackSwitchHandler, makVrf::DtVrfWeatherBoxManipulationHandler, makVrf::DtVrfWindCorridorManipulationHandler, and makVrf::DtVrfAirTurbulenceManipulationHandler.

virtual void makVrf::DtVrfShapeManipulationHandler::addControlPoint	(	const DtVector &	location,
		int	index = `-1`
	)

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::removeControlPoint ( int index )

virtual

virtual HandlerType makVrf::DtVrfShapeManipulationHandler::type ( ) const

inlinevirtual

The type of handler. Used to see if two handler are equivalent.

Implements makVrf::DtVrfObjectManipulationHandlerBaseClass.

References makVrf::Shape.

virtual void makVrf::DtVrfShapeManipulationHandler::setLocation	(	int	index,
		const DtVector &	location,
		bool	resetOrigin = `true`
	)

virtual

Reimplemented in makVrf::DtVrfBoxManipulationHandler, and makVrf::DtVrfCircleManipulationHandler.

virtual bool makVrf::DtVrfShapeManipulationHandler::isDoubleClickSupportedForCurrentObject ( ) const

overridevirtual

Returns false if min/max vertices are the same (i.e. a box for fixed point object)

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::setAltitudeAboveSeaLevel	(	int	,
		double
	)

virtual

Set altitude above sea level for the particular point. Will not effect altitude above ground level. If setLocation is called after this for the same index, the sea level point will change to reflect the new altitude.

virtual double makVrf::DtVrfShapeManipulationHandler::altitudeAboveSeaLevel ( int ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::initializeInterfaceForEdit	(	DtVrfObjectFacadeInterface *	iFace,
		makVrv::DtUniqueID	sceneObjectId,
		const makVrv::DtVrlinkSimulatedBaseState &	editState,
		const DtVector &	principalLocation,
		const DtTaitBryan &	principalOrientation
	)

virtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfBoxManipulationHandler.

virtual void makVrf::DtVrfShapeManipulationHandler::setAltitudeAboveTerrain	(	int	,
		double
	)

virtual

Set altitude above terrain for the particular point. Will not effect altitude above sea level. If setLocation is called after this for the same index, the terrain point will change to reflect the new altitude.

virtual double makVrf::DtVrfShapeManipulationHandler::altitudeAboveTerrain ( int ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::canChangeDimensions ( ) const

virtual

Returns true if there is no fixed width and no fixed height.

virtual double makVrf::DtVrfShapeManipulationHandler::maximumLength ( ) const

virtual

Returns the maximum length a linear object can have. -1 if no max.

Reimplemented in makVrf::DtVrfBoxManipulationHandler.

virtual bool makVrf::DtVrfShapeManipulationHandler::shapeAtMinimum ( ) const

virtual

Returns true if the shape has the minimum number of points to create.

virtual bool makVrf::DtVrfShapeManipulationHandler::canRemovePoint ( ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::shapeAtMinimum ( DtEnvironmentStateView * )

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::canDeleteAPoint ( DtEnvironmentStateView * )

virtual

Returns true if a point can be deleted from this object.

virtual bool makVrf::DtVrfShapeManipulationHandler::shapeAtMaximum ( ) const

virtual

Returns true if the shape has the minimum number of points to create.

virtual bool makVrf::DtVrfShapeManipulationHandler::shapeAtMaximum ( DtEnvironmentStateView * )

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::getMinMaxVertices	(	const DtEntityType &	creatingType,
		int &	minVert,
		int &	maxVert
	)		const

virtual

Returns the minimum/maximum vertices of the given type. If there is a facade and keywords will use that for information as well.

Reimplemented in makVrf::DtVrfCircleManipulationHandler, and makVrf::DtVrfBoxManipulationHandler.

virtual int makVrf::DtVrfShapeManipulationHandler::numVertices ( ) const

virtual

Returns the number of vertices in the principal object.

virtual void makVrf::DtVrfShapeManipulationHandler::setEditingPoint ( int )

virtual

virtual int makVrf::DtVrfShapeManipulationHandler::editingPoint ( ) const

virtual

virtual DtGeodeticCoord makVrf::DtVrfShapeManipulationHandler::geodeticPosition ( int ) const

virtual

virtual DtVector makVrf::DtVrfShapeManipulationHandler::geocentricPosition ( int ) const

virtual

virtual DtVector makVrf::DtVrfShapeManipulationHandler::localLocation ( int index ) const

virtual

location + altitude

virtual std::vector<DtGeodeticCoord> makVrf::DtVrfShapeManipulationHandler::geodeticPositions ( ) const

virtual

virtual std::vector<DtVector> makVrf::DtVrfShapeManipulationHandler::geocentricPositions ( ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::removePoint ( int )

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setShapeVerticesDisabled ( bool )

virtual

Disable the showing of vertices on a shape. must be called before the facade is created.

virtual bool makVrf::DtVrfShapeManipulationHandler::shapeVerticesDisabled ( ) const

virtual

virtual double makVrf::DtVrfShapeManipulationHandler::altitudeForAltitudeType ( int ) const

virtual

Return the altitude given the current altitude type set. Goes to facade for information.

virtual bool makVrf::DtVrfShapeManipulationHandler::freehand ( ) const

virtual

Returns true if in freehand mode.

virtual bool makVrf::DtVrfShapeManipulationHandler::canChangeArrowStyle ( ) const

virtual

Returns true if the arrow style can be changed.

virtual bool makVrf::DtVrfShapeManipulationHandler::canChangeArrowSize ( ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::canFill ( ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::canChangePenStyle ( ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::canChangeShapeOnly ( ) const

virtual

Returns true if only the shape can be changed and none of the other object parameters.

virtual void makVrf::DtVrfShapeManipulationHandler::setPointSamplingRate ( int )

virtual

Sets the sampling rate for points. Note that once changes are committed points removed due to a lower sampling rate are removed.

virtual int makVrf::DtVrfShapeManipulationHandler::pointSamplingRate ( ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setLineWidth ( int )

virtual

Sets the line width of the line or outside of area.

virtual int makVrf::DtVrfShapeManipulationHandler::lineWidth ( ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setPenStyle ( int )

virtual

Sets the pen style of the line or the style of the area border.

virtual int makVrf::DtVrfShapeManipulationHandler::penStyle ( ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setFillStyle ( int )

virtual

Sets the fill style of the area.

virtual int makVrf::DtVrfShapeManipulationHandler::fillStyle ( ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::fixedWidthSizing ( ) const

virtual

Returns whether or not line is in fixed width sizing mode.

virtual void makVrf::DtVrfShapeManipulationHandler::setForce ( int )

virtual

Sets the force of the object.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::setColor ( int )

virtual

virtual int makVrf::DtVrfShapeManipulationHandler::color ( ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setExtendedLabels ( const std::map< int, DtString > & )

virtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::setLabel ( const std::string & )

virtual

Sets label of item. Default is no-op.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual std::string makVrf::DtVrfShapeManipulationHandler::label ( ) const

virtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::setFormattingData ( const std::string & )

virtual

virtual std::string makVrf::DtVrfShapeManipulationHandler::formattingData ( ) const

virtual

virtual void makVrf::DtVrfShapeManipulationHandler::setCorridorSize ( double )

virtual

virtual double makVrf::DtVrfShapeManipulationHandler::corridorSize ( ) const

virtual

virtual int makVrf::DtVrfShapeManipulationHandler::arrowStyle ( ) const

virtual

Returns information about the current arrow settings from the visualizer.

virtual int makVrf::DtVrfShapeManipulationHandler::arrowHeadPlacement ( ) const

virtual

virtual int makVrf::DtVrfShapeManipulationHandler::arrowSize ( ) const

virtual

virtual bool makVrf::DtVrfShapeManipulationHandler::isArea ( ) const

virtual

Current creating type is area (box, circle, area, ellipse)

virtual bool makVrf::DtVrfShapeManipulationHandler::isRoute ( ) const

virtual

Current creating type is route.

virtual void makVrf::DtVrfShapeManipulationHandler::setFloor ( double )

virtual

Valid only for areal objects that are volumetric, get/set floor/ceiling of area. Note that any volumetric area, regardless of whether or not it has a floor or a ceiling will be displayed non-projected. If called on a non-areal object will have no effect. Values are in meters. Note that if the item being edited/created is a route, the meaning of floor and ceiling are different. In this case "floor" means the physical width of the route, and "ceiling" means the physical height.

virtual double makVrf::DtVrfShapeManipulationHandler::floor ( ) const

virtual

Valid only for areal objects that are volumetric, get/set floor/ceiling of area. Note that any volumetric area, regardless of whether or not it has a floor or a ceiling will be displayed non-projected. If called on a non-areal object will have no effect. Values are in meters. Note that if the item being edited/created is a route, the meaning of floor and ceiling are different. In this case "floor" means the physical width of the route, and "ceiling" means the physical height.

virtual void makVrf::DtVrfShapeManipulationHandler::setCeiling ( double )

virtual

Valid only for areal objects that are volumetric, get/set floor/ceiling of area. Note that any volumetric area, regardless of whether or not it has a floor or a ceiling will be displayed non-projected. If called on a non-areal object will have no effect. Values are in meters. Note that if the item being edited/created is a route, the meaning of floor and ceiling are different. In this case "floor" means the physical width of the route, and "ceiling" means the physical height.

virtual double makVrf::DtVrfShapeManipulationHandler::ceiling ( ) const

virtual

Valid only for areal objects that are volumetric, get/set floor/ceiling of area. Note that any volumetric area, regardless of whether or not it has a floor or a ceiling will be displayed non-projected. If called on a non-areal object will have no effect. Values are in meters. Note that if the item being edited/created is a route, the meaning of floor and ceiling are different. In this case "floor" means the physical width of the route, and "ceiling" means the physical height.

virtual bool makVrf::DtVrfShapeManipulationHandler::automaticallyChangeCeiling ( ) const

virtual

virtual double makVrf::DtVrfShapeManipulationHandler::orientation ( ) const

virtual

Returns orientation of object. If a closed figure returns orientation from first to second point, else returns orientation from first to last point.

virtual void makVrf::DtVrfShapeManipulationHandler::setOrientation ( double )

virtual

Orients all the points of the object around the geometric center of the object by the given orientation.

virtual double makVrf::DtVrfShapeManipulationHandler::initialArrowSize	(	bool	fixedWidthSizing,
		double	initialSize
	)		const

virtual

For a newly created object returns initial arrow size.

virtual void makVrf::DtVrfShapeManipulationHandler::setAllowHeadingChanges ( bool )

virtual

Sets whether or not heading changes are allowed via the mouse/keyboard. Default is false.

virtual void makVrf::DtVrfShapeManipulationHandler::setLength ( double )

virtual

Set fixed length of line from 0 to 1 point.

Reimplemented in makVrf::DtVrfBoxManipulationHandler.

virtual void makVrf::DtVrfShapeManipulationHandler::cancel ( )

virtual

Cancels any current work.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::centerOfMass ( ) const

virtual

Returns center of mass of all objects created (in geocentric)

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::updateOffsetsBasedOnMousePosition	(	const DtVector &	centerOfMass,
		const DtGeodeticCoord &	,
		bool	usImagePoints = `false`
	)

virtual

Reset objects based on new center.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::editSelectedObjects	(	const makVrv::DtUniqueID &	editId,
		makVrv::DtChannel &	initiatingChannel,
		double	waitTimeAfterComplete = `0.`,
		const makVrv::DtSelectionManager::IdSet &	editing = `makVrv::DtSelectionManager::IdSet()`
	)

virtual

Starts the process of object editing. Wait time after complete is how long to "wait" until showing hidden objects. This is to account for a bit of time taken to process result from back-end and prevent possible "jump" of object on move.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual bool makVrf::DtVrfShapeManipulationHandler::isObjectValidForCreation ( )

virtual

Check if current object is valid for creation. Always returns true but subclasses may have more specific validation.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual DtEnvironmentalFacadeCollection* makVrf::DtVrfShapeManipulationHandler::createFacadeInterface ( )

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::postCreateInitialize ( DtVrfObjectFacadeInterface * )

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfWeatherCircleManipulationHandler, makVrf::DtVrfCircleManipulationHandler, makVrf::DtVrfWeatherAreaManipulationHandler, makVrf::DtVrfWeatherBoxManipulationHandler, makVrf::DtVrfWindCorridorManipulationHandler, and makVrf::DtVrfAirTurbulenceManipulationHandler.

virtual bool makVrf::DtVrfShapeManipulationHandler::clampAtClosestPolygonOnPlacement ( ) const

protectedvirtual

Return true to keep the placement at closest polygon level regardless of height above terrain. Default is false.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfPersistentTrackSwitchHandler.

virtual double makVrf::DtVrfShapeManipulationHandler::defaultAltitudeOffsetFor ( DtVrfObjectFacadeInterface * i ) const

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::calculateAnchorBasedOnMousePosition ( makVrv::DtChannel & channel )

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onEditComplete	(	makVrv::DtUniqueID	id,
		const DtVector &	location,
		double	altAboveGround
	)

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfCircleManipulationHandler, and makVrf::DtVrfBoxManipulationHandler.

virtual void makVrf::DtVrfShapeManipulationHandler::initializeEventProcessor ( )

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::geometricCenter	(	DtVrfObjectFacadeInterface *	,
		const std::vector< DtVector > &	v
	)		const

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onPlace	(	makVrv::DtUniqueID	,
		const DtVector &	location,
		double	altAboveGround
	)

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfCircleManipulationHandler.

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onComplete ( bool stopCreating )

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::setFloorAltitude	(	DtEnvironmentalFacadeCollection *	env,
		const DtVector &	location,
		double	altAboveGround
	)

protectedvirtual

virtual double makVrf::DtVrfShapeManipulationHandler::defaultCeilingHeight ( ) const

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onCancel ( bool escPressed )

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onCancelOrComplete ( bool escPressed )

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onLocationChanged	(	const DtVector &	location,
		double	altAboveGround
	)

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::slot_onAltitudeChanged	(	const DtVector &	location,
		double	altitude
	)

protectedvirtual

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual DtVrfObjectFacadeInterface* makVrf::DtVrfShapeManipulationHandler::createLocalRepresentation ( DtVrlinkSimulatedBaseStateView * editStateView = 0 )

protectedvirtual

returns true if successful, false otherwise

Implements makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfWeatherCircleManipulationHandler, makVrf::DtVrfWeatherAreaManipulationHandler, makVrf::DtVrfWeatherBoxManipulationHandler, makVrf::DtVrfPersistentTrackSwitchHandler, makVrf::DtVrfWindCorridorManipulationHandler, and makVrf::DtVrfAirTurbulenceManipulationHandler.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::addControlPoint ( int index = -1 )

protectedvirtual

virtual DtVrfObjectFacadeInterface* makVrf::DtVrfShapeManipulationHandler::createLocalRepresentation	(	DtVrlinkSimulatedBaseStateView *	editStateView,
		makVrv::DtUniqueID	sceneObjectId,
		DtVrlinkSimulatedBaseStateView *	principalStateView
	)

protectedvirtual

Implements makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfWeatherCircleManipulationHandler, makVrf::DtVrfCircleManipulationHandler, makVrf::DtVrfBoxManipulationHandler, makVrf::DtVrfWeatherAreaManipulationHandler, makVrf::DtVrfPersistentTrackSwitchHandler, makVrf::DtVrfWeatherBoxManipulationHandler, makVrf::DtVrfWindCorridorManipulationHandler, and makVrf::DtVrfAirTurbulenceManipulationHandler.

virtual void makVrf::DtVrfShapeManipulationHandler::moveSelectedPoint	(	const DtVector &	location,
		double	altAboveGround
	)

protectedvirtual

Reimplemented in makVrf::DtVrfCircleManipulationHandler.

virtual bool makVrf::DtVrfShapeManipulationHandler::isArea ( const DtEntityType & type ) const

protectedvirtual

virtual bool makVrf::DtVrfShapeManipulationHandler::isRoute ( const DtEntityType & type ) const

protectedvirtual

virtual bool makVrf::DtVrfShapeManipulationHandler::isObstacle ( const DtEntityType & type ) const

protectedvirtual

virtual bool makVrf::DtVrfShapeManipulationHandler::isPhaseline ( const DtEntityType & type ) const

protectedvirtual

virtual DtEnvironmentalCreationData makVrf::DtVrfShapeManipulationHandler::environmentalCreationData	(	const std::string &	name,
		const DtEntityType &	,
		int	force
	)		const

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::updateLocationOffset	(	const DtVector &	local,
		DtEnvironmentalFacadeCollection *	env,
		int	pos
	)

protectedvirtual

virtual bool makVrf::DtVrfShapeManipulationHandler::modifyVrfObject ( DtVrfObjectFacadeInterface * objectImage )

protectedvirtual

Called for each object to be modified.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

Reimplemented in makVrf::DtVrfIndirectArtilleryManipulationHandler, and makVrf::DtVrfPersistentTrackSwitchHandler.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::setAltitudeToOrigin ( const DtVector & ) const

protectedvirtual

Sets the altitude of the supplied point (local) to the same altitude as the origin and returns that new point.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::rotatedPoint	(	const DtVector &	origin,
		double	x,
		double	heading,
		DtEnvironmentalFacadeCollection *	efc
	)		const

protectedvirtual

Attempts to rotate point until exact distance is retrieved.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::rotatePoint	(	const DtVector &	origin,
		double	x,
		double	heading,
		DtEnvironmentalFacadeCollection *	efc
	)		const

protectedvirtual

Rotate a point and just take the result regardless of the distance achieved after rotation (meaning actual straight line distance could be different in geocentric due to earch curvature)

virtual bool makVrf::DtVrfShapeManipulationHandler::alwaysRecalculateGeometry ( ) const

protectedvirtual

Reimplemented in makVrf::DtVrfCircleManipulationHandler.

virtual DtVector makVrf::DtVrfShapeManipulationHandler::rotatePointInternal	(	const DtVector &	origin,
		double	x,
		double	heading,
		DtEnvironmentalFacadeCollection *	efc
	)		const

protectedvirtual

virtual void makVrf::DtVrfShapeManipulationHandler::updateOffsetsBasedOnMousePosition ( )

protectedvirtual

Will go through all objects and update their current origins based on the mouse position.

Reimplemented from makVrf::DtVrfObjectManipulationHandlerBaseClass.

virtual void makVrf::DtVrfShapeManipulationHandler::setupImagePointsUsingImageOffset	(	DtEnvironmentalFacadeCollection *	,
		const std::vector< DtVector > &
	)

protectedvirtual

Reimplemented in makVrf::DtVrfCircleManipulationHandler, and makVrf::DtVrfBoxManipulationHandler.

Member Data Documentation

boost::signals2::signal<void (const DtVector&, int)> makVrf::DtVrfShapeManipulationHandler::signal_pointLocationChanged

boost::signals2::signal<void ()> makVrf::DtVrfShapeManipulationHandler::signal_pointSamplingRateChanged

boost::signals2::signal<void (double)> makVrf::DtVrfShapeManipulationHandler::signal_floorChanged

boost::signals2::signal<void (double)> makVrf::DtVrfShapeManipulationHandler::signal_ceilingChanged

boost::signals2::signal<void (const std::vector<DtVector>&)> makVrf::DtVrfShapeManipulationHandler::signal_locationsChanged

boost::signals2::signal<void ()> makVrf::DtVrfShapeManipulationHandler::signal_refreshLocation

int makVrf::DtVrfShapeManipulationHandler::myMaxVertices

protected

int makVrf::DtVrfShapeManipulationHandler::myMinVertices

protected

DtGeodeticCoord makVrf::DtVrfShapeManipulationHandler::myLastPosition

protected

bool makVrf::DtVrfShapeManipulationHandler::myRecentered

protected

DtVector makVrf::DtVrfShapeManipulationHandler::myRecenteredPos

protected

int makVrf::DtVrfShapeManipulationHandler::myPointSamplingRate

protected

bool makVrf::DtVrfShapeManipulationHandler::myShapeVerticesDisabled

protected

DtVector makVrf::DtVrfShapeManipulationHandler::myLastMouseLocation

protected

double makVrf::DtVrfShapeManipulationHandler::myLastAltAboveGround

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrfGuiCore/vrfShapeManipulationHandler.h

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
