makVrv::DtIntervisibilitySettingsWidget Class Reference

This class will allow users to modify intervisibility settings.

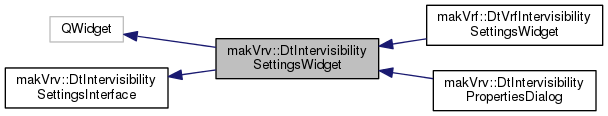

Inheritance diagram for makVrv::DtIntervisibilitySettingsWidget:

Public Member Functions
	DtIntervisibilitySettingsWidget (DtDe &de, QWidget *parent, Qt::WindowFlags f=Qt::Widget)
virtual	~DtIntervisibilitySettingsWidget ()
virtual void	cancel ()
Field value setters.
Sets the values of the widget's corresponding fields.
virtual void	setIntervisibilityEnabled (bool)
virtual void	setLeftClickMakesObjectsPermanent (bool)
virtual void	setIntervisibilityElevationDecimals (int decimals)
virtual void	setOriginIntervisibilityElevation (double)
virtual void	setOriginIntervisibilityElevationLabel (const DtUnicode &label)
virtual void	setEndPointIntervisibilityElevation (double)
virtual void	setEndPointIntervisibilityElevationLabel (const DtUnicode &label)
virtual void	setFanModeSamplingRate (double)
virtual void	setFanModeSamplingRateMin (double)
virtual void	setFanModeSamplingRateMax (double)
virtual void	setFanModeSamplingRatePrecision (int decimals)
virtual void	setFanModeSamplingRateUnitLabel (const DtUnicode &label)
virtual void	setEntityFanUpdateRate (double)
virtual void	setVisibleColor (const QColor &)
virtual void	setBlockedColor (const QColor &)
virtual void	setCircleColor (const QColor &)
virtual void	setHatLinesEnabled (bool)
virtual void	setHatLinesOnSelectionOnly (bool)
virtual void	setEntityFanUpdateRateEnabled (bool)
virtual void	setFanModeSamplingRateEnabled (bool)
virtual void	setCircleColorEnabled (bool)
virtual void	setLeftClickMakesObjectsPermanentEnabled (bool)
Public Member Functions inherited from makVrv::DtIntervisibilitySettingsInterface
virtual	~DtIntervisibilitySettingsInterface ()

Protected Slots
User input slots.
Receives notification that the user has changed a widget's value.
virtual void	onIntervisibilityEnabledChanged ()
virtual void	onLeftClickMakesObjectsPermanentChanged ()
virtual void	onOriginIntervisibilityElevationChanged (double)
virtual void	onEndPointIntervisibilityElevationChanged (double)
virtual void	onFanModeSamplingRateChanged (double)
virtual void	onEntityFanUpdateRateChanged (double)
virtual void	onChangeVisibleColor ()
virtual void	onChangeBlockedColor ()
virtual void	onChangeCircleColor ()
virtual void	onHatLinesEnabledChanged ()
virtual void	onHatLinesOnSelectionOnlyChanged ()

Protected Member Functions
void	setupGui ()
void	connectToSignals ()

Protected Attributes
QVBoxLayout *	myMainLayout
QCheckBox *	myEnabledCheckBox
QCheckBox *	myLeftClickMakesObjectsPermanent
QCheckBox *	myHatLinesEnabled
QCheckBox *	myHatLinesOnSelectionOnly
QLabel *	myOriginIntervisibilityElevationLabel
QDoubleSpinBox *	myOriginIntervisibilityElevation
QLabel *	myEndPointIntervisibilityElevationLabel
QDoubleSpinBox *	myEndPointIntervisibilityElevation
QLabel *	myFanModeSamplingRateLabel
QDoubleSpinBox *	myFanModeSamplingRate
QLabel *	myEntityFanUpdateRateLabel
QDoubleSpinBox *	myEntityFanUpdateRate
QLabel *	myVisibleColorLabel
QPushButton *	myVisibleColorButton
QColor	myVisibleColor
QLabel *	myBlockedColorLabel
QPushButton *	myBlockedColorButton
QColor	myBlockedColor
QLabel *	myCircleColorLabel
QPushButton *	myCircleColorButton
QColor	myCircleColor
DtDe &	myDe

Additional Inherited Members
Public Attributes inherited from makVrv::DtIntervisibilitySettingsInterface
boost::signalslib::signal < void(bool)>	signal_intervisibilityEnabledChanged
boost::signalslib::signal < void(bool)>	signal_leftClickMakesObjectsPermanentChanged
boost::signalslib::signal < void(double)>	signal_originIntervisibilityElevationChanged
boost::signalslib::signal < void(double)>	signal_endPointIntervisibilityElevationChanged
boost::signalslib::signal < void(double)>	signal_fanModeSamplingRateChanged
boost::signalslib::signal < void(double)>	signal_entityFanUpdateRateChanged
boost::signalslib::signal < void(QColor)>	signal_visibleColorChanged
boost::signalslib::signal < void(QColor)>	signal_blockedColorChanged
boost::signalslib::signal < void(QColor)>	signal_circleColorChanged
boost::signalslib::signal < void(bool)>	signal_hatLinesEnabledChanged
boost::signalslib::signal < void(bool)>	signal_hatLinesOnSelectionOnlyChanged

Constructor & Destructor Documentation

makVrv::DtIntervisibilitySettingsWidget::DtIntervisibilitySettingsWidget	(	DtDe &	de,
		QWidget *	parent,
		Qt::WindowFlags	f = Qt::Widget
	)

CTOR.

virtual makVrv::DtIntervisibilitySettingsWidget::~DtIntervisibilitySettingsWidget ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void makVrv::DtIntervisibilitySettingsWidget::setIntervisibilityEnabled ( bool  )

virtual

Globally enables or disables intervisibity elements. When disabled, exisiting elements are hidden, and no new ones may be created.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setLeftClickMakesObjectsPermanent ( bool  )

virtual

When left click is pressed, the object will stay, else a new one will be created at the left click spot, removing the old one.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setIntervisibilityElevationDecimals ( int  decimals )

virtual

Sets the precision used in the elevation fields.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setOriginIntervisibilityElevation ( double  )

virtual

Sets the distance above the origin to place the intervisibility line.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setOriginIntervisibilityElevationLabel ( const DtUnicode &  label )

virtual

Sets the label indicating the origin's elevation units.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setEndPointIntervisibilityElevation ( double  )

virtual

Sets the distance above the end point to place the intervisibility line.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setEndPointIntervisibilityElevationLabel ( const DtUnicode &  label )

virtual

Sets the label indicating the endpoint's elevation units.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setFanModeSamplingRate ( double  )

virtual

Sets the fan mode sampling rate (in the appropriate unit).

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setFanModeSamplingRateMin ( double  )

virtual

Sets the fan mode min sampling rate (in the appropriate unit).

Implements makVrv::DtIntervisibilitySettingsInterface.

Reimplemented in makVrf::DtVrfIntervisibilitySettingsWidget.

virtual void makVrv::DtIntervisibilitySettingsWidget::setFanModeSamplingRateMax ( double  )

virtual

Sets the fan mode max sampling rate (in the appropriate unit).

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setFanModeSamplingRatePrecision ( int  decimals )

virtual

Sets the fan mode sampling rate precision.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setFanModeSamplingRateUnitLabel ( const DtUnicode &  label )

virtual

Sets the fan mode sampling rate unit label.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setEntityFanUpdateRate ( double  )

virtual

Sets the entity fan mode update rate. Zero (0) default means check as fast as possible. Value is in seconds.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setVisibleColor ( const QColor &  )

virtual

Sets the visible color.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setBlockedColor ( const QColor &  )

virtual

Sets the blocked color.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setCircleColor ( const QColor &  )

virtual

Sets the circle color.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setHatLinesEnabled ( bool  )

virtual

Sets height above terrain lines enabled.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setHatLinesOnSelectionOnly ( bool  )

virtual

Set to show height above terrain lines only when the object is selected.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setEntityFanUpdateRateEnabled ( bool  )

virtual

Shows/hides entity fan upate rate.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setFanModeSamplingRateEnabled ( bool  )

virtual

Shows/hides fan mode sampling rate.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setCircleColorEnabled ( bool  )

virtual

Shows/hides circle color.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::setLeftClickMakesObjectsPermanentEnabled ( bool  )

virtual

Shows/hides left click permanent.

Implements makVrv::DtIntervisibilitySettingsInterface.

virtual void makVrv::DtIntervisibilitySettingsWidget::cancel ( )

virtual

Cancels page. Default behavior is no-op.

Implements makVrv::DtIntervisibilitySettingsInterface.

Reimplemented in makVrv::DtIntervisibilityPropertiesDialog.

void makVrv::DtIntervisibilitySettingsWidget::setupGui ( )

protected

Initialize the widget's fields and widgets. Non-virtual (Called from CTOR).

void makVrv::DtIntervisibilitySettingsWidget::connectToSignals ( )

protected

Connect to signals from the widgets. Non-virtual (Called from CTOR).

virtual void makVrv::DtIntervisibilitySettingsWidget::onIntervisibilityEnabledChanged ( )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onLeftClickMakesObjectsPermanentChanged ( )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onOriginIntervisibilityElevationChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onEndPointIntervisibilityElevationChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onFanModeSamplingRateChanged ( double  )

protectedvirtualslot

Reimplemented in makVrf::DtVrfIntervisibilitySettingsWidget.

virtual void makVrv::DtIntervisibilitySettingsWidget::onEntityFanUpdateRateChanged ( double  )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onChangeVisibleColor ( )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onChangeBlockedColor ( )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onChangeCircleColor ( )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onHatLinesEnabledChanged ( )

protectedvirtualslot

virtual void makVrv::DtIntervisibilitySettingsWidget::onHatLinesOnSelectionOnlyChanged ( )

protectedvirtualslot

Member Data Documentation

QVBoxLayout* makVrv::DtIntervisibilitySettingsWidget::myMainLayout

protected

QCheckBox* makVrv::DtIntervisibilitySettingsWidget::myEnabledCheckBox

protected

QCheckBox* makVrv::DtIntervisibilitySettingsWidget::myLeftClickMakesObjectsPermanent

protected

QCheckBox* makVrv::DtIntervisibilitySettingsWidget::myHatLinesEnabled

protected

QCheckBox* makVrv::DtIntervisibilitySettingsWidget::myHatLinesOnSelectionOnly

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myOriginIntervisibilityElevationLabel

protected

QDoubleSpinBox* makVrv::DtIntervisibilitySettingsWidget::myOriginIntervisibilityElevation

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myEndPointIntervisibilityElevationLabel

protected

QDoubleSpinBox* makVrv::DtIntervisibilitySettingsWidget::myEndPointIntervisibilityElevation

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myFanModeSamplingRateLabel

protected

QDoubleSpinBox* makVrv::DtIntervisibilitySettingsWidget::myFanModeSamplingRate

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myEntityFanUpdateRateLabel

protected

QDoubleSpinBox* makVrv::DtIntervisibilitySettingsWidget::myEntityFanUpdateRate

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myVisibleColorLabel

protected

QPushButton* makVrv::DtIntervisibilitySettingsWidget::myVisibleColorButton

protected

QColor makVrv::DtIntervisibilitySettingsWidget::myVisibleColor

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myBlockedColorLabel

protected

QPushButton* makVrv::DtIntervisibilitySettingsWidget::myBlockedColorButton

protected

QColor makVrv::DtIntervisibilitySettingsWidget::myBlockedColor

protected

QLabel* makVrv::DtIntervisibilitySettingsWidget::myCircleColorLabel

protected

QPushButton* makVrv::DtIntervisibilitySettingsWidget::myCircleColorButton

protected

QColor makVrv::DtIntervisibilitySettingsWidget::myCircleColor

protected

DtDe& makVrv::DtIntervisibilitySettingsWidget::myDe

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCoreQt/DtIntervisibilitySettingsWidget.h
