A configuration of a menu layout. A menu configuration manages an ordered collection of menu paths that make up a menu. A menu configuration is used by the VR-Vantage's menu assembler to create the actual GUI elements for the menu.

The order the collection of menu paths follow depend on each menu paths' sort flags (see DtMenuConfiguration::MenuSortFlags). The sort flags for any menu item paths are ignored. If a menu path's sort flags has the NoSort flag enabled, then the menu path's children menus and menu items keep the order specified in the menu configuration. If a menu path's sort flags has its NoSort flag disabled and has any of the Sort[AllAphabetically|WithinSubmenus|BetweenSeparators|BetweenSubmenus] flags enabled, then the menu path's children menu items are not guaranteed to keep the order specified in the menu configuration. Additionally, the children menu items are sorted by their display string - defined within the C++ implementation of the child menu or menu item.

See Also: DtMenuAssembler; DtQtMenuAssembler; DtMenuPath

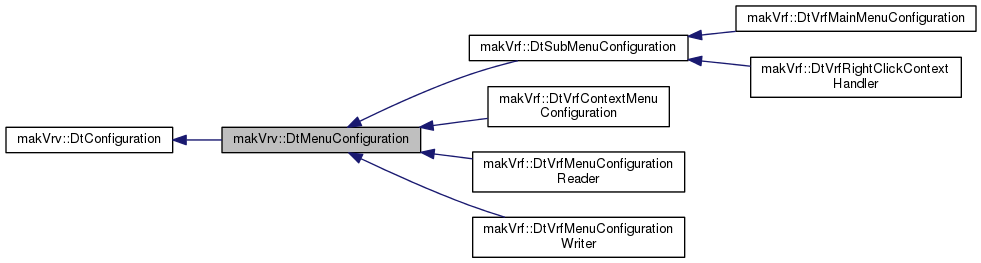

Inheritance diagram for makVrv::DtMenuConfiguration:

[legend]

Classes
struct	OrderParameters

Public Types
enum	MenuSortFlags { NoSort = 0x00000000, SortAllAlphabetically = 0x00000001, SortWithinSubmenus = 0x00000002, SortBetweenSeparators = 0x00000004, SortBetweenSubMenus = 0x00000010 }

typedef std::list< DtMenuPath >	MenuPathList

typedef std::set< DtMenuPath >	MenuPathSet

Public Types inherited from makVrv::DtConfiguration
typedef std::map< std::string, std::string >	ParameterMap

Public Member Functions
	DtMenuConfiguration ()

virtual	~DtMenuConfiguration ()

void	addMenuPath (const DtMenuPath &, const MenuSortFlags &sortFlagsIfMenu=(MenuSortFlags)(SortAllAlphabetically\|SortWithinSubmenus\|SortBetweenSeparators))

void	addMenuPathAfter (const DtMenuPath &newPath, const DtMenuPath &relativeTo, const MenuSortFlags &sortFlagsIfMenu=(MenuSortFlags)(SortAllAlphabetically\|SortWithinSubmenus\|SortBetweenSeparators))

void	addMenuPathBefore (const DtMenuPath &newPath, const DtMenuPath &relativeTo, const MenuSortFlags &sortFlagsIfMenu=(MenuSortFlags)(SortAllAlphabetically\|SortWithinSubmenus\|SortBetweenSeparators))

void	addConfiguration (const DtMenuConfiguration &subConfiguration)

void	removeMenuPath (const DtMenuPath &)

void	getRootPaths (MenuPathList &children) const

void	getChildren (const DtMenuPath &path, MenuPathList &children) const

void	sortChildren (MenuPathList &children) const

DtMenuConfiguration &	operator= (const DtMenuConfiguration &rhs)

void	merge (const DtMenuConfiguration &rhs)

bool	hasMenuPath (const DtMenuPath &p) const

bool	menuSortFlags (const DtMenuPath &p, MenuSortFlags &flags) const

Public Member Functions inherited from makVrv::DtConfiguration
	DtConfiguration (const std::string &name="")

	DtConfiguration (const DtConfiguration &)

DtConfiguration &	operator= (const DtConfiguration &)

virtual	~DtConfiguration ()

virtual const std::string &	name () const

virtual void	setName (const std::string &name)

virtual const std::string *	findOptionalParameter (const std::string &name) const

virtual void	setOptionalParameter (const std::string &name, const std::string &value)

virtual void	setOptionalParameters (const ParameterMap &)

virtual void	removeOptionalParameter (const std::string &name)

const ParameterMap &	optionalParameters () const

Protected Types
typedef std::map< DtMenuPath, OrderParameters >	MenuPathOrderMap

typedef std::map< DtMenuPath, MenuSortFlags >	MenuPathSortFlagsMap

Protected Member Functions
int	getNewWeight ()

void	addMenuPath (const DtMenuPath &, int weight)

bool	sortAbsolute (const DtMenuPath &a, const DtMenuPath &b) const

Protected Member Functions inherited from makVrv::DtConfiguration
template<class Archive >
void	_serialize (Archive &ar, const unsigned int version)

Protected Attributes
MenuPathSet	myMenuPaths

MenuPathOrderMap	myMenuOrder

MenuPathSortFlagsMap	myMenuSortFlags

int	myCurrentWeight

Protected Attributes inherited from makVrv::DtConfiguration
std::string	myName

ParameterMap	myOptionalParameters

DtProxyWP	myAttachedInterface

Member Typedef Documentation

typedef std::list<DtMenuPath> makVrv::DtMenuConfiguration::MenuPathList

typedef std::set<DtMenuPath> makVrv::DtMenuConfiguration::MenuPathSet

typedef std::map<DtMenuPath,OrderParameters> makVrv::DtMenuConfiguration::MenuPathOrderMap

protected

typedef std::map<DtMenuPath, MenuSortFlags> makVrv::DtMenuConfiguration::MenuPathSortFlagsMap

protected

Member Enumeration Documentation

enum makVrv::DtMenuConfiguration::MenuSortFlags

The SortAllAlphabetically, SortWithinSubmenus, SortBetweenSeparators, and SortBetweenSubMenus flags can be ORed together to get a combination of their behavior.

Enumerator
NoSort
SortAllAlphabetically
SortWithinSubmenus
SortBetweenSeparators
SortBetweenSubMenus

Constructor & Destructor Documentation

makVrv::DtMenuConfiguration::DtMenuConfiguration ( )

CTOR.

virtual makVrv::DtMenuConfiguration::~DtMenuConfiguration ( )

virtual

DTOR.

Member Function Documentation

void makVrv::DtMenuConfiguration::addMenuPath	(	const DtMenuPath &	,
		const MenuSortFlags &	sortFlagsIfMenu = `(MenuSortFlags)(SortAllAlphabetically\|SortWithinSubmenus\|SortBetweenSeparators)`
	)

Adds the menu path (as well as its entire family).

void makVrv::DtMenuConfiguration::addMenuPathAfter	(	const DtMenuPath &	newPath,
		const DtMenuPath &	relativeTo,
		const MenuSortFlags &	sortFlagsIfMenu = `(MenuSortFlags)(SortAllAlphabetically\|SortWithinSubmenus\|SortBetweenSeparators)`
	)

Adds the menu path after a relative (they must share the same parent).

void makVrv::DtMenuConfiguration::addMenuPathBefore	(	const DtMenuPath &	newPath,
		const DtMenuPath &	relativeTo,
		const MenuSortFlags &	sortFlagsIfMenu = `(MenuSortFlags)(SortAllAlphabetically\|SortWithinSubmenus\|SortBetweenSeparators)`
	)

Adds the menu path before a relative (they must share the same parent).

void makVrv::DtMenuConfiguration::addConfiguration ( const DtMenuConfiguration & subConfiguration )

Merges from an external configurations into this configuration.

void makVrv::DtMenuConfiguration::removeMenuPath ( const DtMenuPath & )

Remove the menu path from this menu configuration.

void makVrv::DtMenuConfiguration::getRootPaths ( MenuPathList & children ) const

Get all paths which have no parents (aka top level paths).

void makVrv::DtMenuConfiguration::getChildren	(	const DtMenuPath &	path,
		MenuPathList &	children
	)		const

Get a list of children (first generation only) for a given path./ An absolute path must be given./.

If there are these three menu items:
  File\
  File\Open\
  File\Open\Terrain
  And you call getChildren("File\",children).
  children will only contain 'File\Open'.

void makVrv::DtMenuConfiguration::sortChildren ( MenuPathList & children ) const

Sort the list of children.

DtMenuConfiguration& makVrv::DtMenuConfiguration::operator= ( const DtMenuConfiguration & rhs )

inline

References myCurrentWeight, myMenuOrder, myMenuPaths, and myMenuSortFlags.

Referenced by makVrf::DtSubMenuConfiguration::operator=().

void makVrv::DtMenuConfiguration::merge ( const DtMenuConfiguration & rhs )

Merges in contents of supplied configuration, adding new paths. Order will get added at the end.

bool makVrv::DtMenuConfiguration::hasMenuPath ( const DtMenuPath & p ) const

Returns true if the menu configuration has the provided menu path.

bool makVrv::DtMenuConfiguration::menuSortFlags	(	const DtMenuPath &	p,
		MenuSortFlags &	flags
	)		const

Returns the sort flags for the provided menu path.

int makVrv::DtMenuConfiguration::getNewWeight ( )

protected

Get new weight.

void makVrv::DtMenuConfiguration::addMenuPath	(	const DtMenuPath &	,
		int	weight
	)

protected

bool makVrv::DtMenuConfiguration::sortAbsolute	(	const DtMenuPath &	a,
		const DtMenuPath &	b
	)		const

protected

Member Data Documentation

MenuPathSet makVrv::DtMenuConfiguration::myMenuPaths

protected

Referenced by operator=().

MenuPathOrderMap makVrv::DtMenuConfiguration::myMenuOrder

protected

Referenced by operator=().

MenuPathSortFlagsMap makVrv::DtMenuConfiguration::myMenuSortFlags

protected

Referenced by operator=().

int makVrv::DtMenuConfiguration::myCurrentWeight

protected

Referenced by operator=().

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtMenuConfiguration.h
