makVrv::DtOculusSettingsManager Class Reference

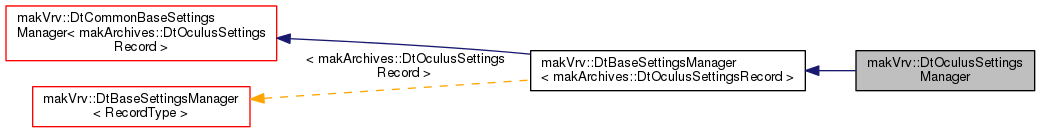

Inheritance diagram for makVrv::DtOculusSettingsManager:

Public Member Functions
virtual	~DtOculusSettingsManager ()
Setting Getters/Setters
Returns view that is being mirrorored. 0 = disabled, 1=undistorted mirror, 2=distorted mirror
int	mirroring () const
void	setMirroring (int view)
bool	isMonoscopic () const
void	setMonoscopic (bool enabled)
void	setPixelsPerDisplayPixel (float pixels)
float	getPixelsPerDisplayPixel () const
Setting persistence methods.
Use the settings from the given settings record.
void	setFromRecord (const makArchives::DtOculusSettingsRecord &rec)
void	getRecord (makArchives::DtOculusSettingsRecord &rec) const
Public Member Functions inherited from makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >
	DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
virtual	~DtBaseSettingsManager ()
virtual void	initializeBackup ()
virtual bool	applyFactoryOverrides (makArchives::DtOculusSettingsRecord &record) const =0
virtual bool	getOverriddenFactoryRecord (makArchives::DtOculusSettingsRecord &record) const
Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtOculusSettingsRecord >
	DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
virtual	~DtCommonBaseSettingsManager ()
virtual void	autoSaveIfNecessary ()
virtual void	setAutoSave (bool doit)
virtual bool	autoSave () const
virtual void	setUseDefaultSettingsRecord (bool useit)
virtual bool	useDefaultSettingsRecord () const
virtual DtDeSettings *	settings ()
virtual const DtDeSettings *	settings () const
virtual DtSettingsBackup *	settingsBackup ()
virtual const DtSettingsBackup *	settingsBackup () const
virtual void	loadDefaults ()
virtual void	saveDefaultSettings ()
virtual void	loadDefaultSettings (bool loadOnlyFactorySettings)
virtual void	importSettings (const std::string &filePath)
virtual void	exportSettings (const std::string &filePath) const
virtual void	getSplitRecord (std::vector< makArchives::DtOculusSettingsRecord > &rec, std::vector< std::string > &fileNames)
virtual void	addRecords (makArchives::DtOculusSettingsRecord &rec, makArchives::DtOculusSettingsRecord &combinedRec)
Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
virtual	~DtVirtualBaseClass ()

Static Public Member Functions
static DtOculusSettingsManager &	instance (DtDe &de)

Public Attributes
Boost signals for changed settings
boost::signal< void(int)>	signal_mirroringSet
boost::signal< void(bool)>	signal_monoscopicSet
boost::signal< void(float)>	signal_pixelsPerDisplayPixelSet

Protected Member Functions
	DtOculusSettingsManager (DtDe &)

Protected Attributes
makArchives::DtOculusSettingsRecord	mySettingsRecord
Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtOculusSettingsRecord >
DtSignalConnectionManager	myConnections
std::string	myName
std::string	myExtension
std::string	myDisplayName
bool	myUseDefaultSettingsRecordFlag
bool	myAutoSaveFlag
DtSettingsBackup *	mySettingsBackup
DtDe &	myDe

Friends
template<typename ManagerClass >
ManagerClass &	defaultManagerInstanceFunction (DtDe &, bool)
template<typename ManagerClass >
void	defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)

Additional Inherited Members
Protected Types inherited from makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >
typedef DtRecordSettingsBackup < DtBaseSettingsManager < makArchives::DtOculusSettingsRecord > , makArchives::DtOculusSettingsRecord >	RecordBackupType

Constructor & Destructor Documentation

virtual makVrv::DtOculusSettingsManager::~DtOculusSettingsManager ( )

virtual

DTOR.

makVrv::DtOculusSettingsManager::DtOculusSettingsManager ( DtDe &  )

protected

Protected CTOR ( use instance(..) )

Member Function Documentation

static DtOculusSettingsManager& makVrv::DtOculusSettingsManager::instance ( DtDe &  de )

static

Get an instance of the settings manager.

int makVrv::DtOculusSettingsManager::mirroring

(

)

const

Set mirroring enabled.

void makVrv::DtOculusSettingsManager::setMirroring

(

int

view

)

Set mirroring enabled.

bool makVrv::DtOculusSettingsManager::isMonoscopic

(

)

const

Returns true if monoscopic mode is enabled.

void makVrv::DtOculusSettingsManager::setMonoscopic

(

bool

enabled

)

Set monoscopic mode enabled.

void makVrv::DtOculusSettingsManager::setPixelsPerDisplayPixel

(

float

pixels

)

Sets pixels per display pixel.

float makVrv::DtOculusSettingsManager::getPixelsPerDisplayPixel

(

)

const

Gets pixels per display pixel.

void makVrv::DtOculusSettingsManager::setFromRecord ( const makArchives::DtOculusSettingsRecord &  rec )

virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >.

void makVrv::DtOculusSettingsManager::getRecord ( makArchives::DtOculusSettingsRecord &  rec ) const

virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtOculusSettingsRecord >.

Friends And Related Function Documentation

template<typename ManagerClass >

ManagerClass& defaultManagerInstanceFunction ( DtDe &  de, bool  allowedInSlave  )

friend

Befriend the manager instance functions for instance retrieval / creation.

Befriend the manager instance functions for instance retrieval and creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

class Manager
{
public:
   static Manager& instance(DtDe& de);
   void loadDefaults();
protected:
   template <typename ManagerClass>
   friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
   template <typename ManagerClass>
   friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
   Manager(DtDe&);
   DtSignalConnectionManager myConnections;
};

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

Manager& Manager::instance(DtDe& de)
{
   return defaultManagerInstanceFunction<Manager>(de);
}

template<typename ManagerClass >

void defaultManagerRegisterInstanceFunction ( DtDe &  de, ManagerClass *  mgr  )

friend

Befriend the manager instance functions for instance retrieval / creation.

Befriend the manager instance functions for instance retrieval and creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

static void Manager::registerInstance(DtDe& de, Manager* mgr)
{
   defaultManagerRegisterInstanceFunction(de,mgr);
}
...else where call.
// Assuming class NewManager : public Manager
Manager::registerInstance(de,new NewManager(de));

Member Data Documentation

boost::signal<void (int)> makVrv::DtOculusSettingsManager::signal_mirroringSet

boost::signal<void (bool)> makVrv::DtOculusSettingsManager::signal_monoscopicSet

boost::signal<void (float)> makVrv::DtOculusSettingsManager::signal_pixelsPerDisplayPixelSet

makArchives::DtOculusSettingsRecord makVrv::DtOculusSettingsManager::mySettingsRecord

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvOculusChannelPlugin/DtOculusSettingsManager.h
