An abstract interface for a polygon primitive.

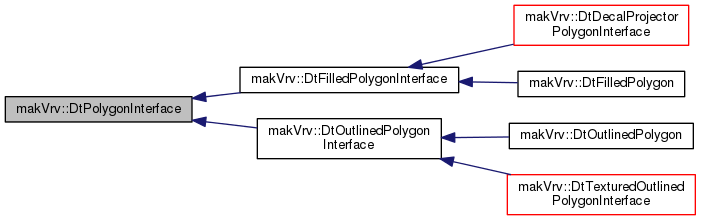

Inheritance diagram for makVrv::DtPolygonInterface:

Public Member Functions
	DtPolygonInterface ()=default

	DtPolygonInterface (DtPolygonInterface &)=delete

	DtPolygonInterface (DtPolygonInterface &&)=delete

DtPolygonInterface &	operator= (DtPolygonInterface &)=delete

DtPolygonInterface &	operator= (DtPolygonInterface &&)=delete

virtual	~DtPolygonInterface ()

virtual void	setVertexCount (unsigned int vertexCount)=0

virtual unsigned int	vertexCount () const =0

virtual void	set2DPositions (const std::vector< float > &vertices)=0

virtual void	set2DPosition (unsigned int index, float x, float y)=0

virtual void	get2DPosition (unsigned int index, float &x, float &y) const =0

virtual void	set3DPosition (unsigned int index, float x, float y, float z, float w)=0

virtual void	get3DPosition (unsigned int index, float &x, float &y, float &z, float &w) const =0

virtual void	set3DDirectionAndLength (unsigned int index, float x, float y, float z, float l)=0

virtual void	setStipple (unsigned int stipplePattern)=0

virtual void	setVertexColor (unsigned int index, float r, float g, float b, float a)=0

virtual void	getVertexColor (unsigned int index, float &r, float &g, float &b, float &a)=0

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	getColor (float &r, float &g, float &b, float &a) const =0

virtual void	setEventsEnabled (bool b, unsigned long long userData=0)=0

virtual int	group () const =0

virtual void	setGroup (int)=0

virtual void	triangulationComplete (bool crossingLines)

Constructor & Destructor Documentation

makVrv::DtPolygonInterface::DtPolygonInterface ( )

default

Default CTOR.

makVrv::DtPolygonInterface::DtPolygonInterface ( DtPolygonInterface & )

delete

Copy CTOR - Not Allowed.

makVrv::DtPolygonInterface::DtPolygonInterface ( DtPolygonInterface && )

delete

Move CTOR - Not Allowed.

virtual makVrv::DtPolygonInterface::~DtPolygonInterface ( )

virtual

Virtual DTOR.

Member Function Documentation

DtPolygonInterface& makVrv::DtPolygonInterface::operator= ( DtPolygonInterface & )

delete

Copy Assignment Operator - Not Allowed.

DtPolygonInterface& makVrv::DtPolygonInterface::operator= ( DtPolygonInterface && )

delete

Move Assignment Operator - Not Allowed.

virtual void makVrv::DtPolygonInterface::setVertexCount ( unsigned int vertexCount )

pure virtual

Set the vertex count for the polygon Set the number of vertices, any newly created vertices will be black and at 0,0,0 so setColor/setPosition may be necessary.

Parameters

the	new vertex count

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual unsigned int makVrv::DtPolygonInterface::vertexCount ( ) const

pure virtual

Get the vertex count.

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::set2DPositions ( const std::vector< float > & vertices )

pure virtual

Sets all 2d polygon vertex positions Vertices must be given as x,y encoded pairs.

Parameters

vertices vector of floats containing the vertex positions

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::set2DPosition	(	unsigned int	index,
		float	x,
		float	y
	)

pure virtual

Sets the position of the given 2d polygon vertex NOTE: it is much more efficient to update all vertices using setPositions if several change.

Parameters

vertexIndex	the index of the vertex to reposition
x	the x component of the position
y	the y component of the position

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::get2DPosition	(	unsigned int	index,
		float &	x,
		float &	y
	)		const

pure virtual

Gets the position of the given 2d polygon vertex.

Parameters

x	x component of the position
y	y component of the position

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::set3DPosition	(	unsigned int	index,
		float	x,
		float	y,
		float	z,
		float	w
	)

pure virtual

Sets the position of the given 3d polygon vertex.

Parameters

index	the index of the vertex to reposition
x	the x component of the position
y	the y component of the position
z	the z component of the position
w	the w component of the position

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::get3DPosition	(	unsigned int	index,
		float &	x,
		float &	y,
		float &	z,
		float &	w
	)		const

pure virtual

Gets the position of the given 3d polygon vertex.

Parameters

index	the index of the vertex to get the position of
x	x component of the position
y	y component of the position
z	z component of the position
w	w component of the position

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::set3DDirectionAndLength	(	unsigned int	index,
		float	x,
		float	y,
		float	z,
		float	l
	)

pure virtual

Sets an optional 3D direction with a 2D length value for a vertex.

Parameters

index	the index of the vertex to get the position of
x	x component of the position
y	y component of the position
z	z component of the position
l	l length of the vector offset in 2D.

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::setStipple ( unsigned int stipplePattern )

pure virtual

Set the stipple pattern This pattern is used as a bitmask against the pixels of the polygon The default value is 0xFFFFFFFF, which is equivalent to no stippling.

Parameters

stipplePattern the pattern to use for stippling

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::setVertexColor	(	unsigned int	index,
		float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of a specific vertex.

Parameters

index	the vertex index to set the color of
r	the r component of the color to set
g	the g component of the color to set
b	the b component of the color to set
a	the a component of the color to set

Implemented in makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygonInterface, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::getVertexColor	(	unsigned int	index,
		float &	r,
		float &	g,
		float &	b,
		float &	a
	)

pure virtual

Gets the color of the requested vertex.

Parameters

index	the index of the vertex to get the color of
r	the r component of the color to set
g	the g component of the color to set
b	the b component of the color to set
a	the a component of the color to set

Implemented in makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygonInterface, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Sets the color of the polygon.

Parameters

r	the r component of the color to set
g	the g component of the color to set
b	the b component of the color to set
a	the a component of the color to set

Implemented in makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygonInterface, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::getColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

pure virtual

Gets a color representative of the polygon's color.

Parameters

r	r component of the color
g	g component of the color
b	b component of the color
a	a component of the color

Implemented in makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygonInterface, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::setEventsEnabled	(	bool	b,
		unsigned long long	userData = `0`
	)

pure virtual

Sets whether or not mouse events are enabled for this polygon, and, the user data for it.

Implemented in makVrv::DtFilledPolygonInterface, makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual int makVrv::DtPolygonInterface::group ( ) const

pure virtual

Returns the group that the polygon is on (for Z-Ordering)

Implemented in makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygonInterface, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::setGroup ( int )

pure virtual

Sets the group the polygon is on (for Z-Ordering)

Implemented in makVrv::DtDecalProjectorPolygon, makVrv::DtFilledPolygonInterface, makVrv::DtFilledPolygon, makVrv::DtOutlinedPolygon, makVrv::DtTexturedOutlinedPolygon, and makVrv::DtOutlinedPolygonInterface.

virtual void makVrv::DtPolygonInterface::triangulationComplete ( bool crossingLines )

virtual

This is call when a polygon's triangulation is complete. Derived classes are not required to do anything in this case.

Parameters

crossingLines True if triangulation had crossing lines.

Reimplemented in makVrv::DtDecalProjectorPolygon.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtPolygonInterface.h
