Distributed model for drawing polygons with attached vertices.

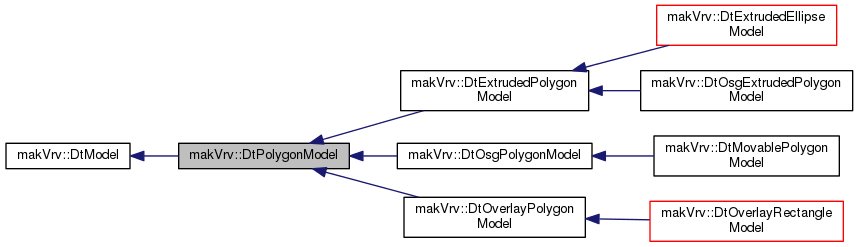

Inheritance diagram for makVrv::DtPolygonModel:

Public Member Functions
	DtPolygonModel (DtDe &de, DtUniqueID id)

virtual	~DtPolygonModel ()

virtual void	addPoint (const DtVector &point, int index)=0

virtual void	setPickable (bool enabled)=0

virtual void	removePoint (int index)=0

virtual int	pointCount () const =0

virtual DtVector	point (int) const =0

virtual void	setPoint (int index, const DtVector &)=0

virtual void	setOrigin (const DtVector &)=0

virtual void	setStipplePattern (unsigned int stipplePattern)=0

virtual void	setWidth (float width)=0

virtual void	setTexturePath (const std::string &texturePath)=0

virtual void	setNumTextureTiles (double numTiles)=0

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setFill (bool)

virtual const std::vector < DtVector > &	points () const =0

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)

virtual	~DtModel ()

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)

virtual void	setModelDefinition (const std::string &str)

virtual const std::string &	modelDefinitionName ()

virtual void	saveModelToFile (const std::string &filename)

virtual const std::string &	className () const

virtual DtUniqueID	uniqueId () const

unsigned int	transformSize () const

virtual void	setPosition (int vtx, const DtVector &position)

virtual const DtVector &	position (int vtx=0) const

virtual void	removePosition (int vtx)

virtual void	setPositionOffset (const DtVector &positionOffset)

virtual const DtVector &	positionOffset () const

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)

virtual const DtTaitBryan &	orientation (int vtx=0) const

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)

virtual const DtTaitBryan &	orientationOffset () const

virtual void	enableColorBlending (bool b)

virtual void	setBlendColor (float r, float g, float b, float a)

virtual void	getBlendColor (float &r, float &g, float &b, float &a)

virtual bool	colorBlendingEnabled () const

virtual void	enableLighting (bool l)

virtual DtModelSetId	modelSet () const

const DtVector &	boundingBoxExtents () const

void	getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector &	boundingBoxCenter () const

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

void	setContributesToBound (bool trueOrFalse)

bool	contributesToBound () const

DtDe &	de ()

virtual void	setModelInstance (DtModelInstance *modelInstance)

virtual void	promoteBackgroundModelInstance (const DtModelDefinition &defintion)

virtual void	setVisible (bool isVisible)

virtual bool	visible () const

DtUniqueID	sceneObjectId () const

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, DtModelSetId modelSet, int visualizerType)

virtual void	setElementId (DtElementID id)

virtual void	removedFromSceneObject ()

virtual void	setIsSupportModel (bool isSupport)=0

virtual void	setSolid (bool isSolid)

virtual bool	isProp ()

virtual void	updateMinLastFrameDistance (float distance)

virtual void	resetLastFrameDistance ()

virtual float	minLastFrameDistance () const

virtual DtModelInstance *	modelInstance ()

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const

virtual bool	supportsMultithreadedLoad ()

virtual void	backgroundLoad ()

virtual void	foregroundLoad ()

virtual bool	isActivelyBackgroundLoading ()

virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed

boost::signalslib::signal < void(DtModel *)>	signal_modelChanged

boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceCreated

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, DtModelSetId modelSet, int visualizerType)=0

virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)

virtual void	removeFromScene ()=0

virtual void	initializeModelInstance ()

void	slot_modelInstanceChanged (DtModelInstance *instance)

virtual void	waitAndClearLoadHandle ()

virtual void	removedFromLoadQueue ()

virtual void	setDoneBackgroundLoading ()

virtual void	setActivelyBackgroundLoading ()

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId

DtUniqueID	myElementId

DtUniqueID	myParentSceneObjectID

bool	myColorBlendingEnabled

DtModelInstance *	myBackgroundModelInstance

float	myMinLastFrameDistance

TransformList	myTransforms

DtModelInstance *	myModelInstance

DtModelSetId	myModelSet

int	myVisualizerType

bool	myContributesToBound

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

bool	myRequireModelInstance = true

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::DtPolygonModel::DtPolygonModel	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtPolygonModel::~DtPolygonModel ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtPolygonModel::addPoint	(	const DtVector &	point,
		int	index
	)

pure virtual

Add a new point to the line at the specified index, or, at the end if index is -1.

Implemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgExtrudedEllipseModel, and makVrv::DtOsgExtrudedPolygonModel.

virtual void makVrv::DtPolygonModel::setPickable ( bool enabled )

pure virtual

Sets whether or not the line is pickable.

Implemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgExtrudedEllipseModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtPolygonModel::removePoint ( int index )

pure virtual

Removes the point from the specified index.

Implemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgExtrudedEllipseModel, and makVrv::DtOsgExtrudedPolygonModel.

virtual int makVrv::DtPolygonModel::pointCount ( ) const

pure virtual

Retrieves the number of points in the model.

Implemented in makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOverlayPolygonModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtExtrudedPolygonModel, makVrv::DtOsgPolygonModel, and makVrv::DtOsgExtrudedPolygonModel.

virtual DtVector makVrv::DtPolygonModel::point ( int ) const

pure virtual

Retrieves the point (inclusive of the origin)

Implemented in makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOverlayPolygonModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtExtrudedPolygonModel, makVrv::DtOsgPolygonModel, and makVrv::DtOsgExtrudedPolygonModel.

virtual void makVrv::DtPolygonModel::setPoint	(	int	index,
		const DtVector &
	)

pure virtual

Sets point at the specified index. When setting the point, if the origin is set, the vector will need to be offset from the origin as models will account for the origin set.

Implemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgExtrudedEllipseModel, and makVrv::DtOsgExtrudedPolygonModel.

virtual void makVrv::DtPolygonModel::setOrigin ( const DtVector & )

pure virtual

Sets the origin. Will offset points.

Implemented in makVrv::DtOsgOverlayRectangleModel, makVrv::DtOverlayPolygonModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgExtrudedPolygonModel, and makVrv::DtOsgExtrudedEllipseModel.

virtual void makVrv::DtPolygonModel::setStipplePattern ( unsigned int stipplePattern )

pure virtual

Sets stipple pattern for the polygon.

Implemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgExtrudedPolygonModel, and makVrv::DtOsgExtrudedEllipseModel.

virtual void makVrv::DtPolygonModel::setWidth ( float width )

pure virtual

Set the line width.
