This class provides the OSG-specific implementation of a post processor. A post processor has a type (ex. "wateronscreen") and a list of effects which are components that can be turned on or off (ex. "oceanspray", "rainsplash"). A post processor should register at least one effect. The post processor order is created in the DtPostProcessorFactory On channel creation, the DtPostProcessManagerInterface will create an instance of each post processor added to the factory's post processor list.

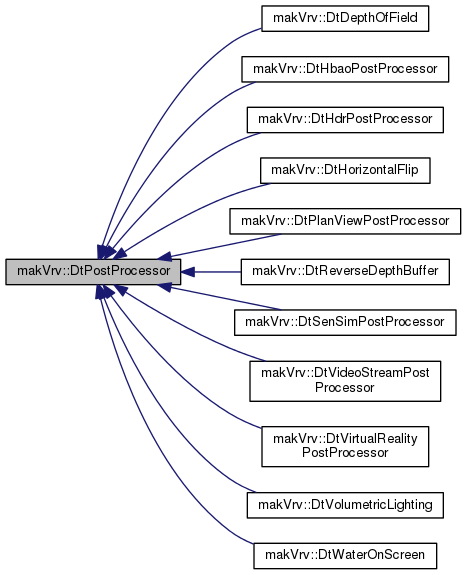

Inheritance diagram for makVrv::DtPostProcessor:

[legend]

Public Member Functions
	DtPostProcessor (DtDe &de, const std::string &postProcessType, bool handles2D)

virtual	~DtPostProcessor ()

virtual void	setFragmentShaderSource (const char *source)

virtual void	setVertexShaderSource (const char *source)

virtual void	setFragmentShaderFile (const std::string &fileName)

virtual void	setVertexShaderFile (const std::string &fileName)

virtual void	setInputTexture (const DtChannel channel, osg::Texture texture)

virtual bool	update (DtChannel *channel)=0

virtual osg::Texture *	outputTexture ()

virtual void	setIsFinalEffect (const DtChannel *channel, bool final)

virtual osg::Camera *	cameraForChannel (const DtChannel *channel)

virtual void	slot_releaseResources ()

virtual void	releaseGLObjects ()

virtual bool	hasEffect (const std::string &effect)

virtual bool	effectEnabled (const std::string &effect)

virtual bool	anyEffectEnabled ()

virtual std::list< std::string >	supportedEffects ()

virtual bool	handles2D () const

virtual const std::string &	type () const

virtual bool	postProcessorEnabled ()

virtual bool	needsOcclusionTexture () const


virtual bool	enableEffect (const std::string &effect)

virtual bool	disableEffect (const std::string &effect)


virtual void	enablePostProcessor ()

virtual void	disablePostProcessor ()

Protected Types
typedef boost::unordered_map < std::string, bool >	EffectMap

typedef std::map< const DtChannel *, osg::ref_ptr < osg::Camera > >	CameraMap

typedef osg::ref_ptr < DtPostProcessorCullVistorCallback >	CallbackRefPtr

typedef std::map< const DtChannel *, CallbackRefPtr >	CallbackMap

Protected Member Functions
virtual bool	effectItrEnabled (const EffectMap::iterator &effect) const

virtual void	initialize ()

virtual void	addEffect (std::string effect)

virtual void	setEnablePostProcessor (bool enabled)

Protected Attributes
osg::ref_ptr< osg::Texture >	myOutputTexture

osg::ref_ptr< osg::Texture >	myInputTexture

osg::ref_ptr< osg::Program >	myProgram

osg::ref_ptr< osg::Shader >	myFragmentShader

osg::ref_ptr< osg::Shader >	myVertexShader

osg::ref_ptr< osg::Geode >	myQuad

CameraMap	myCameraMap

bool	myHandles2DFlag

bool	myEnabledFlag

std::string	myType

EffectMap	myEffects

CallbackMap	myCullCallbackMap

DtDe &	myDe

DtSignalConnectionManager	mySignals

Friends
class	DtPostProcessManager

Member Typedef Documentation

typedef boost::unordered_map<std::string, bool> makVrv::DtPostProcessor::EffectMap

protected

typedef std::map<const DtChannel*, osg::ref_ptr<osg::Camera> > makVrv::DtPostProcessor::CameraMap

protected

typedef osg::ref_ptr<DtPostProcessorCullVistorCallback> makVrv::DtPostProcessor::CallbackRefPtr

protected

typedef std::map< const DtChannel*, CallbackRefPtr > makVrv::DtPostProcessor::CallbackMap

protected

Constructor & Destructor Documentation

makVrv::DtPostProcessor::DtPostProcessor	(	DtDe &	de,
		const std::string &	postProcessType,
		bool	handles2D
	)

CTOR.

Parameters

handles2D Whether this post processor should be used in 2D orthographic views.

virtual makVrv::DtPostProcessor::~DtPostProcessor ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtPostProcessor::setFragmentShaderSource ( const char * source )

virtual

Sets fragment shader source for this post-processor. The following uniforms will be automatically set for you: sampler2D inputImage; float aspectRatio; // (width over height) float fovy; // Vertical field of view (radians)

virtual void makVrv::DtPostProcessor::setVertexShaderSource ( const char * source )

virtual

Sets vertex shader source for this post-processor. The following uniforms will be automatically set for you: sampler2D inputImage; float aspectRatio; // (width over height) float fovy; // Vertical field of view (radians)

virtual void makVrv::DtPostProcessor::setFragmentShaderFile ( const std::string & fileName )

virtual

Sets fragment shader file for this post-processor. The following uniforms will be automatically set for you: sampler2D inputImage; float aspectRatio; // (width over height) float fovy; // Vertical field of view (radians)

virtual void makVrv::DtPostProcessor::setVertexShaderFile ( const std::string & fileName )

virtual

Sets vertex shader file for this post-processor. The following uniforms will be automatically set for you: sampler2D inputImage; float aspectRatio; // (width over height) float fovy; // Vertical field of view (radians)

virtual void makVrv::DtPostProcessor::setInputTexture	(	const DtChannel *	channel,
		osg::Texture *	texture
	)

virtual

Sets the image that is postprocessed; this may be the 3D scene rendered to a texture, or the output texture of a chained post processor. Managed by the DtPostProcessManager, you shouldn't need to call this yourself.

Reimplemented in makVrv::DtSenSimPostProcessor, makVrv::DtHdrPostProcessor, makVrv::DtVolumetricLighting, makVrv::DtHbaoPostProcessor, and makVrv::DtVideoStreamPostProcessor.

virtual bool makVrv::DtPostProcessor::update ( DtChannel * channel )

pure virtual

Called once per frame, per channel.

Implemented in makVrv::DtSenSimPostProcessor, makVrv::DtWaterOnScreen, makVrv::DtHdrPostProcessor, makVrv::DtDepthOfField, makVrv::DtHbaoPostProcessor, makVrv::DtVirtualRealityPostProcessor, makVrv::DtPlanViewPostProcessor, makVrv::DtVideoStreamPostProcessor, makVrv::DtVolumetricLighting, makVrv::DtHorizontalFlip, and makVrv::DtReverseDepthBuffer.

virtual osg::Texture* makVrv::DtPostProcessor::outputTexture ( )

virtual

Gets the output texture of this post processor, for use in chaining processors together. It may be null if this is the last post processor, rendering directly to the frame buffer.

Reimplemented in makVrv::DtVolumetricLighting.

virtual void makVrv::DtPostProcessor::setIsFinalEffect	(	const DtChannel *	channel,
		bool	final
	)

virtual

Called by the DtPostProcessManager to indicate if this is the last post processor in the chain, and should render to the framebuffer.

Reimplemented in makVrv::DtSenSimPostProcessor.

virtual osg::Camera* makVrv::DtPostProcessor::cameraForChannel ( const DtChannel * channel )

virtual

Gets the Camera node associated with this effect and channel. Use their statesets to set shader uniforms for your effect.

virtual void makVrv::DtPostProcessor::slot_releaseResources ( )

virtual

used to call releaseGLObjects on this post processor's openGL related objects when the last window is removed.

virtual void makVrv::DtPostProcessor::releaseGLObjects ( )

virtual

cleanup any graphics related stuff when the last window is removed since the graphics context will soon be destroyed.

Reimplemented in makVrv::DtWaterOnScreen, and makVrv::DtHdrPostProcessor.

virtual bool makVrv::DtPostProcessor::hasEffect ( const std::string & effect )

virtual

Does this post processor support this effect?

virtual bool makVrv::DtPostProcessor::effectEnabled ( const std::string & effect )

virtual

Is this effect (post processor sub-component) enabled?

virtual bool makVrv::DtPostProcessor::anyEffectEnabled ( )

virtual

Are any effects enabled?

virtual bool makVrv::DtPostProcessor::enableEffect ( const std::string & effect )

virtual

Enable a particular post processing technique For example, "wateroncamera" has techniques "rainsplash", "oceanspray", and "wavesplash".

virtual bool makVrv::DtPostProcessor::disableEffect ( const std::string & effect )

virtual

Enable a particular post processing technique For example, "wateroncamera" has techniques "rainsplash", "oceanspray", and "wavesplash".

virtual std::list<std::string> makVrv::DtPostProcessor::supportedEffects ( )

virtual

Get a list of supported effects for this post processor.

virtual bool makVrv::DtPostProcessor::handles2D ( ) const

virtual

Retrieves whether this post processor should be used in 2D orthographic views, as specified in its constructor.

virtual const std::string& makVrv::DtPostProcessor::type ( ) const

virtual

Gets the type of the post processor.

virtual void makVrv::DtPostProcessor::enablePostProcessor ( )

virtual

Enable or disable the post processor.

virtual void makVrv::DtPostProcessor::disablePostProcessor ( )

virtual

Enable or disable the post processor.

virtual bool makVrv::DtPostProcessor::postProcessorEnabled ( )

virtual

Is this post processor enabled?

Reimplemented in makVrv::DtHdrPostProcessor, makVrv::DtVolumetricLighting, and makVrv::DtPlanViewPostProcessor.

virtual bool makVrv::DtPostProcessor::needsOcclusionTexture ( ) const

virtual

Does this post processor need an occlusion texture generated by the osgChannel false by default but derrived classes can override this and let the manager know they need an occlusion texture.

Reimplemented in makVrv::DtVolumetricLighting, and makVrv::DtHbaoPostProcessor.

virtual bool makVrv::DtPostProcessor::effectItrEnabled ( const EffectMap::iterator & effect ) const

protectedvirtual

Reimplemented in makVrv::DtHdrPostProcessor.

virtual void makVrv::DtPostProcessor::initialize ( )

protectedvirtual

Reimplemented in makVrv::DtWaterOnScreen.

virtual void makVrv::DtPostProcessor::addEffect ( std::string effect )

protectedvirtual

When constructing a post processor, add the names of the sub-components (effects) that can be enabled and disabled.

virtual void makVrv::DtPostProcessor::setEnablePostProcessor ( bool enabled )

protectedvirtual

Set the post processor enabled state (true = enabled)

Friends And Related Function Documentation

friend class DtPostProcessManager

friend

Member Data Documentation

osg::ref_ptr<osg::Texture> makVrv::DtPostProcessor::myOutputTexture

protected

osg::ref_ptr<osg::Texture> makVrv::DtPostProcessor::myInputTexture

protected

osg::ref_ptr<osg::Program> makVrv::DtPostProcessor::myProgram

protected

osg::ref_ptr<osg::Shader> makVrv::DtPostProcessor::myFragmentShader

protected

osg::ref_ptr<osg::Shader> makVrv::DtPostProcessor::myVertexShader

protected

osg::ref_ptr<osg::Geode> makVrv::DtPostProcessor::myQuad

protected

CameraMap makVrv::DtPostProcessor::myCameraMap

protected

bool makVrv::DtPostProcessor::myHandles2DFlag

protected

bool makVrv::DtPostProcessor::myEnabledFlag

protected

std::string makVrv::DtPostProcessor::myType

protected

EffectMap makVrv::DtPostProcessor::myEffects

protected

CallbackMap makVrv::DtPostProcessor::myCullCallbackMap

protected

DtDe& makVrv::DtPostProcessor::myDe

protected

DtSignalConnectionManager makVrv::DtPostProcessor::mySignals

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvPostProcessor/DtPostProcessor.h
