This contains all the DtVisualizers used to visualize an element in a particular model set.

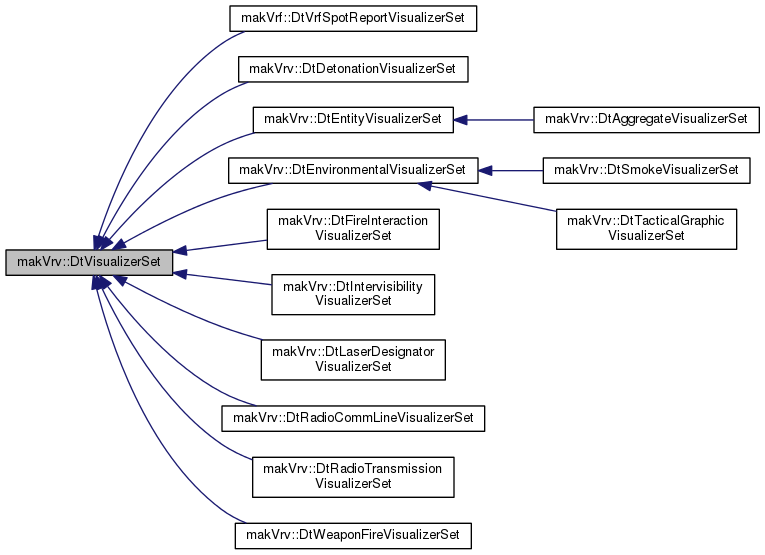

Inheritance diagram for makVrv::DtVisualizerSet:

Public Types
using	VisualizerList = std::vector< DtStateVisualizer * >

Public Member Functions
	DtVisualizerSet (DtBaseConnection &conn, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet, bool distribute)

virtual	~DtVisualizerSet ()

virtual void	visualizeElementDefinition (const DtUnicode &elementName, const DtElementDefinition &def, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &creationMap)

virtual void	visualizeElementDefinition (const DtUnicode &elementName, const DtElementDefinition &def)

virtual void	createVisualizersByType (int visualType)

virtual void	destroyVisualizersByType (int visualType)

const DtElementDefinition *	definition () const

virtual void	setElementDefinition (const DtElementDefinition *def)

DtModelSetId	modelSet () const

template<typename VisualizerClass >
void	findVisualizers (std::vector< VisualizerClass * > &visualizers)

template<typename VisualizerClass >
void	findVisualizersByDynamicCast (std::vector< VisualizerClass * > &visualizers)

virtual void	findVisualizers (const DtVisualizerSchema &, VisualizerList &visualizers)

virtual DtUniqueID	sceneObjectID () const

virtual void	setPickable (bool pickable)

bool	pickable () const

virtual bool	addVisualizer (const DtVisualizerDefinition &def)

virtual void	destroyAllModelVisualizers ()

virtual DtStateVisualizer::Type	supportsVisualizerType () const

DtStateListener &	listener () const

virtual void	setVisible (bool visible, DtVisualizerShowHideContext::VisualizerShowHideContext)

virtual void	visualizeVisualizerDefinitionSet (const DtUnicode &elementName, const DtVisualizerDefinitionSet &set, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *creationMap=nullptr)

Protected Types
typedef boost::unordered_multimap < std::string, DtStateVisualizer * >	StateVisualizerMap

Protected Member Functions
void	destroyAllModelVisualizersInternal ()

virtual DtStateVisualizer *	createVisualizerFromDefinition (const DtVisualizerDefinition &def)

virtual void	addVisualizer (const std::string &schemaName, DtStateVisualizer *visualizer)

virtual bool	suppressVisualizerCreation (const DtVisualizerDefinition visDef, const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap creationMap) const

virtual int	findVisualType (const DtVisualizerDefinition &visDef) const

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

const DtUnicode *	chooseRandomString (const std::vector< DtUnicode > &stringList)

Protected Attributes
DtBaseConnection &	myBaseConnection

DtStateVisualizerFactory &	myCachedFactory

DtStateListener &	myStateListener

StateVisualizerMap	myVisualizers

DtSignalConnectionManager	myConnections

const DtElementDefinition *	myDefinition

bool	myPickable

bool	myVisible

bool	myDistribute

DtSceneObjectAgent *	mySceneObjectAgent

DtModelSetId	myModelSet

std::string	myVisualTypeString

Member Typedef Documentation

using makVrv::DtVisualizerSet::VisualizerList = std::vector<DtStateVisualizer*>

typedef boost::unordered_multimap<std::string,DtStateVisualizer* > makVrv::DtVisualizerSet::StateVisualizerMap

protected

Constructor & Destructor Documentation

makVrv::DtVisualizerSet::DtVisualizerSet	(	DtBaseConnection &	conn,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		DtModelSetId	modelSet,
		bool	distribute
	)

CTOR.

virtual makVrv::DtVisualizerSet::~DtVisualizerSet ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtVisualizerSet::visualizeElementDefinition	(	const DtUnicode &	elementName,
		const DtElementDefinition &	def,
		const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &	creationMap
	)

virtual

Visualize an element definition.

virtual void makVrv::DtVisualizerSet::visualizeElementDefinition	(	const DtUnicode &	elementName,
		const DtElementDefinition &	def
	)

virtual

Visualize an element definition.

virtual void makVrv::DtVisualizerSet::createVisualizersByType ( int visualType )

virtual

Go through the visualizer definitions in the member variable myDefinitions, and create/add any visualizers that have the specified visual type. If the visualizerSet has not been realized yet, myDefinitions will be null, and this method will do nothing.

virtual void makVrv::DtVisualizerSet::destroyVisualizersByType ( int visualType )

virtual

Go through all realized visualizers and remove any that match the specified visual type.

const DtElementDefinition* makVrv::DtVisualizerSet::definition ( ) const

Returns the visualized definition.

virtual void makVrv::DtVisualizerSet::setElementDefinition ( const DtElementDefinition * def )

virtual

DtModelSetId makVrv::DtVisualizerSet::modelSet ( ) const

Returns the visualized model set.

template<typename VisualizerClass >

void makVrv::DtVisualizerSet::findVisualizers ( std::vector< VisualizerClass * > & visualizers )

inline

Find all instances of a Visualizer by schema name.

References myVisualizers.

template<typename VisualizerClass >

void makVrv::DtVisualizerSet::findVisualizersByDynamicCast ( std::vector< VisualizerClass * > & visualizers )

inline

Find all instance of a visualizer by dynamically casting to the class type rather than doing the faster type info check. Use this when you want to find all instances of a particular class, not the actual class.

References myVisualizers.

Referenced by makVrf::DtEnvironmentalFacadeCollection::setForceColor().

virtual void makVrv::DtVisualizerSet::findVisualizers	(	const DtVisualizerSchema &	,
		VisualizerList &	visualizers
	)

virtual

Find all visualizers which use a particular schema.

virtual DtUniqueID makVrv::DtVisualizerSet::sceneObjectID ( ) const

virtual

Returns unique id of mySceneObjectVisualizer or mySceneObjectAgent, else 0.

virtual void makVrv::DtVisualizerSet::setPickable ( bool pickable )

virtual

Set whether this visualizer is pickable.

bool makVrv::DtVisualizerSet::pickable ( ) const

Is this visualizer pickable.

virtual bool makVrv::DtVisualizerSet::addVisualizer ( const DtVisualizerDefinition & def )

virtual

Add a visualizer after the visualizerSet has been visualized.

virtual void makVrv::DtVisualizerSet::destroyAllModelVisualizers ( )

virtual

Destroys all model agent visualizers associated with visualizer.

virtual DtStateVisualizer::Type makVrv::DtVisualizerSet::supportsVisualizerType ( ) const

virtual

Get the type that this set supports.

Reimplemented in makVrv::DtIntervisibilityVisualizerSet, makVrv::DtAggregateVisualizerSet, makVrv::DtEntityVisualizerSet, and makVrv::DtEnvironmentalVisualizerSet.

DtStateListener& makVrv::DtVisualizerSet::listener ( ) const

Returns the state listener.

virtual void makVrv::DtVisualizerSet::setVisible	(	bool	visible,
		DtVisualizerShowHideContext::VisualizerShowHideContext
	)

virtual

On the rare occasion (like hiding all 2D objects when embarked) when we need all the visualizers in one model set the be shown/hidden, Pass the context with which to show or hide into this routine. It will then be passed to each visualizer, which will determine whether or not to show or hide itself based on the context.

void makVrv::DtVisualizerSet::destroyAllModelVisualizersInternal ( )

protected

Non-virtual work function for destroying all model visualizers in this set.

virtual void makVrv::DtVisualizerSet::visualizeVisualizerDefinitionSet	(	const DtUnicode &	elementName,
		const DtVisualizerDefinitionSet &	set,
		const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *	creationMap = `nullptr`
	)

virtual

Given the DtVisualDefinitionSet, create all visualizers associated. If there is a problem, will throw an exception.

virtual DtStateVisualizer* makVrv::DtVisualizerSet::createVisualizerFromDefinition ( const DtVisualizerDefinition & def )

protectedvirtual

Create a state visualizer from a visual definition.

virtual void makVrv::DtVisualizerSet::addVisualizer	(	const std::string &	schemaName,
		DtStateVisualizer *	visualizer
	)

protectedvirtual

Adds a new model visualizer into the list of visualizers. For consistency, the "default" name is always the one used when the visualizer is added regardless of visual driver selected.

virtual bool makVrv::DtVisualizerSet::suppressVisualizerCreation	(	const DtVisualizerDefinition *	visDef,
		const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap *	creationMap
	)		const

protectedvirtual

Check to see if the visualizer type and creation map warrant creation.

Reimplemented in makVrv::DtFireInteractionVisualizerSet.

virtual int makVrv::DtVisualizerSet::findVisualType ( const DtVisualizerDefinition & visDef ) const

protectedvirtual

lookup the visualtype attribute from a visual definition; returns 0 if none found

Reimplemented in makVrf::DtVrfSpotReportVisualizerSet.

template<typename T , typename C >

void makVrv::DtVisualizerSet::connectAndUpdate	(	boost::signalslib::signal< void(T)> &	sig,
		void(C::*)(T)	fp,
		T	val
	)

inlineprotected

Utility function for connect a signal to an update function as well as calling the update function.

References makVrv::bind().

const DtUnicode* makVrv::DtVisualizerSet::chooseRandomString ( const std::vector< DtUnicode > & stringList )

protected

Return the model definition that might be randomly chosen, if the definitions has more than 1 item.

Member Data Documentation

DtBaseConnection& makVrv::DtVisualizerSet::myBaseConnection

protected

DtStateVisualizerFactory& makVrv::DtVisualizerSet::myCachedFactory

protected

DtStateListener& makVrv::DtVisualizerSet::myStateListener

protected

StateVisualizerMap makVrv::DtVisualizerSet::myVisualizers

protected

Referenced by findVisualizers(), and findVisualizersByDynamicCast().

DtSignalConnectionManager makVrv::DtVisualizerSet::myConnections

protected

const DtElementDefinition* makVrv::DtVisualizerSet::myDefinition

protected

bool makVrv::DtVisualizerSet::myPickable

protected

bool makVrv::DtVisualizerSet::myVisible

protected

bool makVrv::DtVisualizerSet::myDistribute

protected

DtSceneObjectAgent* makVrv::DtVisualizerSet::mySceneObjectAgent

protected

DtModelSetId makVrv::DtVisualizerSet::myModelSet

protected

std::string makVrv::DtVisualizerSet::myVisualTypeString

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtVisualizerSet.h
