DtIntercomGroupAsgmtRec Class Reference

Instances of DtIntercomGroupAsgmtRec are used to contain the information in the group assignment parameter record used by the intercom control PDU class. More...

Inheritance diagram for DtIntercomGroupAsgmtRec:

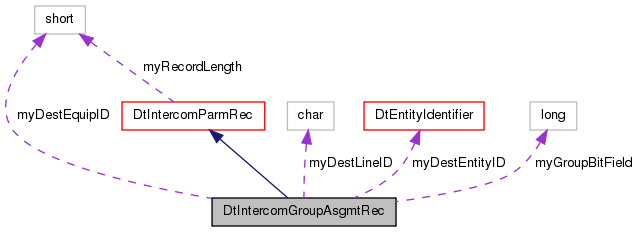

Collaboration diagram for DtIntercomGroupAsgmtRec:

List of all members.

Public Member Functions
	DtIntercomGroupAsgmtRec ()
	Constructors.
	DtIntercomGroupAsgmtRec (const DtIntercomGroupAsgmtRec &orig)
virtual	~DtIntercomGroupAsgmtRec ()
	Destructor.
DtIntercomGroupAsgmtRec &	operator= (const DtIntercomGroupAsgmtRec &orig)
	Assignment operators.
DtIntercomGroupAsgmtRec &	operator= (const DtNetIntercomGroupAsgmtRec &orig)
virtual void	setGroupBitField (DtU32 bitField)
	Set/Get the group bit field.
virtual DtU32	groupBitField () const
virtual void	setDestEntityID (const DtEntityIdentifier &entityID)
	Set/Get the destination entity identifier.
virtual const DtEntityIdentifier &	destEntityID () const
virtual void	setDestEquipID (DtU16 equipID)
	Set/Get the destination equipment ID.
virtual DtU16	destEquipID () const
virtual void	setDestLineID (DtU8 lineID)
	Set/Get the destination line ID.
virtual DtU8	destLineID () const
virtual void	print () const
	Print this record.
virtual void	printDataToStream (std::ostream &stream) const
	Print this record to a stream.
virtual void	unloadNetRecord (const DtNetIntercomGroupAsgmtRec &record)
	Load/Unload data from a packet record.
virtual void	loadNetRecord (DtNetIntercomGroupAsgmtRec &record) const
Protected Attributes
DtU32	myGroupBitField
DtEntityIdentifier	myDestEntityID
DtU16	myDestEquipID
DtU8	myDestLineID

---

Detailed Description

Instances of DtIntercomGroupAsgmtRec are used to contain the information in the group assignment parameter record used by the intercom control PDU class.

---

Constructor & Destructor Documentation

DtIntercomGroupAsgmtRec::DtIntercomGroupAsgmtRec

(

)

Constructors.

DtIntercomGroupAsgmtRec::DtIntercomGroupAsgmtRec

(

const DtIntercomGroupAsgmtRec &

orig

)

virtual DtIntercomGroupAsgmtRec::~DtIntercomGroupAsgmtRec

(

)

[virtual]

Destructor.

---

Member Function Documentation

virtual const DtEntityIdentifier& DtIntercomGroupAsgmtRec::destEntityID

(

)

const [virtual]

virtual DtU16 DtIntercomGroupAsgmtRec::destEquipID

(

)

const [virtual]

virtual DtU8 DtIntercomGroupAsgmtRec::destLineID

(

)

const [virtual]

virtual DtU32 DtIntercomGroupAsgmtRec::groupBitField

(

)

const [virtual]

virtual void DtIntercomGroupAsgmtRec::loadNetRecord

(

DtNetIntercomGroupAsgmtRec &

record

)

const [virtual]

DtIntercomGroupAsgmtRec& DtIntercomGroupAsgmtRec::operator=

(

const DtIntercomGroupAsgmtRec &

orig

)

Assignment operators.

DtIntercomGroupAsgmtRec& DtIntercomGroupAsgmtRec::operator=

(

const DtNetIntercomGroupAsgmtRec &

orig

)

virtual void DtIntercomGroupAsgmtRec::print

(

)

const [virtual]

Print this record.

Reimplemented from DtIntercomParmRec.

virtual void DtIntercomGroupAsgmtRec::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print this record to a stream.

Reimplemented from DtIntercomParmRec.

virtual void DtIntercomGroupAsgmtRec::setDestEntityID

(

const DtEntityIdentifier &

entityID

)

[virtual]

Set/Get the destination entity identifier.

virtual void DtIntercomGroupAsgmtRec::setDestEquipID

(

DtU16

equipID

)

[virtual]

Set/Get the destination equipment ID.

virtual void DtIntercomGroupAsgmtRec::setDestLineID

(

DtU8

lineID

)

[virtual]

Set/Get the destination line ID.

virtual void DtIntercomGroupAsgmtRec::setGroupBitField

(

DtU32

bitField

)

[virtual]

Set/Get the group bit field.

virtual void DtIntercomGroupAsgmtRec::unloadNetRecord

(

const DtNetIntercomGroupAsgmtRec &

record

)

[virtual]

Load/Unload data from a packet record.

---

Member Data Documentation

DtEntityIdentifier DtIntercomGroupAsgmtRec::myDestEntityID [protected]

DtU16 DtIntercomGroupAsgmtRec::myDestEquipID [protected]

DtU8 DtIntercomGroupAsgmtRec::myDestLineID [protected]

DtU32 DtIntercomGroupAsgmtRec::myGroupBitField [protected]

---

The documentation for this class was generated from the following file:

• intercmGrpAsg.h
