DtReflectedGriddedData Class Reference

Instances of DtReflectedGriddedData represent Gridded Data objects simulated by remote applications. More...

Inheritance diagram for DtReflectedGriddedData:

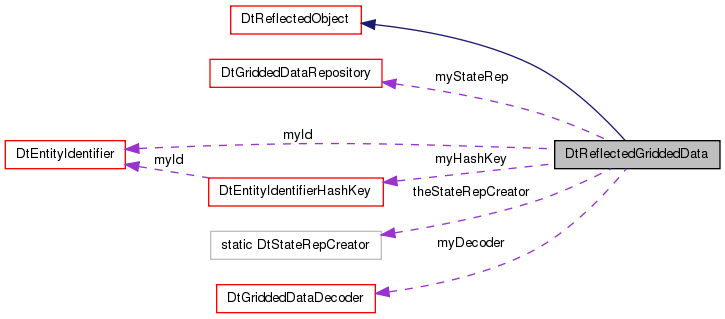

Collaboration diagram for DtReflectedGriddedData:

List of all members.

Public Types
typedef DtGriddedDataRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtGriddedDataRepositories.
Public Member Functions
	DtReflectedGriddedData (DtExerciseConn *conn, const DtEntityIdentifier &id, const DtEntityType &type)
	constructor
virtual	~DtReflectedGriddedData ()
	destructor
virtual DtGriddedDataRepository *	griddedDataStateRep () const
	Returns ptr to griddedDataStateRepository -- through which you can inspect current state info.
virtual DtGriddedDataRepository *	gdsr () const
	Synonym for griddedDataStateRep.
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls gdsr().
virtual DtGriddedDataDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our GDSR.
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier.
virtual const DtObjectId &	id () const
	Get the gridded data's id. (For DIS, DtObjectId is DtEntityIdentifier).
virtual const DtObjectId &	localId () const
	Get the gridded data's local id. For DIS - same as id().
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the gridded data's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an environment process state PDU.
virtual DtReflectedGriddedData *	next () const
	Get the next and previous elements in the reflected environment process list.
virtual DtReflectedGriddedData *	prev () const
virtual DtReflectedGriddedData *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list.
virtual DtReflectedGriddedData *	wrapPrev () const
virtual void	addPostUpdateCallback (DtGriddedDataCallbackFunction cb, void *userData)
	Environment Process callback registration/deregistration.
virtual void	removePostUpdateCallback (DtGriddedDataCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object.
virtual DtString	idString () const
	Get a string identification of this object.
virtual void	processGriddedData (const DtGriddedDataPdu &pdu)
	Process an environmentalProcess PDU.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
Protected Member Functions
	DtReflectedGriddedData (const DtReflectedGriddedData &orig)
	copy constructor -- not implemented
DtReflectedGriddedData &	operator= (const DtReflectedGriddedData &orig)
	assignment operator -- not implemented
Protected Attributes
DtEntityIdentifier	myId
DtGriddedDataRepository *	myStateRep
DtGriddedDataDecoder *	myDecoder
DtEntityIdentifierHashKey	myHashKey
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

Instances of DtReflectedGriddedData represent Gridded Data objects simulated by remote applications.

State data can be viewed through its state repository.

---

Member Typedef Documentation

typedef DtGriddedDataRepository*(* DtReflectedGriddedData::DtStateRepCreator)()

Function prototype for functions that create DtGriddedDataRepositories.

---

Constructor & Destructor Documentation

DtReflectedGriddedData::DtReflectedGriddedData	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)

constructor

virtual DtReflectedGriddedData::~DtReflectedGriddedData

(

)

[virtual]

destructor

DtReflectedGriddedData::DtReflectedGriddedData

(

const DtReflectedGriddedData &

orig

)

[protected]

copy constructor -- not implemented

---

Member Function Documentation

virtual void DtReflectedGriddedData::addPostUpdateCallback	(	DtGriddedDataCallbackFunction	cb,
		void *	userData
	)		[virtual]

Environment Process callback registration/deregistration.

virtual DtGriddedDataDecoder* DtReflectedGriddedData::decoder

(

)

[virtual]

Returns a pointer to the Decoder being used to decode state messages into our GDSR.

virtual const DtEntityIdentifier& DtReflectedGriddedData::entityId

(

)

const [virtual]

Returns the entity identifier.

virtual DtGriddedDataRepository* DtReflectedGriddedData::gdsr

(

)

const [virtual]

Synonym for griddedDataStateRep.

virtual const DtGlobalObjectDesignator& DtReflectedGriddedData::globalId

(

)

const [virtual]

Get the gridded data's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual DtGriddedDataRepository* DtReflectedGriddedData::griddedDataStateRep

(

)

const [virtual]

Returns ptr to griddedDataStateRepository -- through which you can inspect current state info.

virtual const DtBaseHashKey& DtReflectedGriddedData::hashKey

(

)

const [virtual]

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedGriddedData::id

(

)

const [virtual]

Get the gridded data's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedGriddedData::idString

(

)

const [virtual]

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedGriddedData::localId

(

)

const [virtual]

Get the gridded data's local id. For DIS - same as id().

virtual DtReflectedGriddedData* DtReflectedGriddedData::next

(

)

const [virtual]

Get the next and previous elements in the reflected environment process list.

Reimplemented from DtListedObj.

DtReflectedGriddedData& DtReflectedGriddedData::operator=

(

const DtReflectedGriddedData &

orig

)

[protected]

assignment operator -- not implemented

virtual DtReflectedGriddedData* DtReflectedGriddedData::prev

(

)

const [virtual]

Reimplemented from DtListedObj.

virtual void DtReflectedGriddedData::processGriddedData

(

const DtGriddedDataPdu &

pdu

)

[virtual]

Process an environmentalProcess PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedGriddedData::processStateMessage

(

const DtStateMsg &

msg

)

[virtual]

Process an environment process state PDU.

Calls processGriddedData().

Reimplemented from DtReflectedObject.

virtual void DtReflectedGriddedData::removePostUpdateCallback	(	DtGriddedDataCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedGriddedData::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedGriddedData::stateRep

(

)

const [virtual]

Implementation for abstract base class. Calls gdsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedGriddedData::stateRepCreator

(

void

)

[static]

virtual DtReflectedGriddedData* DtReflectedGriddedData::wrapNext

(

)

const [virtual]

Get the next and previous elements, wrap at the ends of the list.

Reimplemented from DtListedObj.

virtual DtReflectedGriddedData* DtReflectedGriddedData::wrapPrev

(

)

const [virtual]

Reimplemented from DtListedObj.

---

Member Data Documentation

DtGriddedDataDecoder* DtReflectedGriddedData::myDecoder [protected]

DtEntityIdentifierHashKey DtReflectedGriddedData::myHashKey [protected]

DtEntityIdentifier DtReflectedGriddedData::myId [protected]

DtGriddedDataRepository* DtReflectedGriddedData::myStateRep [protected]

DtStateRepCreator DtReflectedGriddedData::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dRefGridData.h
