DtNetGriddedDataPdu Struct Reference

DtNetGriddedDataPdu is the network structure for the gridded data PDU. More...

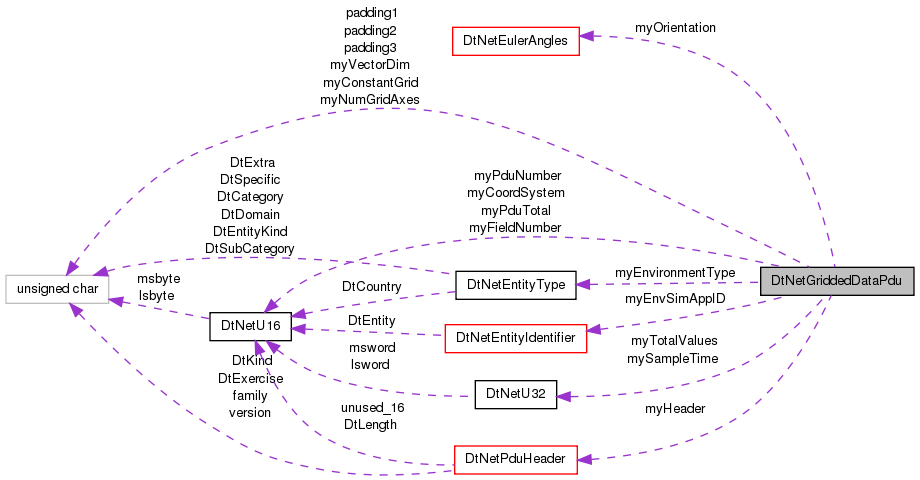

Collaboration diagram for DtNetGriddedDataPdu:

List of all members.

Public Attributes
DtNetPduHeader	myHeader
DtNetEntityIdentifier	myEnvSimAppID
DtNetU16	myFieldNumber
DtNetU16	myPduNumber
DtNetU16	myPduTotal
DtNetU16	myCoordSystem
DtNetU8	myNumGridAxes
DtNetU8	myConstantGrid
DtNetEntityType	myEnvironmentType
DtNetEulerAngles	myOrientation
DtNetU32	mySampleTime [2]
	This is a 64-bit unsigned integer.
DtNetU32	myTotalValues
DtNetU8	myVectorDim
DtNetU8	padding1
DtNetU8	padding2
DtNetU8	padding3

---

Detailed Description

DtNetGriddedDataPdu is the network structure for the gridded data PDU.

---

Member Data Documentation

DtNetU8 DtNetGriddedDataPdu::myConstantGrid

DtNetU16 DtNetGriddedDataPdu::myCoordSystem

DtNetEntityType DtNetGriddedDataPdu::myEnvironmentType

DtNetEntityIdentifier DtNetGriddedDataPdu::myEnvSimAppID

DtNetU16 DtNetGriddedDataPdu::myFieldNumber

DtNetPduHeader DtNetGriddedDataPdu::myHeader

DtNetU8 DtNetGriddedDataPdu::myNumGridAxes

DtNetEulerAngles DtNetGriddedDataPdu::myOrientation

DtNetU16 DtNetGriddedDataPdu::myPduNumber

DtNetU16 DtNetGriddedDataPdu::myPduTotal

DtNetU32 DtNetGriddedDataPdu::mySampleTime[2]

This is a 64-bit unsigned integer.

DtNetU32 DtNetGriddedDataPdu::myTotalValues

DtNetU8 DtNetGriddedDataPdu::myVectorDim

DtNetU8 DtNetGriddedDataPdu::padding1

DtNetU8 DtNetGriddedDataPdu::padding2

DtNetU8 DtNetGriddedDataPdu::padding3

---

The documentation for this struct was generated from the following file:

• gridDataP.h
