A Socket which starts a thread which is continuously reading and writing from packet queues. More...

Inheritance diagram for DtAsyncNetSocket:

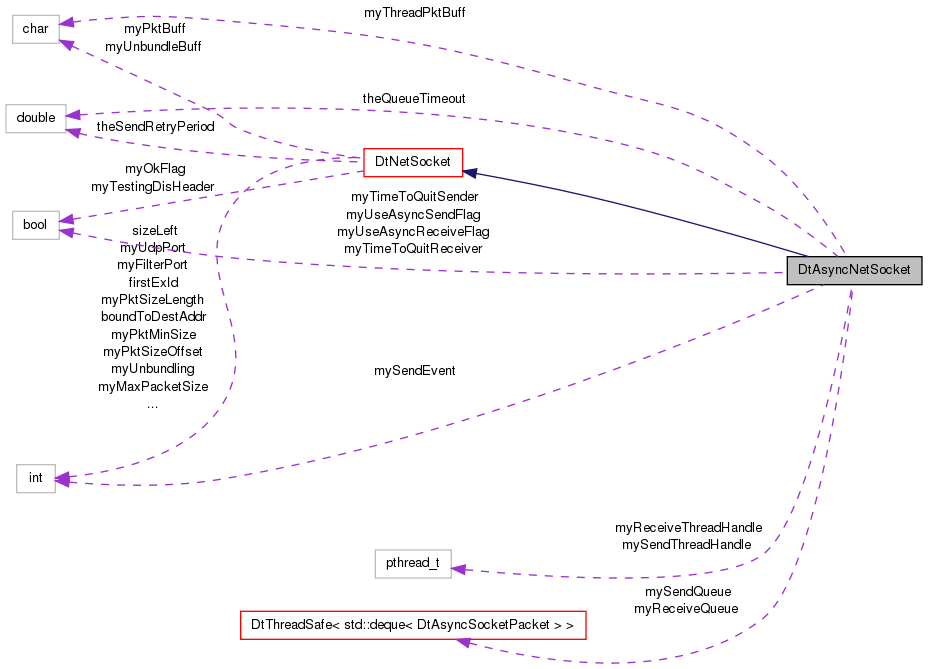

Collaboration diagram for DtAsyncNetSocket:

Public Member Functions
	DtAsyncNetSocket (int port=DtDEFAULT_PORT, DtU8 flags=DtReadWrite, DtIpv4Addr devAddr=0)
	DtAsyncNetSocket (int port, DtIpv4Addr destAddr, DtU8 flags, DtIpv4Addr devAddr=0)
	DtAsyncNetSocket (char *dummy, int sockfd, DtU8 flags=DtReadWrite)
virtual	~DtAsyncNetSocket ()
	Destructor.
virtual int	sendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	Virtual function override.
virtual int	directSendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	sends the packet directly to the network and bypasses the message queue and sender thread.
virtual bool	usingAsyncSend () const
	Get/Set functions to configure AsyncOutput (True by default)
virtual void	setUsingAsyncSend (bool b)
virtual bool	usingAsyncReceive () const
	Get/Set function for configuring AsyncInput. (True by default)
virtual void	setUsingAsyncReceive (bool b)
Protected Types
typedef DtThreadSafe < std::deque < DtAsyncSocketPacket > >	ThreadSafePacketQueue
Protected Member Functions
virtual int	recvFromNet (caddr_t *buffptr)
	Virtual Function override, this function instead of reading from the socket, reads from the message queue.
void	initThread ()
	Non virtual, called from the constructor.
virtual void	workerSendThread ()
	Work function which is the main function in the Send Thread.
virtual void	workerReceiveThread ()
	Work function which is the main function in the Receive Thread.
virtual void	processSendQueue ()
	Called from the Send thread to process all messages in the list.
virtual void	processReceiveQueue ()
	called from the Receive thread to receive ONE packet.
Static Protected Member Functions
static void *	runReceive (void *usr_data)
	These functions just call the WorkerSendThread and the WorkerReceiveThread.
static void *	runSend (void *usr_data)
static void	setQueueTimeout (double new_time_out)
static double	queueTimeout ()
Protected Attributes
bool	myUseAsyncSendFlag
bool	myUseAsyncReceiveFlag
ThreadSafePacketQueue	mySendQueue
	A type save queue for sending messages to the network writer.
ThreadSafePacketQueue	myReceiveQueue
	A type safe queue for getting messages from the network reader.
volatile bool	myTimeToQuitSender
volatile bool	myTimeToQuitReceiver
char *	myThreadPktBuff
pthread_t	mySendThreadHandle
pthread_t	myReceiveThreadHandle
int	mySendEvent [2]
Static Protected Attributes
static double	theQueueTimeout
	The TimeOut in the send Thread, in seconds.
Private Member Functions
	DtAsyncNetSocket (const DtAsyncNetSocket &)
	Copy CTOR Not Implemented.
DtAsyncNetSocket &	operator= (const DtAsyncNetSocket &)
	Assignment Operator Not Implemented.

Detailed Description

A Socket which starts a thread which is continuously reading and writing from packet queues.

All messages sent out into the world go onto a Send Queue. Messages read off the network come from a Receive Queue

Deprecated:: This class is replaced by DtInetSocket as of VR-Link 3.13

Member Typedef Documentation

typedef DtThreadSafe<std::deque<DtAsyncSocketPacket> > DtAsyncNetSocket::ThreadSafePacketQueue [protected]

Constructor & Destructor Documentation

DtAsyncNetSocket::DtAsyncNetSocket	(	int	port = `DtDEFAULT_PORT`,
		DtU8	flags = `DtReadWrite`,
		DtIpv4Addr	devAddr = `0`
	)

DtAsyncNetSocket::DtAsyncNetSocket	(	int	port,
		DtIpv4Addr	destAddr,
		DtU8	flags,
		DtIpv4Addr	devAddr = `0`
	)

DtAsyncNetSocket::DtAsyncNetSocket	(	char *	dummy,
		int	sockfd,
		DtU8	flags = `DtReadWrite`
	)

virtual DtAsyncNetSocket::~DtAsyncNetSocket ( ) [virtual]

Destructor.

DtAsyncNetSocket::DtAsyncNetSocket ( const DtAsyncNetSocket & ) [private]

Copy CTOR Not Implemented.

Member Function Documentation

virtual int DtAsyncNetSocket::directSendTo	(	caddr_t	packet,
		size_t	size,
		DtIpv4Addr	addr
	)		`[virtual]`

sends the packet directly to the network and bypasses the message queue and sender thread.

void DtAsyncNetSocket::initThread ( ) [protected]

Non virtual, called from the constructor.

DtAsyncNetSocket& DtAsyncNetSocket::operator= ( const DtAsyncNetSocket & ) [private]

Assignment Operator Not Implemented.

virtual void DtAsyncNetSocket::processReceiveQueue ( ) [protected, virtual]

called from the Receive thread to receive ONE packet.

virtual void DtAsyncNetSocket::processSendQueue ( ) [protected, virtual]

Called from the Send thread to process all messages in the list.

It will not return until the list is empty.

double DtAsyncNetSocket::queueTimeout ( ) [inline, static, protected]

virtual int DtAsyncNetSocket::recvFromNet ( caddr_t * buffptr ) [protected, virtual]

Virtual Function override, this function instead of reading from the socket, reads from the message queue.

Reimplemented from DtNetSocket.

static void* DtAsyncNetSocket::runReceive ( void * usr_data ) [static, protected]

These functions just call the WorkerSendThread and the WorkerReceiveThread.

static void* DtAsyncNetSocket::runSend ( void * usr_data ) [static, protected]

virtual int DtAsyncNetSocket::sendTo	(	caddr_t	packet,
		size_t	size,
		DtIpv4Addr	addr
	)		`[virtual]`

Virtual function override.

DtAsyncNetSocket implements sendTo by placing the packet on the send queue. The worker thread will read it off the queue and send it out to the world using DtNetSocket::sendTo(...). The only difference is that this function queues it first.

Reimplemented from DtNetSocket.

void DtAsyncNetSocket::setQueueTimeout ( double new_time_out ) [inline, static, protected]
