The DtDisSocket class provides an address family independent datagram socket. More...

Inheritance diagram for DtDisSocket:

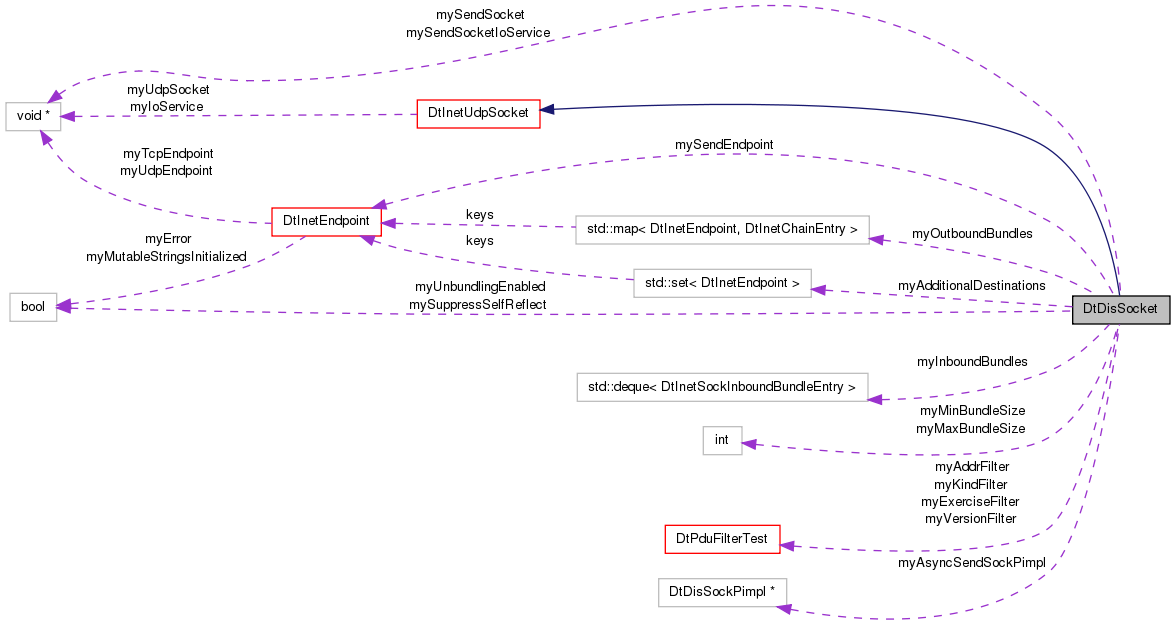

Collaboration diagram for DtDisSocket:

Classes
struct	DtDisSocketPduHeader
Public Member Functions
	DtDisSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts, bool immediateOpen=true, bool suppressSelfReflectEnabled=false)
	DIS Socket Constructor.
virtual	~DtDisSocket ()
	Destructor.
virtual bool	openSocket ()
	Enable sending and receiving of packets.
virtual bool	closeSocket ()
	Close a socket.
virtual DtInetSockRcvStatus	recvFrom (caddr_t buff, size_t buffSize, DtInetEndpoint &src, DtU32 flags=0)
	Receive method override The DtInetUdpSocket base class revcFrom() method does not perform unbundling, PDU filtering, or self-reflect suppression.
virtual bool	addDestination (const DtInetEndpoint &destination)
	Add an additional destination.
virtual void	removeDestination (const DtInetEndpoint &destination)
	Remove a destination.
virtual DtPduFilterTest *	exerciseId ()
	DIS PDU filtering extension interface.
virtual DtPduFilterTest *	protocolVersion ()
virtual DtPduFilterTest *	pduKind ()
virtual DtPduFilterTest *	ipAddr ()
virtual DtInetEndpoint &	localSenderEndpoint () const
	Return the endpoint of the sender.
virtual DtInetSockFlushStatus	flush ()
	Flush bundles. This method is called to flush all queued bundles.
virtual int	suppressSelfReflect (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
	Supress self-reflection method.
virtual int	filterExercisePdus (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
	Filter out PDUs which match the parameters configured in the DtPduFilterTests.
Send methods.
The base class send methods are overridden to provide the optional capability to bundle/unbundle and to filter self-reflects by sending PDUs from a different socket on an ephemeral port
virtual int	send (caddr_t packet, size_t size, DtU32 flags=0)
	Sends only to the given destination.
virtual int	sendTo (caddr_t packet, size_t size, DtInetEndpoint &dest, DtU32 flags=0)
	Sends only to the given destination.
virtual int	sendChain (DtInetBufferChain &packets, DtU32 flags=0)
	Sends only to the given destination.
virtual int	sendChainTo (DtInetBufferChain &packets, DtInetEndpoint &dest, DtU32 flags=0)
	Sends only to the given destination.
Set / get socket options.
These methods provides an interface to all supported socket options. These are only applied to the send socket when self-reflect suppression is enabled.
virtual bool	setSendSockNonBlockingOption (bool onOrOff)
virtual bool	setSendSockSendBuffSize (DtU32 size)
virtual bool	setSendSockRcvBuffSize (DtU32 size)
virtual bool	setSendSockBroadcastOption (bool onOrOff)
virtual bool	setSendSockReuseAddrOption (bool onOrOff)
virtual bool	setSendSockDoNotRouteOption (bool onOrOff)
virtual bool	setSendSockSendLowWatermark (DtU32 size)
virtual bool	setSendSockRcvLowWatermark (DtU32 size)
virtual bool	setSendSockMcastDevice (DtInetAddr devAddr)
virtual bool	setSendSockMcastDevice (DtInetDevice *hostIf)
virtual DtU32	getSendSockSendBuffSize ()
virtual DtU32	getSendSockRcvBuffSize ()
virtual DtU32	getSendSockBytesAvailable ()
virtual bool	getSendSockBroadcastOption ()
virtual bool	getSendSockReuseAddrOption ()
virtual bool	getSendSockDoNotRouteOption ()
virtual DtU32	getSendSockSendLowWatermark ()
virtual DtU32	getSendSockRcvLowWatermark ()
Multicast specific methods.
Join / drop subscription to multicast group. Socket will join group identified by the multicast address in grpAddr or grpEndpoint. If an object is passed in the port value of the endpoint will be ignored and the socket will join from the same port the socket's local endpoint uses. If no interface is specified in the join it will join on the host's default multicast interface.
virtual bool	sendSockJoinMulticastGroup (DtInetAddr grpAddr, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	sendSockJoinMulticastGroup (DtInetEndpoint grpEndpoint, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	sendSockDropMulticastGroup (DtInetAddr grpAddr, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	sendSockDropMulticastGroup (DtInetEndpoint grpEndpoint, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	setSendSockMcastTtlOption (DtU32 ttl)
	Change the default time-to-live on outbound multicast packets sent from this socket.
DIS PDU bundling extension functions.
virtual void	setBundling (int maxBundleSize, bool enableUnbundling, int minPacketSize, int sizeOffset, int sizeLength, bool testDisHeader)
	Bundling is only performed when using the sendChain(), sendChainTo(), recvToChain(), and recvToChainFrom() methods.
Set / get bundle maximum bundle size.
Setting maximum bundle size > 0 enables bundling. Setting max bundle size to 0 disables bundling. For optimal network performance max bundle sizes should be slightly less than the MTU of the network.
virtual bool	setMaxBundleSize (int size)
virtual int	getMaxBundleSize ()
virtual bool	isBundling ()
Set / get unbundling status.
Pass 0 to setUnbundling to disable unbundling, 1 to enable it. Unbundling is enabled by default.
virtual void	setUnbundling (int onOrOff)
virtual int	isUnbundling ()
Set / get minimum valid packet size.
If not set manually, the min. size is based on DtNetPduHeader for backwards compatibility. Currently used only when unbundling enabled
virtual void	setMinPacketSize (int size)
virtual int	minPacketSize ()
Bundling methods.
These methods are called from the bundling callback functions to perform the actual work.
virtual int	addToBundle (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep)
virtual int	unbundle (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
virtual int	getNextBundle (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
virtual DtInetSockFlushStatus	flushBundle (DtInetEndpoint &ep)
Protected Member Functions
virtual void *	disSendSocket ()
	Return the underlying Boost class socket objects.
virtual DtInetDevice *	findInterface (const DtInetAddr &dest)
	Find the correct interface from which to send to the specified destination.
virtual DtU16	getPduSize (DtDisSocketPduHeader hdr, int hdrOffset, DtInetBufferChain::iterator current, DtInetBufferChain::iterator end, int status)
Static Protected Member Functions
static int	suppressSelfReflect (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
	Supress self-reflection callback.
static int	filterExercisePdus (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
	PDU filtering callback.
Bundling callbacks.
All pre- and post- processing callbacks must return the total number of bytes in buffChain after processing or a negative value if an error occurs. The static methods are registered as callbacks, but the actual work takes place in the bundling methods.
static int	addToBundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
static int	flushBundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
static int	unbundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
static int	getNextBundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
Protected Attributes
void *	mySendSocketIoService
	Using Void pointer to abstract a boost type actual type: boost::asio::io_service*.
void *	mySendSocket
	Using Void pointer to abstract a boost type actual type: boost::asio::ip::udp::socket*.
DtInetEndpoint	mySendEndpoint
std::set< DtInetEndpoint >	myAdditionalDestinations
bool	mySuppressSelfReflect
DtInetUtils::DtInetSockOutboundBundleMap	myOutboundBundles
DtInetUtils::DtInetSockInboundBundleQueue	myInboundBundles
int	myMaxBundleSize
int	myMinBundleSize
bool	myUnbundlingEnabled
DtPduFilterTest	myVersionFilter
DtPduFilterTest	myExerciseFilter
DtPduFilterTest	myKindFilter
DtPduFilterTest	myAddrFilter
Private Member Functions
	DtDisSocket (const DtDisSocket &orig)
	Copy constructor not implemented.
DtDisSocket &	operator= (const DtDisSocket &orig)
	Assignment not implemented.
Private Attributes
DtDisSockPimpl *	myAsyncSendSockPimpl
Friends
class	DtDisSockPimpl
	For async operations.

Detailed Description

The DtDisSocket class provides an address family independent datagram socket.

Constructor & Destructor Documentation

DtDisSocket::DtDisSocket	(	const DtInetEndpoint &	dest,
		DtU16	localPort = `0`,
		DtInetDevice *	hostIf = `NULL`,
		DtU32	flags = `DtDefaultSockOpts`,
		bool	immediateOpen = `true`,
		bool	suppressSelfReflectEnabled = `false`
	)

DIS Socket Constructor.

Takes a destination endpoint, a source port to use, a pointer to the local network interface device the socket will be bound to, socket option flags, an 'immediateOpen' indicator dictating how the socket should behave upon creation, and a flag to enable self- reflect suppression. If the destination endpoint port is 0 the default DIS port (3000) will be used. The address family (IPv4 or IPv6) is assumed from the destination endpoint object. If suppressSelfReflect is true all packets will be sent from the specified local port or an automatically chosen ephemeral if the localPort parameter is 0. If no host interface is specified the most appropriate interface will be chosen based on the destination. If the destination endpoint specifies a multicast address the multicast group is joined automatically when the socket is opened and the group membership is dropped when the socket is closed. If the 'immediateOpen' parameter is true the socket will immediately try to bind to an interface and allow datagrams to be sent and received. To use custom packet handlers for the send and receive functions the handlers must be set before any call to any of the send and receive methods. To ensure the handlers are configured it is recommended that 'immediateOpen' be set to false so the packet handler callbacks can be configured, then call openSocket(). This ctor will not throw exceptions on failure. Check the socket status by calling state() (or isOk()) to determine if the socket is ready.

virtual DtDisSocket::~DtDisSocket ( ) [virtual]

Destructor.

DtDisSocket::DtDisSocket ( const DtDisSocket & orig ) [private]

Copy constructor not implemented.

Member Function Documentation

virtual bool DtDisSocket::addDestination ( const DtInetEndpoint & destination ) [virtual]

Add an additional destination.

Packets will be sent to these destinations in addition to the sockets destination. Return indicates if destination was added successfully (true) or not (false).

virtual int DtDisSocket::addToBundle	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep
	)		`[virtual]`

static int DtDisSocket::addToBundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)		`[static, protected]`

virtual bool DtDisSocket::closeSocket ( ) [virtual]

Close a socket.

Returns true on successful close or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure. The base class method is overridden to provide the optional capability to filter self-reflects by sending PDUs from a different socket on an ephemeral port

Reimplemented from DtInetUdpSocket.

virtual void* DtDisSocket::disSendSocket ( ) [protected, virtual]

Return the underlying Boost class socket objects.

DtPduFilterTest * DtDisSocket::exerciseId ( ) [inline, virtual]

DIS PDU filtering extension interface.

virtual int DtDisSocket::filterExercisePdus	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)		`[virtual]`

Filter out PDUs which match the parameters configured in the DtPduFilterTests.

static int DtDisSocket::filterExercisePdus	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)		`[static, protected]`

PDU filtering callback.

This should always be added to the callbacks. The individual filtering tests can be enabled / disabled on the fly.

virtual DtInetDevice* DtDisSocket::findInterface ( const DtInetAddr & dest ) [protected, virtual]

Find the correct interface from which to send to the specified destination.

This is only used when no host interface is specified for the socket in order to determine which interface on a multi-homed host can send to the destination broadcast or multicast address.

virtual DtInetSockFlushStatus DtDisSocket::flush ( ) [virtual]

Flush bundles. This method is called to flush all queued bundles.

virtual DtInetSockFlushStatus DtDisSocket::flushBundle ( DtInetEndpoint & ep ) [virtual]

static int DtDisSocket::flushBundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)		`[static, protected]`

virtual int DtDisSocket::getMaxBundleSize ( ) [virtual]

virtual int DtDisSocket::getNextBundle	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)		`[virtual]`

static int DtDisSocket::getNextBundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)		`[static, protected]`

virtual DtU16 DtDisSocket::getPduSize	(	DtDisSocketPduHeader *	hdr,
		int	hdrOffset,
		DtInetBufferChain::iterator	current,
		DtInetBufferChain::iterator	end,
		int *	status
	)		`[protected, virtual]`

virtual bool DtDisSocket::getSendSockBroadcastOption ( ) [virtual]

virtual DtU32 DtDisSocket::getSendSockBytesAvailable ( ) [virtual]

virtual bool DtDisSocket::getSendSockDoNotRouteOption ( ) [virtual]

virtual DtU32 DtDisSocket::getSendSockRcvBuffSize ( ) [virtual]

virtual DtU32 DtDisSocket::getSendSockRcvLowWatermark ( ) [virtual]

virtual bool DtDisSocket::getSendSockReuseAddrOption ( ) [virtual]

virtual DtU32 DtDisSocket::getSendSockSendBuffSize ( ) [virtual]

virtual DtU32 DtDisSocket::getSendSockSendLowWatermark ( ) [virtual]

DtPduFilterTest * DtDisSocket::ipAddr ( ) [inline, virtual]

virtual bool DtDisSocket::isBundling ( ) [virtual]

virtual int DtDisSocket::isUnbundling ( ) [virtual]

virtual DtInetEndpoint& DtDisSocket::localSenderEndpoint ( ) const [virtual]

Return the endpoint of the sender.

This will differ from the receiving endpoint when self-reflect suppression is enabled.

virtual int DtDisSocket::minPacketSize ( ) [virtual]

virtual bool DtDisSocket::openSocket ( ) [virtual]

Enable sending and receiving of packets.

Returns true on success or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure. The base class method is overridden to provide the optional capability to filter self-reflects by sending PDUs from a different socket on an ephemeral port

Reimplemented from DtInetUdpSocket.

DtDisSocket& DtDisSocket::operator= ( const DtDisSocket & orig ) [private]

Assignment not implemented.

DtPduFilterTest * DtDisSocket::pduKind ( ) [inline, virtual]

DtPduFilterTest * DtDisSocket::protocolVersion ( ) [inline, virtual]

virtual DtInetSockRcvStatus DtDisSocket::recvFrom	(	caddr_t	buff,
		size_t	buffSize,
		DtInetEndpoint &	src,
		DtU32	flags = `0`
	)		`[virtual]`

Receive method override The DtInetUdpSocket base class revcFrom() method does not perform unbundling, PDU filtering, or self-reflect suppression.

For backward compatibility those additional tasks are supported in all DIS socket receive methods.

Reimplemented from DtInetUdpSocket.

virtual void DtDisSocket::removeDestination ( const DtInetEndpoint & destination ) [virtual]

Remove a destination.

Address will be removed from the list of additional destinations for sending packets.

virtual int DtDisSocket::send	(	caddr_t	packet,
		size_t	size,
		DtU32	flags = `0`
	)		`[virtual]`

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual int DtDisSocket::sendChain	(	DtInetBufferChain &	packets,
		DtU32	flags = `0`
	)		`[virtual]`

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual int DtDisSocket::sendChainTo	(	DtInetBufferChain &	packets,
		DtInetEndpoint &	dest,
		DtU32	flags = `0`
	)		`[virtual]`

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::sendSockDropMulticastGroup	(	DtInetAddr	grpAddr,
		DtInetDevice *	device = `NULL`
	)		`[virtual]`

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtDisSocket::sendSockDropMulticastGroup	(	DtInetEndpoint	grpEndpoint,
		DtInetDevice *	device = `NULL`
	)		`[virtual]`

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtDisSocket::sendSockJoinMulticastGroup	(	DtInetAddr	grpAddr,
		DtInetDevice *	device = `NULL`
	)		`[virtual]`

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtDisSocket::sendSockJoinMulticastGroup	(	DtInetEndpoint	grpEndpoint,
		DtInetDevice *	device = `NULL`
	)		`[virtual]`

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual int DtDisSocket::sendTo	(	caddr_t	packet,
		size_t	size,
		DtInetEndpoint &	dest,
		DtU32	flags = `0`
	)		`[virtual]`

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual void DtDisSocket::setBundling	(	int	maxBundleSize,
		bool	enableUnbundling,
		int	minPacketSize,
		int	sizeOffset,
		int	sizeLength,
		bool	testDisHeader
	)		`[virtual]`

Bundling is only performed when using the sendChain(), sendChainTo(), recvToChain(), and recvToChainFrom() methods.

If maxBundleSize == 0 bundling is disabled. Unbundling is enabled by default. Deprecated. Provided for backwards compatibility.

Set all bundling parameters at once. The sizeOffset, sizeLength, and testDisHeader arguments are ignored.

virtual bool DtDisSocket::setMaxBundleSize ( int size ) [virtual]

virtual void DtDisSocket::setMinPacketSize ( int size ) [virtual]

virtual bool DtDisSocket::setSendSockBroadcastOption ( bool onOrOff ) [virtual]

virtual bool DtDisSocket::setSendSockDoNotRouteOption ( bool onOrOff ) [virtual]

virtual bool DtDisSocket::setSendSockMcastDevice ( DtInetAddr devAddr ) [virtual]

virtual bool DtDisSocket::setSendSockMcastDevice ( DtInetDevice * hostIf ) [virtual]

virtual bool DtDisSocket::setSendSockMcastTtlOption ( DtU32 ttl ) [virtual]

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtDisSocket::setSendSockNonBlockingOption ( bool onOrOff ) [virtual]

virtual bool DtDisSocket::setSendSockRcvBuffSize ( DtU32 size ) [virtual]

virtual bool DtDisSocket::setSendSockRcvLowWatermark ( DtU32 size ) [virtual]

virtual bool DtDisSocket::setSendSockReuseAddrOption ( bool onOrOff ) [virtual]

virtual bool DtDisSocket::setSendSockSendBuffSize ( DtU32 size ) [virtual]

virtual bool DtDisSocket::setSendSockSendLowWatermark ( DtU32 size ) [virtual]

virtual void DtDisSocket::setUnbundling ( int onOrOff ) [virtual]

virtual int DtDisSocket::suppressSelfReflect	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)		`[virtual]`

Supress self-reflection method.

Filters out PDUs which originated from this socket's send port.

static int DtDisSocket::suppressSelfReflect	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)		`[static, protected]`
