DtEmbeddedSystemRepository Class Reference

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems. More...

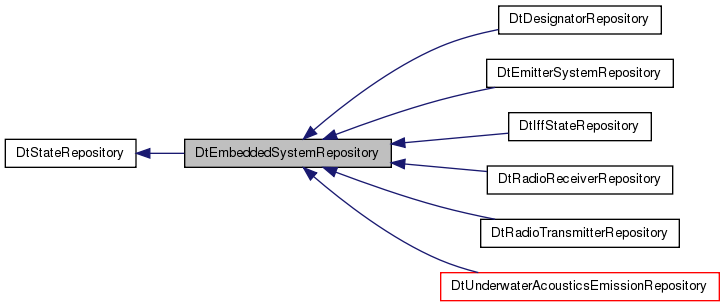

Inheritance diagram for DtEmbeddedSystemRepository:

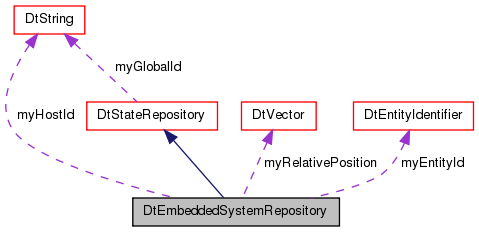

Collaboration diagram for DtEmbeddedSystemRepository:

List of all members.

Public Member Functions
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector &position)
	Set the position of the object relative to the entity.
virtual const DtVector &	relativePosition () const
	Get the position of the object relative to the entity.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream.
Static Public Member Functions
static DtEmbeddedSystemRepository *	create ()
Protected Attributes
DtEntityIdentifier	myEntityId
	Embedded system class attributes.
DtGlobalObjectDesignator	myHostId
DtVector	myRelativePosition

---

Detailed Description

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems.

An embedded system is an object which is a component of an entity: for example, a radar unit on an aircraft.

---

Constructor & Destructor Documentation

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

)

default constructor

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

const DtEmbeddedSystemRepository &

orig

)

copy constructor

virtual DtEmbeddedSystemRepository::~DtEmbeddedSystemRepository

(

)

[virtual]

destructor

---

Member Function Documentation

virtual DtStateRepository* DtEmbeddedSystemRepository::clone

(

bool

copy

)

const [virtual]

Return a copy/empty object of the same type as this.

Implements DtStateRepository.

Reimplemented in DtEmitterSystemRepository, DtIffStateRepository, DtRadioTransmitterRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, DtActiveSonarStateRepository, and DtRadioReceiverRepository.

static DtEmbeddedSystemRepository* DtEmbeddedSystemRepository::create

(

)

[static]

Reimplemented in DtRadioTransmitterRepository, DtIffStateRepository, DtEmitterSystemRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtActiveSonarStateRepository, DtDesignatorRepository, and DtRadioReceiverRepository.

virtual const DtEntityIdentifier& DtEmbeddedSystemRepository::entityId

(

)

const [virtual]

Get the entity identifier.

In DIS this is the same as the HostID, but may not be used in HLA.

virtual const DtGlobalObjectDesignator& DtEmbeddedSystemRepository::hostId

(

)

const [virtual]

Get the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

DtEmbeddedSystemRepository& DtEmbeddedSystemRepository::operator=

(

const DtEmbeddedSystemRepository &

orig

)

assignment operator

virtual void DtEmbeddedSystemRepository::printData

(

)

const [virtual]

Print data to the DtInfo stream.

Implements DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtRadioReceiverRepository, DtEmitterSystemRepository, DtIffStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtActiveSonarStateRepository, and DtDesignatorRepository.

virtual void DtEmbeddedSystemRepository::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print state data to the specified stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtRadioReceiverRepository, DtEmitterSystemRepository, DtIffStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtActiveSonarStateRepository, and DtDesignatorRepository.

virtual const DtVector& DtEmbeddedSystemRepository::relativePosition

(

)

const [virtual]

Get the position of the object relative to the entity.

virtual void DtEmbeddedSystemRepository::setEntityId

(

const DtEntityIdentifier &

id

)

[virtual]

Set the entity identifier.

In DIS this is the same as the HostID, used by RPR FOM, but may not be present in all FOMS.

virtual void DtEmbeddedSystemRepository::setHostId

(

const DtGlobalObjectDesignator &

id

)

[virtual]

Set the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

virtual void DtEmbeddedSystemRepository::setRelativePosition

(

const DtVector &

position

)

[virtual]

Set the position of the object relative to the entity.

---

Member Data Documentation

DtEntityIdentifier DtEmbeddedSystemRepository::myEntityId [protected]

Embedded system class attributes.

DtGlobalObjectDesignator DtEmbeddedSystemRepository::myHostId [protected]

DtVector DtEmbeddedSystemRepository::myRelativePosition [protected]

---

The documentation for this class was generated from the following file:

• embedSystemSR.h
