DtInteractionManager Class Reference

class DtInteractionManager: More...

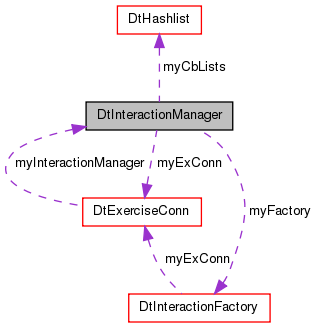

Collaboration diagram for DtInteractionManager:

List of all members.

Public Member Functions
	DtInteractionManager (DtInteractionFactory *factory, DtExerciseConn *exConn)
	constructor
virtual	~DtInteractionManager ()
	destructor
virtual void	addInteractionCallback (RTI::InteractionClassHandle h, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add/remove a callback to be called when an interaction is received from another federate.
virtual void	removeInteractionCallback (RTI::InteractionClassHandle h, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
virtual void	processInteraction (RTI::InteractionClassHandle h, const RTI::ParameterHandleValueMap &p, const RTI::LogicalTime *fedTime, const RTI::VariableLengthData &tag, const RTI::RegionHandleSet *regions=0)
	Create an interaction object, call the registered callbacks, then delete the interaction object.
Protected Member Functions
	DtInteractionManager (const DtInteractionManager &orig)
	copy constructor - not implemented.
DtInteractionManager &	operator= (const DtInteractionManager &orig)
	assignment operator - not implemented.
void	emptyCbList ()
	Empty callback list.
virtual DtList *	cbList (RTI::InteractionClassHandle handle)
	Returns the list of callbacks registered for a particular class.
Protected Attributes
DtExerciseConn *	myExConn
DtInteractionFactory *	myFactory
DtHashlist	myCbLists
	DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.

---

Detailed Description

class DtInteractionManager:

Instances of DtInteractionManager are used to manage the creation and processing of HLA interactions.

---

Constructor & Destructor Documentation

DtInteractionManager::DtInteractionManager	(	DtInteractionFactory *	factory,
		DtExerciseConn *	exConn
	)

constructor

virtual DtInteractionManager::~DtInteractionManager

(

)

[virtual]

destructor

DtInteractionManager::DtInteractionManager

(

const DtInteractionManager &

orig

)

[protected]

copy constructor - not implemented.

---

Member Function Documentation

virtual void DtInteractionManager::addInteractionCallback	(	RTI::InteractionClassHandle	h,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[virtual]

Add/remove a callback to be called when an interaction is received from another federate.

virtual DtList* DtInteractionManager::cbList

(

RTI::InteractionClassHandle

handle

)

[protected, virtual]

Returns the list of callbacks registered for a particular class.

void DtInteractionManager::emptyCbList

(

)

[protected]

Empty callback list.

Non-virtual since meant to be called from destructor.

DtInteractionManager& DtInteractionManager::operator=

(

const DtInteractionManager &

orig

)

[protected]

assignment operator - not implemented.

virtual void DtInteractionManager::processInteraction	(	RTI::InteractionClassHandle	h,
		const RTI::ParameterHandleValueMap &	p,
		const RTI::LogicalTime *	fedTime,
		const RTI::VariableLengthData &	tag,
		const RTI::RegionHandleSet *	regions = 0
	)		[virtual]

Create an interaction object, call the registered callbacks, then delete the interaction object.

virtual void DtInteractionManager::removeInteractionCallback	(	RTI::InteractionClassHandle	h,
		DtReceiveInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[virtual]

---

Member Data Documentation

DtHashlist DtInteractionManager::myCbLists [protected]

DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.

DtExerciseConn* DtInteractionManager::myExConn [protected]

DtInteractionFactory* DtInteractionManager::myFactory [protected]

---

The documentation for this class was generated from the following file:

• interMgr.h
