Instances of DtObjectPublisher are used for local or source simulations of objects, (i.e. More...

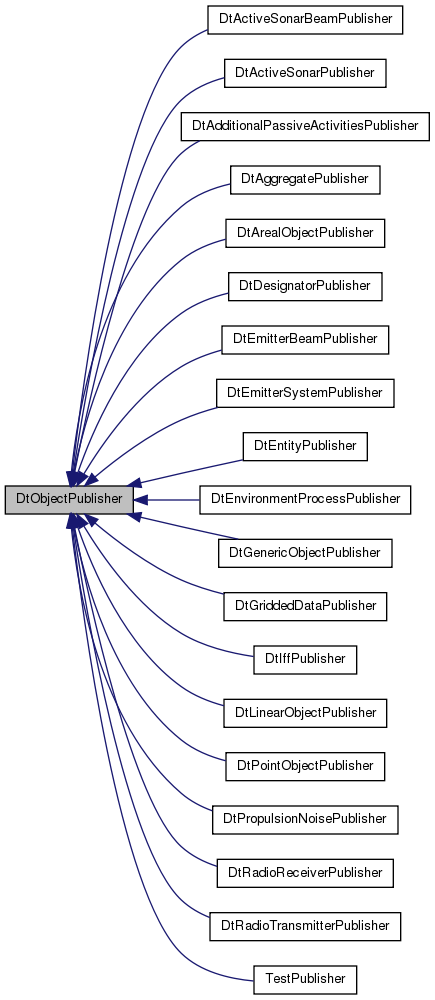

Inheritance diagram for DtObjectPublisher:

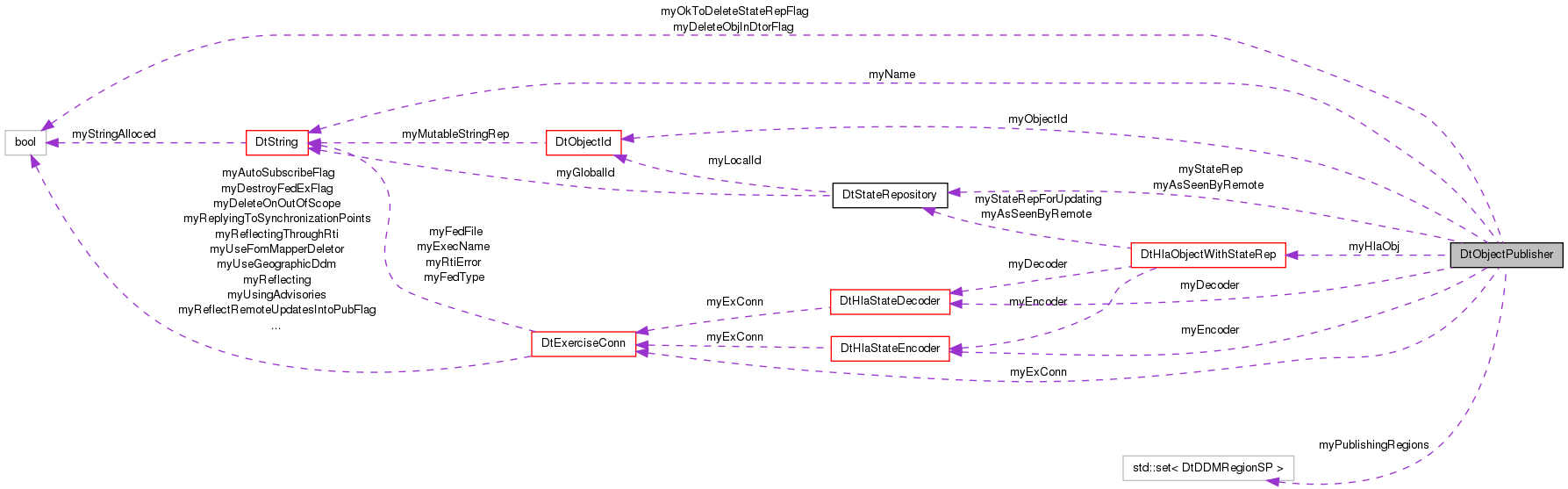

Collaboration diagram for DtObjectPublisher:

Public Member Functions
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor.
virtual	~DtObjectPublisher ()
	Destructor.
virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called.
virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you.
virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it.
virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Synonym for stateRep().
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository -- This state repository contains the contents of the last sent message.
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR.
virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message.
virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual const DtObjectId &	id () const
	Get the object's local identifier.
virtual const DtObjectId &	objectId () const
	Get the object's local identifier.
virtual const DtObjectId &	localId () const
	Get the object's local identifier.
virtual const DtString &	name () const
	Get the object's name.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3.
virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent.
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
virtual void	tick ()
	Tick (update) this object.
virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher.
virtual bool	deleteObjInDtorFlag () const
virtual const DtDDMRegionSet &	publishingRegions () const
virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador.
virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador.
	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases.
void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)
void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
Static Public Member Functions
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away.
Protected Member Functions
virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away.
Protected Attributes
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
DtHlaStateEncoder *	myEncoder
DtHlaStateDecoder *	myDecoder
DtObjectId	myObjectId
bool	myOkToDeleteStateRepFlag
DtString	myName
bool	myDeleteObjInDtorFlag
DtDDMRegionSet	myPublishingRegions
Private Member Functions
	DtObjectPublisher (const DtObjectPublisher &orig)
	copy constructor -- not implemented
DtObjectPublisher &	operator= (const DtObjectPublisher &orig)
	assignment operator -- not implemented

Detailed Description

Instances of DtObjectPublisher are used for local or source simulations of objects, (i.e.

these objects are not dependent on data being produced elsewhere on the network for their existence). These object send data to the network.

Constructor & Destructor Documentation

DtObjectPublisher::DtObjectPublisher	(	DtExerciseConn *	conn,
		DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		bool	okToDeleteStateRep = `true`,
		const DtDDMRegionSet *	regionSet = `0`
	)

Constructor.

Object is not fully constructed until setHlaObject is called - typically by subclass constructor.

virtual DtObjectPublisher::~DtObjectPublisher ( ) [virtual]

Destructor.

If we own the privilege to delete, and the deleteObjInDtor flag is true, this will cause the HLA object we are publishing to be deleted.

DtObjectPublisher::DtObjectPublisher ( const DtObjectPublisher & orig ) [private]

copy constructor -- not implemented

DtObjectPublisher::DtObjectPublisher	(	DtExerciseConn *	conn,
		const char *	name = `0`
	)

These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases.

Please use the constructor and setHlaObject functions described at the top of this class definition instead.

Member Function Documentation

virtual void DtObjectPublisher::addRegion ( DtDDMRegionSP regionToAdd ) [virtual]

Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador.

DtStateRepository * DtObjectPublisher::approximateRemoteStateRep ( ) [inline, virtual]

Returns a pointer to the approximate remote DtStateRepository -- This state repository contains the contents of the last sent message.

VR-Link keeps this SR so it can ensure that object updates get sent only when their data have changed.

References myAsSeenByRemote.

virtual DtHlaStateDecoder* DtObjectPublisher::decoder ( ) [virtual]

Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR.

virtual bool DtObjectPublisher::deleteObjInDtorFlag ( ) const [virtual]

virtual void DtObjectPublisher::detachHlaObject ( ) [virtual]

Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called.

Typically called only by destructor.

virtual DtHlaStateEncoder* DtObjectPublisher::encoder ( ) [virtual]

Returns a pointer to the Encoder being used to encode current state into an outgoing message.

DtExerciseConn * DtObjectPublisher::exerciseConn ( ) [inline, virtual]

Get our exercise connection.

References myExConn.

virtual void DtObjectPublisher::forceUpdate ( ) [virtual]

Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent.

The call with no arguments, indicates the set of all of the object's attributes. Multiple calls are cumulative, until the set is cleared with clearForcedAttributes, which should happen within tick.

Reimplemented in DtEmitterSystemPublisher.

virtual void DtObjectPublisher::forceUpdate ( const RTI::AttributeHandleSet & set ) [virtual]

Reimplemented in DtEmitterSystemPublisher.

virtual const DtGlobalObjectDesignator& DtObjectPublisher::globalId ( ) const [virtual]

Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3.

DtHlaObjectWithStateRep * DtObjectPublisher::hlaObject ( ) [inline, virtual]

Get the object's hlaObject.

References myHlaObj.

virtual const DtObjectId& DtObjectPublisher::id ( ) const [virtual]

Get the object's local identifier.

Referenced by localId().

void DtObjectPublisher::init	(	RTI::ObjectClassHandle	hand,
		DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`
	)

void DtObjectPublisher::init	(	const char *	className,
		DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`
	)

const DtObjectId & DtObjectPublisher::localId ( ) const [inline, virtual]

Get the object's local identifier.

References id().

virtual const DtString& DtObjectPublisher::name ( ) const [virtual]

Get the object's name.

virtual const DtObjectId& DtObjectPublisher::objectId ( ) const [virtual]

Get the object's local identifier.

DtObjectPublisher& DtObjectPublisher::operator= ( const DtObjectPublisher & orig ) [private]

assignment operator -- not implemented

virtual void DtObjectPublisher::processRemoveObject ( DtHlaObject * obj ) [protected, virtual]

Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away.

virtual const DtDDMRegionSet& DtObjectPublisher::publishingRegions ( ) const [virtual]

static void DtObjectPublisher::removeObjectCb	(	DtHlaObject *	obj,
		void *	pub
	)		`[static]`

Callback to be called when our underlying DtHlaObject goes away.

virtual void DtObjectPublisher::removeRegion ( DtDDMRegionSP regionToRemove ) [virtual]

Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador.

Must be the same shared pointer that was in the set passed in through the constructor, or the same shared pointer as that passed into addRegion().

virtual void DtObjectPublisher::setDeleteObjInDtorFlag ( bool onOff ) [virtual]

Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher.

Default is true.

virtual void DtObjectPublisher::setHlaObject	(	const char *	className,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`,
		const char *	objectName = `0`,
		const DtDDMRegionSet *	regionSet = `0`
	)		`[virtual]`

A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called.

It is typically called by subclass constructors. If encoder or decoder are 0, the FOM Mapper is consulted. This class assumes ownership of the encoder/decoder objects passed to setHlaObject, and will delete them on destruction, or if this function fails. If objectName is 0, a name is obtained from the RTI. This version takes a className and optional object name, and creates the DtHlaObject.

virtual void DtObjectPublisher::setHlaObject	(	RTI::ObjectClassHandle	hand,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`,
		const char *	objectName = `0`,
		const DtDDMRegionSet *	regionSet = `0`
	)		`[virtual]`

This version takes a classHandle and optional object name, and creates the DtHlaObject for you.

virtual void DtObjectPublisher::setHlaObject	(	DtHlaObjectWithStateRep *	obj,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`
	)		`[virtual]`
