DtReflectedEmitterSystem Class Reference

class DtReflectedEmitterSystem: More...

Inheritance diagram for DtReflectedEmitterSystem:

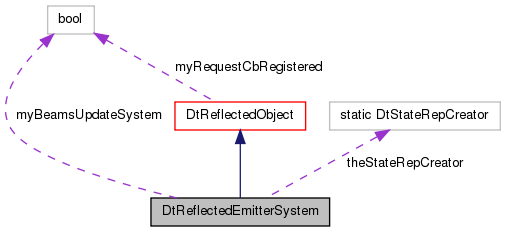

Collaboration diagram for DtReflectedEmitterSystem:

List of all members.

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories.
Public Member Functions
	DtReflectedEmitterSystem (DtHlaObject *obj, DtExerciseConn *conn, bool beamsUpdateSystem)
	constructor If beamsUpdateSystem == true, then a system's post-update callbacks are called whenever one of the beams in the system is updated.
	DtReflectedEmitterSystem (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, bool beamsUpdateSystem)
	Constructor used to construct a placeholder system when we discover a beam whose system hasn't been discovered yet.
virtual	~DtReflectedEmitterSystem ()
	destructor
virtual DtEmitterSystemRepository *	emitterSysRep () const
	Get the emitter system's state repository.
virtual DtEmitterSystemRepository *	esr () const
	Synonym for emitterSysRep().
virtual DtReflectedEmitterSystem *	next () const
	Get the next remote emitterSystem.
virtual DtReflectedEmitterSystem *	prev () const
	Get the previous remote emitterSystem.
virtual DtReflectedEmitterSystem *	wrapNext () const
	Get the next remote emitterSystem.
virtual DtReflectedEmitterSystem *	wrapPrev () const
	Get the previous remote emitterSystem.
virtual void	addPostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *userData)
	emitterSystem state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *userData)
virtual void	beamUpdated ()
	Tell the emitter system that one of its beams has been updated.
Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
Protected Member Functions
	DtReflectedEmitterSystem (const DtReflectedEmitterSystem &orig)
	copy constructor
DtReflectedEmitterSystem &	operator= (const DtReflectedEmitterSystem &orig)
	assignment operator
Protected Attributes
bool	myBeamsUpdateSystem
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

---

Detailed Description

class DtReflectedEmitterSystem:

Instances of DtReflectedEmitterSystem represent EmitterSystem objects simulated by remote applications. State data can be viewed through its state repository.

---

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtReflectedEmitterSystem::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

---

Constructor & Destructor Documentation

DtReflectedEmitterSystem::DtReflectedEmitterSystem	(	DtHlaObject *	obj,
		DtExerciseConn *	conn,
		bool	beamsUpdateSystem
	)

constructor If beamsUpdateSystem == true, then a system's post-update callbacks are called whenever one of the beams in the system is updated.

DtReflectedEmitterSystem::DtReflectedEmitterSystem	(	const DtObjectId &	id,
		const DtGlobalObjectDesignator &	des,
		DtExerciseConn *	conn,
		bool	beamsUpdateSystem
	)

Constructor used to construct a placeholder system when we discover a beam whose system hasn't been discovered yet.

virtual DtReflectedEmitterSystem::~DtReflectedEmitterSystem

(

)

[virtual]

destructor

DtReflectedEmitterSystem::DtReflectedEmitterSystem

(

const DtReflectedEmitterSystem &

orig

)

[protected]

copy constructor

---

Member Function Documentation

virtual void DtReflectedEmitterSystem::addPostUpdateCallback	(	DtEmitterSystemCallbackFunction	cb,
		void *	userData
	)		[virtual]

emitterSystem state callback registration/deregistration.

virtual void DtReflectedEmitterSystem::beamUpdated

(

)

[virtual]

Tell the emitter system that one of its beams has been updated.

DtEmitterSystemRepository * DtReflectedEmitterSystem::emitterSysRep

(

)

const [inline, virtual]

Get the emitter system's state repository.

References DtReflectedObject::myStateRep.

DtEmitterSystemRepository * DtReflectedEmitterSystem::esr

(

)

const [inline, virtual]

Synonym for emitterSysRep().

References DtReflectedObject::myStateRep.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::next

(

)

const [virtual]

Get the next remote emitterSystem.

Reimplemented from DtListedObj.

DtReflectedEmitterSystem& DtReflectedEmitterSystem::operator=

(

const DtReflectedEmitterSystem &

orig

)

[protected]

assignment operator

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::prev

(

)

const [virtual]

Get the previous remote emitterSystem.

Reimplemented from DtListedObj.

virtual void DtReflectedEmitterSystem::removePostUpdateCallback	(	DtEmitterSystemCallbackFunction	cb,
		void *	userData
	)		[virtual]

static DtStateRepCreator DtReflectedEmitterSystem::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapNext

(

)

const [virtual]

Get the next remote emitterSystem.

Will cycle back to the first remote emitterSystem.

Reimplemented from DtListedObj.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapPrev

(

)

const [virtual]

Get the previous remote emitterSystem.

Will cycle back to the last remote emitterSystem.

Reimplemented from DtListedObj.

---

Member Data Documentation

bool DtReflectedEmitterSystem::myBeamsUpdateSystem [protected]

DtStateRepCreator DtReflectedEmitterSystem::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• hReflEmitrSys.h
