An implementation of DtSocket which uses a TCP connection. More...

Inheritance diagram for DtTcpSocket:

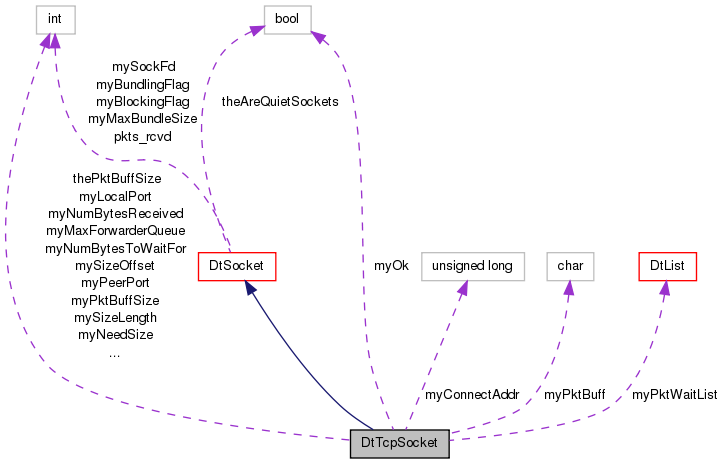

Collaboration diagram for DtTcpSocket:

Public Member Functions
	DtTcpSocket (int socketfd, DtIpv4Addr addr, int clientPort=0)
	Server Constructor.
	DtTcpSocket (DtIpv4Addr addr, int port=DtDEFAULT_PORT, int nonBlockingConnect=0)
	Client Constructor.
virtual	~DtTcpSocket ()
	Destructor.
virtual int	sendTo (caddr_t packet, size_t packetSize, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	Returns size of packet sent.
virtual int	DtRecv (caddr_t buffptr, int status=NULL)
	DtReceiv is he function which VR-Link uses to read packets from the socket.
virtual int	DtRecv (caddr_t buff, size_t bufsize)
virtual DtFlushStatus	flush ()
	Send buffered messages.
virtual DtFlushStatus	flush (long &byteCount)
	Send buffered messages.
virtual void	DtBecomeNonBlocking ()
	Designate the socket as non-blocking.
virtual void	DtBecomeBlocking ()
	Designate the socket as blocking.
virtual bool	isOk () const
	passively checks for errors in the socket.
virtual bool	isConnectionEstablished ()
	checks if the connection is fully established by sending a minimal packet through the socket.
virtual bool	testConnectionStatus ()
	actively test the connection for socket errors.
DtIpv4Addr	getConnectionAddr () const
	Get the address of the connected remote host.
int	sizeOffset () const
	Get/Set mySizeOffset.
void	setSizeOffset (int offset)
int	sizeLength () const
	Get/Set mySizeLength.
void	setSizeLength (int length)
virtual void	setNoDelay (bool onOff)
	Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.
virtual int	peerPort () const
	Returns the port connected to on the remote host.
virtual int	localPort () const
	Returns the port bound to on the local host.
int	maxForwarderQueue () const
	Get/Set the max forwarder queue size.
void	setMaxForwarderQueue (int maxForwarderQueue)
std::pair< int, int >	getQueueStatus () const
	Returns the queue status int 1 - the packet wait list ( myPktWaitList ) count int 2 - the max forwarder queue size.
Static Public Member Functions
static void	setNoDelay (int sockfd, bool onOff)
	Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.
static void	setPacketBufferSize (int size)
	Set the default buffer size for receiving data.
Protected Member Functions
int	sendTo (caddr_t packet, size_t packetSize, bool reportMinSizePktFaults)
	Returns size of packet sent.
int	recvWithStatus (caddr_t buffptr, int status)
int	checkSize (int size, caddr_t buffptr, int status)
bool	expandPktBuffer (unsigned int sizeNeeded)
int	sendMinimumSizePkt (bool reportMinSizePktFaults)
Protected Attributes
char *	myPktBuff
unsigned int	myPktBuffSize
DtIpv4Addr	myConnectAddr
int	myPeerPort
int	myLocalPort
bool	myOk
int	myNeedSize
int	mySizeOffset
int	mySizeLength
int	myNumBytesToWaitFor
int	myNumBytesReceived
DtList *	myPktWaitList
	List for saving un-sent packets.
int	myMaxForwarderQueue
	Max forwarder queue size.
Static Protected Attributes
static int	thePktBuffSize
Private Member Functions
	DtTcpSocket (const DtTcpSocket &)
	Copy CTOR Not Implemented.
DtTcpSocket &	operator= (const DtTcpSocket &)
	Assignment Operator Not Implemented.

Detailed Description

An implementation of DtSocket which uses a TCP connection.

Constructor & Destructor Documentation

DtTcpSocket::DtTcpSocket	(	int	socketfd,
		DtIpv4Addr	addr,
		int	clientPort = `0`
	)

Server Constructor.

DtTcpSocket::DtTcpSocket	(	DtIpv4Addr	addr,
		int	port = `DtDEFAULT_PORT`,
		int	nonBlockingConnect = `0`
	)

Client Constructor.

virtual DtTcpSocket::~DtTcpSocket ( ) [virtual]

Destructor.

DtTcpSocket::DtTcpSocket ( const DtTcpSocket & ) [private]

Copy CTOR Not Implemented.

Member Function Documentation

int DtTcpSocket::checkSize	(	int	size,
		caddr_t *	buffptr,
		int *	status
	)		`[protected]`

virtual void DtTcpSocket::DtBecomeBlocking ( ) [virtual]

Designate the socket as blocking.

virtual void DtTcpSocket::DtBecomeNonBlocking ( ) [virtual]

Designate the socket as non-blocking.

Reimplemented from DtSocket.

virtual int DtTcpSocket::DtRecv	(	caddr_t *	buffptr,
		int *	status = `NULL`
	)		`[virtual]`

DtReceiv is he function which VR-Link uses to read packets from the socket.

Users who wish to provide another mechanisim, such as shared memory, or loopback, will need to impliment or override these functions to return new packets. Depending on the implementation in derived DtSockets, one of the forms of DtRecv may be faster than the other.

DtRecv has an optional status argument that could more elegantly be implemented as different return codes, but this would break older code.

Note:: If a derived class complains "... hides virtual DtRecv() ...", make sure you have BOTH overloads of DtRecv declared and defined in the subclass.

Implements DtSocket.

virtual int DtTcpSocket::DtRecv	(	caddr_t	buff,
		size_t
	)		`[virtual]`

See also:: DtRecv(caddr_t *buffptr, int *status=0)

Implements DtSocket.

bool DtTcpSocket::expandPktBuffer ( unsigned int sizeNeeded ) [protected]

virtual DtFlushStatus DtTcpSocket::flush ( ) [virtual]

Send buffered messages.

Returns the status indicating error, flush is complete or incomplete.

Reimplemented from DtSocket.

virtual DtFlushStatus DtTcpSocket::flush ( long & byteCount ) [virtual]

Send buffered messages.

Number of flushed bytes returned in provided parameter. Returns the status indicating error, flush is complete or incomplete.

Reimplemented from DtSocket.

DtIpv4Addr DtTcpSocket::getConnectionAddr ( ) const [inline]

Get the address of the connected remote host.

std::pair<int, int> DtTcpSocket::getQueueStatus ( ) const

Returns the queue status int 1 - the packet wait list ( myPktWaitList ) count int 2 - the max forwarder queue size.

virtual bool DtTcpSocket::isConnectionEstablished ( ) [virtual]

checks if the connection is fully established by sending a minimal packet through the socket.

This should be checked after checking isOk().

bool DtTcpSocket::isOk ( ) const [inline, virtual]

passively checks for errors in the socket.

A result of true does not mean that the socket is fully connected.

Reimplemented from DtSocket.

virtual int DtTcpSocket::localPort ( ) const [virtual]

Returns the port bound to on the local host.

int DtTcpSocket::maxForwarderQueue ( ) const

Get/Set the max forwarder queue size.

DtTcpSocket& DtTcpSocket::operator= ( const DtTcpSocket & ) [private]

Assignment Operator Not Implemented.

virtual int DtTcpSocket::peerPort ( ) const [virtual]

Returns the port connected to on the remote host.

int DtTcpSocket::recvWithStatus	(	caddr_t *	buffptr,
		int *	status
	)		`[protected]`

int DtTcpSocket::sendMinimumSizePkt ( bool reportMinSizePktFaults ) [protected]

virtual int DtTcpSocket::sendTo	(	caddr_t	packet,
		size_t	packetSize,
		DtIpv4Addr	addr = `DtUSE_DEFAULT_IP_ADDR`
	)		`[virtual]`

Returns size of packet sent.

It is possible that a packet may not get sent. It is the user's responsibility to call flush() and re-try sending un-sent packets.

Implements DtSocket.

int DtTcpSocket::sendTo	(	caddr_t	packet,
		size_t	packetSize,
		bool	reportMinSizePktFaults
	)		`[protected]`

Returns size of packet sent.

Allows caller to specify whether to report send errors for minimum size messages ( for example, when checking non-blocking connect status, errors should not be reported )

void DtTcpSocket::setMaxForwarderQueue ( int maxForwarderQueue )

virtual void DtTcpSocket::setNoDelay ( bool onOff ) [virtual]

Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.

Default is 1.

static void DtTcpSocket::setNoDelay	(	int	sockfd,
		bool	onOff
	)		`[static]`

Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.

Default is 1.

static void DtTcpSocket::setPacketBufferSize ( int size ) [static]

Set the default buffer size for receiving data.

The packet buffer is only created once (in the constructor), so it is important to call the function below before creating a TcpSocket if you want the buffer to be larger than the default value of 20000 bytes.

void DtTcpSocket::setSizeLength ( int length )

void DtTcpSocket::setSizeOffset ( int offset )

int DtTcpSocket::sizeLength ( ) const [inline]

Get/Set mySizeLength.

int DtTcpSocket::sizeOffset ( ) const [inline]

Get/Set mySizeOffset.

virtual bool DtTcpSocket::testConnectionStatus ( ) [virtual]

actively test the connection for socket errors.

sends a minimal size packet and returns false if any socket errors detected. Unlike isConnectionEstablished() a size 0 send is acceptable. This should be checked after checking isOk(). Failure sets isOk() to false.
