DtBaseExerciseConn Class Reference

DtBaseExerciseConn is an abstract base class. More...

Inheritance diagram for DtBaseExerciseConn:

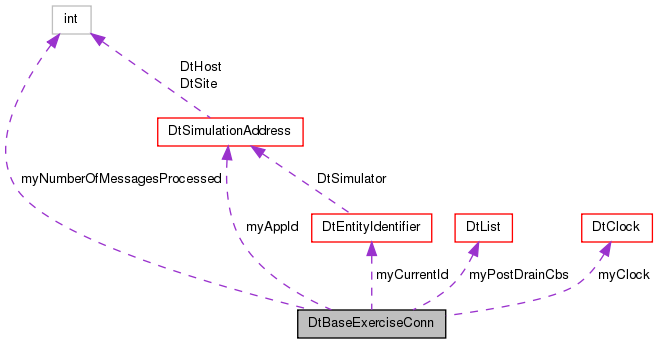

Collaboration diagram for DtBaseExerciseConn:

List of all members.

Public Member Functions
virtual	~DtBaseExerciseConn ()
	destructor
virtual void	send (const DtStateMsg &msg)=0
	Send a state message to the network.
virtual void	send (const DtInteraction &msg)=0
	Send an interaction to the network.
virtual void	sendStamped (const DtStateMsg &msg)=0
	Send a state message to the network which has been time stamped with the current time.
virtual void	sendStamped (const DtInteraction &msg)=0
	Send an interaction to the network which has been time stamped with the current time.
virtual void	addPostDrainCallback (DtPostDrainCb cb, void *usr)
	Add/remove callbacks to be executed from within drainInput right before it returns.
virtual void	removePostDrainCallback (DtPostDrainCb cb, void *usr)
virtual void	removeAllPostDrainCallbacks ()
virtual void	setClock (DtClock *clock)
	This function allows one to set the exercise connection's clock -- overriding the default clock and setting the simulation time to zero.
virtual DtClock *	clock ()
	Get reference to exercise connection's clock.
virtual int	lastDrainInputReceiveCount () const
virtual void	incrementNumberOfMessagesProcessed ()
	Increments myNumberOfMessagesProcessed.
virtual void	setApplicationId (int siteId, int applNum)
	---------------------- ID MANAGEMENT ----------------------
virtual DtSimulationAddress	applicationId ()
virtual const DtEntityIdentifier &	nextId ()
	Returns the next valid entity ID formed by calling makeEntityId with the current value of a entity number counter.
virtual DtEntityIdentifier	makeEntityId (int entityNum)
	Returns an entity ID consisting of the DtExerciseConn's site and host numbers, and entityNum as the entity number.
Protected Member Functions
	DtBaseExerciseConn ()
	Constructors are protected since this is an abstract base class.
	DtBaseExerciseConn (const DtBaseExerciseConn &)
	copy constructor -- Not implemented
DtBaseExerciseConn &	operator= (const DtBaseExerciseConn &)
	Assignment Operator -- Not Implemented.
virtual void	executePostDrainCbs ()
	Should be called by derived class's drainInputs.
Protected Attributes
DtSimulationAddress	myAppId
DtEntityIdentifier	myCurrentId
DtList	myPostDrainCbs
DtClock *	myClock
int	myNumberOfMessagesProcessed

---

Detailed Description

DtBaseExerciseConn is an abstract base class.

It provides an application's interface or connection to a network.

---

Constructor & Destructor Documentation

virtual DtBaseExerciseConn::~DtBaseExerciseConn

(

)

[virtual]

destructor

DtBaseExerciseConn::DtBaseExerciseConn

(

)

[protected]

Constructors are protected since this is an abstract base class.

default constructor

DtBaseExerciseConn::DtBaseExerciseConn

(

const DtBaseExerciseConn &

)

[protected]

copy constructor -- Not implemented

---

Member Function Documentation

virtual void DtBaseExerciseConn::addPostDrainCallback	(	DtPostDrainCb	cb,
		void *	usr
	)		[virtual]

Add/remove callbacks to be executed from within drainInput right before it returns.

virtual DtSimulationAddress DtBaseExerciseConn::applicationId

(

)

[virtual]

virtual DtClock* DtBaseExerciseConn::clock

(

)

[virtual]

Get reference to exercise connection's clock.

virtual void DtBaseExerciseConn::executePostDrainCbs

(

)

[protected, virtual]

Should be called by derived class's drainInputs.

virtual void DtBaseExerciseConn::incrementNumberOfMessagesProcessed

(

)

[virtual]

Increments myNumberOfMessagesProcessed.

This is called by the federate ambassador each time it receives an object update.

virtual int DtBaseExerciseConn::lastDrainInputReceiveCount

(

)

const [virtual]

virtual DtEntityIdentifier DtBaseExerciseConn::makeEntityId

(

int

entityNum

)

[virtual]

Returns an entity ID consisting of the DtExerciseConn's site and host numbers, and entityNum as the entity number.

virtual const DtEntityIdentifier& DtBaseExerciseConn::nextId

(

)

[virtual]

Returns the next valid entity ID formed by calling makeEntityId with the current value of a entity number counter.

DtBaseExerciseConn& DtBaseExerciseConn::operator=

(

const DtBaseExerciseConn &

)

[protected]

Assignment Operator -- Not Implemented.

virtual void DtBaseExerciseConn::removeAllPostDrainCallbacks

(

)

[virtual]

virtual void DtBaseExerciseConn::removePostDrainCallback	(	DtPostDrainCb	cb,
		void *	usr
	)		[virtual]

virtual void DtBaseExerciseConn::send

(

const DtStateMsg &

msg

)

[pure virtual]

Send a state message to the network.

Implemented in DtExerciseConn.

virtual void DtBaseExerciseConn::send

(

const DtInteraction &

msg

)

[pure virtual]

Send an interaction to the network.

Implemented in DtExerciseConn.

virtual void DtBaseExerciseConn::sendStamped

(

const DtStateMsg &

msg

)

[pure virtual]

Send a state message to the network which has been time stamped with the current time.

Implemented in DtExerciseConn.

virtual void DtBaseExerciseConn::sendStamped

(

const DtInteraction &

msg

)

[pure virtual]

Send an interaction to the network which has been time stamped with the current time.

Implemented in DtExerciseConn.

virtual void DtBaseExerciseConn::setApplicationId	(	int	siteId,
		int	applNum
	)		[virtual]

---------------------- ID MANAGEMENT ----------------------

Set/get the current application ID (DIS/RPR FOM site Id & host Id (application Id)).

virtual void DtBaseExerciseConn::setClock

(

DtClock *

clock

)

[virtual]

This function allows one to set the exercise connection's clock -- overriding the default clock and setting the simulation time to zero.

---

Member Data Documentation

DtSimulationAddress DtBaseExerciseConn::myAppId [protected]

DtClock* DtBaseExerciseConn::myClock [protected]

DtEntityIdentifier DtBaseExerciseConn::myCurrentId [protected]

int DtBaseExerciseConn::myNumberOfMessagesProcessed [protected]

DtList DtBaseExerciseConn::myPostDrainCbs [protected]

---

The documentation for this class was generated from the following file:

• baseExConn.h
