DtCreateObjReqInter Class Reference

Instances of DtCreateObjReqInter are used to represent CreateObjectRequest Interactions in the RPR FOM. More...

Inheritance diagram for DtCreateObjReqInter:

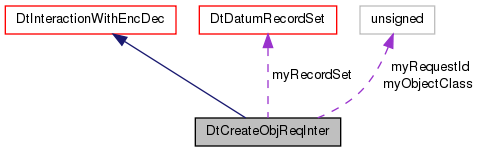

Collaboration diagram for DtCreateObjReqInter:

List of all members.

Public Member Functions
	DtCreateObjReqInter ()
	default constructor
virtual	~DtCreateObjReqInter ()
	destructor
	DtCreateObjReqInter (const DtCreateObjReqInter &orig)
	copy constructor
DtCreateObjReqInter &	operator= (const DtCreateObjReqInter &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setObjectClass (DtU32 id)
	Set/Get object class.
virtual DtU32	objectClass () const
virtual void	setNumPairs (DtU32 pairs)
	Set/Get the number of attribute/value pairs.
virtual DtU32	numPairs () const
virtual void	setAvPairSet (const RTI::AttributeHandleValuePairSet &atts)
virtual const RTI::AttributeHandleValuePairSet &	avPairSet () const
virtual void	setAttributeHandle (DtU32 index, DtU32 handle)
	Set/Get the attribute handle given an index.
virtual DtU32	attributeHandle (DtU32 index) const
virtual void	setAttributeValueLength (DtU32 index, DtU32 length)
	Set/Get the attribute value length given and index.
virtual DtU32	attributeValueLength (DtU32 index) const
virtual void	setAttributeValue (DtU32 index, const char *usr)
virtual const char *	attributeValue (DtU32 index) const
virtual DtDatumRecordSet *	datumRecSet ()
	Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records.
virtual const DtDatumRecordSet *	datumRecSet () const
virtual void	setRequestId (DtU32 id)
	Set/Get request ID.
virtual DtU32	requestId () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtCreateObjReqInter.
static void	addCallback (DtExerciseConn *conn, DtCreateObjReqInterCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtCreateObjReqInterCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtU32	myObjectClass
DtDatumRecordSet	myRecordSet
DtU32	myRequestId

---

Detailed Description

Instances of DtCreateObjReqInter are used to represent CreateObjectRequest Interactions in the RPR FOM.

---

Constructor & Destructor Documentation

DtCreateObjReqInter::DtCreateObjReqInter

(

)

default constructor

virtual DtCreateObjReqInter::~DtCreateObjReqInter

(

)

[virtual]

destructor

DtCreateObjReqInter::DtCreateObjReqInter

(

const DtCreateObjReqInter &

orig

)

copy constructor

---

Member Function Documentation

static void DtCreateObjReqInter::addCallback	(	DtExerciseConn *	conn,
		DtCreateObjReqInterCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual DtU32 DtCreateObjReqInter::attributeHandle

(

DtU32

index

)

const [virtual]

virtual const char* DtCreateObjReqInter::attributeValue

(

DtU32

index

)

const [virtual]

virtual DtU32 DtCreateObjReqInter::attributeValueLength

(

DtU32

index

)

const [virtual]

virtual const RTI::AttributeHandleValuePairSet& DtCreateObjReqInter::avPairSet

(

)

const [virtual]

static DtInteraction* DtCreateObjReqInter::create

(

)

[static]

Create a DtCreateObjReqInter.

Caller is responsible for deletion.

virtual DtDatumRecordSet* DtCreateObjReqInter::datumRecSet

(

)

[virtual]

Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records.

In general, the wrapper functions above should be used rather than going directly through the DtDatumRecordSet, which is necessary only when doing encoding and decoding of network representations.

virtual const DtDatumRecordSet* DtCreateObjReqInter::datumRecSet

(

)

const [virtual]

const char * DtCreateObjReqInter::name

(

)

const [inline, virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

virtual DtU32 DtCreateObjReqInter::numPairs

(

)

const [virtual]

DtU32 DtCreateObjReqInter::objectClass

(

)

const [inline, virtual]

References myObjectClass.

DtCreateObjReqInter& DtCreateObjReqInter::operator=

(

const DtCreateObjReqInter &

orig

)

assignment operator

virtual void DtCreateObjReqInter::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtCreateObjReqInter::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

static void DtCreateObjReqInter::removeCallback	(	DtExerciseConn *	conn,
		DtCreateObjReqInterCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

DtU32 DtCreateObjReqInter::requestId

(

)

const [inline, virtual]

References myRequestId.

virtual void DtCreateObjReqInter::setAttributeHandle	(	DtU32	index,
		DtU32	handle
	)		[virtual]

Set/Get the attribute handle given an index.

virtual void DtCreateObjReqInter::setAttributeValue	(	DtU32	index,
		const char *	usr
	)		[virtual]

virtual void DtCreateObjReqInter::setAttributeValueLength	(	DtU32	index,
		DtU32	length
	)		[virtual]

Set/Get the attribute value length given and index.

virtual void DtCreateObjReqInter::setAvPairSet

(

const RTI::AttributeHandleValuePairSet &

atts

)

[virtual]

virtual void DtCreateObjReqInter::setNumPairs

(

DtU32

pairs

)

[virtual]

Set/Get the number of attribute/value pairs.

void DtCreateObjReqInter::setObjectClass

(

DtU32

id

)

[inline, virtual]

Set/Get object class.

References myObjectClass.

void DtCreateObjReqInter::setRequestId

(

DtU32

id

)

[inline, virtual]

Set/Get request ID.

References myRequestId.

---

Member Data Documentation

DtU32 DtCreateObjReqInter::myObjectClass [protected]

Referenced by objectClass(), and setObjectClass().

DtDatumRecordSet DtCreateObjReqInter::myRecordSet [protected]

DtU32 DtCreateObjReqInter::myRequestId [protected]

Referenced by requestId(), and setRequestId().

---

The documentation for this class was generated from the following file:

• hCrtObjReqInt.h
